Acura RL. Manual - part 598

Fig. 10: Identifying Positive Crankcase Ventilation Hose, Brake Booster Vacuum Hose And
Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the engine wire harness connectors, and install the wire harness clamps to the intake

manifold.



IAT sensor connector



Throttle actuator connector



MAP sensor connector



EVAP canister purge valve connector



IMT valve actuator connector

6. Install the intake air duct (see THROTTLE BODY REMOVAL/INSTALLATION ).

7. Clean up any spilled engine coolant.

8. After installation, check that all tubes, hoses, and connectors are installed correctly.

9. Install the engine cover.

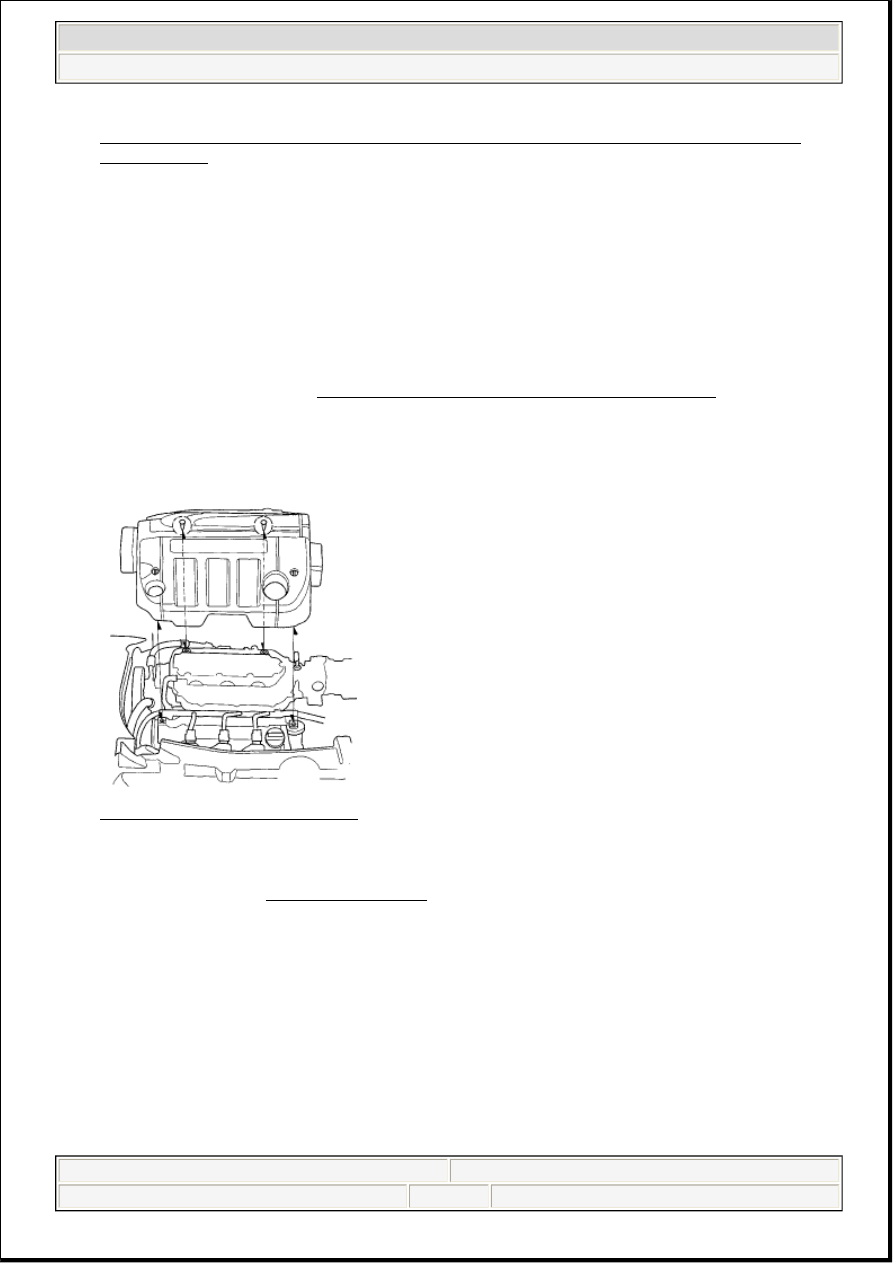

Fig. 11: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Refill the radiator with engine coolant, then bleed air from the cooling system with the heater valve

open (see step 8 under COOLANT CHECK ).

EXHAUST PIPE AND MUFFLER REPLACEMENT

NOTE:

Use new gaskets and self-locking nuts when reassembling.



2007 Acura RL

2005-08 ENGINE Intake Manifold and Exhaust System - RL



me



Friday, June 05, 2009 3:12:35 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

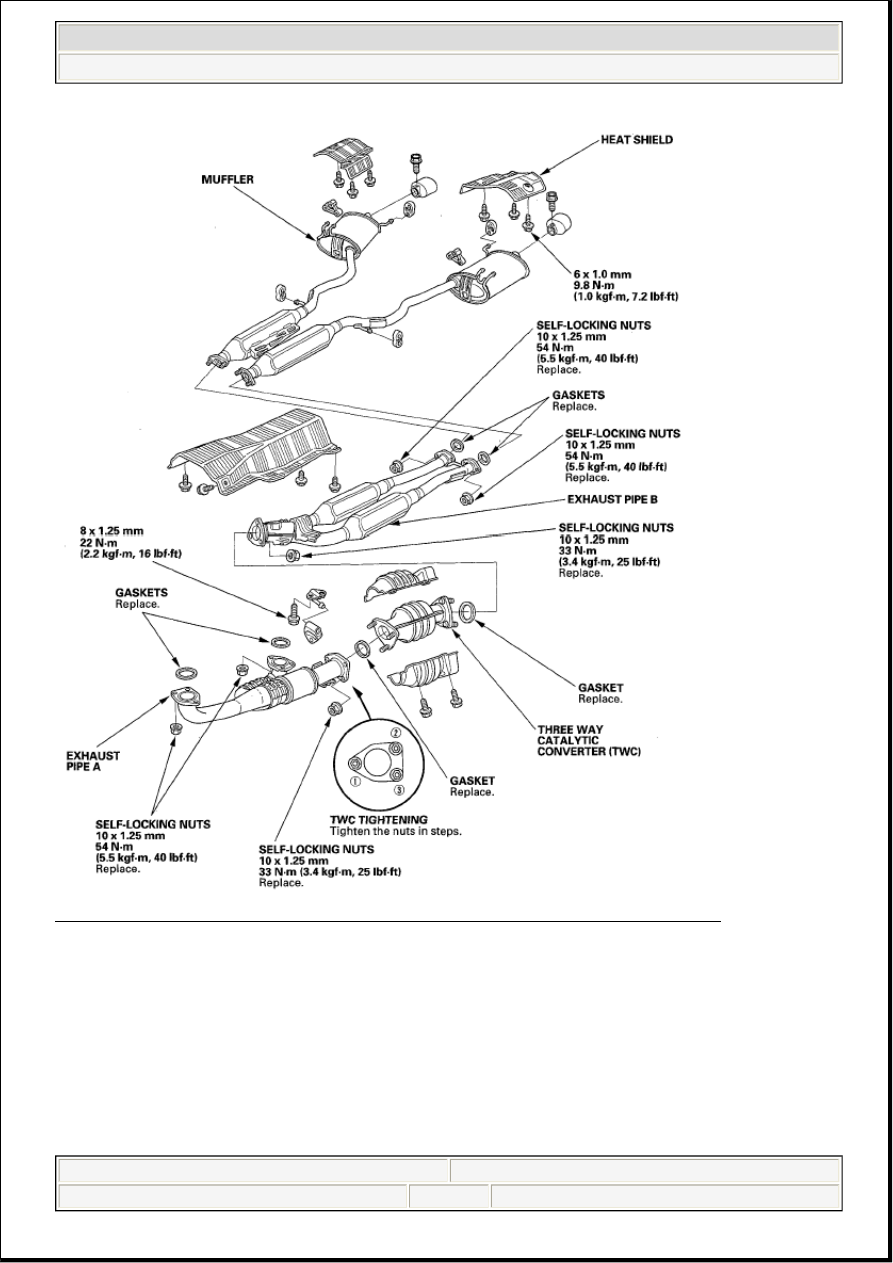

Fig. 12: Identifying Exhaust Pipe And Muffler Components With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Intake Manifold and Exhaust System - RL



me



Friday, June 05, 2009 3:12:35 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Interior Lights - RL

COMPONENT LOCATION INDEX

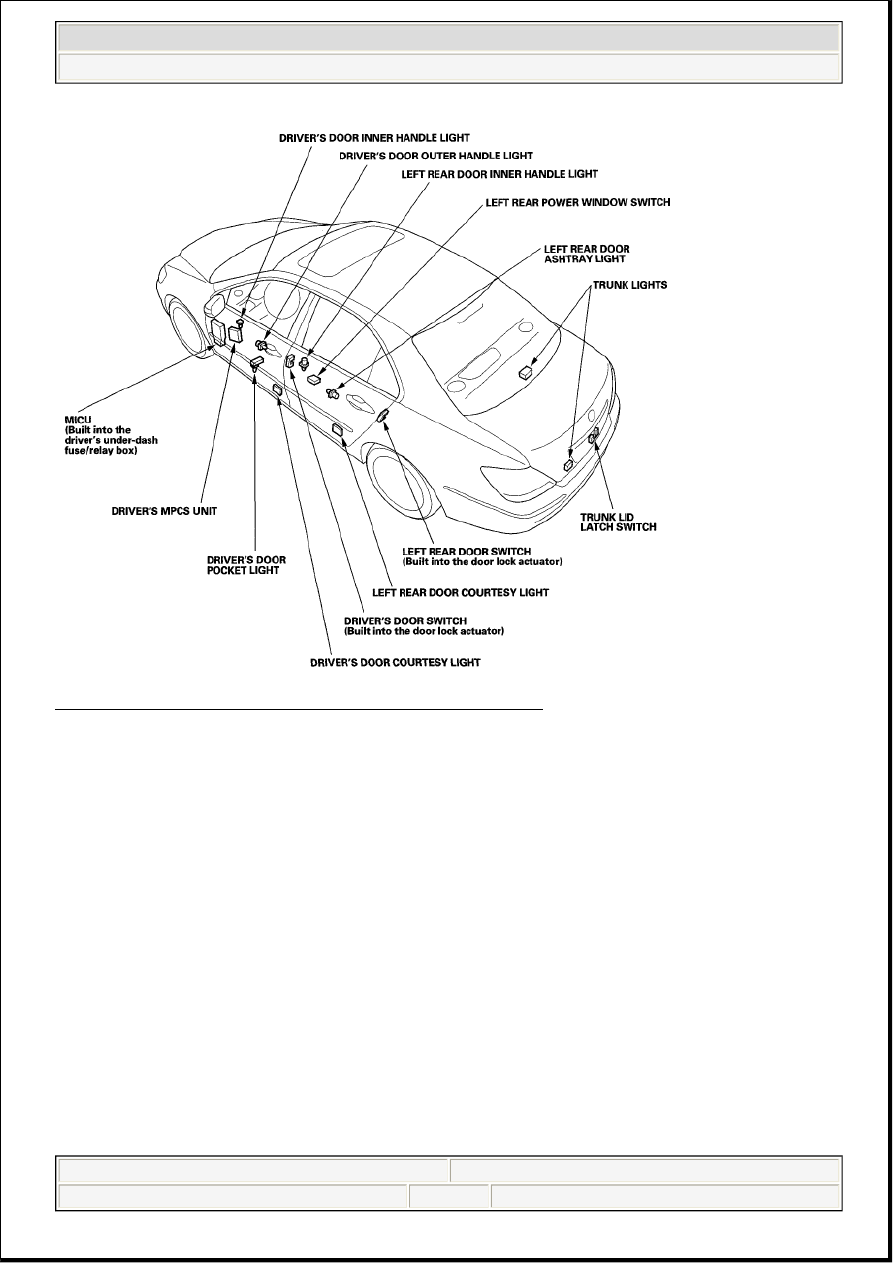

Fig. 1: Identifying Interior Lights Component Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:31:28 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

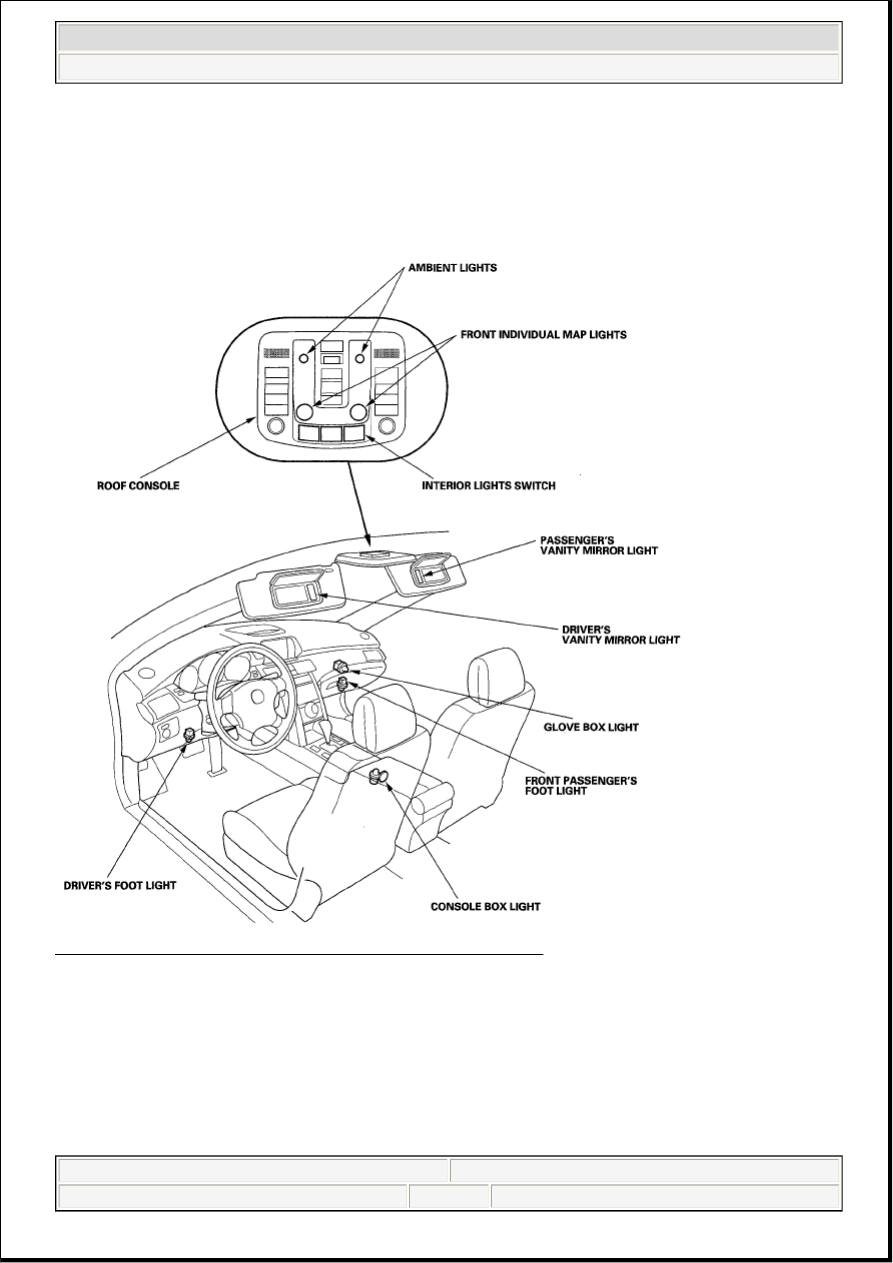

Fig. 2: Identifying Interior Lights Component Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.
