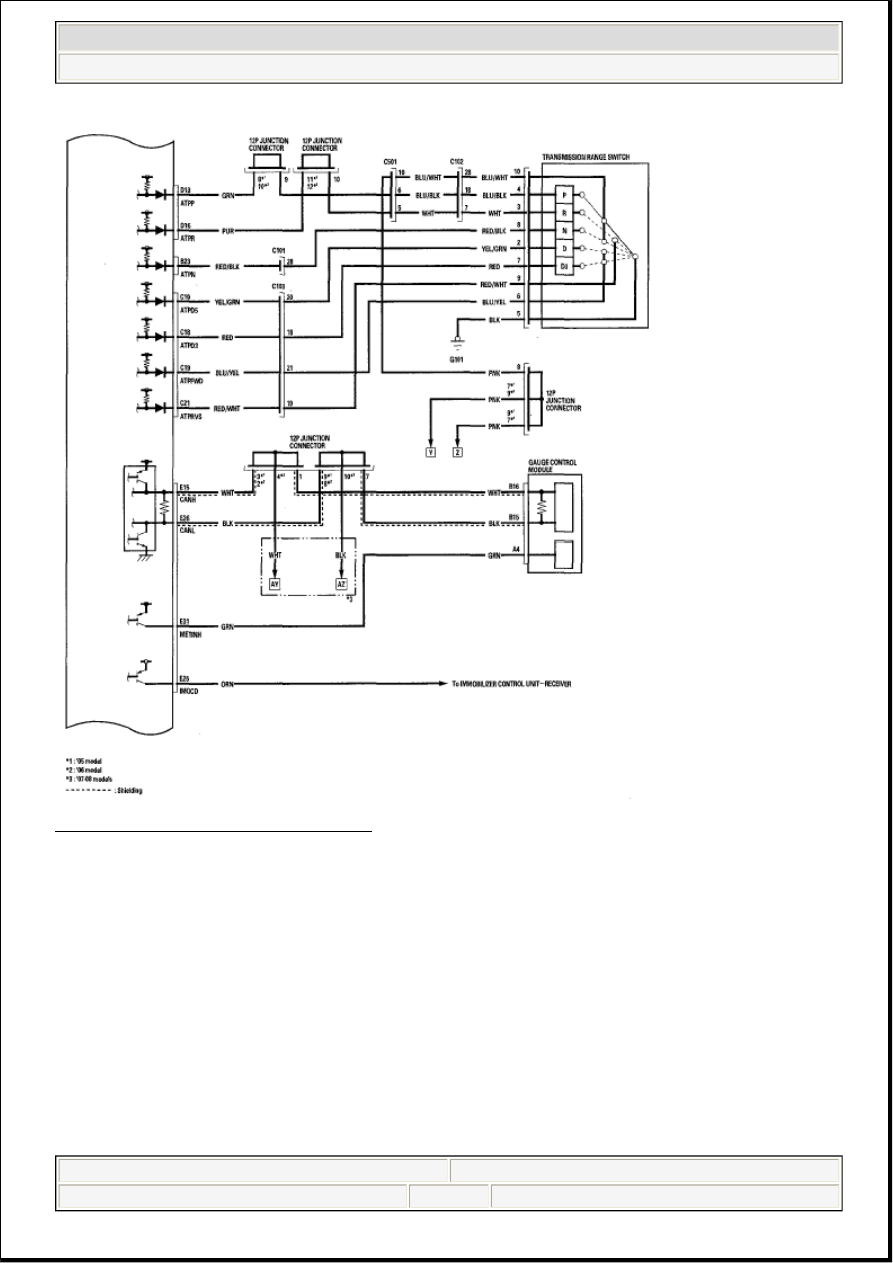

Fig. 55: PCM Circuit Diagram (8 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 71

© 2005 Mitchell Repair Information Company, LLC.

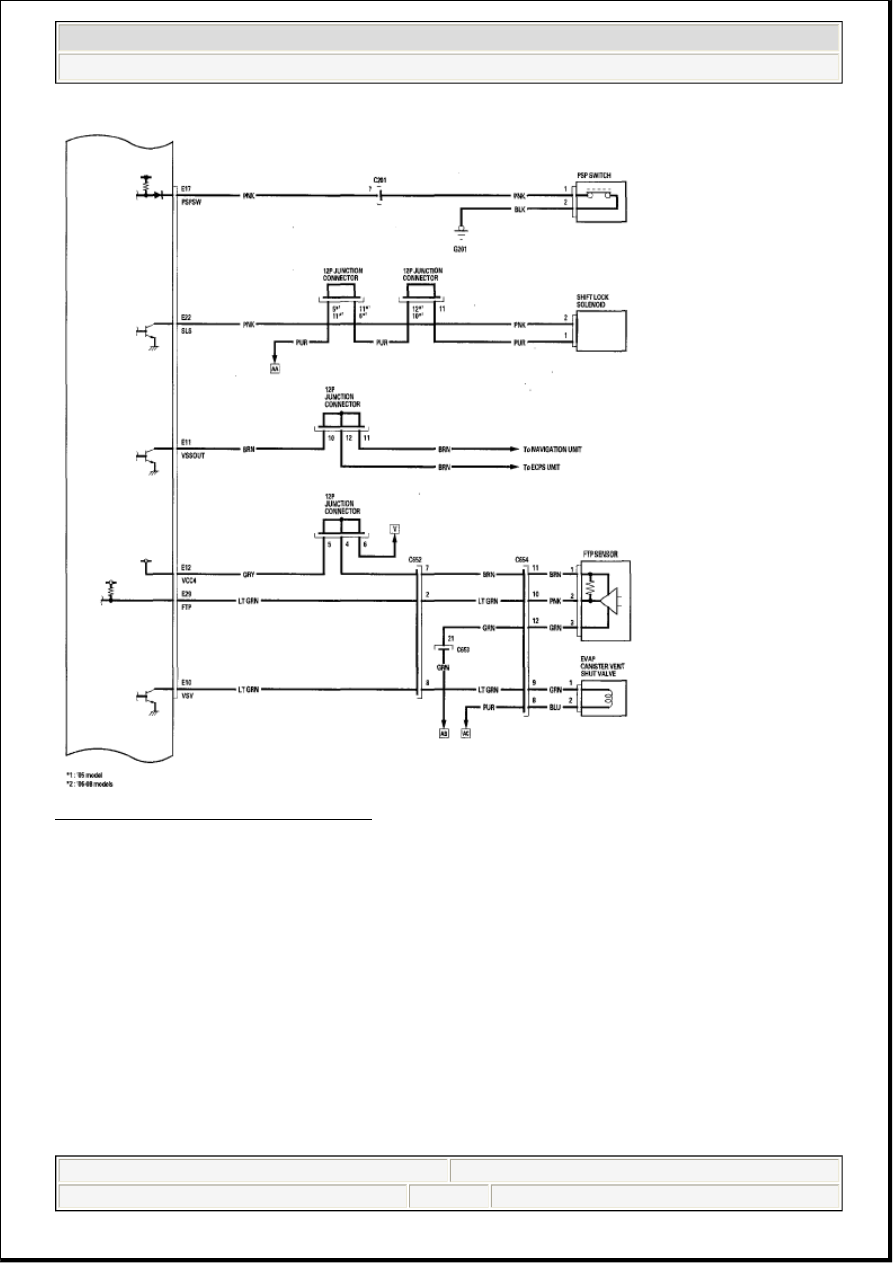

Fig. 56: PCM Circuit Diagram (9 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 72

© 2005 Mitchell Repair Information Company, LLC.

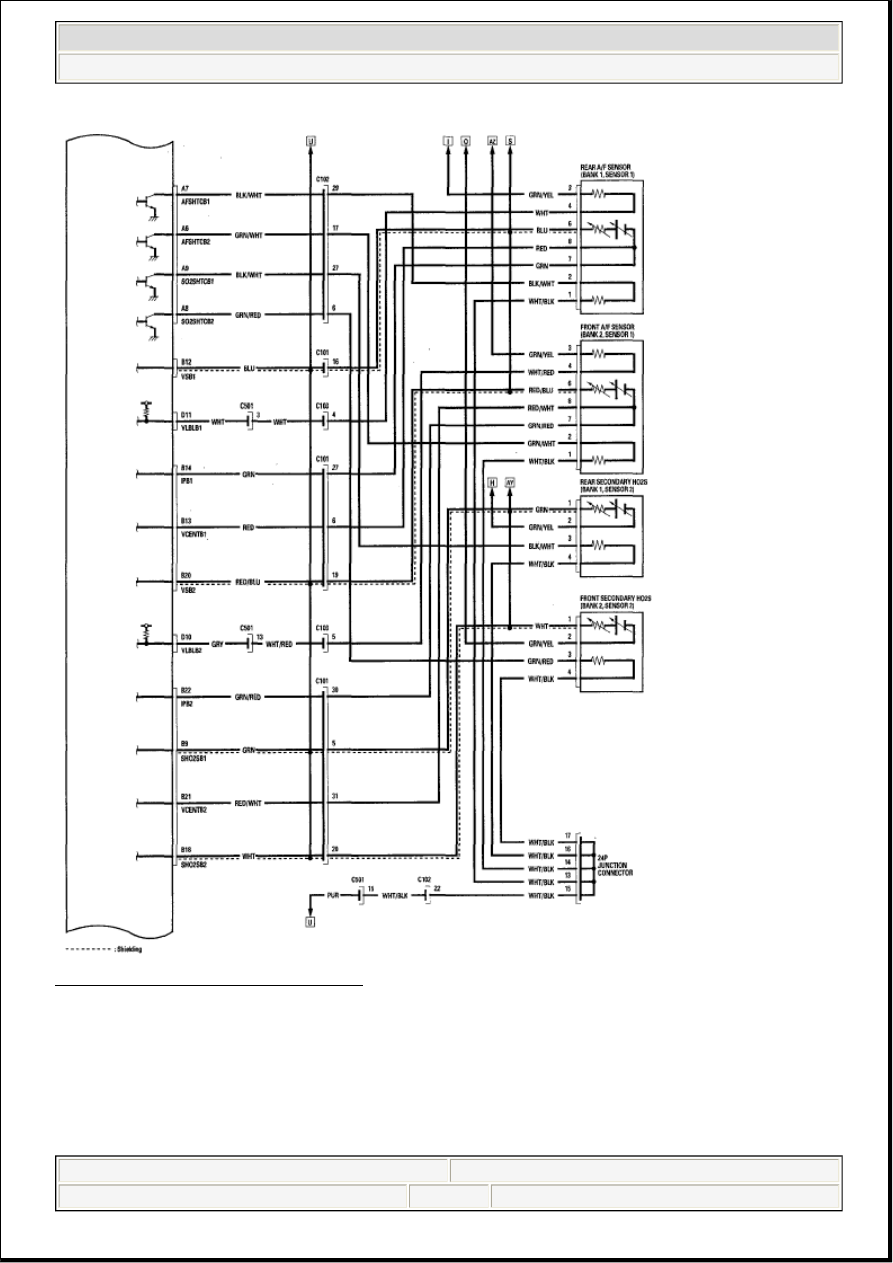

Fig. 57: PCM Circuit Diagram (10 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 73

© 2005 Mitchell Repair Information Company, LLC.

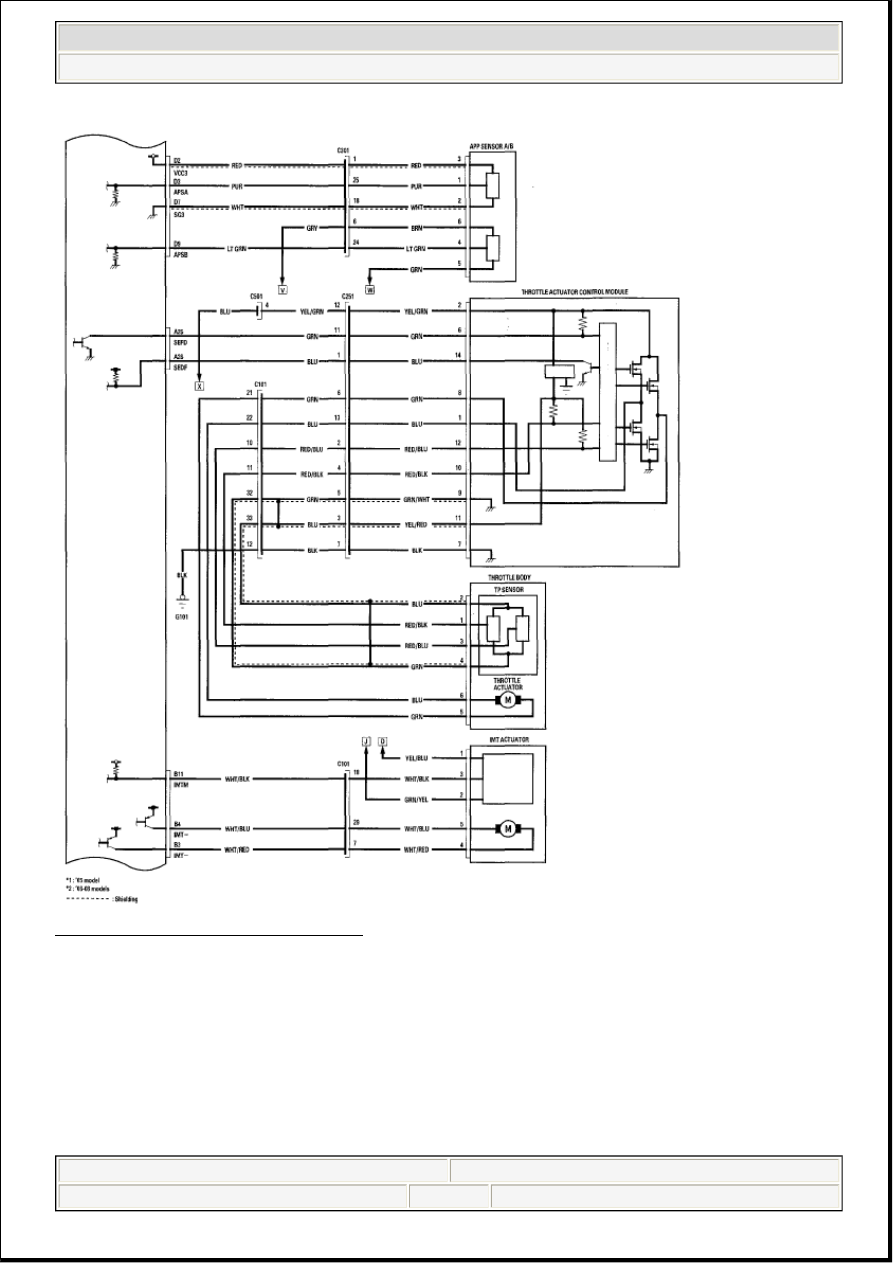

Fig. 58: PCM Circuit Diagram (11 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 74

© 2005 Mitchell Repair Information Company, LLC.
