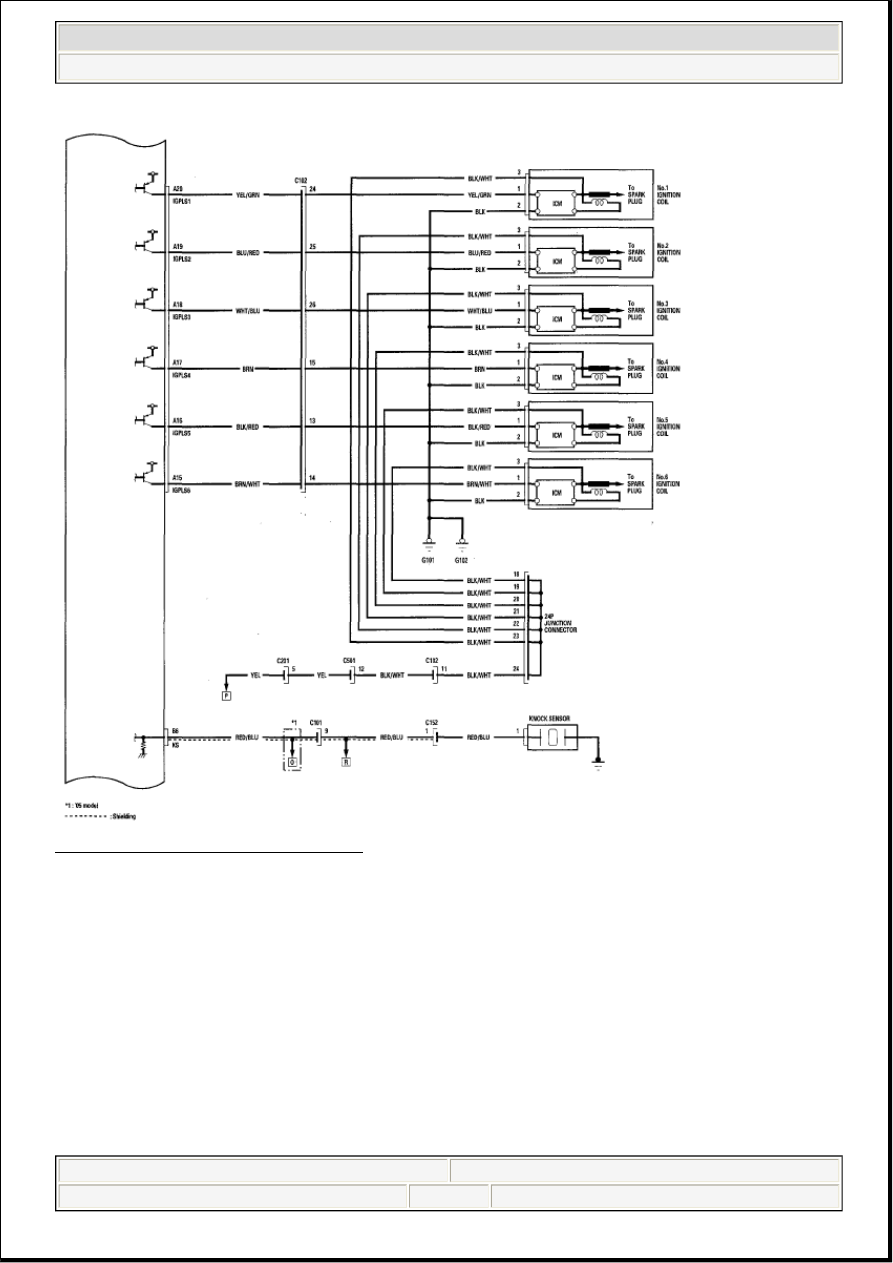

Fig. 51: PCM Circuit Diagram (4 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 67

© 2005 Mitchell Repair Information Company, LLC.

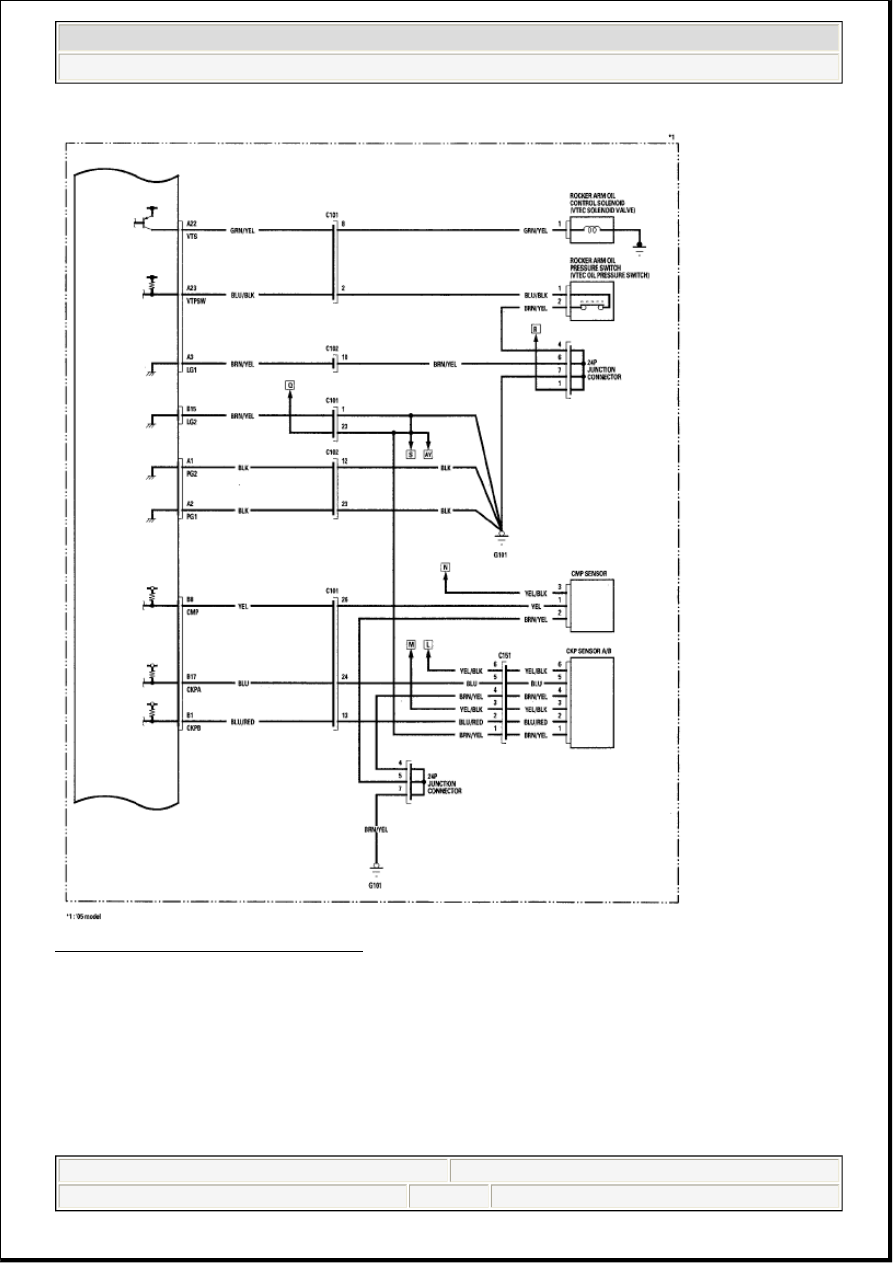

Fig. 52: PCM Circuit Diagram (5 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 68

© 2005 Mitchell Repair Information Company, LLC.

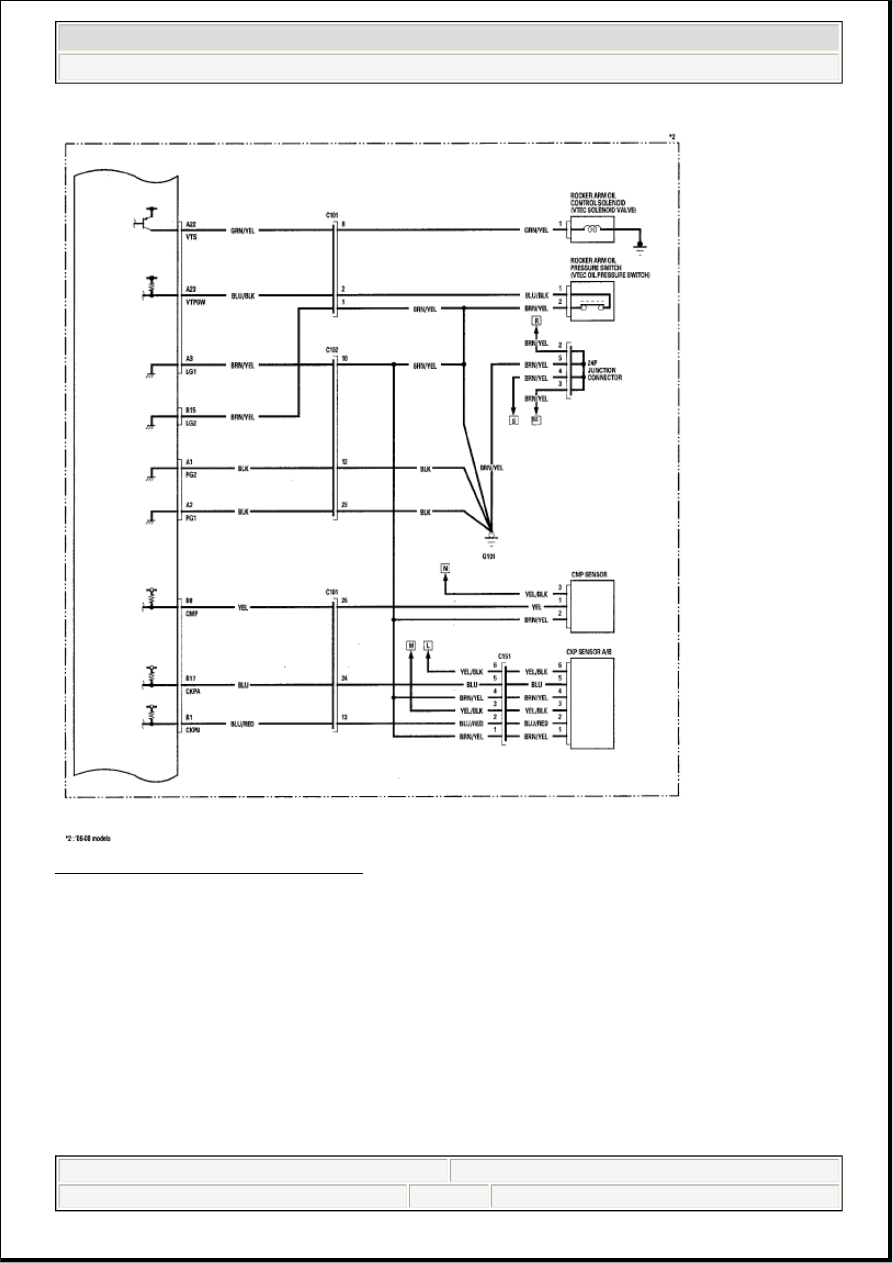

Fig. 53: PCM Circuit Diagram (6 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 69

© 2005 Mitchell Repair Information Company, LLC.

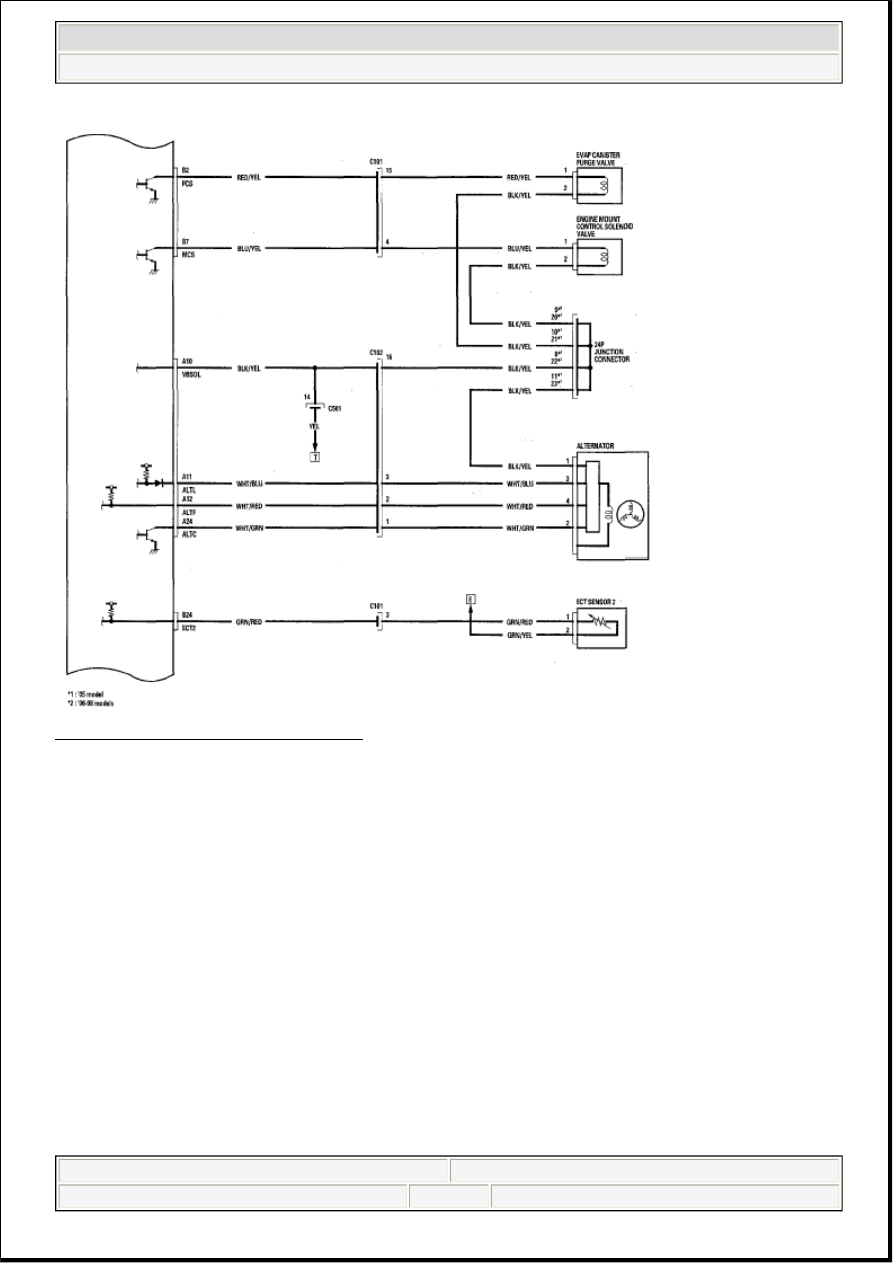

Fig. 54: PCM Circuit Diagram (7 Of 15)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 70

© 2005 Mitchell Repair Information Company, LLC.
