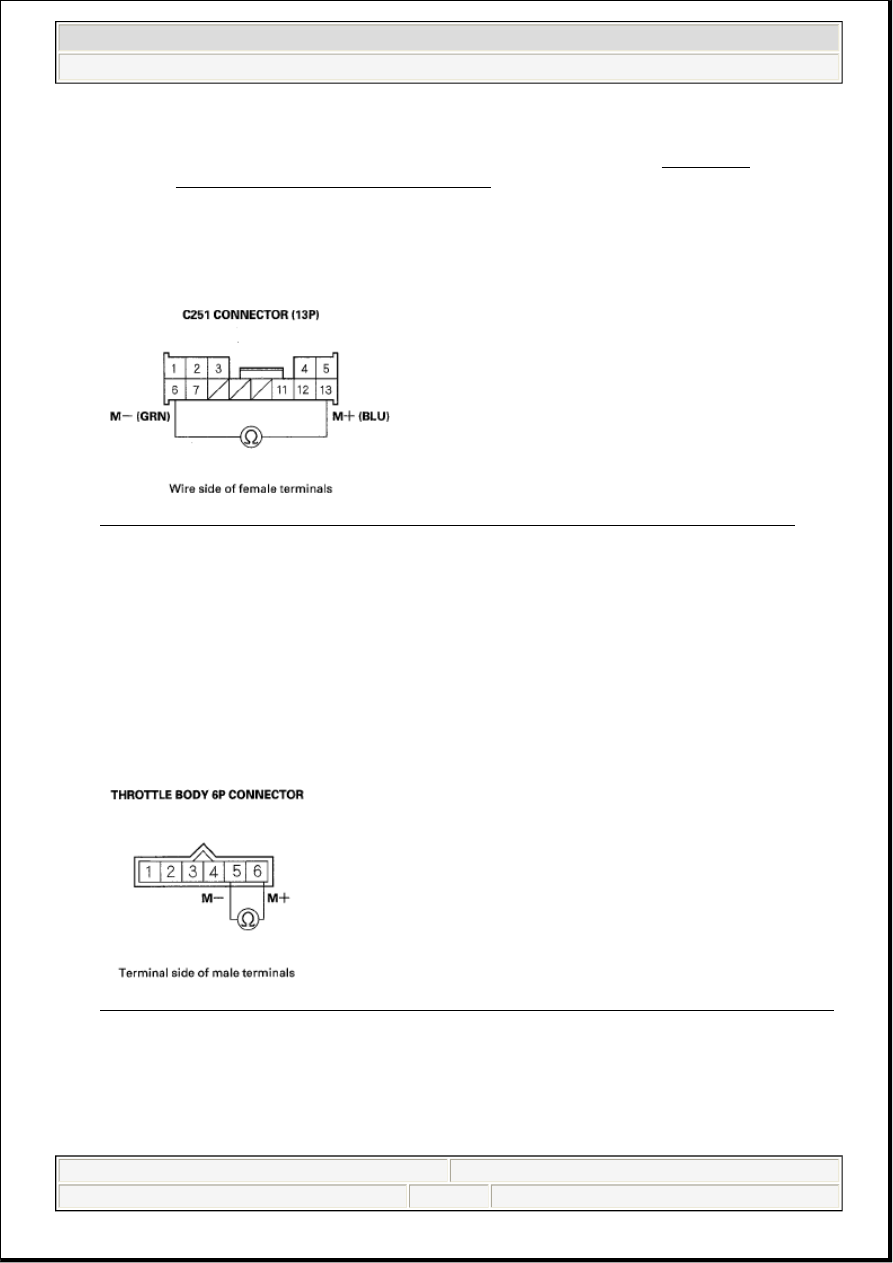

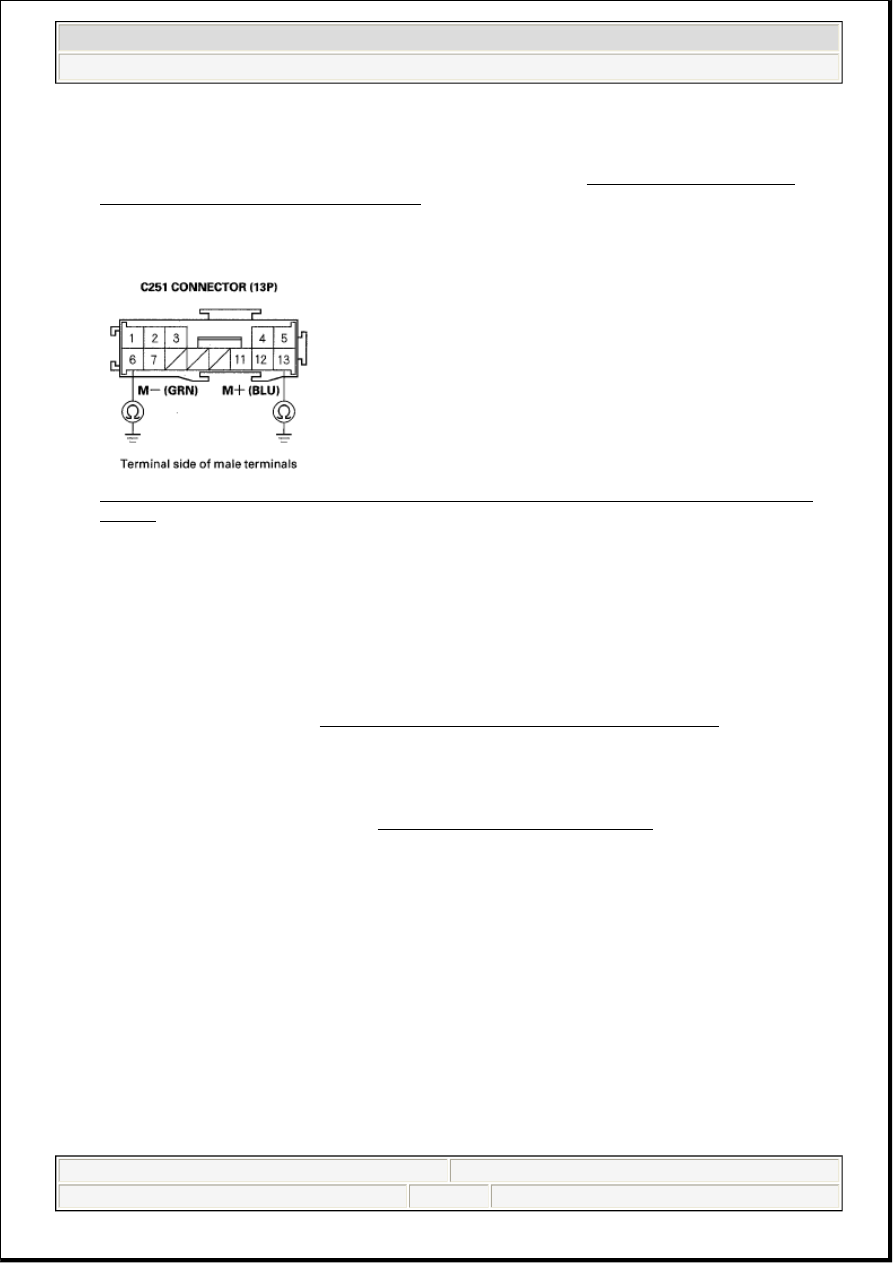

Fig. 32: Checking Continuity Between C251 Connector (13P) Terminals No. 6 And No. 13 Is there continuity? YES - Go to step 17. NO - Repair open in the wire between the throttle body and the C251 connector (motor drive lines), 17. Disconnect the throttle actuator control module 16P connector (see THROTTLE ACTUATOR CONTROL MODULE REPLACEMENT ). 18. Check for continuity between throttle actuator control module 16P connector terminals No. 1 and No. 8 and C251 connector (13P) terminals No. 6 and No. 13 individually. Fig. 33: Checking Continuity Between Throttle Actuator Control Module 16P Connector Is there continuity? YES - Go to step 27. NO - Repair open in the wires between the throttle actuator control module and the C251 connector 19. Turn the ignition switch OFF. 20. Replace the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ). 21. Reconnect all connectors. 22. Turn the ignition switch ON (II). 23. Reset the PCM with the HDS. 24. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ). 25. Test-drive the vehicle for several minutes in the range of the recorded freeze data. 26. Check for Temporary DTCs or DTCs with the HDS.
2007 Acura RL 2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL
