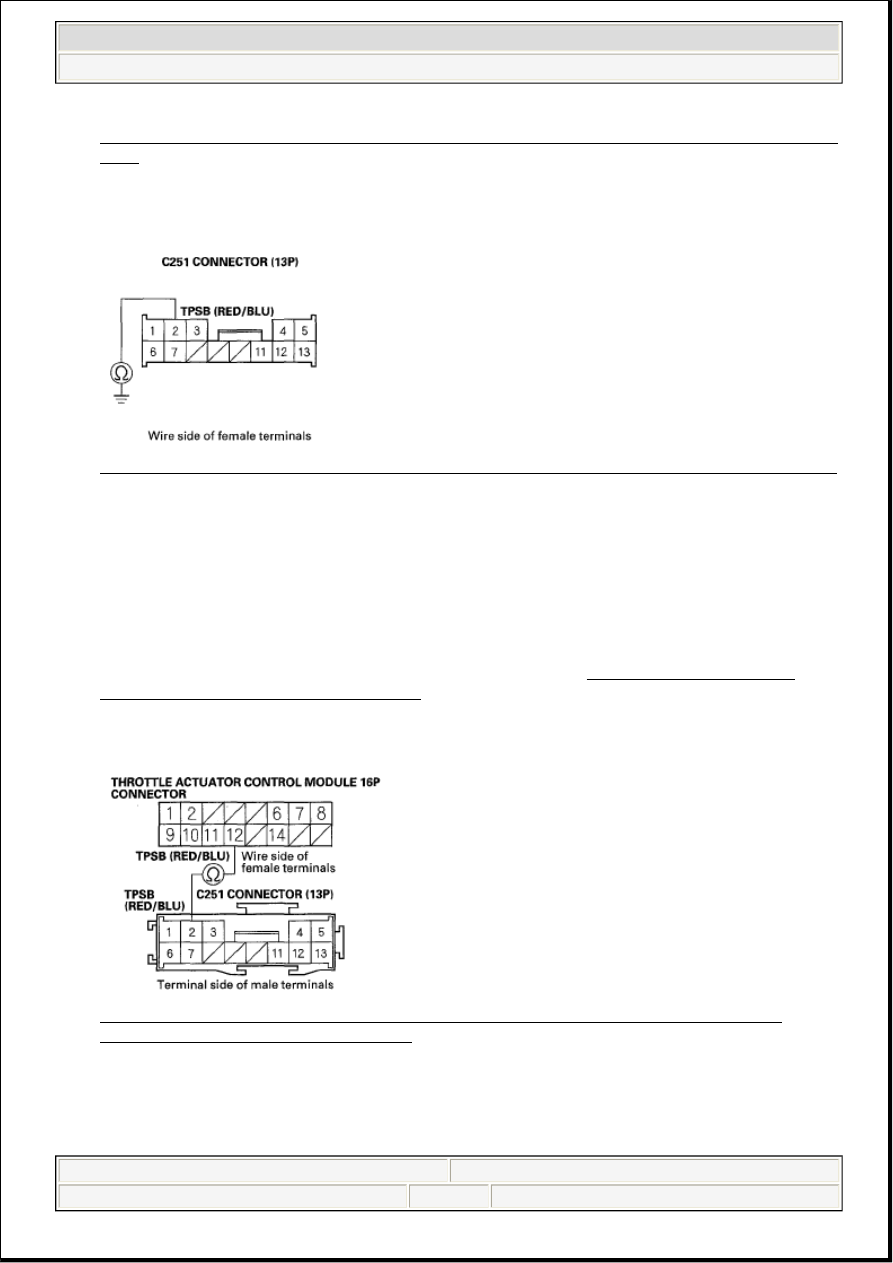

Fig. 23: Connecting Throttle Body 6P Connector Terminal No. 3 To Body Ground With Jumper 10. Check for continuity between C251 connector (13P) terminal No. 2 and body ground. Fig. 24: Checking Continuity Between C251 Connector (13P) Terminal No. 2 And Body Ground Is there continuity? YES - Go to step 11. NO - Repair open in the wire between the throttle body and the C251 connector (TPSB line), then go 11. Disconnect the throttle actuator control module 16P connector (see THROTTLE ACTUATOR CONTROL MODULE REPLACEMENT ). 12. Check for continuity between throttle actuator control module 16P connector terminal No. 12 and C251 connector (13P) terminal No. 2. Fig. 25: Checking Continuity Between Throttle Actuator Control Module 16P Connector Is there continuity? YES - Go to step 27.
2007 Acura RL 2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL
