Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between the throttle actuator control module and the C251 connector
(TPSB line), then go to step 21.

NO - Go to step 26.

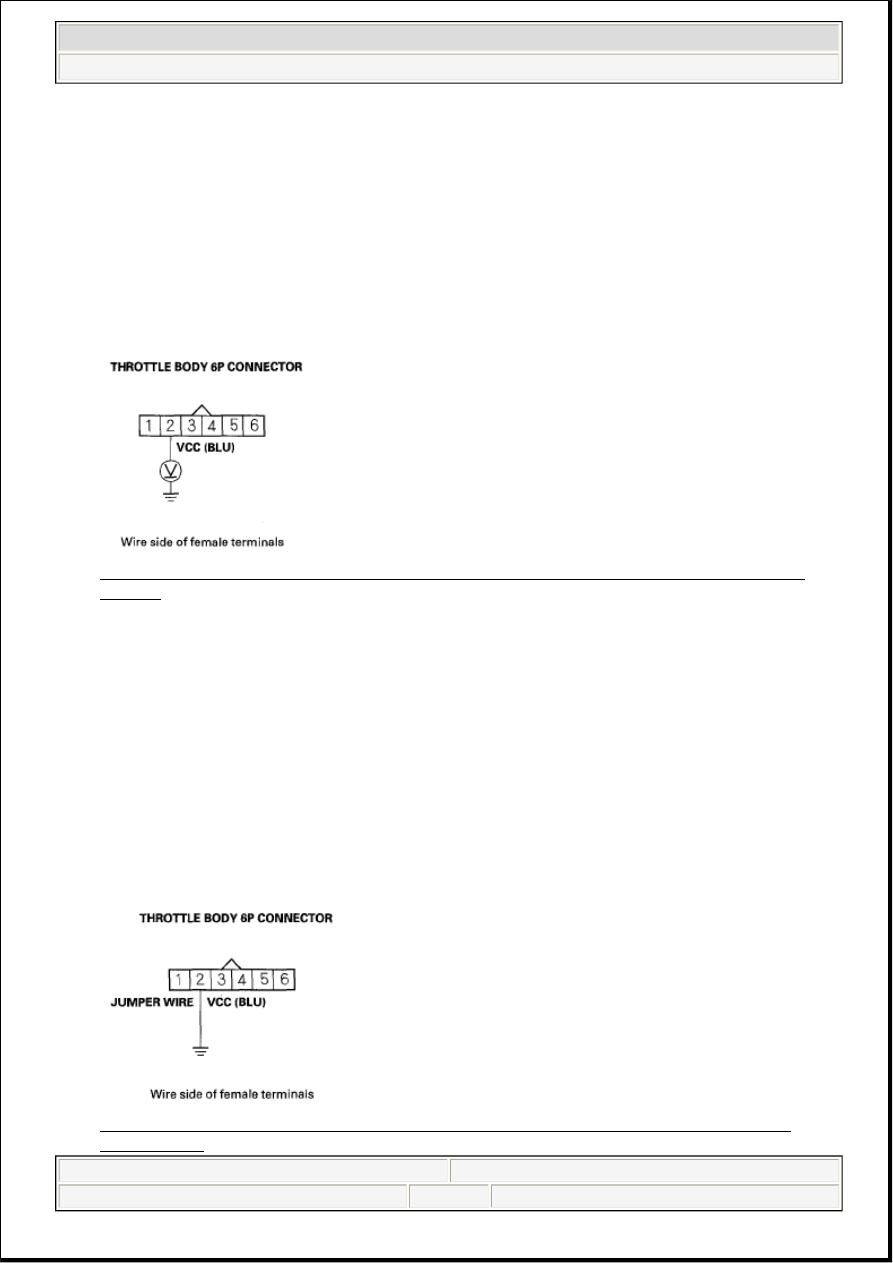

11. Measure voltage between throttle body 6P connector terminal No. 2 and body ground.

Fig. 18: Measuring Voltage Between Throttle Body 6P Connector Terminal No. 2 And Body
Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Go to step 19.

NO - Go to step 12.

12. Turn the ignition switch OFF.

13. Disconnect the throttle body 6P connector.

14. Disconnect the C251 connector (13P) between the PCM subharness and the throttle actuator control

module subharness.

15. Connect throttle body 6P connector terminal No. 2 to body ground with a jumper wire.

Fig. 19: Connecting Throttle Body 6P Connector Terminal No. 2 To Body Ground With A
Jumper Wire




2007 Acura RL

2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL



me



Friday, June 05, 2009 2:29:49 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

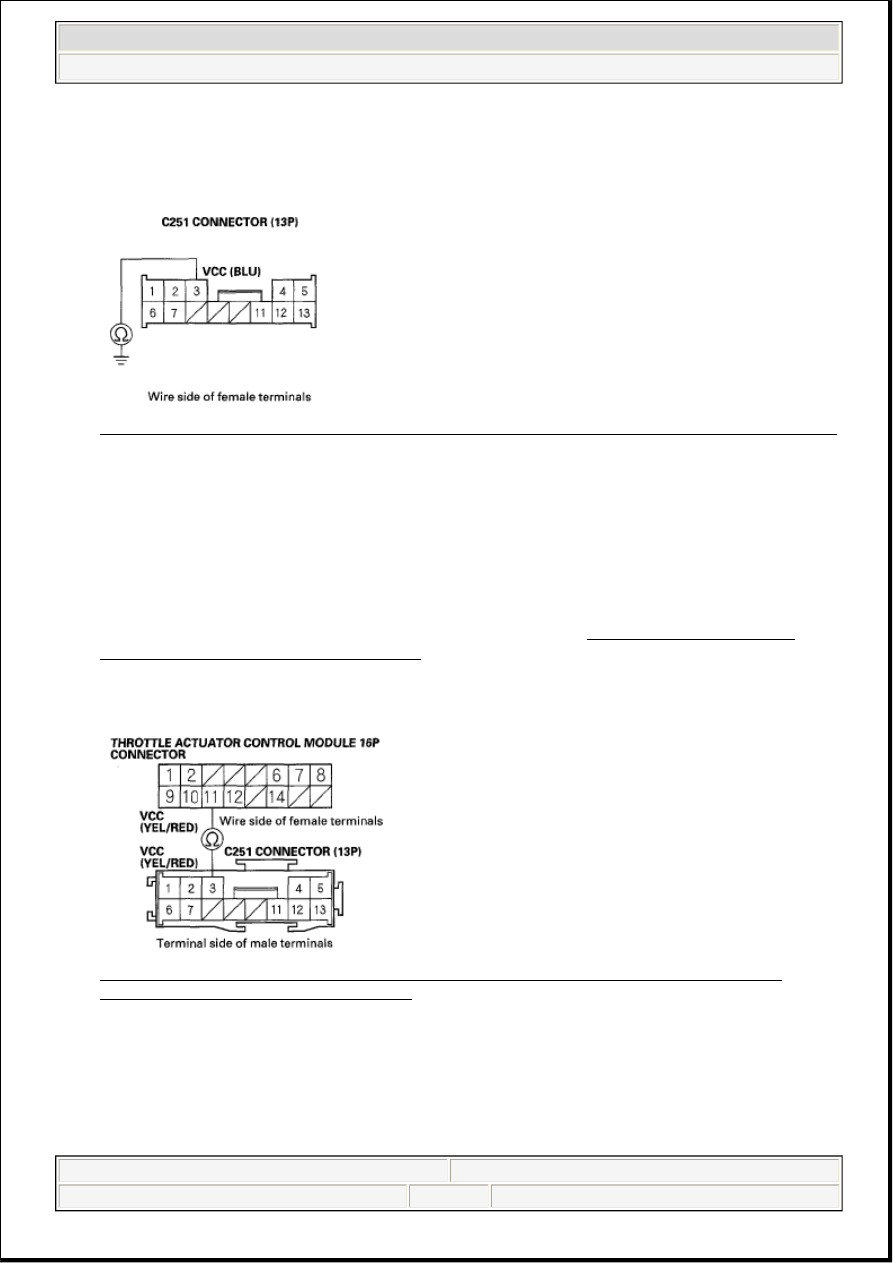

16. Check for continuity between C251 connector (13P) terminal No. 3 and body ground.

Fig. 20: Checking Continuity Between C251 Connector (13P) Terminal No. 3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.


Is there continuity?

YES - Go to step 21.

NO - Repair open in the wire between the throttle body and the throttle actuator control module (VCC
line), then go to step 21.

17. Disconnect the throttle actuator control module 16P connector (see THROTTLE ACTUATOR

CONTROL MODULE REPLACEMENT ).

18. Check for continuity between throttle actuator control module 16P connector terminal No. 11 and

C251 connector (13P) terminal No. 3.

Fig. 21: Checking Continuity Between Throttle Actuator Control Module 16P Connector
Terminal 11 And C251 (13P) Terminal 3

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 26.

NO - Repair open in the wire between the throttle actuator control module (VCC line) and the C251



2007 Acura RL

2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL



me



Friday, June 05, 2009 2:29:49 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

connector, then go to step 21.

19. Turn the ignition switch OFF.

20. Replace the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).

21. Reconnect all connectors.

22. Turn the ignition switch ON (II).

23. Reset the PCM with the HDS.

24. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).

25. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0222 indicated?

YES - Check for poor connections or loose terminals at the throttle body and the throttle actuator
control module, then go to step 1.

NO - Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
indicated DTCs troubleshooting.

26. Reconnect all connectors.

27. Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or substitute a

known-good PCM (see SUBSTITUTING THE PCM ).

28. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0222 indicated?

YES - Check for poor connections or loose terminals at the throttle body and the throttle actuator
control module. If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE
PCM
 ), then recheck. If the PCM was substituted, go to step 1.

NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the
original PCM (see PCM REPLACEMENT ). If any other Temporary DTCs or DTCs are indicated,
go to the indicated DTCs troubleshooting.

DTC P0223: TP SENSOR B CIRCUIT HIGH VOLTAGE

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check TP SENSOR A in the DATA LIST with the HDS.

Is there about 4.8 V or more?

YES - Go to step 4.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot,
and review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL



me



Friday, June 05, 2009 2:29:49 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals
at the throttle body and the throttle actuator control module.

4. Check for Temporary DTCs or DTCs with the HDS.

Are DTC P0123 and P0223 indicated at the same time?

YES - Go to step 13.

NO - Go to step 5.

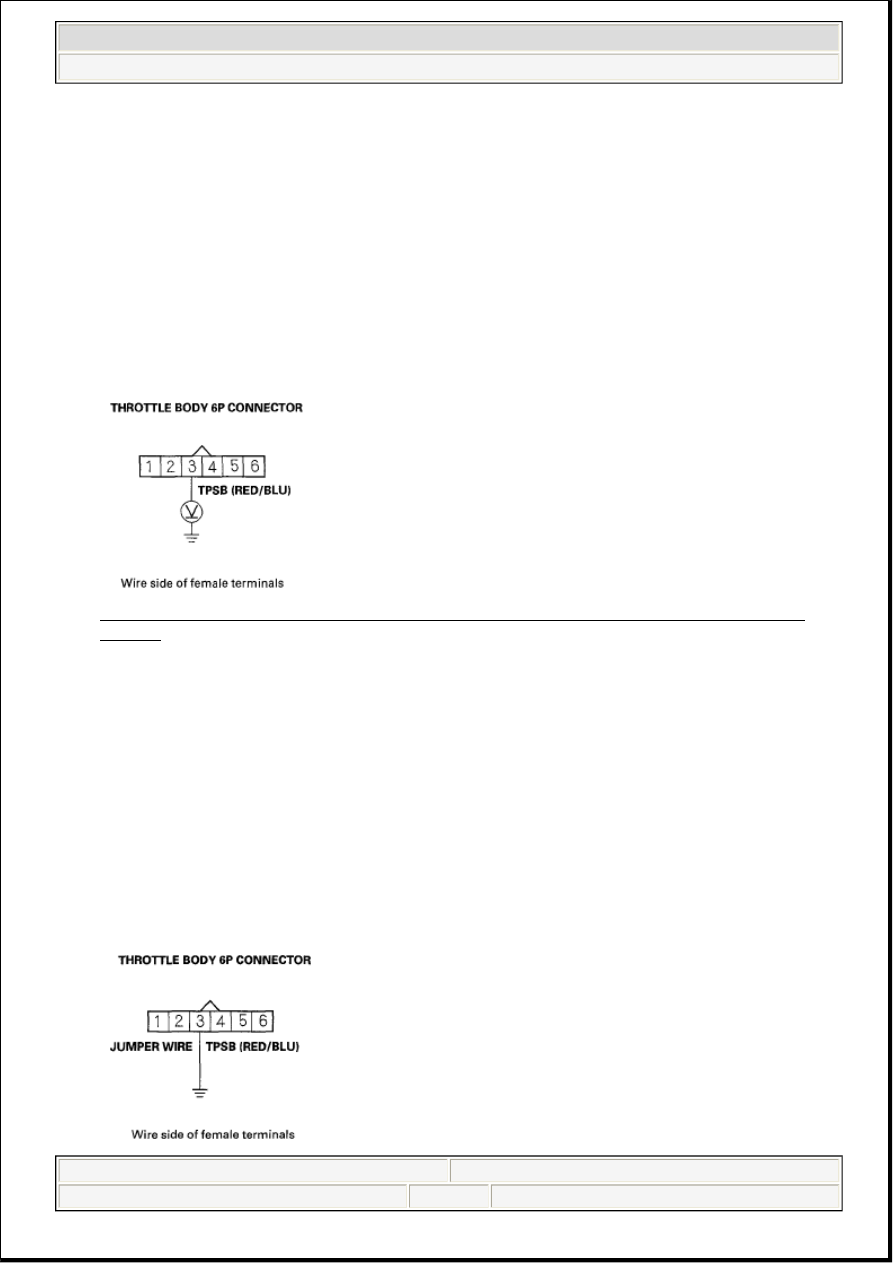

5. Measure voltage between throttle body 6P connector terminal No. 3 and body ground.

Fig. 22: Measuring Voltage Between Throttle Body 6P Connector Terminal No. 3 And Body
Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Go to step 20.

NO - Go to step 6.

6. Turn the ignition switch OFF.

7. Disconnect the throttle body 6P connector.

8. Disconnect the C251 connector (13P) between the PCM subharness and the throttle actuator control

module subharness.

9. Connect throttle body 6P connector terminal No. 3 to body ground with a jumper wire.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Electronic Throttle Control System - RL



me



Friday, June 05, 2009 2:29:49 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.
