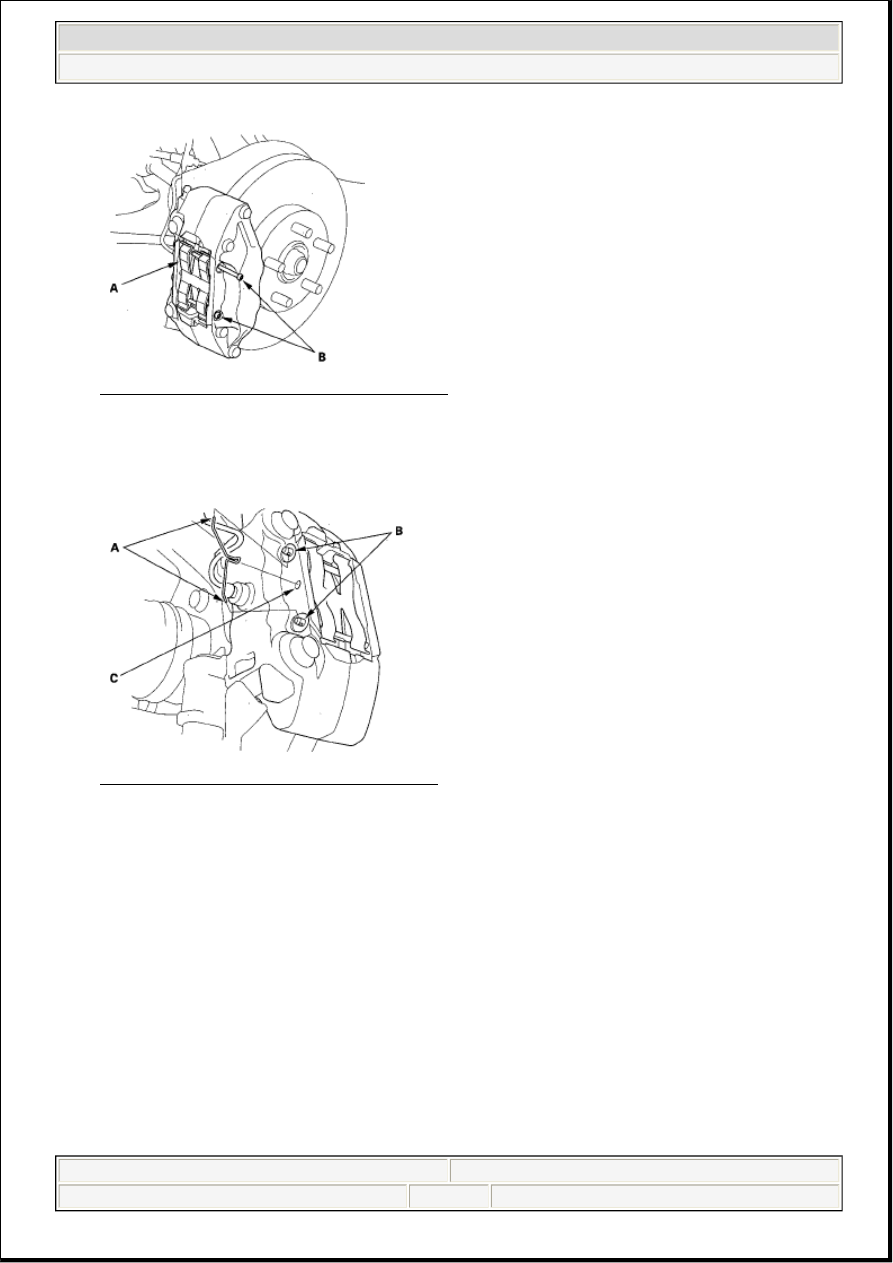

Fig. 25: Identifying Pad Spring And Pad Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. First insert the clip ends (A) to the pad pins (B), and then twist the clip into the caliper hole (C) to

stabilize.

Fig. 26: Identifying Clip Ends And Pad Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Clean the mating surface of the brake disc and the inside of the wheel, then install the front wheels.

17. Press the brake pedal several times to make sure the brakes work.

18. Add brake fluid as needed.

19. After installation, check for leaks at the brake hose and line joints or connections, and retighten if

necessary.

20. Reinstall the front wheels, then test-drive the vehicle.

21. Check for leaks.

FRONT BRAKE DISC INSPECTION

NOTE:

Engagement of the brakes may require a greater pedal stroke
immediately after the brake pads have been replaced as a set. Several
applications of the brake pedal will restore the normal pedal stroke.

2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL

Friday, June 05, 2009 3:00:06 PM

Page 17

RUNOUT

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT

AND SUPPORT POINTS ).

2. Remove the front wheels.

3. Remove the brake pads (see REPLACEMENT ).

4. Inspect the brake disc surface for damage and cracks. Clean the brake disc thoroughly, and remove all

rust.

5. Install suitable flat washers (A) and wheel nuts, and tighten the nuts to the specified torque to hold the

brake disc securely against the hub.

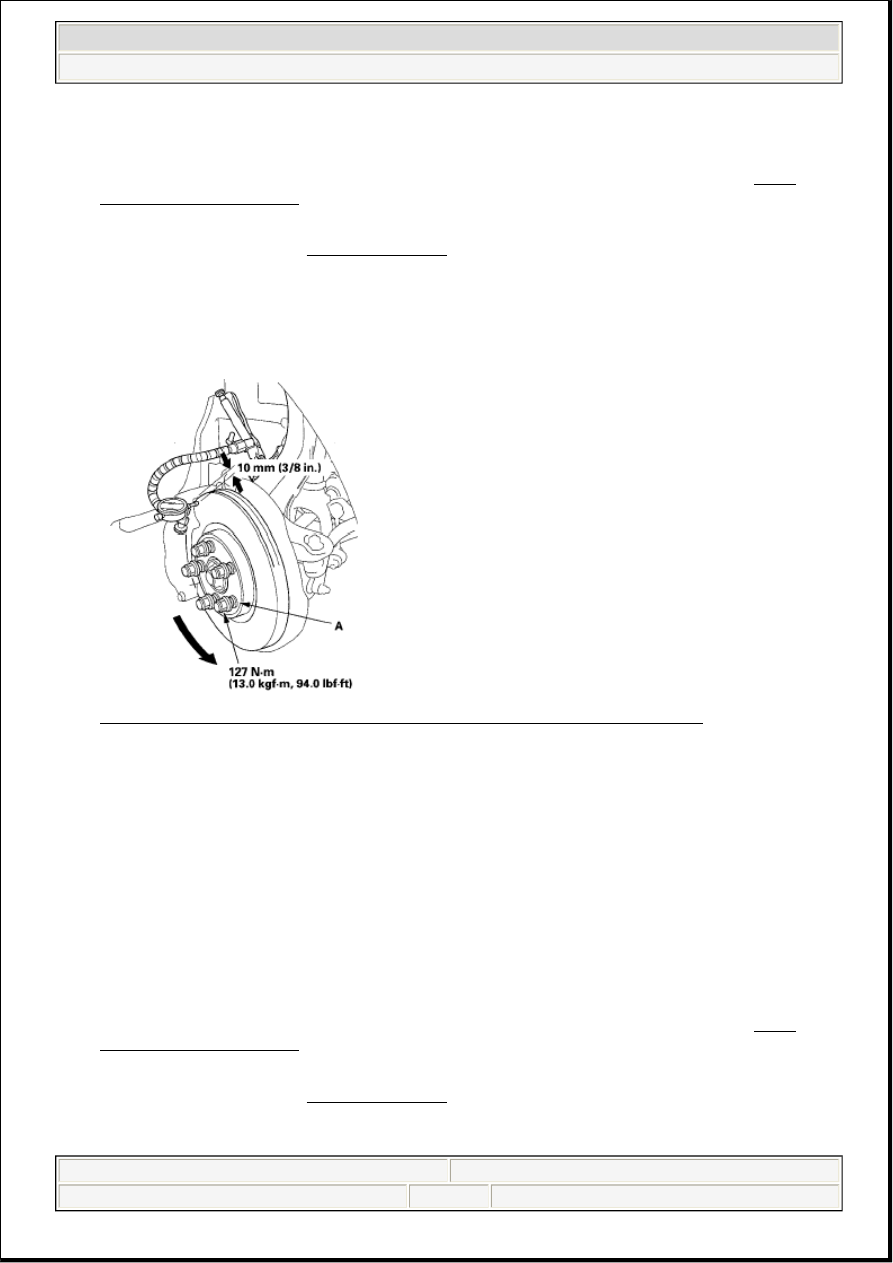

Fig. 27: Setting Up Dial Gauge Against Brake Disc With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Set up the dial gauge against the brake disc as shown, and measure the runout at 10 mm (3/8 in.) from

the outer edge of the brake disc.

Brake disc runout:

Service limit: 0.04 mm (0.0016 in.)

7. If the brake disc is beyond the service limit for runout, refinish the brake disc with a commercially

available on-car brake lathe.

THICKNESS AND PARALLELISM

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT

AND SUPPORT POINTS ).

2. Remove the front wheels.

3. Remove the brake pads (see REPLACEMENT ).

4. Using a micrometer, measure brake disc thickness at eight points, approximately 45 "apart and 10 mm

(3/8 in.) in from the outer edge of the brake disc. Replace the brake disc if the smallest measurement

2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL

Friday, June 05, 2009 3:00:06 PM

Page 18

is less than the max. refinishing limit.

Brake disc thickness:

Standard: 27.9-28.1 mm (1.10-1.11 in.)

Max. refinishing limit: 26.0 mm (1.02 in.)

Brake disc parallelism: 0.015 mm (0.0006 in.) max.

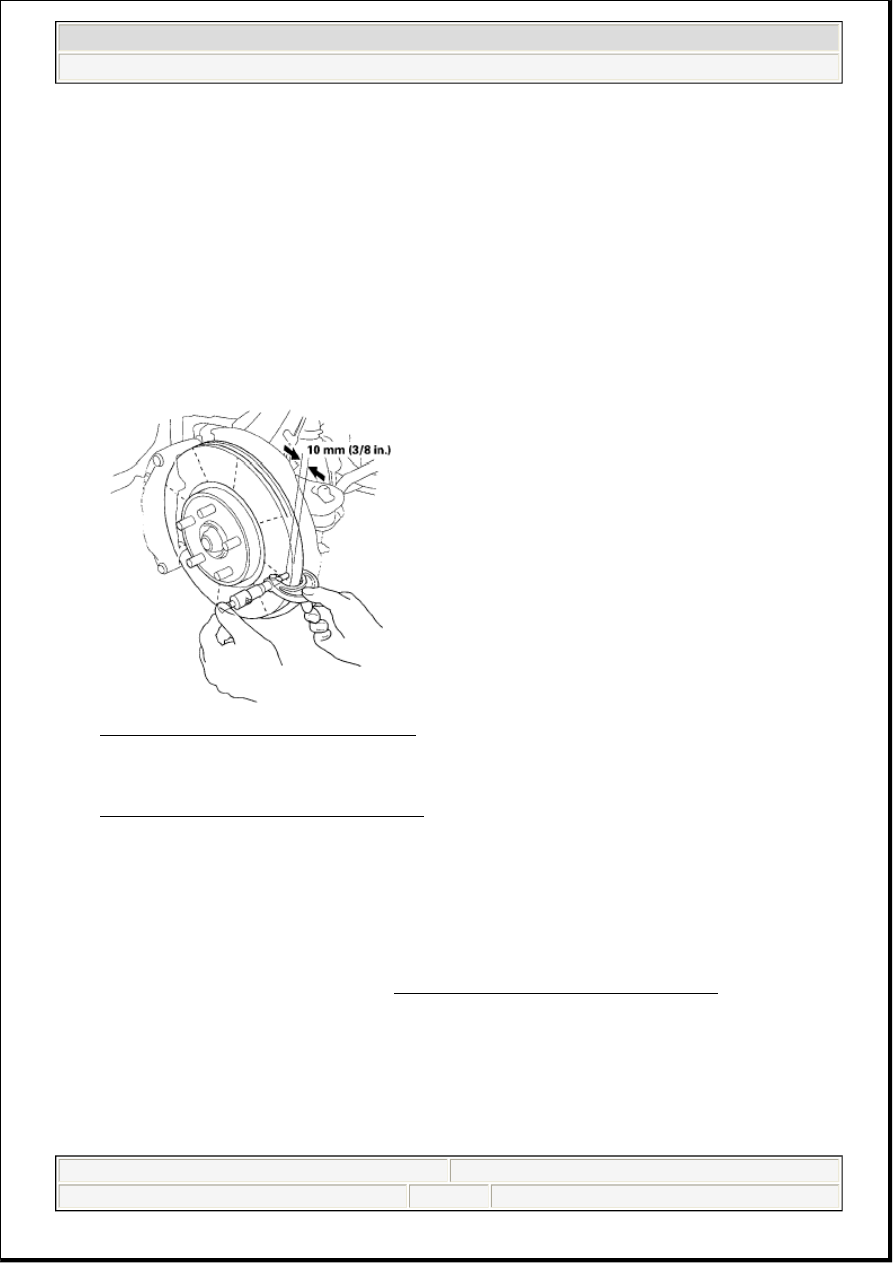

Fig. 28: Measuring Brake Disc Thickness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. If the smallest measurement is less than the max. refinishing limit, replace the brake disc (see

FRONT BRAKE DISC REPLACEMENT ).

6. If the brake disc is beyond the service limit for parallelism, refinish the brake disc with a

commercially available on-car brake lathe.

REFINISHING

1. Remove the brake caliper assembly (see FRONT BRAKE DISC REPLACEMENT ).

2. Install the brake lathe brackets (A) to the knuckle (B).

NOTE:

This is the maximum allowable difference between the thickness
measurements.

NOTE:

Refinish the brake disc with a commercially available on-car brake lathe.

NOTE:

Place two bolts (C) in the brackets before tightening the bolts (D).

2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL

Friday, June 05, 2009 3:00:06 PM

Page 19

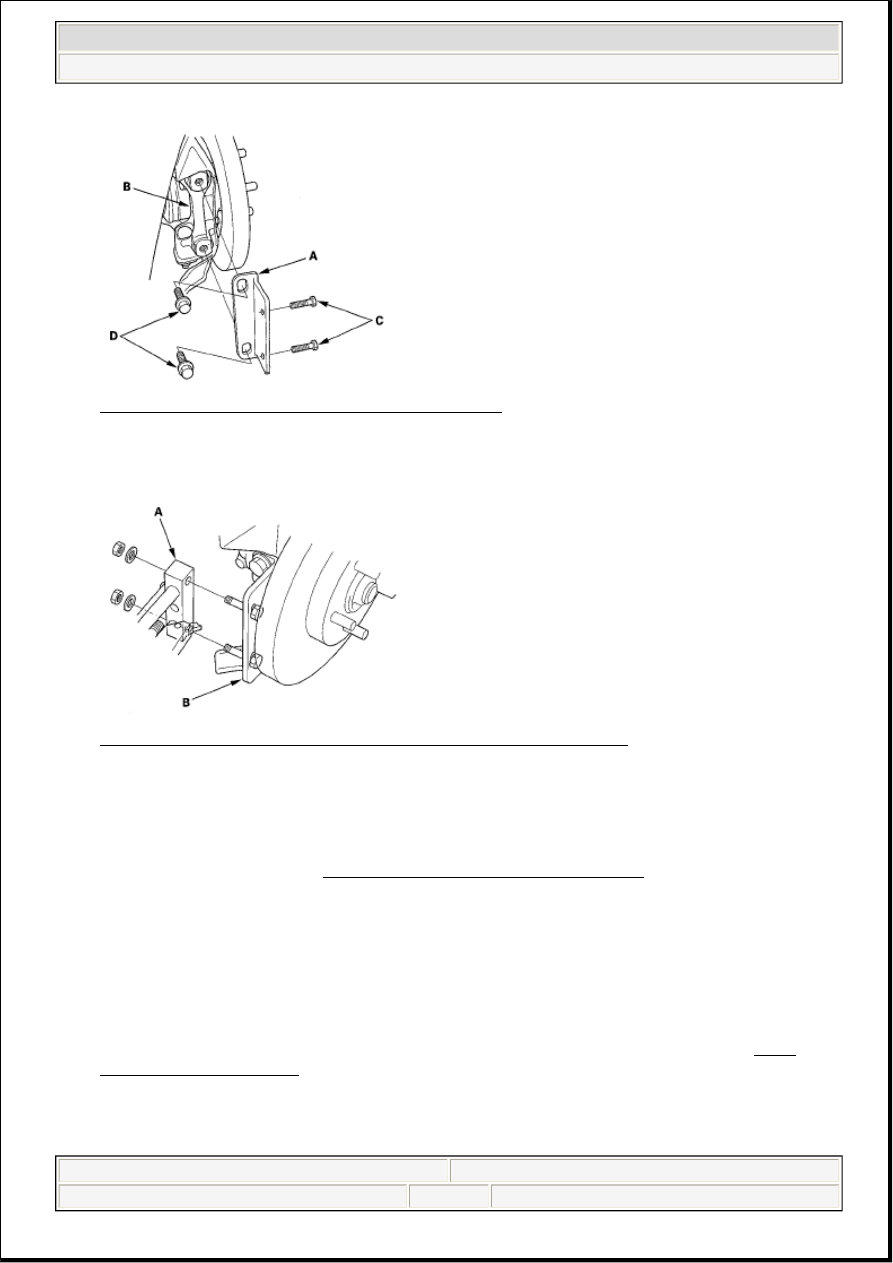

Fig. 29: Identifying Brake Lathe Brackets And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the on-car brake lathe adapters (A) to the brake lathe bracket (B), then refinish the brake disc.

Fig. 30: Identifying Brake Lathe Adapters And Brake Lathe Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Measure the brake disc runout, thickness, and parallelism.

Max. refinishing limit: 26.0 mm (1.02 in.)

FRONT BRAKE DISC REPLACEMENT

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT

AND SUPPORT POINTS ).

2. Remove the front wheels.

3. Remove the brake hose mounting bracket (A).

NOTE:



If the brake disc is beyond the service limit for refinishing, replace
it (see FRONT BRAKE DISC REPLACEMENT ).



A new brake disc should be refinished if its runout is greater than
0.04 mm (0.0016 in.).

2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL

Friday, June 05, 2009 3:00:06 PM

Page 20
