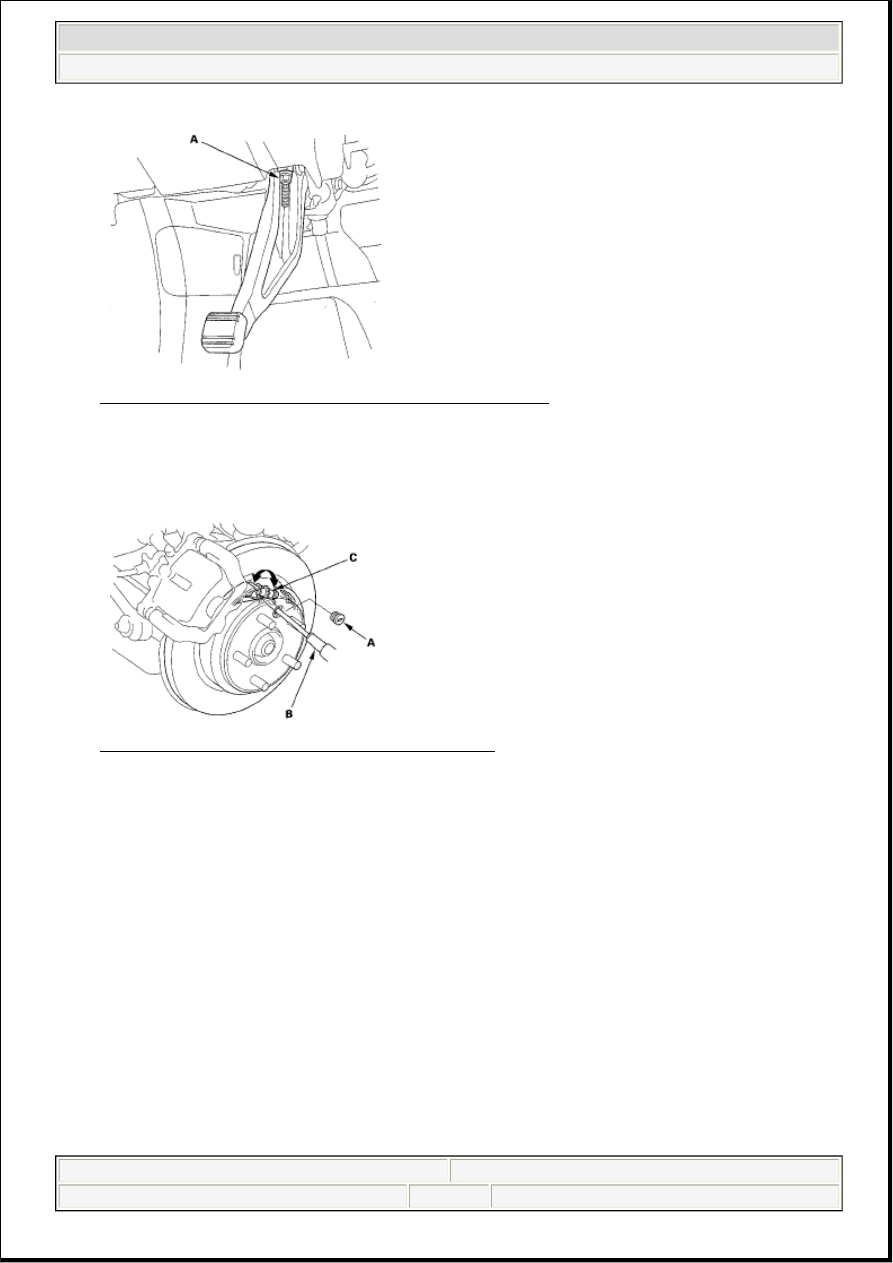

Fig. 10: Identifying Adjusting Nut In Parking Brake Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the rear wheels.

5. Remove the access plug (A).

Fig. 11: Identifying Adjusting Parking Brake Shoes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Use a flat tip screwdriver (B) to rotate the adjuster assembly (C) until the shoes lock against the

parking brake drum. Then back off the adjuster 12 clicks, and install the access plug.

7. Clean the mating surface of the brake disc/drum and the inside of the wheel, then install the rear

wheels.

8. Do the minor adjustment procedure.

BRAKE SYSTEM BLEEDING

NOTE:



Do not reuse the drained fluid. Use only clean Acura DOT 3 Brake Fluid
from an unopened container. Using a non-Acura brake fluid can cause
corrosion and shorten the life of the system.



Make sure no dirt or other foreign matter is allowed to contaminate the
brake fluid.



Do not mix different brands of brake fluid; they may not be compatible.



Do not spill brake fluid on the vehicle, it may damage the paint; if brake



2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL



me



Friday, June 05, 2009 3:00:06 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

1. Make sure the brake fluid level in the reservoir (A) is at the MAX (upper) level line (B).

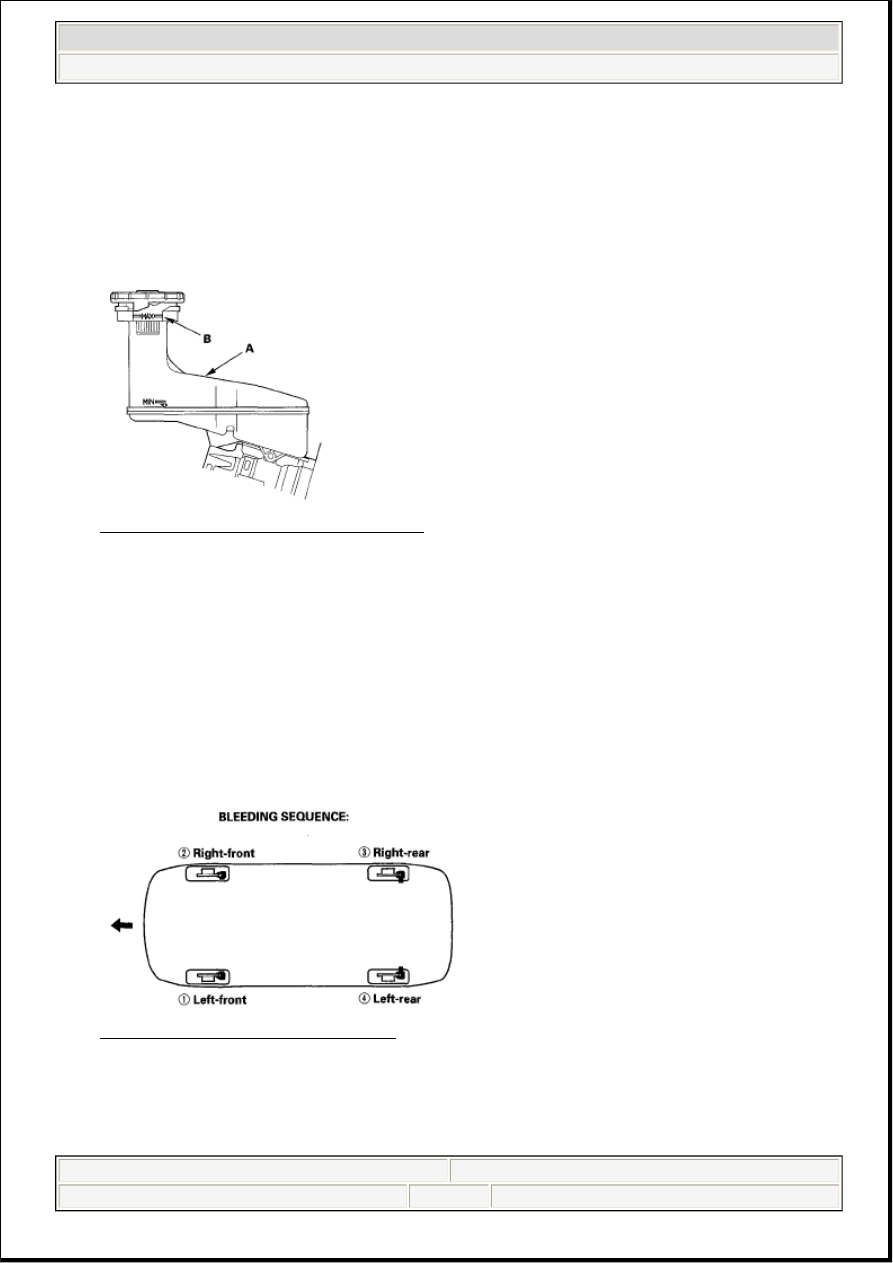

Fig. 12: Identifying Brake Fluid Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Attach a length of clear drain tube to the bleed screw.

3. Have someone slowly pump the brake pedal several times, then apply steady pressure.

4. Starting at the left-front, loosen the brake bleed screw to allow air to escape from the system. Then

tighten the bleed screw securely.

5. Repeat the procedure for each wheel in the sequence shown until air bubbles no longer appear in the

fluid.

Fig. 13: Identifying Bleeding Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front

fluid does contact the paint, wash it off immediately with water.



The reservoir connected to the master cylinder must be at the MAX
(upper) level mark at the start of the bleeding procedure and checked
after bleeding each brake caliper. Add fluid as required.

NOTE:

The front and rear bleed screw caps (A) are different. Make sure to
install them in the proper position.



2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL



me



Friday, June 05, 2009 3:00:06 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

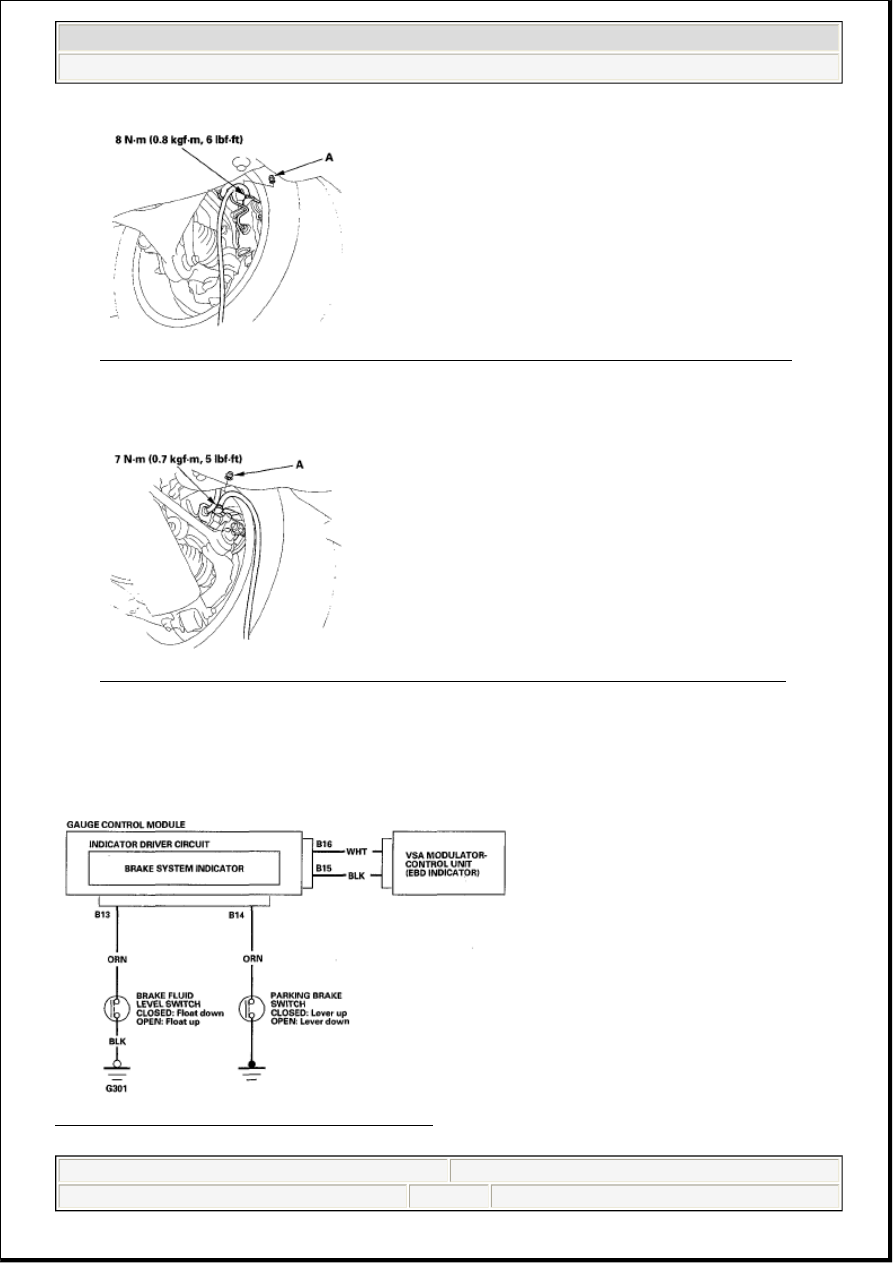

Fig. 14: Identifying Bleed Screw Caps Identifying Adjusting Nut In Parking Brake - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

Fig. 15: Identifying Bleed Screw Caps Identifying Adjusting Nut In Parking Brake - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Refill the master cylinder reservoir to the MAX (upper) level line.

BRAKE SYSTEM INDICATOR CIRCUIT DIAGRAM

Fig. 16: Brake System Indicator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 BRAKES Conventional Brake Components - RL



me



Friday, June 05, 2009 3:00:06 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

PARKING BRAKE SWITCH TEST

1. Disconnect the connector (A) from the parking brake switch (B).

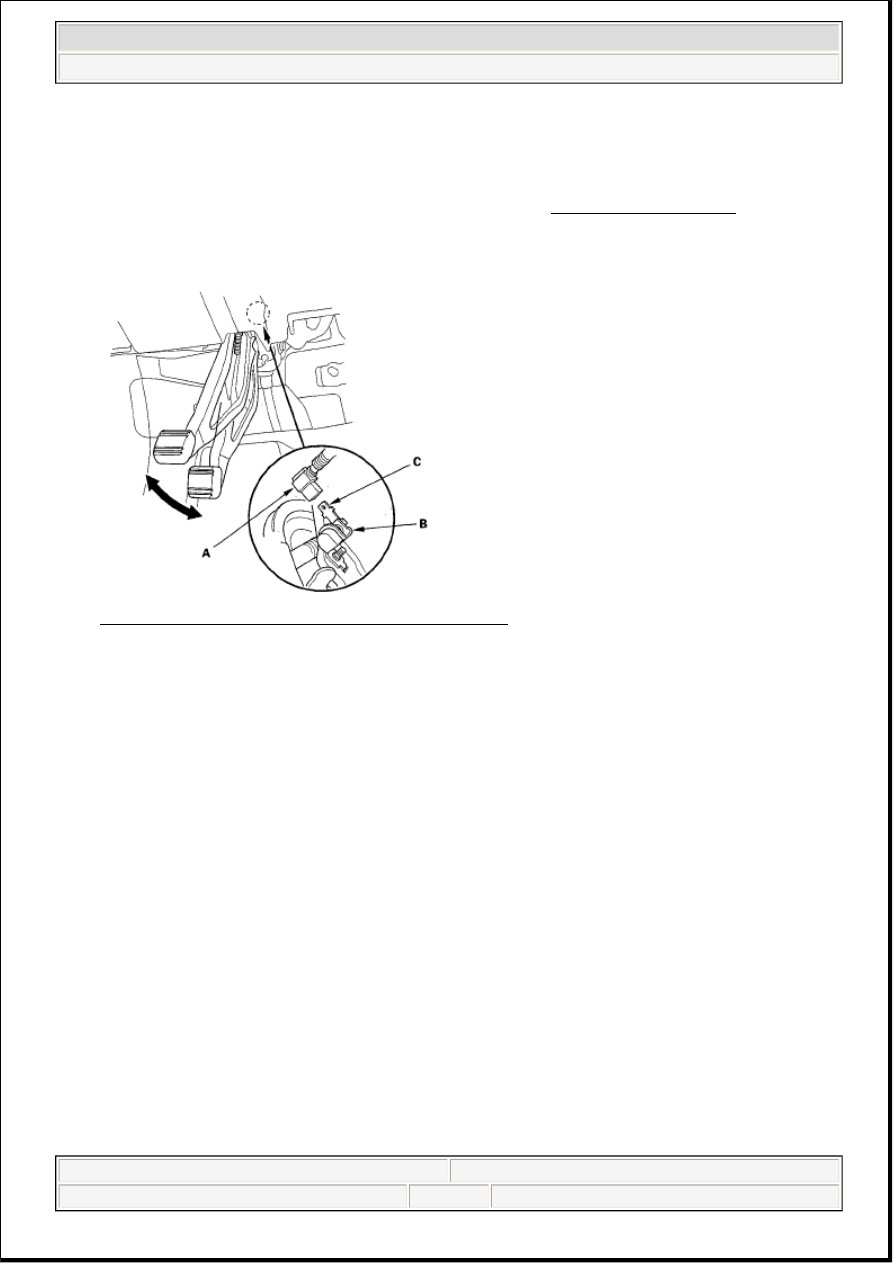

Fig. 17: Identifying Parking Brake Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between the positive terminal (C) and body ground.



With the parking brake pedal pushed, there should be continuity.



With the parking brake pedal released, there should be no continuity.

BRAKE FLUID LEVEL SWITCH TEST

Check for continuity between the terminals (1) with the float in the down position and in the up position.



Remove the brake fluid completely from the reservoir. With the float down, there should, be
continuity.



Fill the reservoir with brake fluid to the MAX (upper) level (A). With the float up, there should be no
continuity.

NOTE:

If both the ABS/VSA indicator and the brake system indicator come on at the
same time, check the VSA system first (see ABS/VSA INDICATOR ).

NOTE:



If both the ABS/VSA indicator and the brake system indicator
come on at the same time, check the VSA first.



If the parking brake switch/fluid level switch is OK, but the brake
system indicator does not function, check the VSA (Do the input
test for the daytime running lights control unit first).
