Do not use wires or harnesses with broken insulation. Replace them or repair them by wrapping the
break with electrical tape.



After installing parts, make sure that no wires are pinched under them.



When using electrical test equipment, follow the manufacturer's instructions and those described in
this manual.



If possible, insert the probe of the tester from the wire side (except waterproof connector).

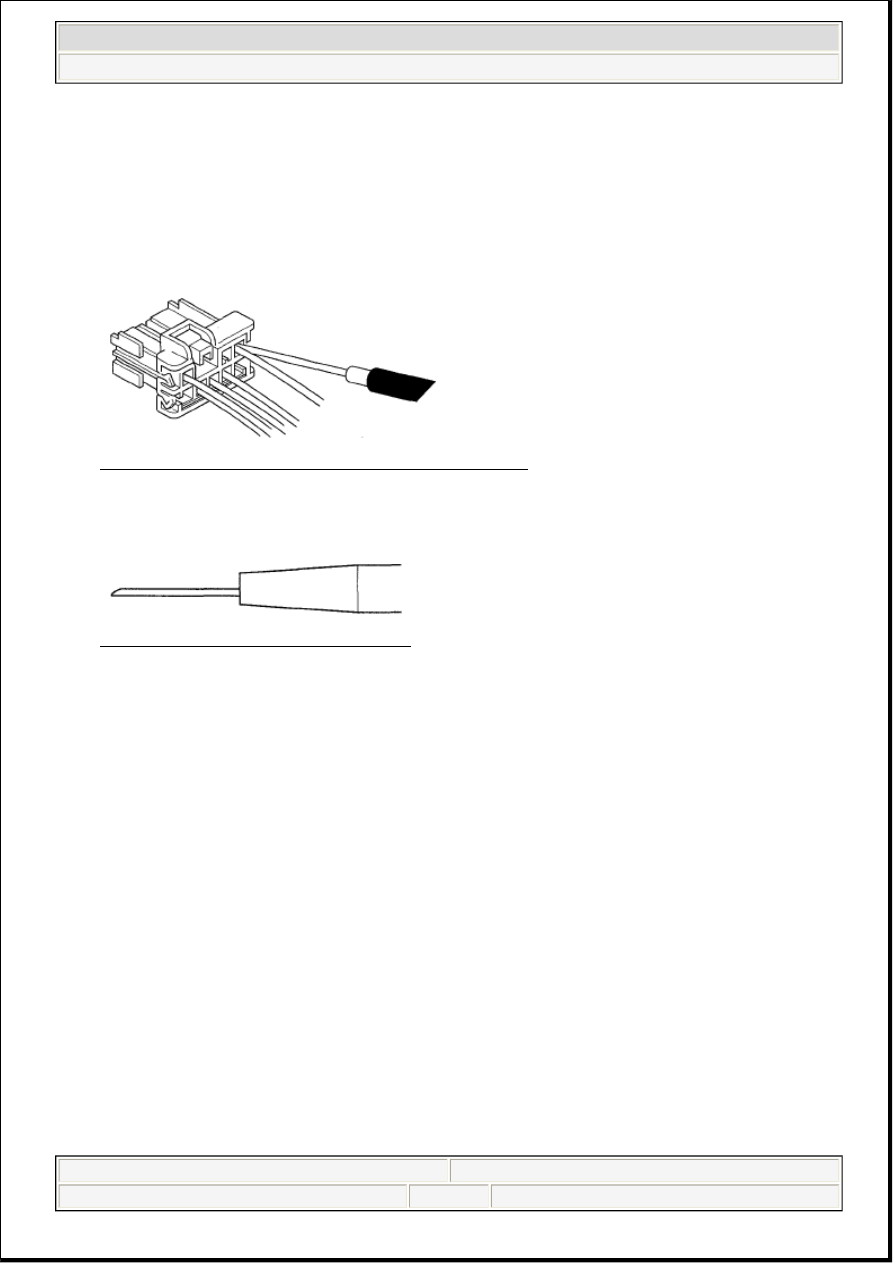

Fig. 11: Inserting Probe Of Tester Wire Side Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Use back probe adaptor 07TAZ-001020A.

Fig. 12: Identifying Back Probe Adaptor
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Refer to the instructions in the Honda Terminal Kit for identification and replacement of connector
terminals.

FIVE-STEP TROUBLESHOOTING

1. Verify The Complaint

Turn on all the components in the problem circuit to verify the clients complaint. Note the symptoms.
Do not begin disassembly or testing until you have narrowed down the problem area.

2. Analyze The Schematic

Look up the schematic for the problem circuit. Determine how the circuit is supposed to work by
tracing the current paths from the power feed through the circuit components to ground. If several
circuits fail at the same time, the fuse or ground is a likely cause.

Based on the symptoms and your understanding of the circuit operation, identify one or more possible
causes of the problem.

3. Isolate The Problem By Testing The Circuit

Make circuit tests to check the diagnosis you made in step 2. Keep in mind that a logical, simple
procedure is the key to efficient troubleshooting. Test for the most likely cause of failure first. Try to



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

make tests at points that are easily accessible.

4. Fix The Problem

Once the specific problem is identified, make the repair. Be sure to use proper tools and safe
procedures.

5. Make Sure The Circuit Works

Turn on all components in the repaired circuit in all modes to make sure you've fixed the entire
problem. If the problem was a blown fuse, be sure to test all of the circuits on the fuse. Make sure no
new problems turn up and the original problem does not recur.

WIRE COLOR CODES

The following abbreviations are used to identify wire colors in the circuit schematics:

WIRE COLOR CODES REFERENCE

The wire insulation has one color or one color with another color stripe. The second color is the stripe.

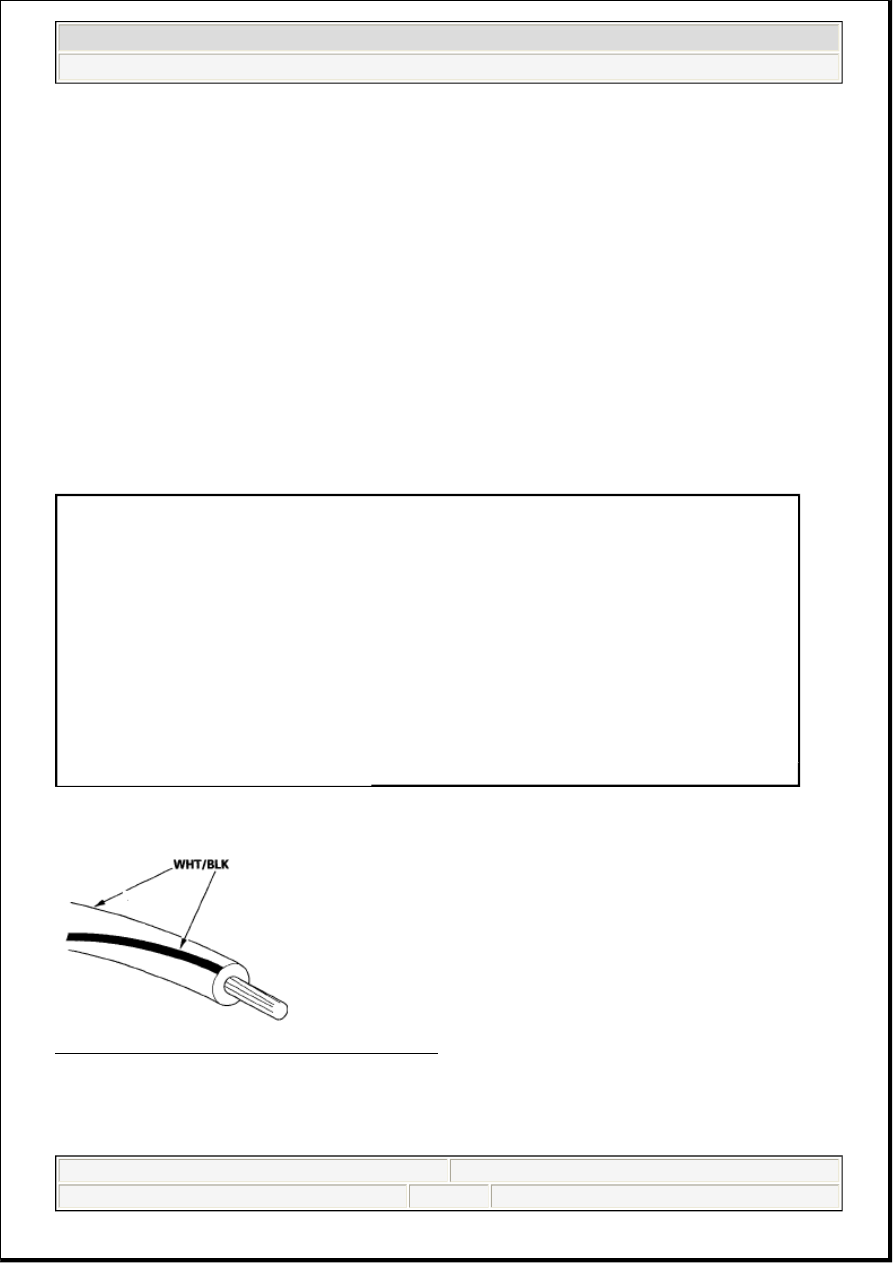

Fig. 13: Identifying Wire Color With Color Stripe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

HOW TO CHECK FOR DTCS WITH THE HONDA DIAGNOSTIC SYSTEM (HDS)

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (A) located under the

WHT

White

YEL

Yellow

BLK

Black

BLU

Blue

GRN

Green

RED

Red

ORN

Orange

PNK

Pink

BRN

Brown

GRY

Gray

PUR

Purple

LT BLU

Light Blue

LT GRN

Light Green



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

driver's side of the dashboard.

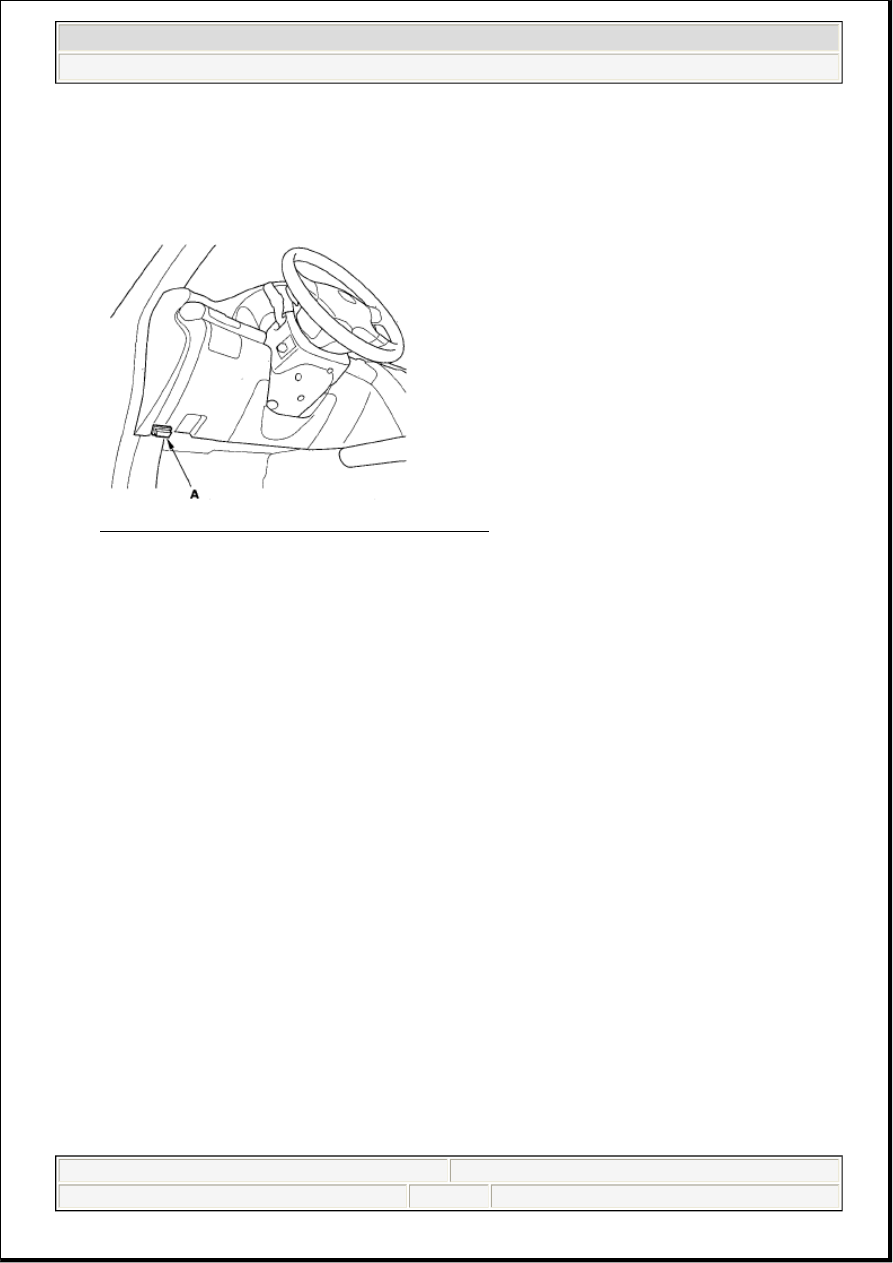

Fig. 14: Identifying Data Link Connector Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Select the TEST MODE MENU and check for Diagnostic Trouble Code (DTCs), and note them.

Refer to the Troubleshooting Index and begin the appropriate troubleshooting procedure.

REMOTE REGISTRATION AND REPROGRAMMING FOR KEYLESS
ACCESS SYSTEM AND IMMOBILIZER SYSTEM

KEYLESS ACCESS SYSTEM

Registration by the HDS is necessary when:



Any of the remotes (A) are replaced.



All of the remotes (A) are replaced.



A new remote (A) is added.



New remotes (A) are added.



The keyless access control unit (B) is replaced.



The ignition switch control unit (C) is replaced.



The imoes unit (D) is replaced.



Deleting the registration of a lost remote(s).



The PCM is replaced.

NOTE:

For specific operations, refer to the user's manual that came with the
Honda Diagnostic System (HDS).

NOTE:

The keyless access control unit can store up to six remotes.



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

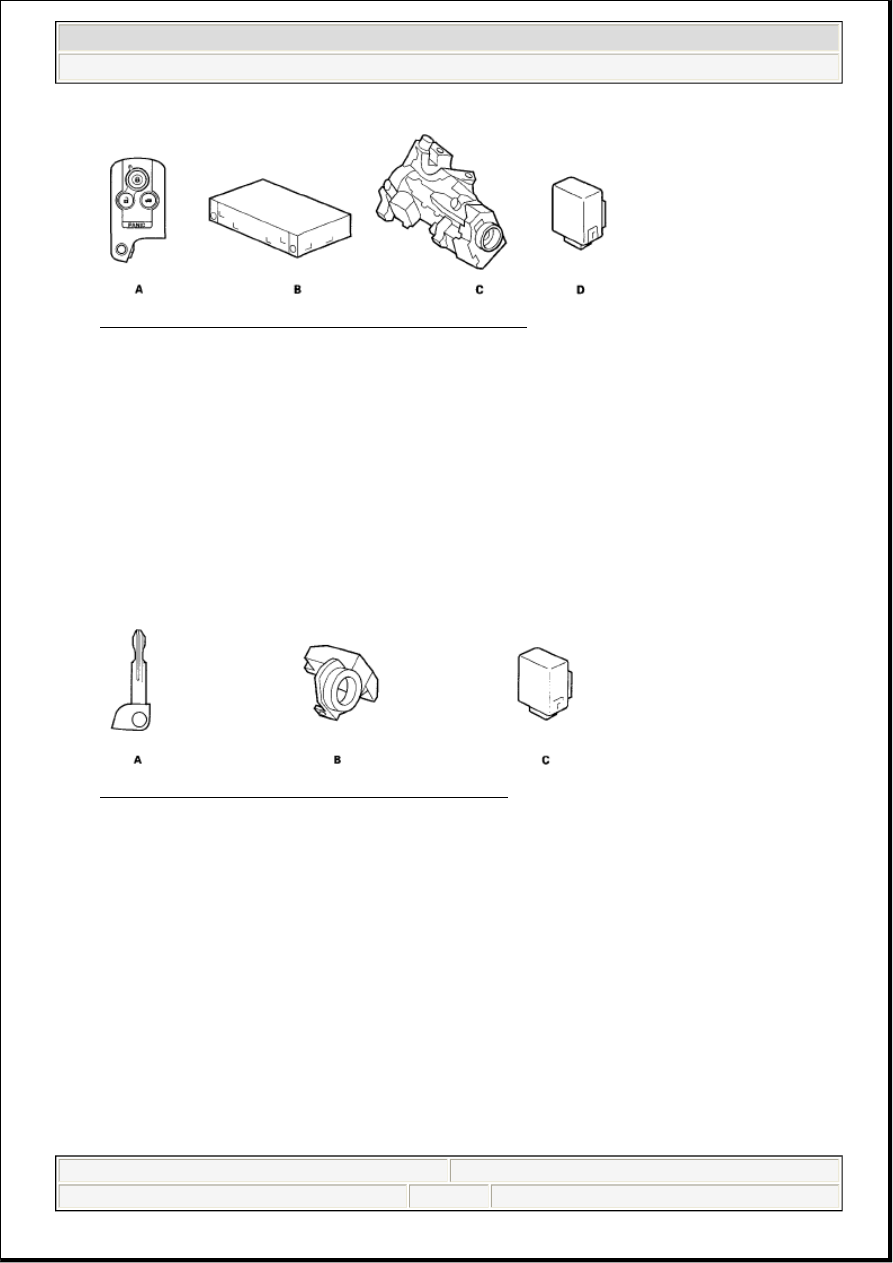

Fig. 15: Identifying Keyless Access System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

IMMOBILIZER SYSTEM

Registration by the HDS is necessary when:



A built-in key (A) is added or replaced.



The immobilizer control unit-receiver (B) is replaced.



The imoes unit (C) is replaced.



The PCM is replaced.

Fig. 16: Identifying Immobilizer System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REGISTRATION

1. Turn the ignition switch ON (II) with the built-in key.

2. Connect the HDS to the data link connector.

3. Select KEYLESS ACCESS or IMMOBILIZER (depending on the part replaced)* from the SYSTEM

SELECT menu.

* : If registering the imoes unit, select IMMOBILIZER from the SYSTEM SELECT menu. (This is
not necessary to register as a keyless access composed part.)

4. Enter the TEST MODE menu, then select the suitable menu from the HDS indications.

NOTE:

The immobilizer control unit-receiver can store up to six built-in keys.
