2007-08 ELECTRICAL

Body Electrical - RL

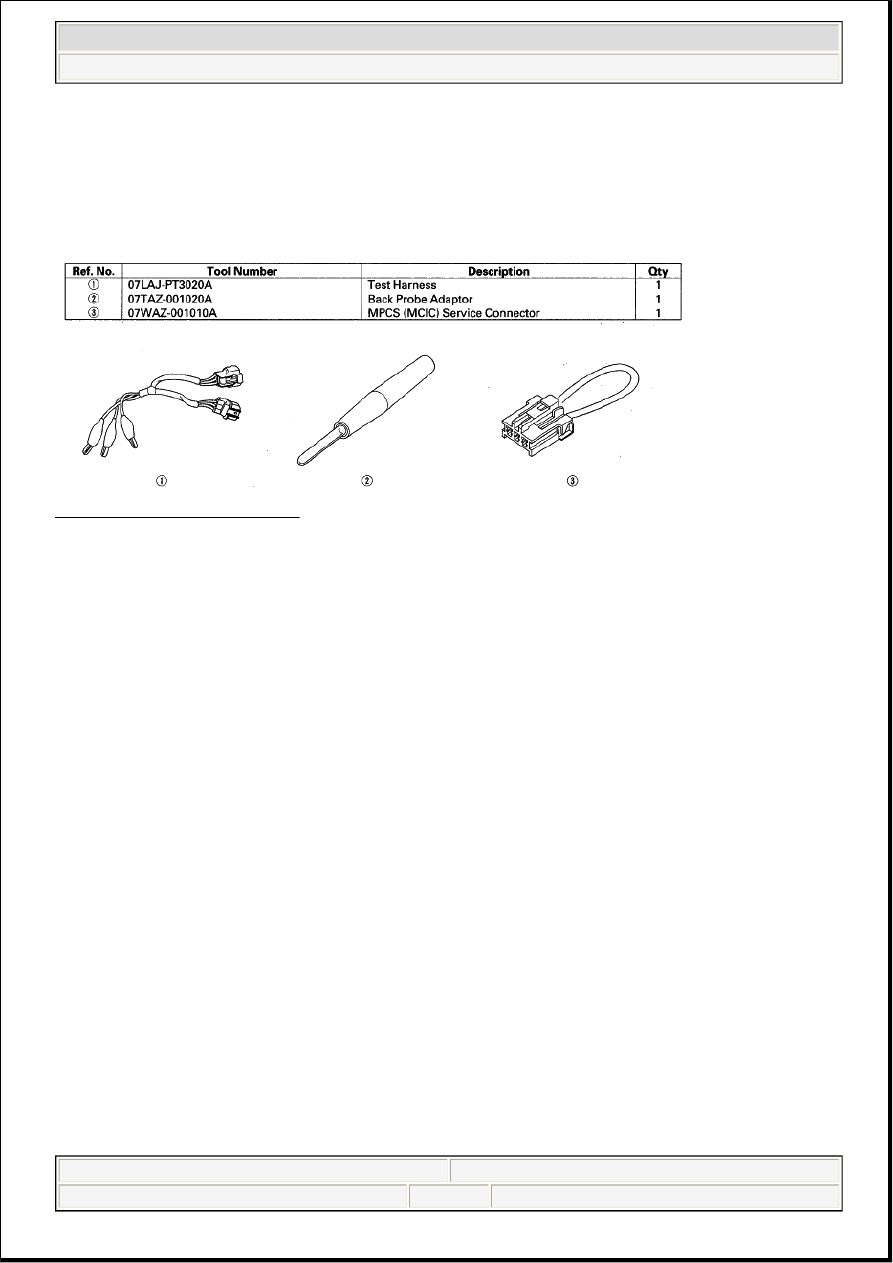

SPECIAL TOOLS

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GENERAL TROUBLESHOOTING INFORMATION

TIPS AND PRECAUTIONS

Before Troubleshooting

1. Check applicable fuses in the appropriate fuse/relay box.

2. Check the battery for damage, state of charge, and clean and tight connections.

Handling Connectors



Make sure the connectors are clean and have no loose wire terminals.



Make sure multiple cavity connectors are packed with dielectric grease (except watertight
connectors).



All connectors have push-down release type locks (A).

NOTE:



Do not quick-charge a battery unless the battery ground cable has
been disconnected, otherwise you will damage the alternator
diodes.



Do not attempt to crank the engine with the battery ground cable
loosely connected or you will severely damage the wiring.



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL





2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 2:38:45 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

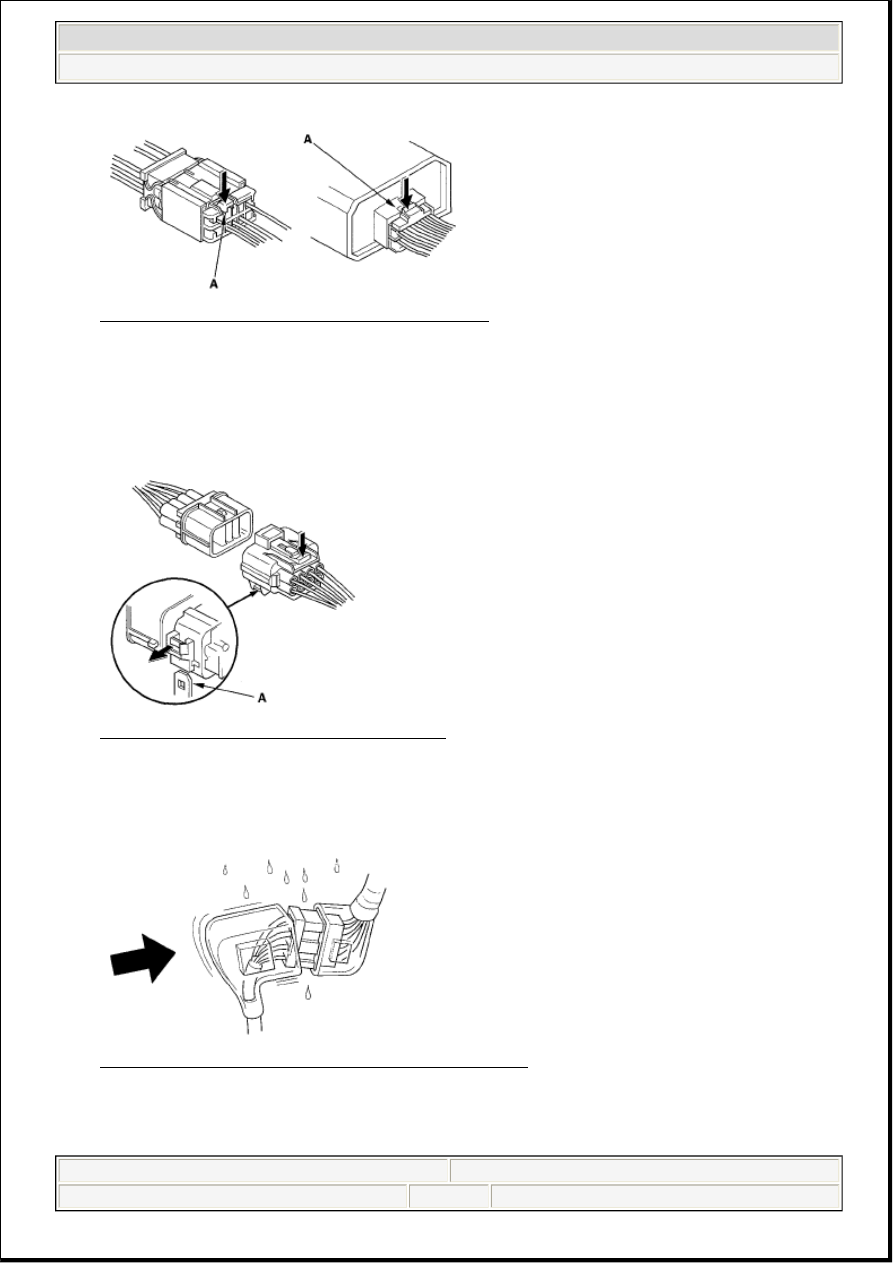

Fig. 2: Identifying Push-Down Release Type Locks
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Some connectors have a clip on their side used to attach them to a mount bracket on the body or on
another component. This clip has a pull type lock.



Some mounted connectors cannot be disconnected unless you first release the lock and remove the
connector from its mount bracket (A).

Fig. 3: Identifying Connector Mount Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Never try to disconnect connectors by pulling on their wires; pull on the connector halves instead.



Always reinstall plastic covers.

Fig. 4: Precaution For - Always Reinstall Plastic Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Before connecting connectors, make sure the terminals (A) are in place and not bent.



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

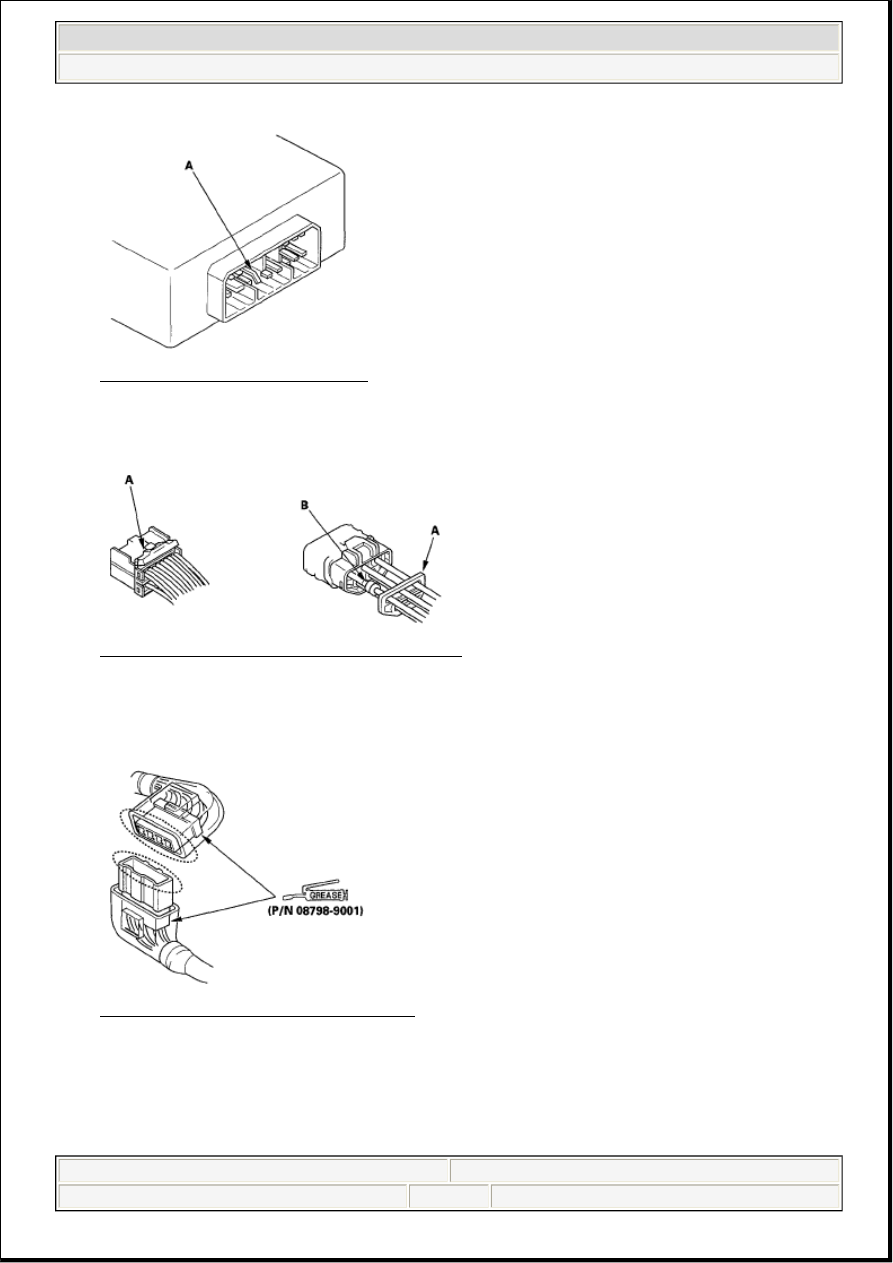

Fig. 5: Identifying Band Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Check for loose retainer (A) and rubber seals (B).

Fig. 6: Identifying Rubber Seals And Retainers
Courtesy of AMERICAN HONDA MOTOR CO., INC.



The backs of some connectors are packed with dielectric grease. Add grease if necessary. If the grease
is contaminated, replace it.

Fig. 7: Identifying Grease Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Insert the connector all the way and make sure it is securely locked.



Position wires so that the open end of the cover faces down.



2007 Acura RL

2007-08 ELECTRICAL Body Electrical - RL



me



Friday, June 05, 2009 2:38:38 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

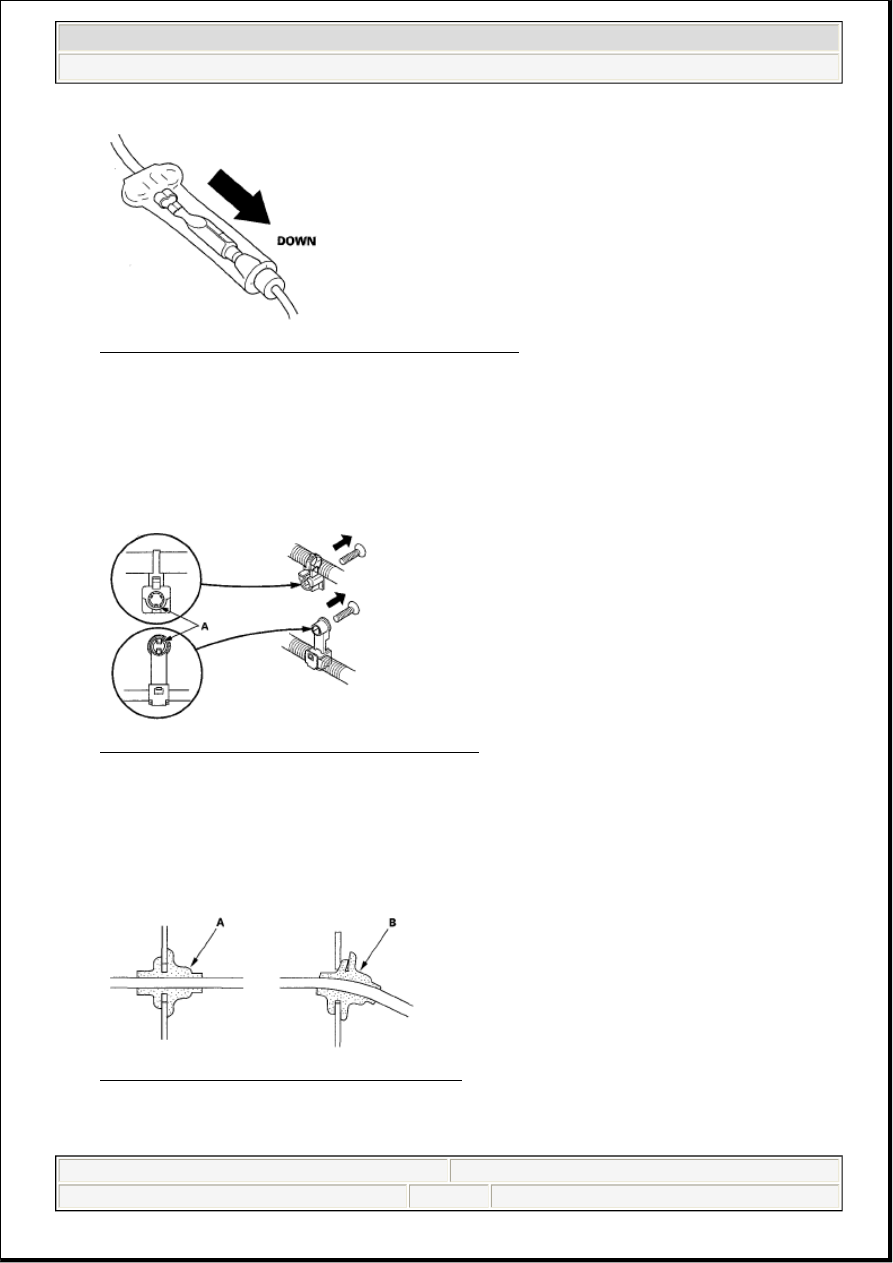

Fig. 8: Identifying Opening End Of Cover Faces Down
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Handling Wires and Harnesses



Secure wires and wire harnesses to the frame with their respective wire ties at the designated
locations.



Remove clips carefully; don't damage their locks (A).

Fig. 9: Identifying Wire Harness Clips/Tie-downs
Courtesy of AMERICAN HONDA MOTOR CO., INC.



After installing harness clips, make sure the harness doesn't interfere with any moving parts.



Keep wire harnesses away from exhaust pipes and other hot parts, from sharp edges of brackets and
holes, and from exposed screws and bolts.



Seat grommets in their grooves properly (A). Do not leave grommets distorted (B).

Fig. 10: Identifying Properly Seated Grommets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Testing and Repairs
