3. Using the driver and the attachment (83 mm), drive the outer race securely in the housing so there is no

clearance between the outer race, spacer, shim, and housing.

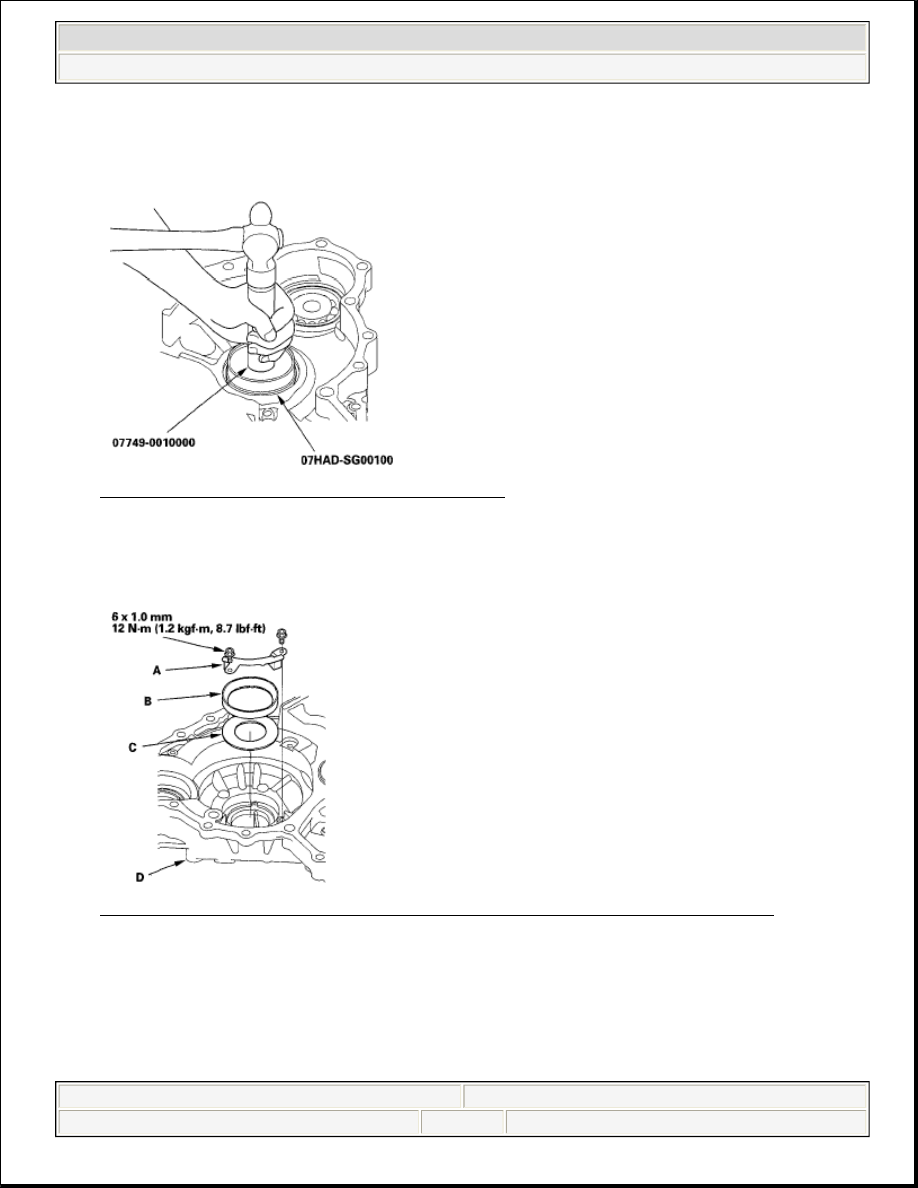

Fig. 641: Tapping Outer Race Securely Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the plate (A), and remove the bearing outer race (B) and spacer (C) from the torque converter

housing (D).

Fig. 642: Identifying Bearing Outer Race, Spacer And Plate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the spacer and the new outer race in the torque converter housing.

6. Drive the bearing outer race securely in the housing using the driver and the attachment (78 x 80 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 551

© 2005 Mitchell Repair Information Company, LLC.

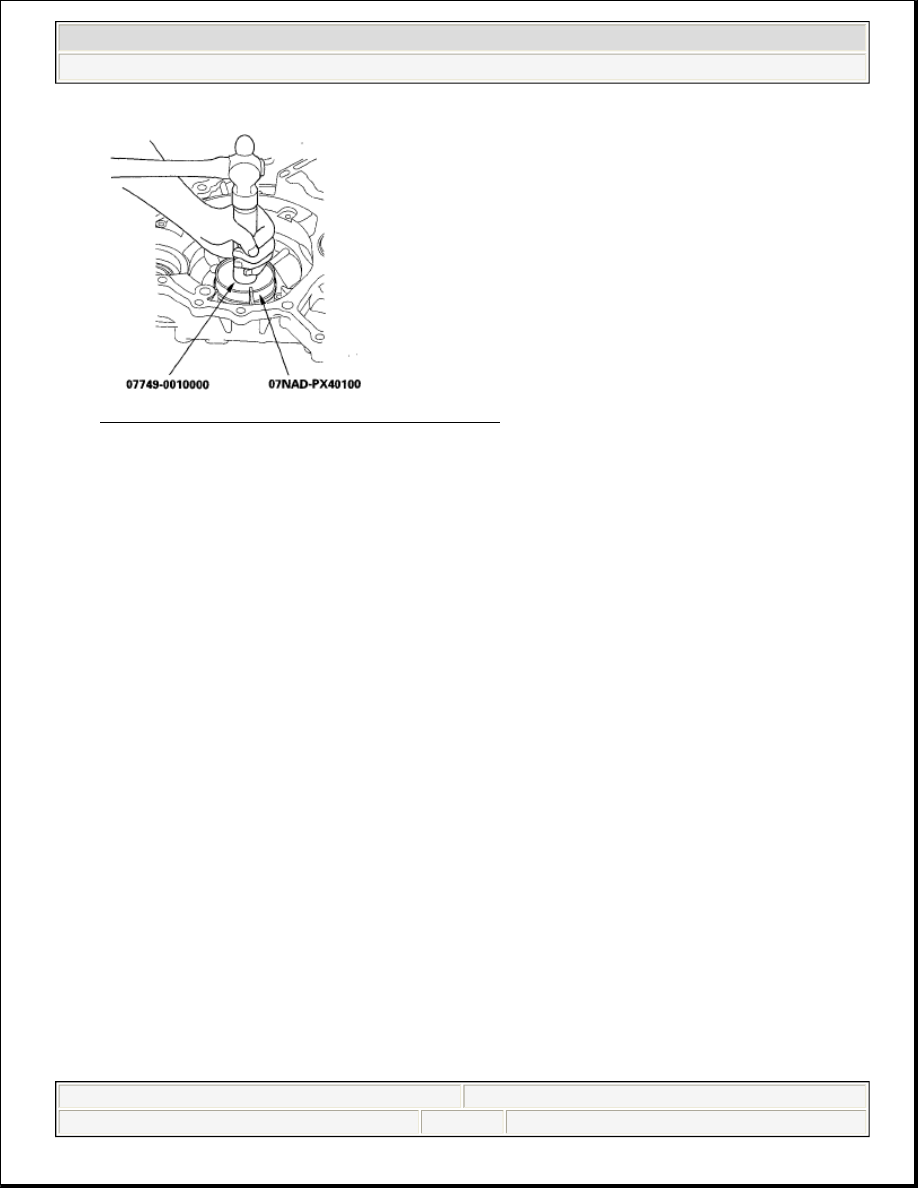

Fig. 643: Tapping Bearing Outer Race Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the plate over the outer race in the torque converter housing.

CARRIER BEARING PRELOAD INSPECTION

Special Tools Required



Driver 07749-0010000



Attachment, 83 mm 07HAD-SG00100



Preload inspection tool 070AJ-0020101

1. Remove the bearing outer race (A), spacer (B), and 85 mm thrust shim (C) from the transmission housing

(D) by heating the housing to about 212°F (100°C) with a heat gun (E). Do not heat the housing more
than 212°F (100°C).

NOTE:

If the transmission housing, torque converter housing, differential carrier,
tapered roller bearing, bearing outer race, or thrust shim were replaced, the
bearing preload must be adjusted.

NOTE:

Let the transmission housing cool to room temperature before adjusting
the bearing preload.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 552

© 2005 Mitchell Repair Information Company, LLC.

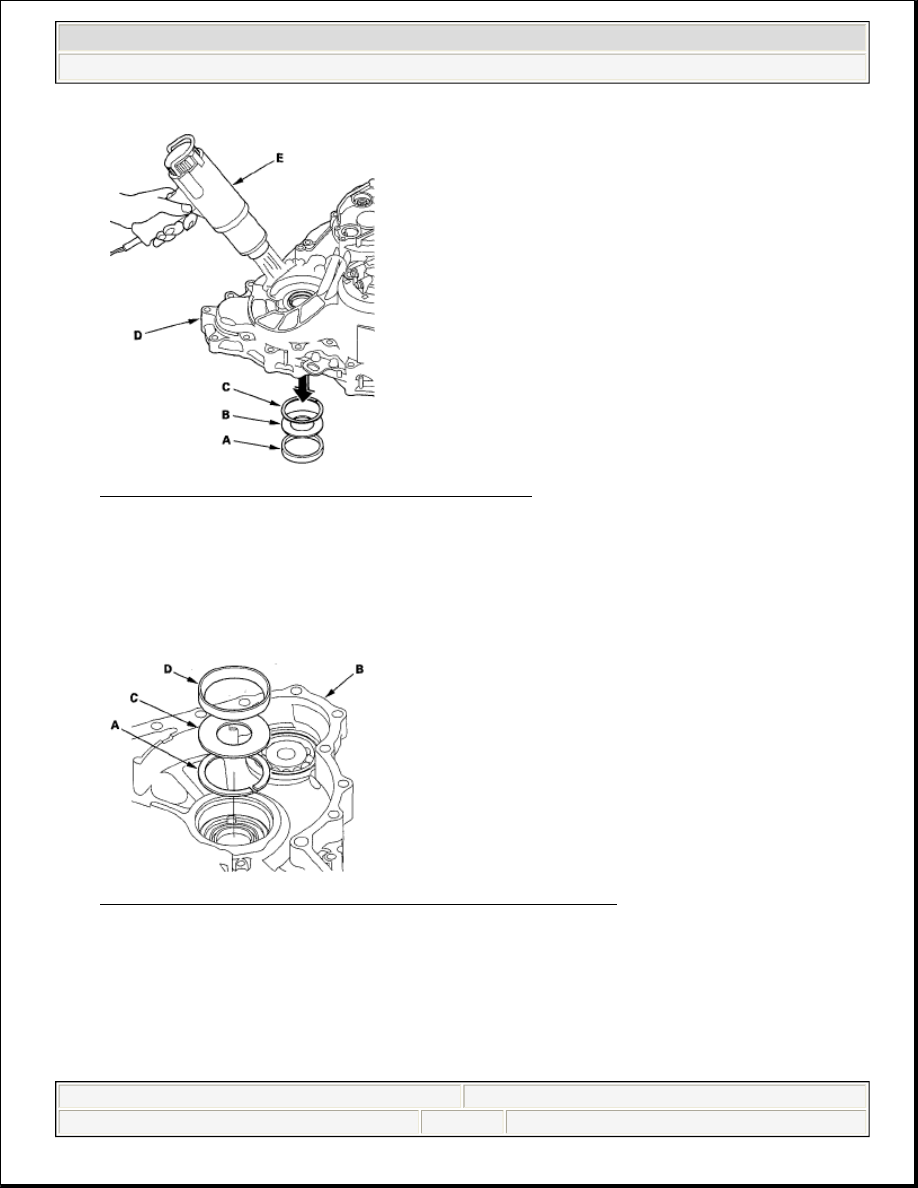

Fig. 644: Removing Bearing Outer Race With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Replace the tapered roller bearing when the outer race is to be replaced.

3. Do not use a shim on the torque converter housing side.

4. Install the 85 mm thrust shim (A) in the transmission housing (B). If you replace the 85 mm thrust shim

with a new one, use the same thickness shim as the old one.

Fig. 645: Identifying Spacer, Bearing Outer Race And Thrust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the spacer (C), and the bearing outer race (D) in the transmission housing.

6. Drive the outer race securely in the housing using the driver and the attachment (83 mm) so there is no

clearance between the outer race, spacer, shim, and housing.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 553

© 2005 Mitchell Repair Information Company, LLC.

Fig. 646: Tapping Outer Race Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the differential assembly (A) in the torque converter housing (B), and install the gasket (C) and the

two dowel pins (D) on the housing.

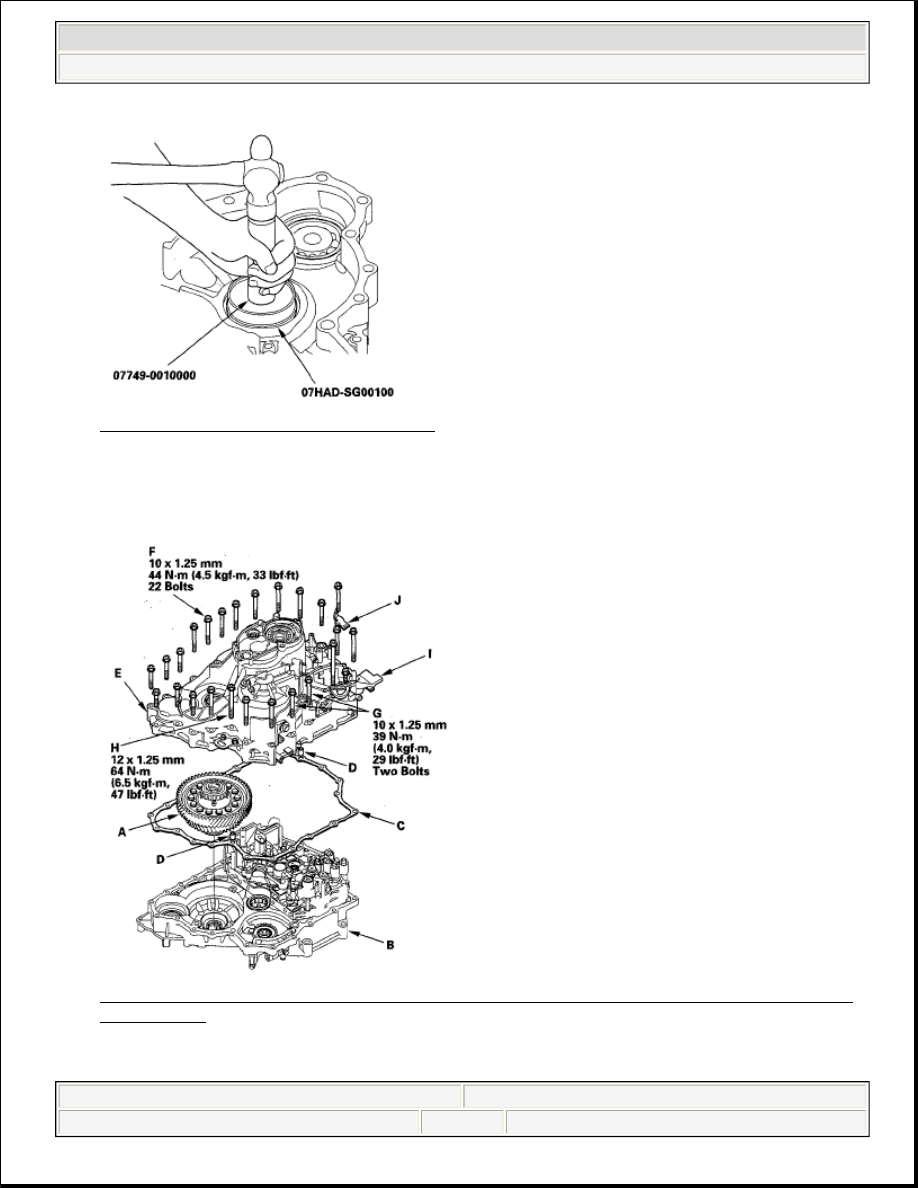

Fig. 647: Identifying Torque Converter Housing, Gasket And Transmission Housing With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the transmission housing (E), and install the mounting bolts (F) (22 bolts), (G) (two bolts), special
