Acura RL. Manual - part 344

Fig. 633: Removing Carrier Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new carrier bearings using the attachment (45 x 55 mm) and a press.

OIL SEAL REPLACEMENT

Special Tools Required



Driver 077 49-0010000



Oil seal driver attachment 07GAD-PG40100



Oil seal driver attachment 07JAD-PH80101

NOTE:



Press the bearing on until it bottoms.



Use the small end of the attachment (45 x 55 mm) to install the
bearings.



Press the bearing on securely so there is no clearance between the
bearing and the differential carrier.

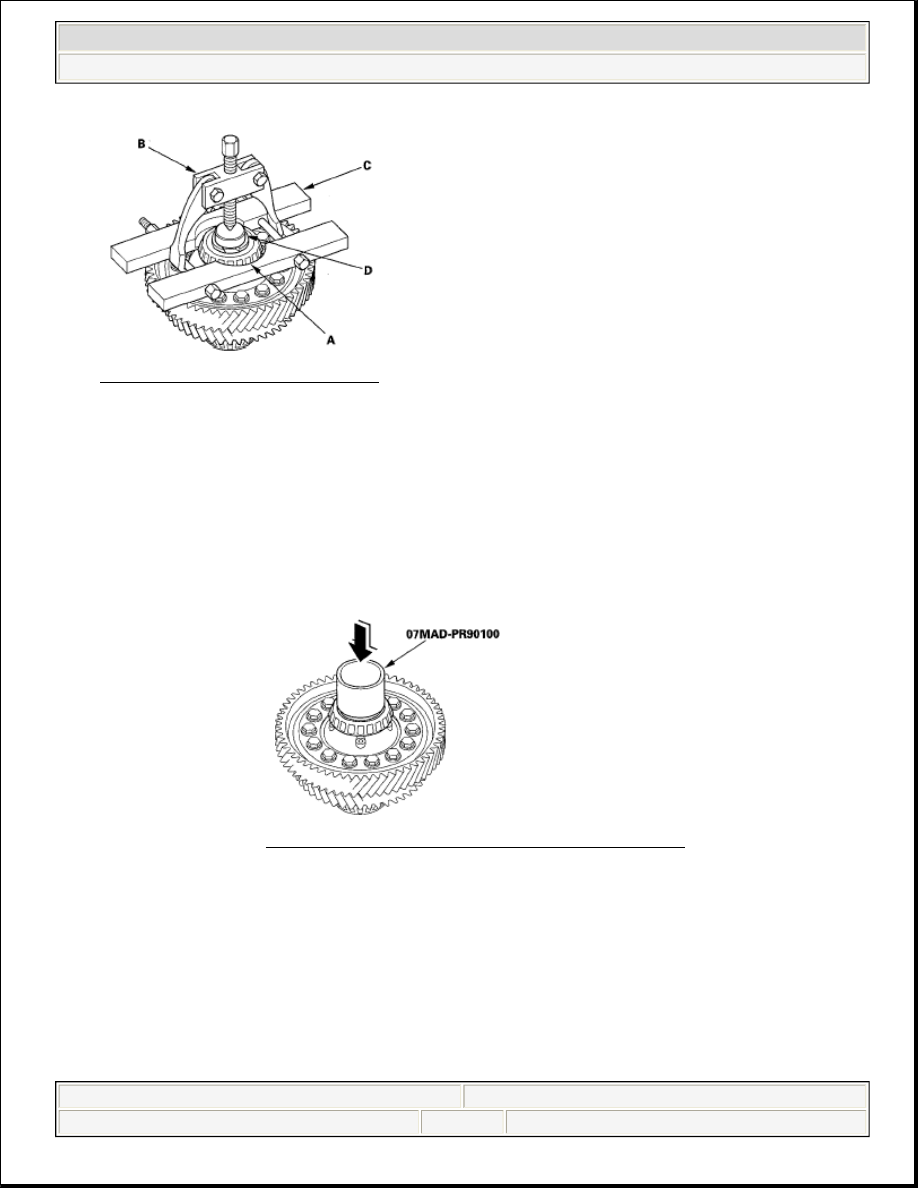

Fig. 634: Pressing Bearing On Differential Carrier
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 547

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the oil seal from the transmission housing.

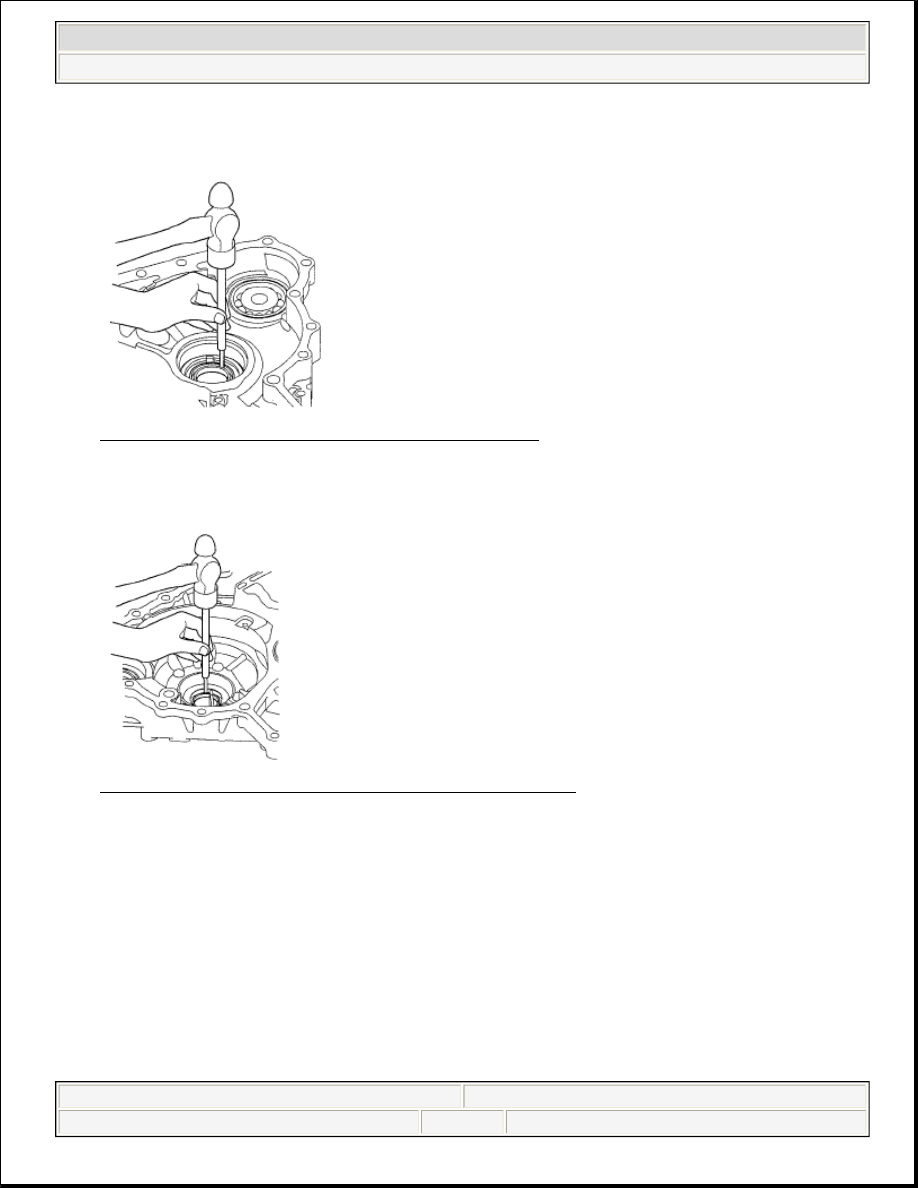

Fig. 635: Removing Oil Seal From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the oil seal from the torque converter housing.

Fig. 636: Removing Oil Seal From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the new oil seal flush into the transmission housing using the driver and the oil seal driver

attachment.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 548

© 2005 Mitchell Repair Information Company, LLC.

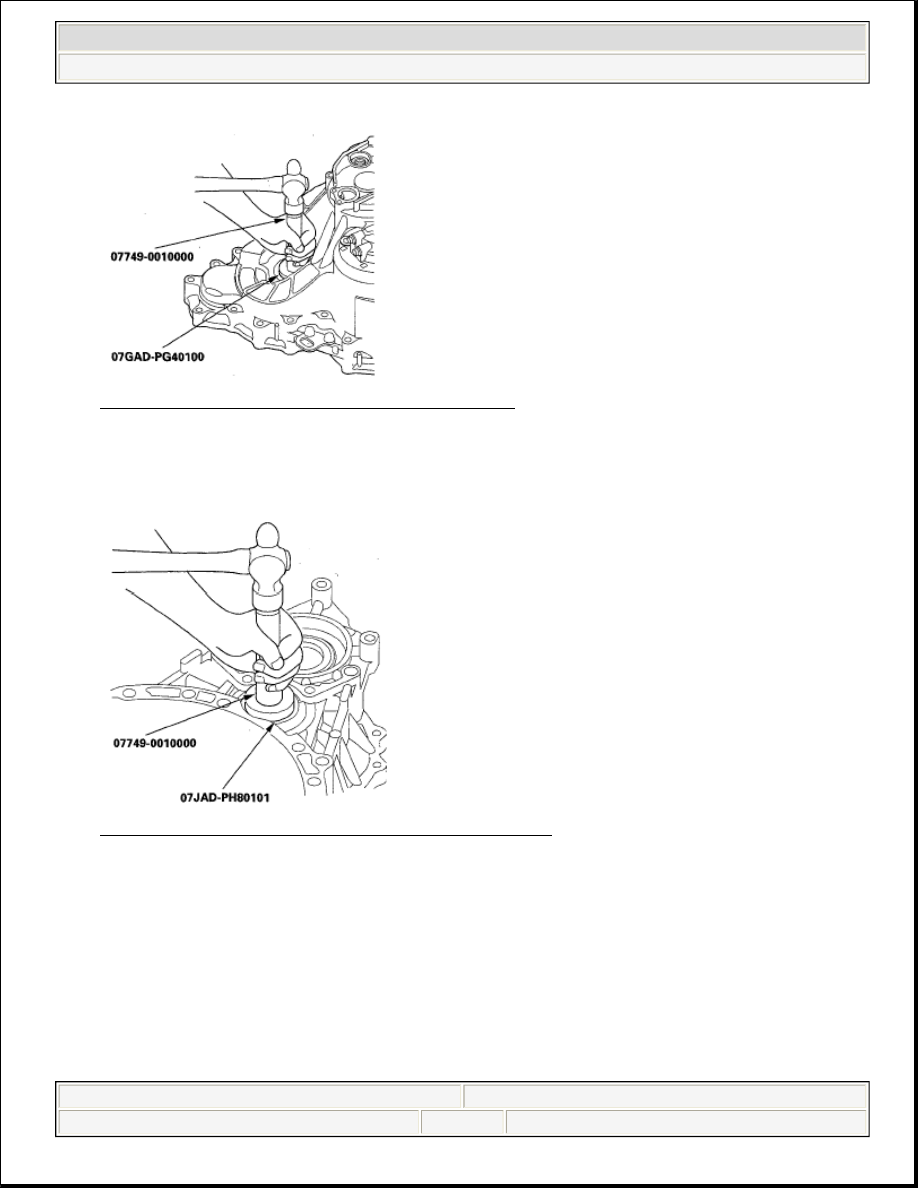

Fig. 637: Tapping Oil Seal Into Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the new oil seal into the torque converter housing using the driver and the oil seal driver

attachment.

Fig. 638: Tapping Oil Seal Into Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CARRIER BEARING OUTER RACE REPLACEMENT

Special Tools Required



Driver 07749-0010000



Attachment, 83 mm 07HAD-SG00100



Attachment, 78 x 80 mm 07NAD-PX40100

NOTE:



Replace the bearing with a new one whenever the outer race is replaced.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 549

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the bearing outer race (A), spacer (B), and 85 mm thrust shim (C) from the transmission housing

(D) by heating the housing to about 212°F (100°C) with a heat gun (E). Do not heat the housing more
than 212°F (100°C).

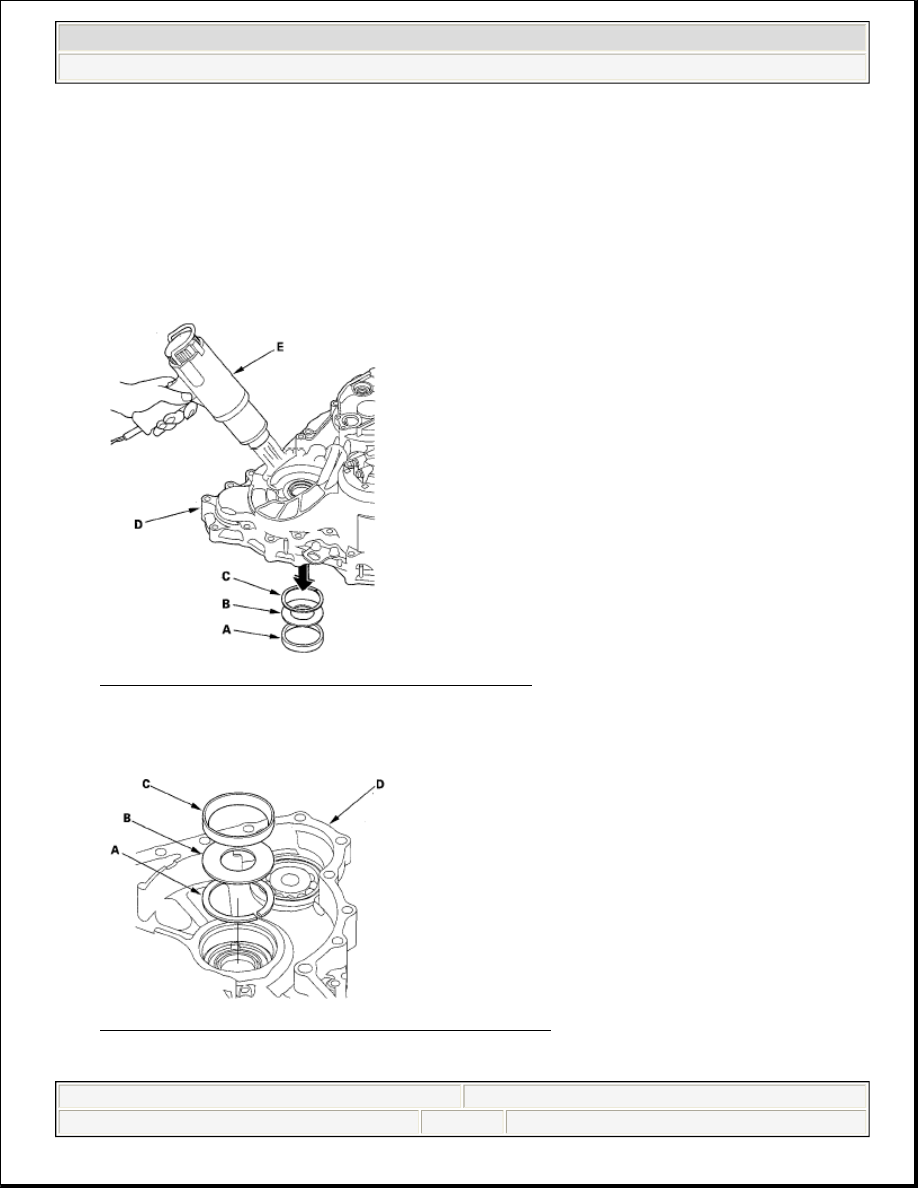

Fig. 639: Removing Bearing Outer Race With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the 85 mm thrust shim (A), spacer (B), and outer race (C) in the transmission housing (D).

Fig. 640: Identifying Thrust Shim, Spacer And Outer Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Do not use shim(s) on the torque converter housing side.



Adjust the preload after replacing the bearing and the outer race.



Coat all parts with ATF during installation.
