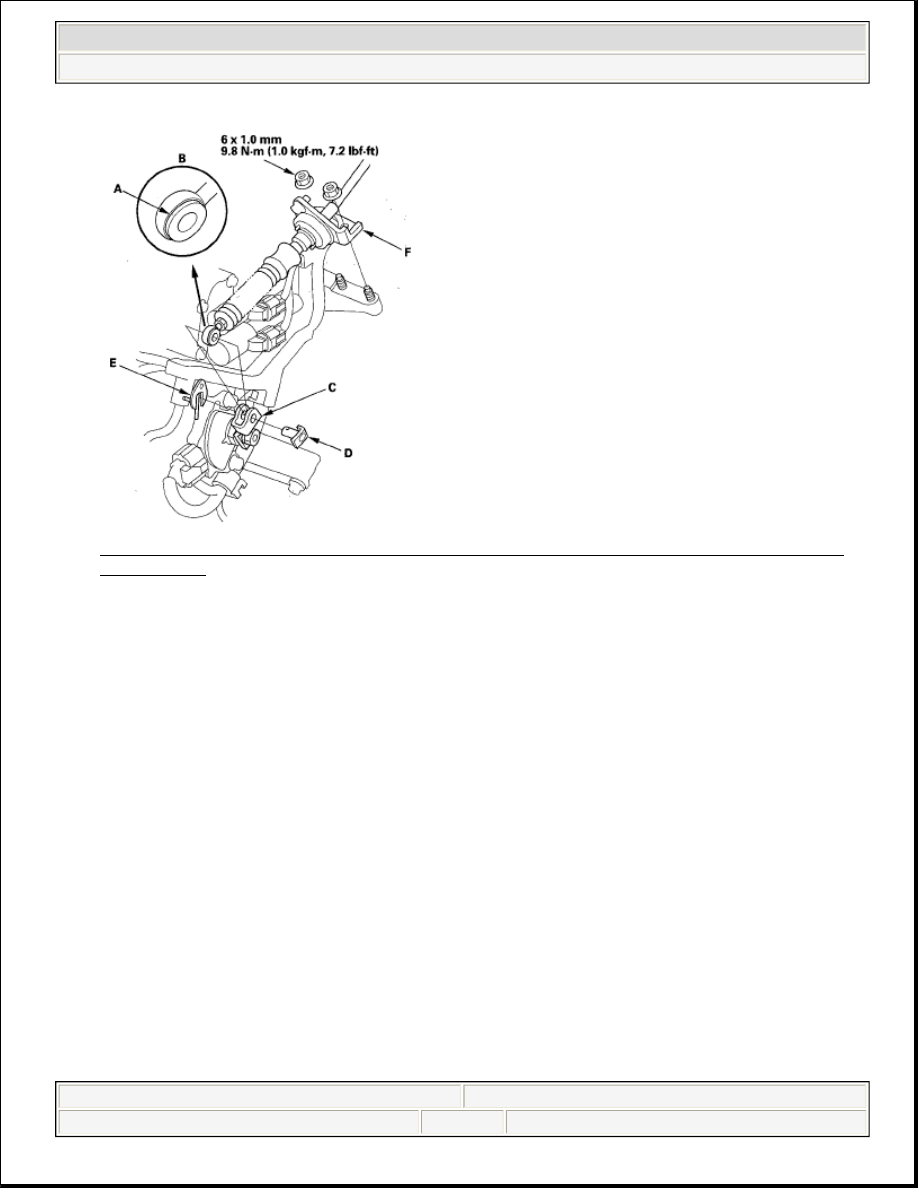

Fig. 333: Identifying Bushing, Control Lever, Spring Clip/Washer And Control Pin With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

61. Attach the shift cable end to the control lever (C), then insert the control pin (D) into the control lever

hole through the shift cable end, and secure the control pin with the spring clip/washer (E).

62. Secure the shift cable bracket (F) with the nuts.

63. Install the starter (A) and the new gasket (B); install the lower bolt (C) through the sensor harness clamp

bracket (D).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 351

© 2005 Mitchell Repair Information Company, LLC.

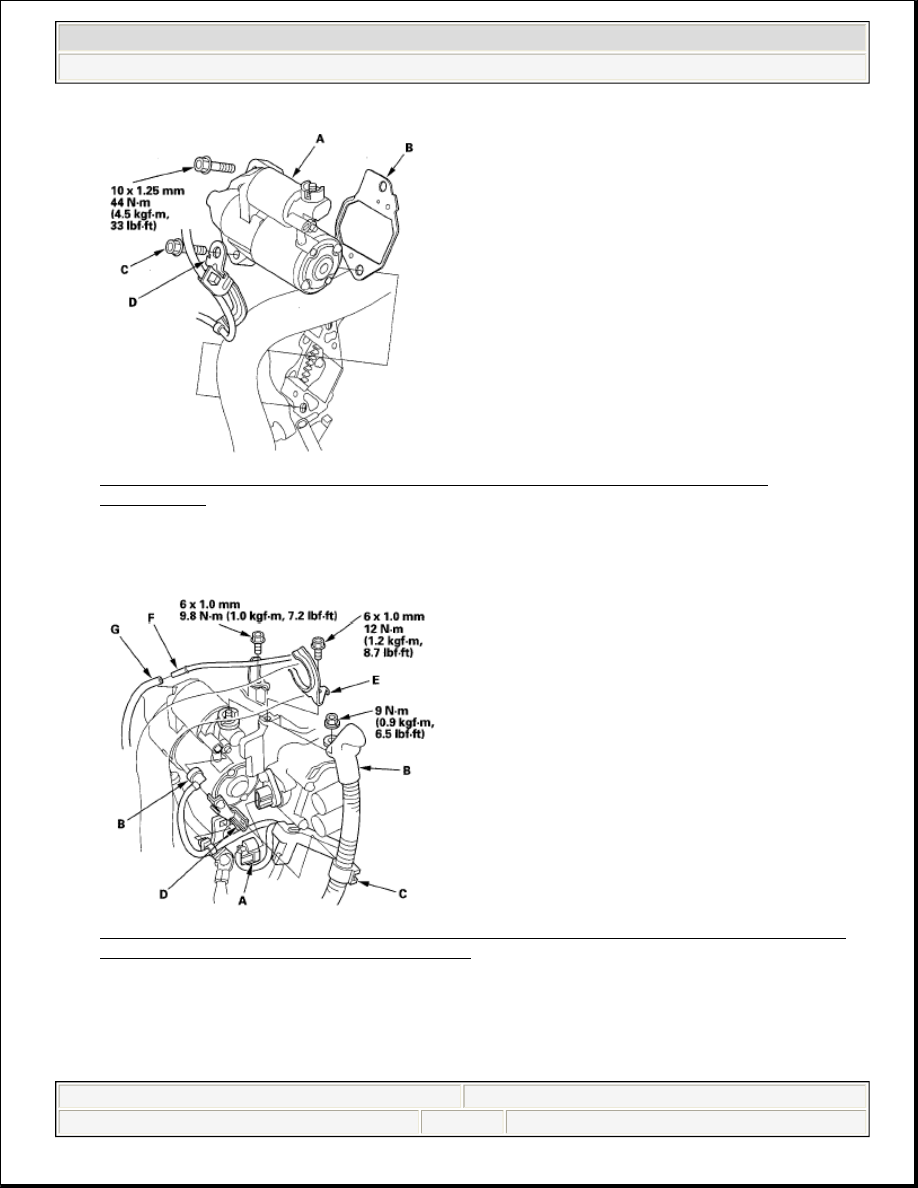

Fig. 334: Identifying Sensor Harness Clamp Bracket, Starter And Gasket With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

64. Connect the solenoid harness connector (A).

Fig. 335: Identifying Solenoid Harness Connector, Starter Cables, Harness Clamp, Vacuum Hose
And Clamp Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

65. Install the starter cables (B), and install the harness clamp (C) on the clamp bracket (D).

66. Secure the radiator hose clamp (E) with the bolt.

67. Secure the vacuum line (F) with the bolt, and connect the vacuum hose (G) to the vacuum line.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 352

© 2005 Mitchell Repair Information Company, LLC.

68. Install the power steering pump outlet line (A) with the new O-ring (B) to the pump, and install the hose

(C) in its clamp (D).

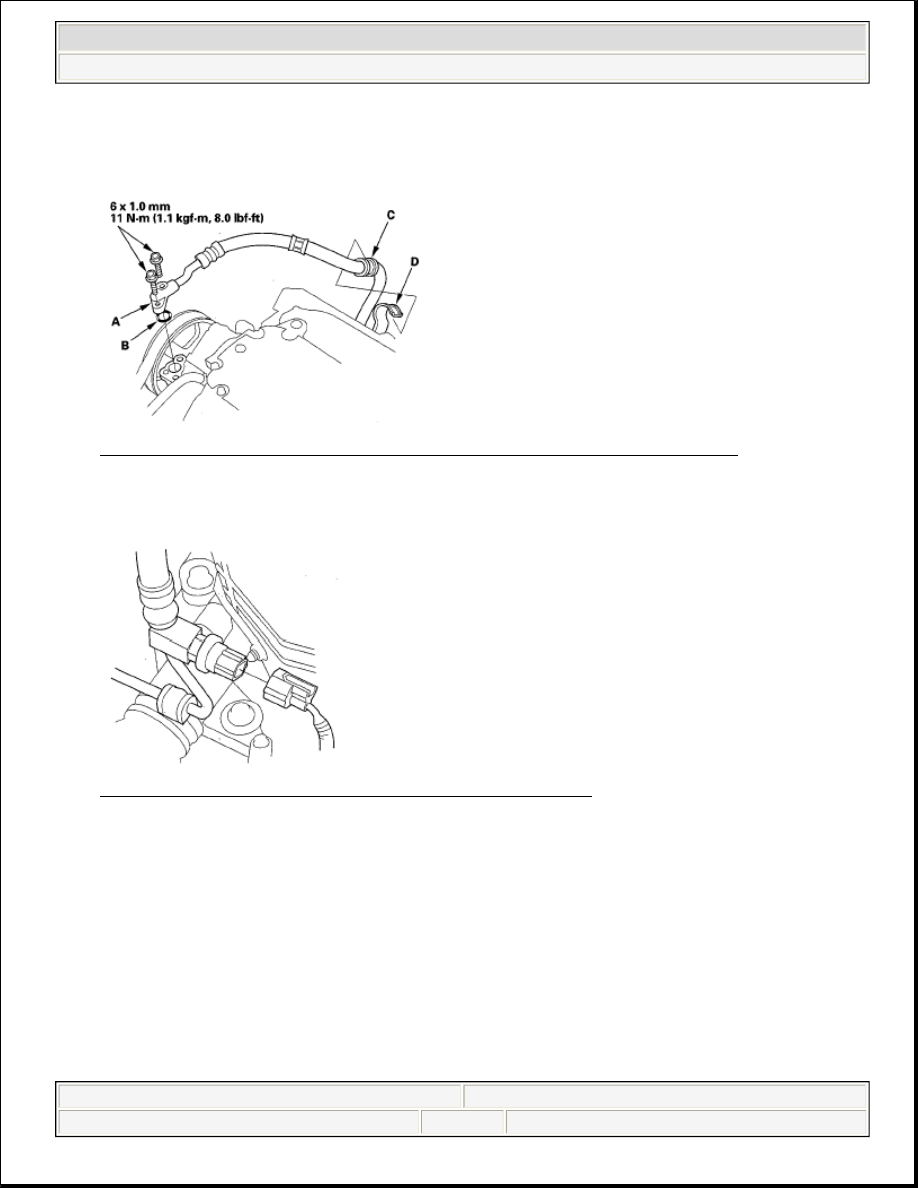

Fig. 336: Identifying Power Steering Pump Outlet Line With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

69. Connect the power steering pressure switch connector.

Fig. 337: Identifying Power Steering Pressure Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

70. Install the strut brace.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 353

© 2005 Mitchell Repair Information Company, LLC.

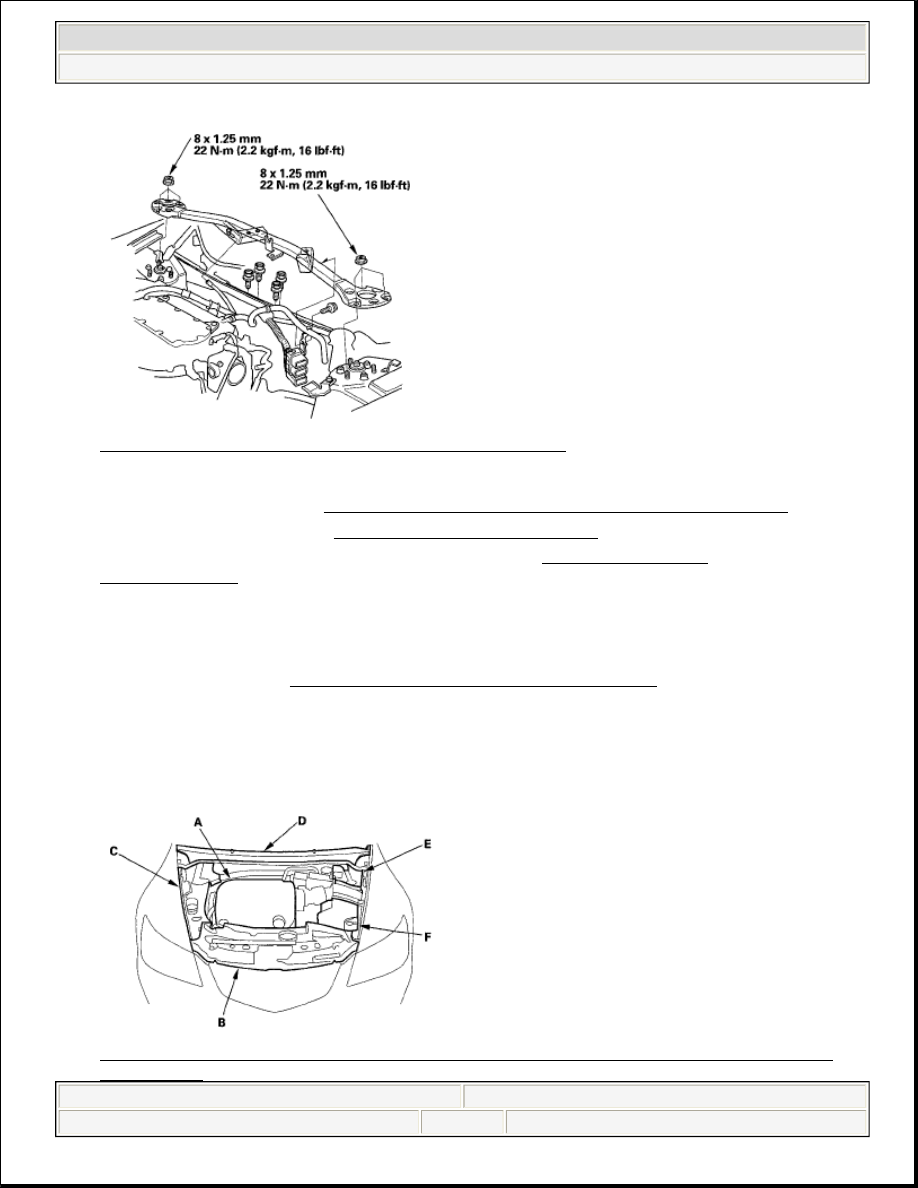

Fig. 338: Identifying Strut Brace With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

71. Connect the steering joint (see STEERING COLUMN REMOVAL AND INSTALLATION ).

72. Remove the steering wheel (see STEERING WHEEL REMOVAL ).

73. Center the SRS cable reel, and install the steering wheel (see STEERING WHEEL

INSTALLATION ).

74. Refill the power steering fluid reservoir with fluid to the upper level line.

75. Refill the transmission with ATF (see step 6 ).

76. Install the battery base.

77. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

78. Install the battery tray, battery, and battery hold-down bracket, then connect battery terminals.

79. Install the splash shield.

80. Install the covers in the following order; intake manifold cover (A), upper grille cover (B), right upper

fender trim (C), cowl cover upper trim (D), left upper fender trim (E), and battery trim (F).

Fig. 339: Identifying Intake Manifold Cover, Cowl Cover Upper Trim, Upper Grille Cover And
Battery Trim
