Fig. 325: Identifying Shift Cable Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

51. Connect the power steering angle sensor connector.

Fig. 326: Identifying Power Steering Angle Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

52. Connect the 2nd clutch transmission fluid pressure switch connector (A), and secure the vacuum line with

the bolt.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 347

© 2005 Mitchell Repair Information Company, LLC.

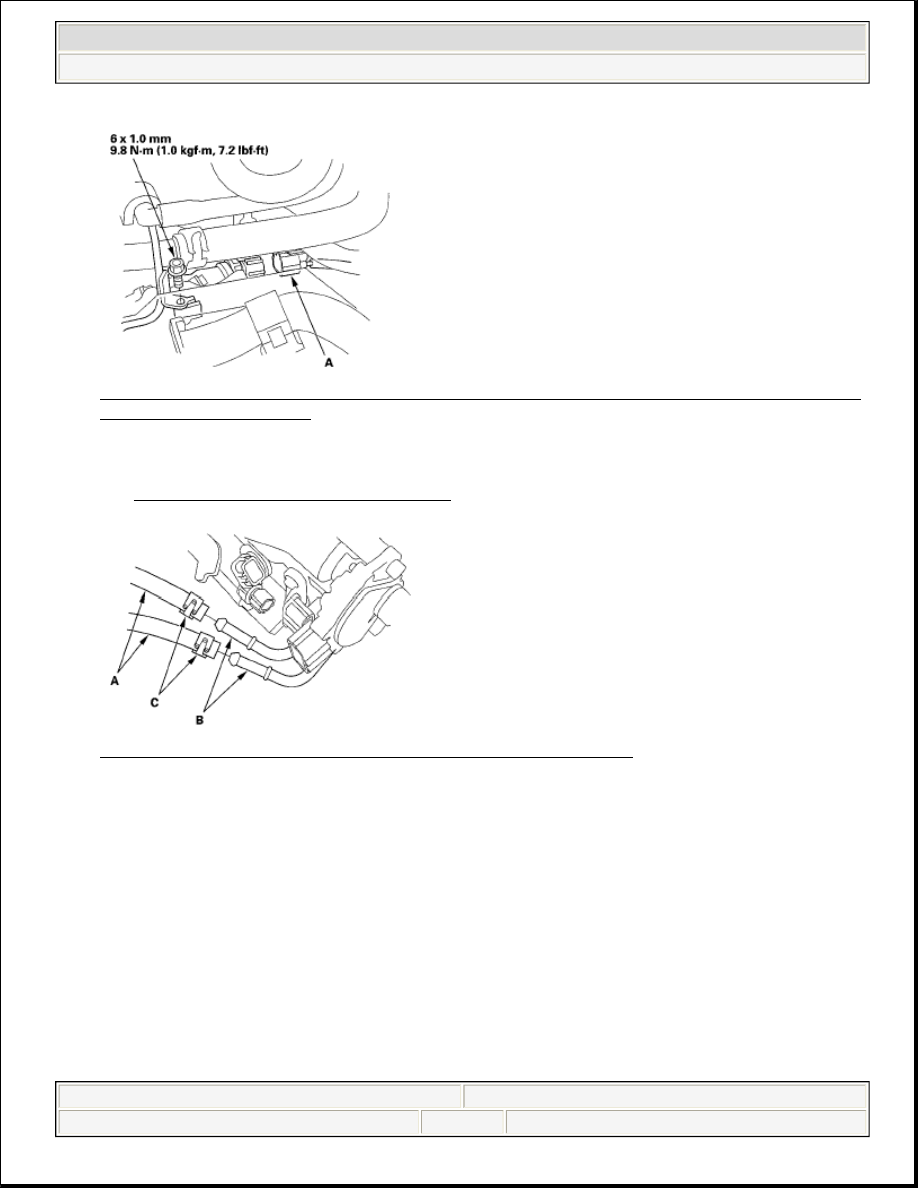

Fig. 327: Identifying 2nd Clutch Transmission Fluid Pressure Switch Connector And Vacuum Line
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

53. Connect the ATF cooler hoses (A) to the ATF cooler lines (B), and secure the hoses with the clips (C)

(see ATF COOLER HOSE REPLACEMENT ).

Fig. 328: Identifying ATF Cooler Hoses, ATF Cooler Lines And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

54. Connect the output shaft (countershaft) speed sensor connector (A), input shaft (mainshaft) speed sensor

connector (B) and 3rd clutch transmission fluid pressure switch connector (C). Connect ATF temperature
sensor connector (D), and install the connector on the connector bracket (E). Install the harness clamp (F)
on the bracket.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 348

© 2005 Mitchell Repair Information Company, LLC.

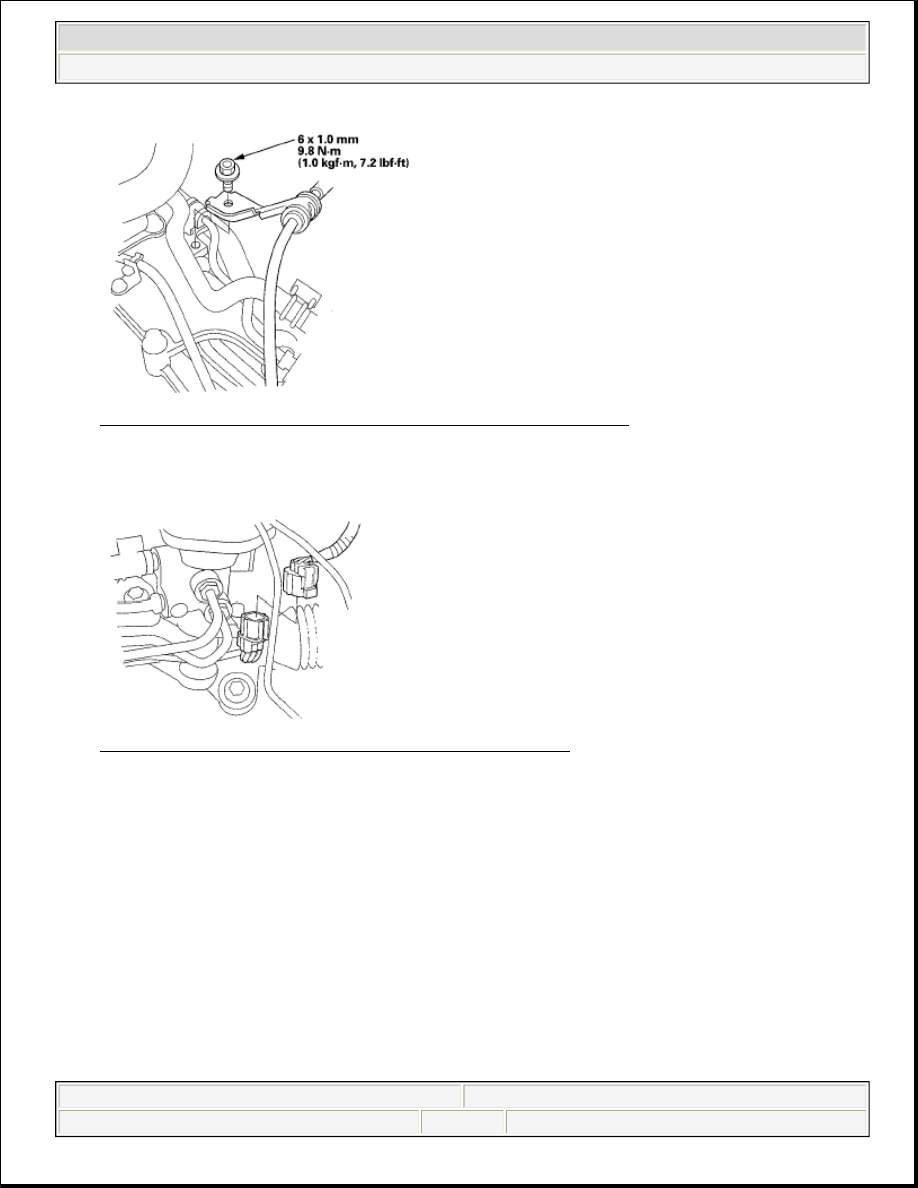

Fig. 329: Identifying Input Shaft (Mainshaft) Speed Sensor Connector And 3rd Clutch
Transmission Fluid Pressure Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

55. Connect the transmission range switch connector (A), and install the harness clamp (B) on the clamp

bracket (C).

Fig. 330: Identifying Transmission Range Switch Connector, Transmission Ground Cable And
Clamp Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

56. Install the transmission ground cable (D).

57. Install the harness clamp bracket (A) and connector bracket (B), and install the harness clamps (C) on the

clamp brackets (A) (D).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 349

© 2005 Mitchell Repair Information Company, LLC.

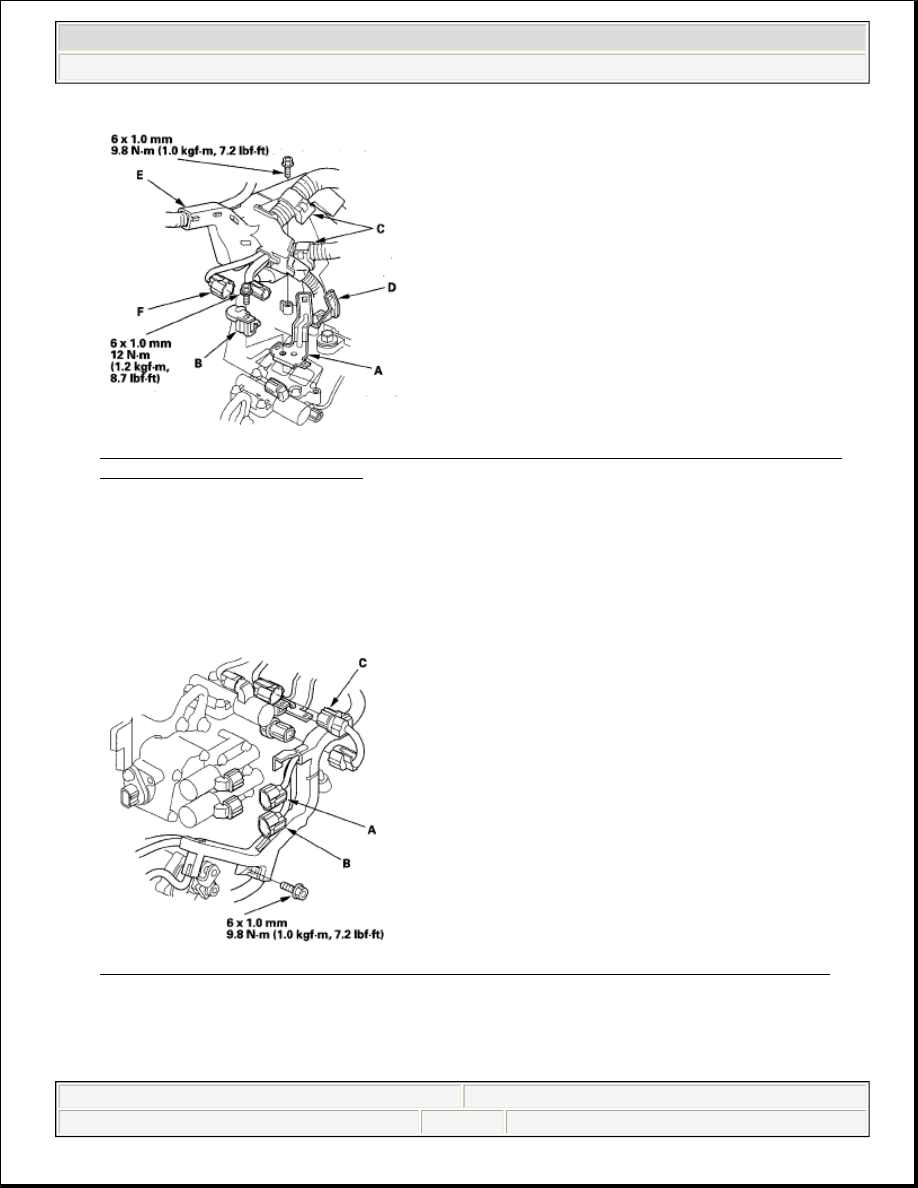

Fig. 331: Identifying Harness Clamp Bracket, Connector Bracket, Harness Clamps And Harness
Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

58. Secure the harness cover (E) with the bolt, and connect the A/T clutch pressure control solenoid valve C

connector (F).

59. Secure the harness cover with the bolt, and connect the A/T clutch pressure control solenoid valve A

connector, A/T clutch pressure control solenoid valve B connector, and 4th clutch transmission fluid
pressure switch connectors (C).

Fig. 332: Identifying Transmission Connectors And Harness Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

60. Apply molybdenum grease to the hole in the bushing (A) in the shift cable end (B);
