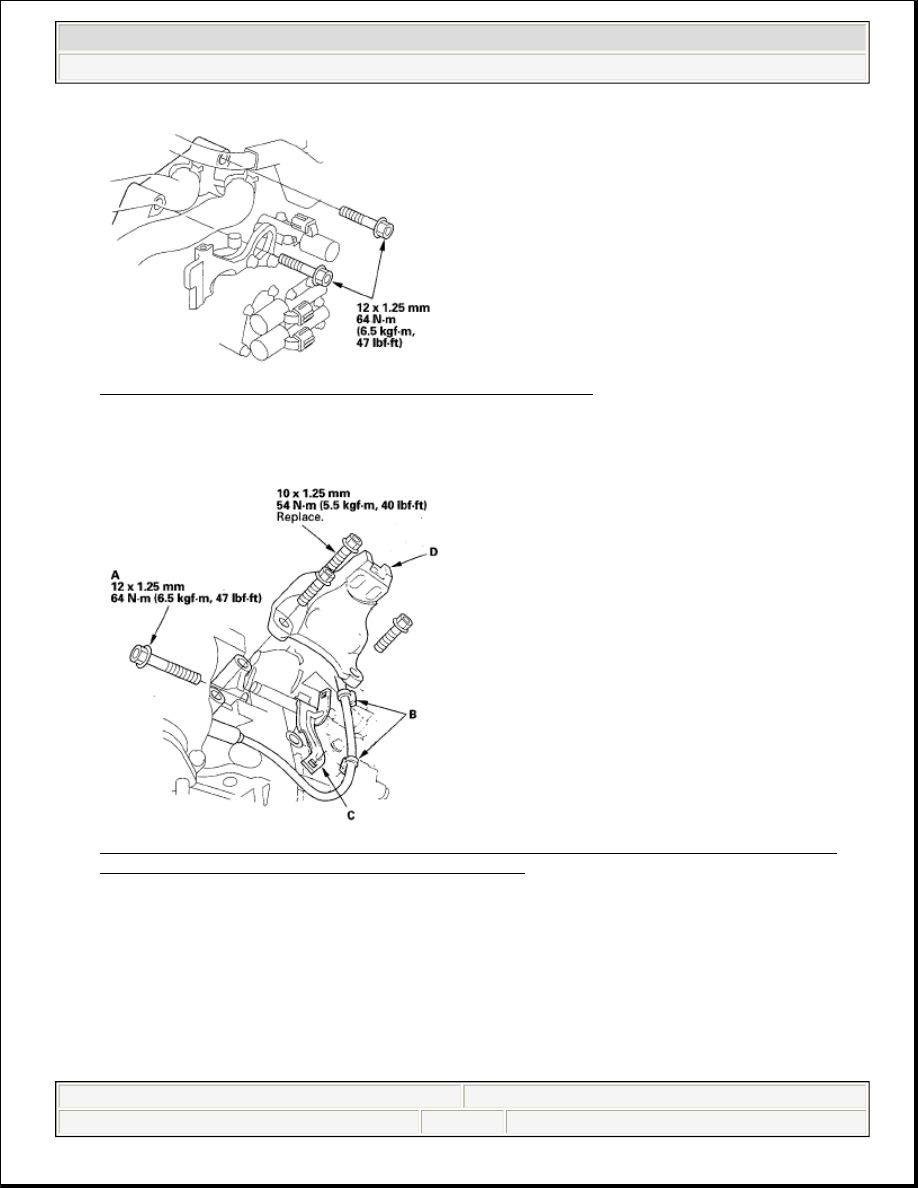

Fig. 305: Identifying Top Transmission Housing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the transmission housing mounting bolt (A) with a socket 22 mm in length and a torque wrench.

Fig. 306: Identifying Sensor Harness Clamps, Bracket, Front Transmission Mounting Bolts And
Front Mount Bracket Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the sensor harness clamps (B) on the clamp bracket (C).

12. Install the front mount bracket (D) with the new mounting bolts.

13. Install the new set ring (A) on the intermediate shaft (B).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 335

© 2005 Mitchell Repair Information Company, LLC.

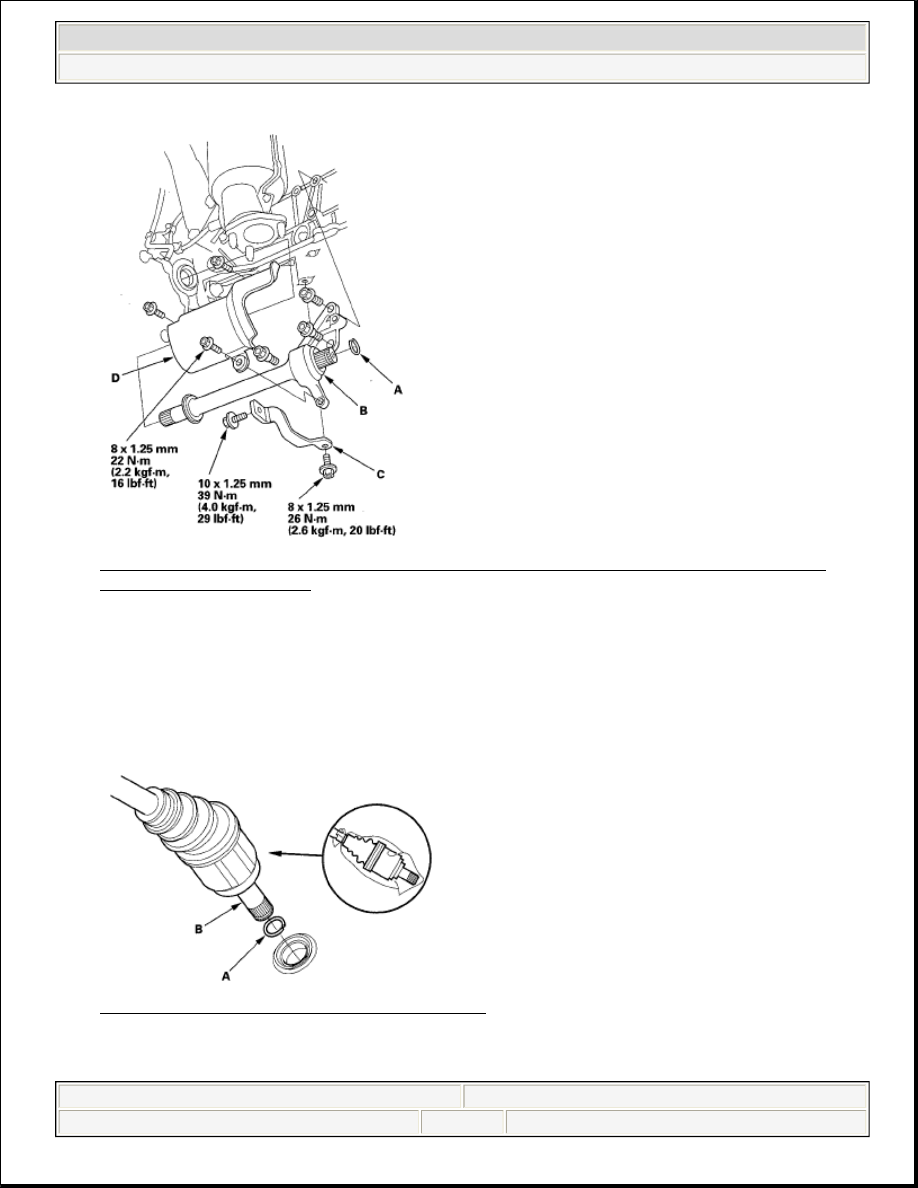

Fig. 307: Identifying Set Ring, Intermediate Shaft, Exhaust Manifold Bracket And Heat Shield
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Clean the areas where the intermediate shaft contacts the transmission (differential) with solvent, and dry

with compressed air. Apply ATF to the intermediate shaft splines, then install the intermediate shaft; be
sure not to allow dust or other foreign particles to enter the transmission.

15. Install the exhaust manifold bracket (C) and heat shield (D).

16. Install the new set ring (A) on the left driveshaft (B).

Fig. 308: Identifying Set Ring And Left Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Clean the areas where the left driveshaft contacts the transmission (differential) with solvent, and dry with



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 336

© 2005 Mitchell Repair Information Company, LLC.

compressed air. Then install the left driveshaft; be sure not to allow dust or other foreign particles to enter
the transmission. Turn the steering knuckle fully outward, and slide the driveshaft into the differential
until you feel its set ring fully engage the side gear.

18. Apply right driveshaft inboard-joint splines with the recommended grease.

19. Slide the right driveshaft over the intermediate shaft splines until you feel the driveshaft fully engage the

intermediate shaft set ring.

20. Support the front subframe (A) with the front subframe adapter (VSB02C000016) and a jack, and lift it

up to body.

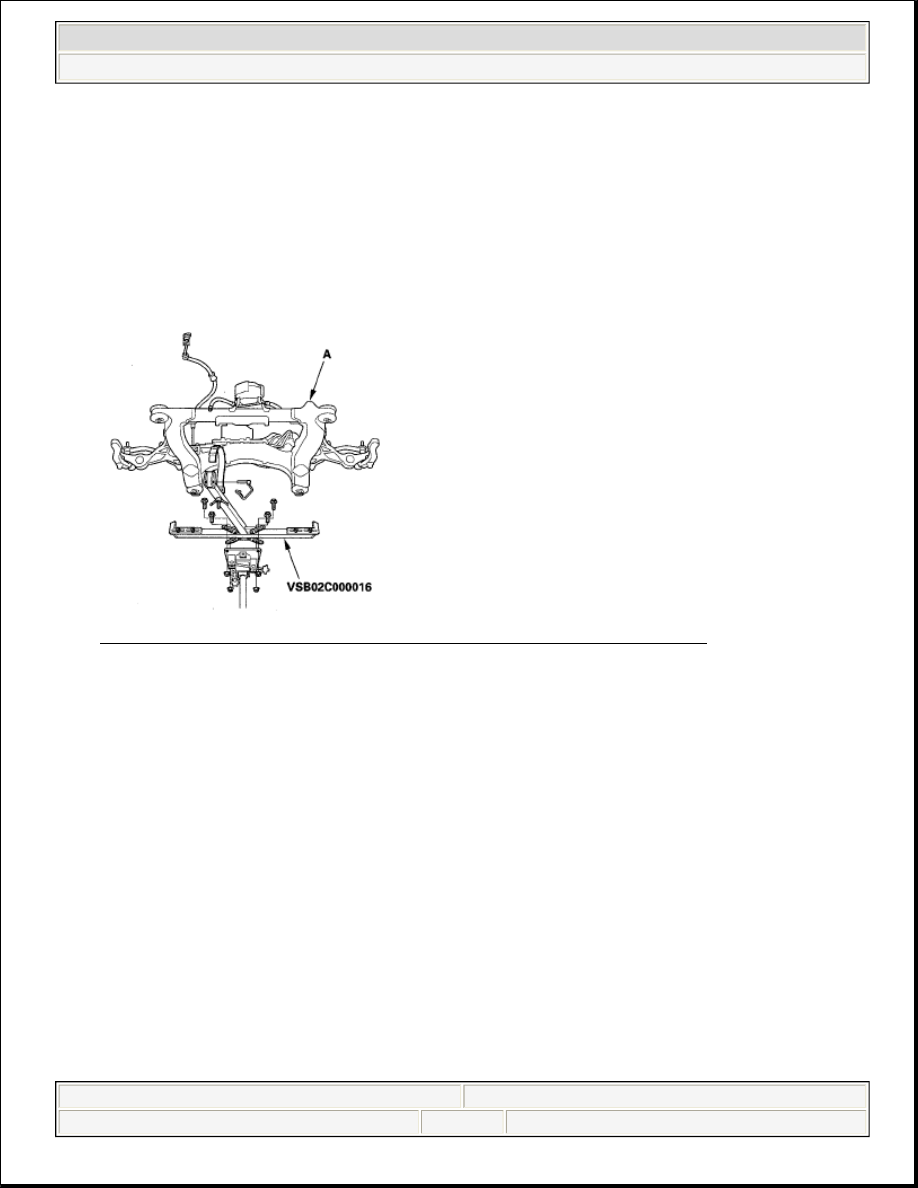

Fig. 309: Supporting Front Subframe With Front Subframe Adapter And Jack
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Loosely install the new subframe mounting bolts (A), rear stiffener mounting bolts (B), front stiffener

mounting bolts (C), and front and rear stiffeners.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 337

© 2005 Mitchell Repair Information Company, LLC.

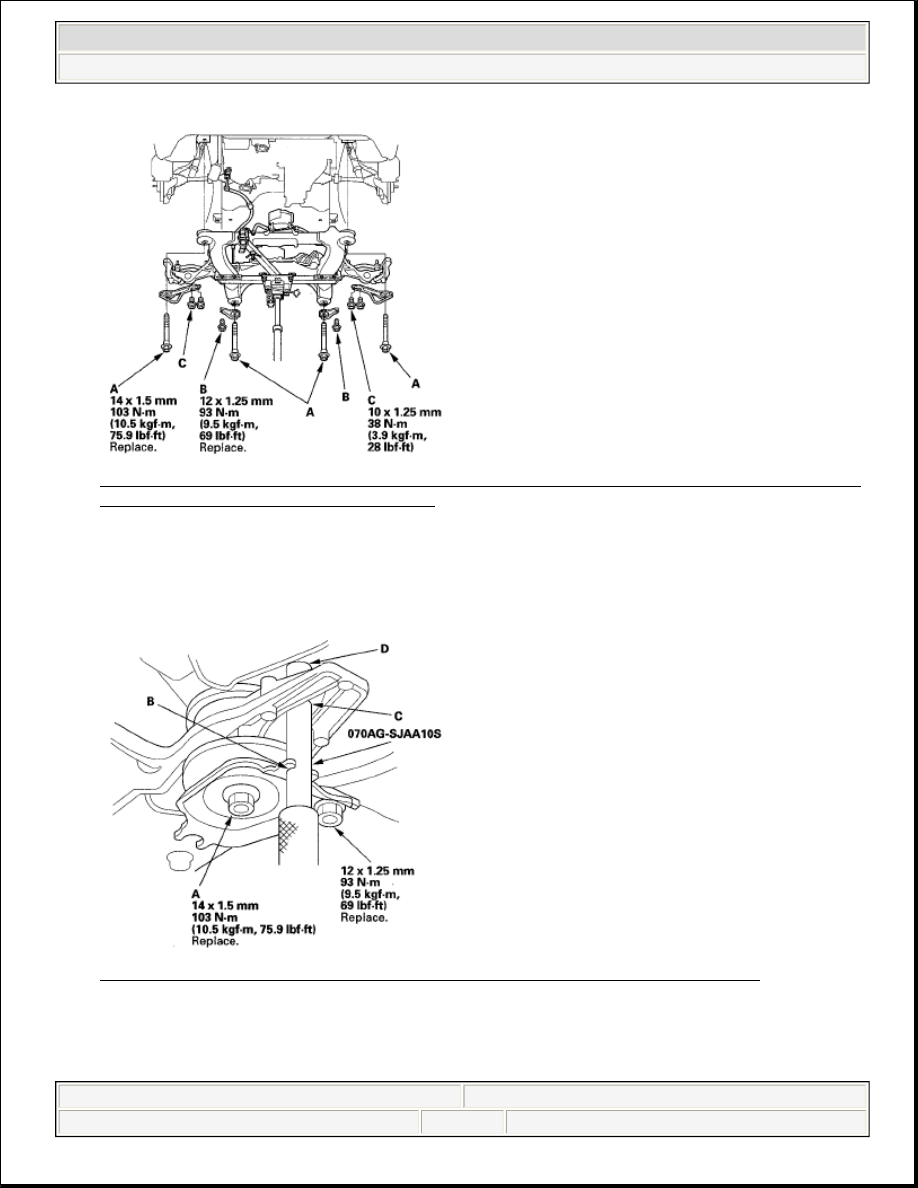

Fig. 310: Identifying Subframe Mounting Bolts, Rear Stiffener Mounting Bolts And Front Stiffener
Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Partially tighten the right rear subframe mounting bolt (A); insert the special tool through the positioning

slot (B) on the rear stiffener, through the positioning hole (C) on the subframe, and into the positioning
hole (D) on the body, then tighten the subframe mounting bolt.

Fig. 311: Identifying Right Rear Subframe Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Partially tighten the left rear subframe mounting bolt in the same manner in step 22.

24. Partially tighten the right and left front subframe mounting bolts.
