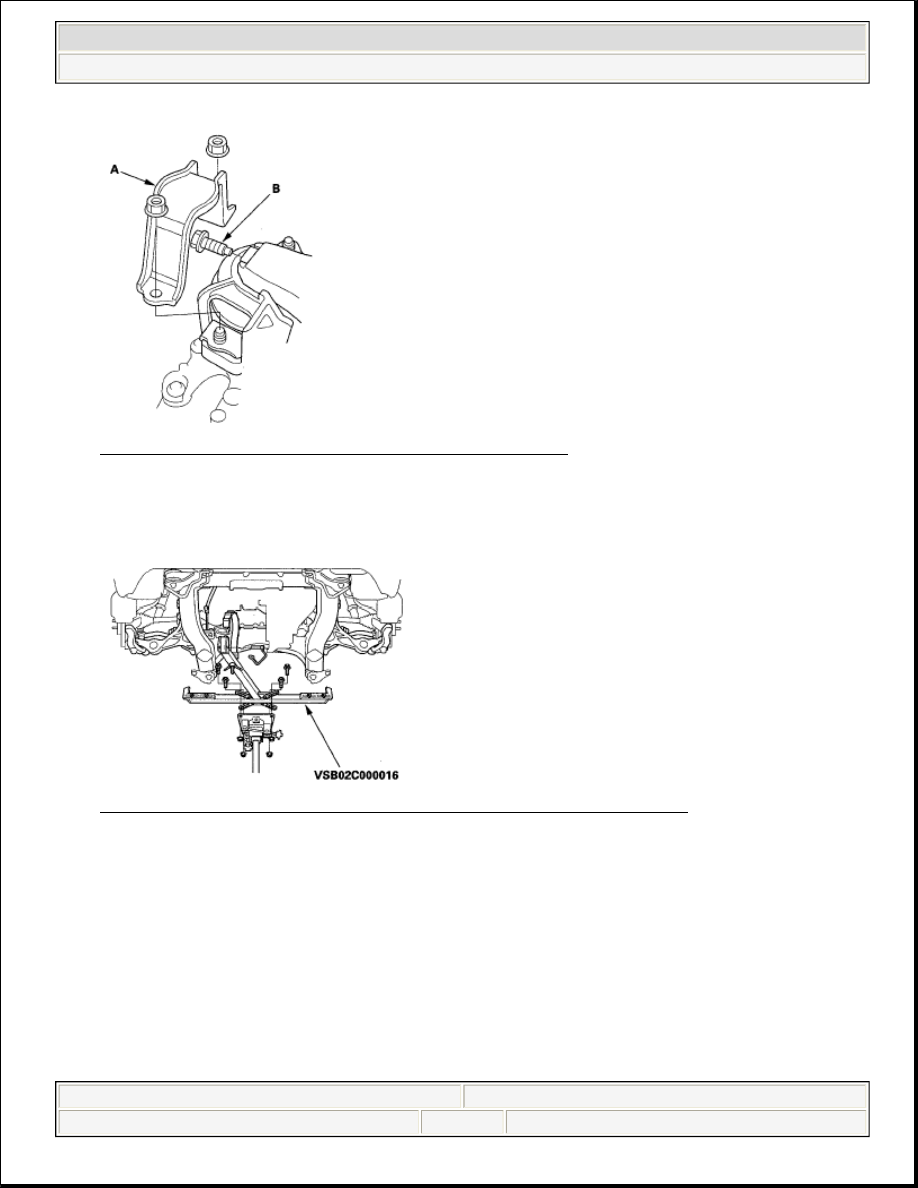

Fig. 288: Identifying Rear Mount Stop And Rear Mount Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

58. Attach the front subframe adapter (VSB02C000016) to the subframe by looping the belt over the front of

the subframe, then secure the belt with its stop.

Fig. 289: Attaching Front Subframe Adapter (VSB02C000016) To Subframe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

59. Raise the jack and line up the slots in the arms with the bolt holes on the corner of the jack base, then

attach them with bolts.

60. Remove the four bolts securing the stiffeners (A) and the four bolts securing the front subframe (B), and

lower the front subframe.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 327

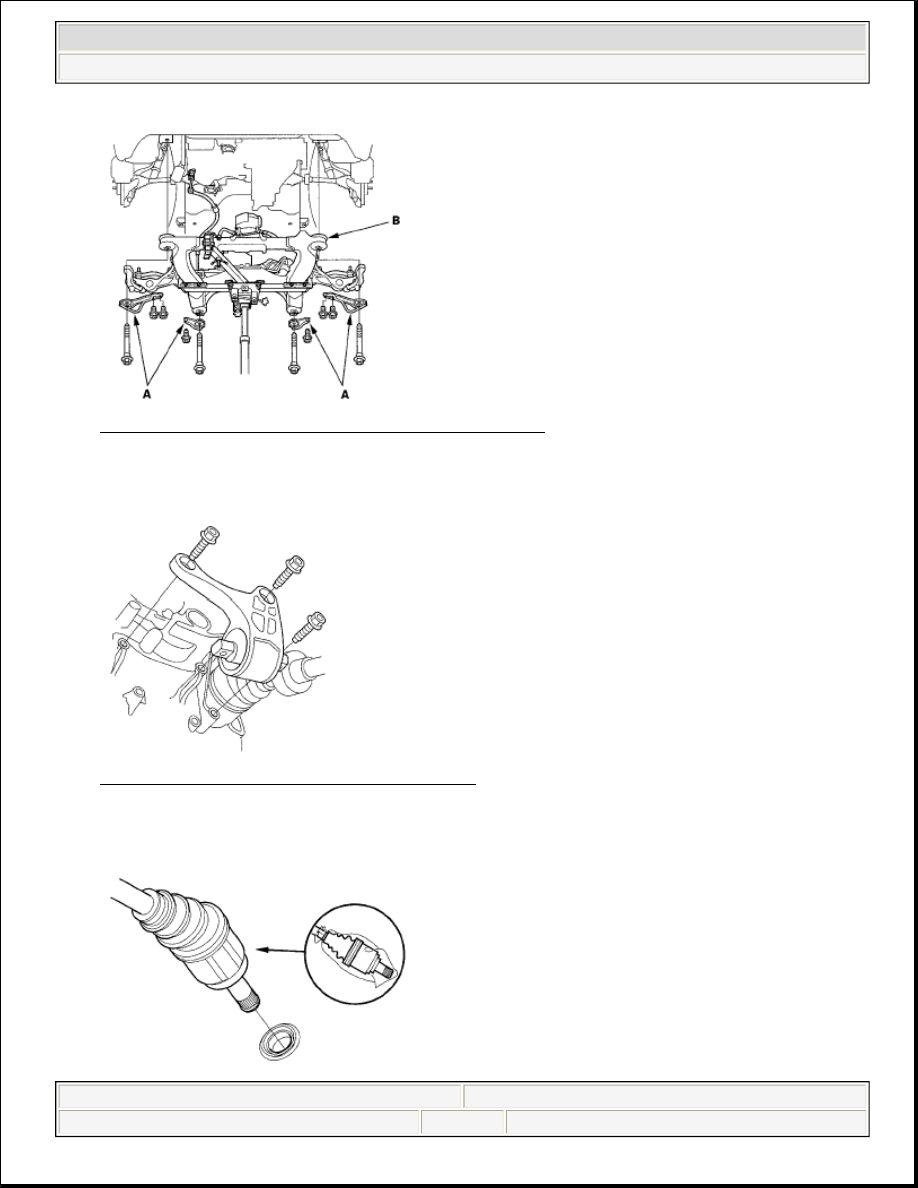

Fig. 290: Identifying Stiffeners And Front Subframe Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

61. Remove the transmission lower mount.

Fig. 291: Identifying Transmission Lower Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.

62. Pry out the driveshafts from the differential and intermediate shaft.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 328

Fig. 292: Covering Driveshaft With Plastic Bags
Courtesy of AMERICAN HONDA MOTOR CO., INC.

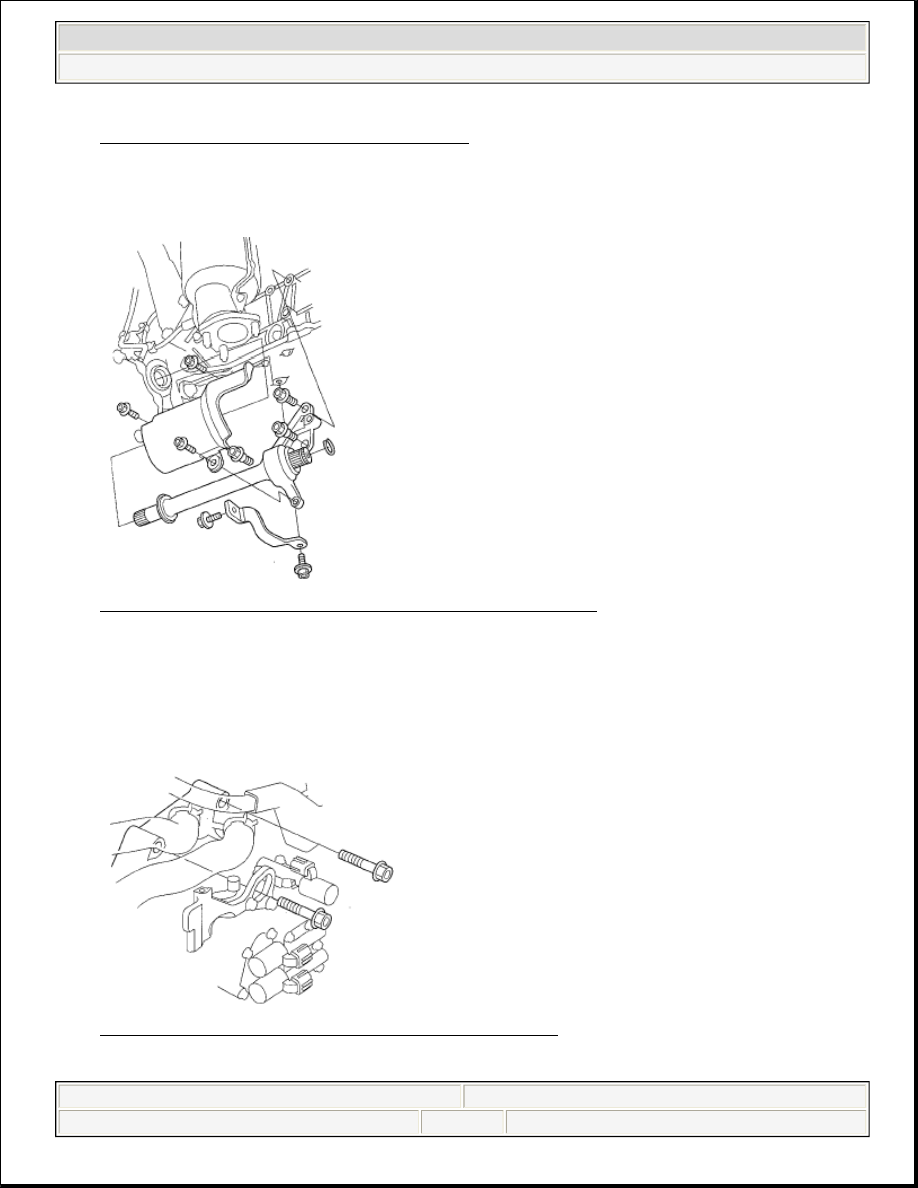

63. Remove the exhaust manifold bracket and heat shield.

Fig. 293: Identifying Exhaust Manifold Bracket And Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

64. Remove the intermediate shaft.

65. Coat all precision finished surfaces with clean engine oil, then the plastic bags over the driveshaft ends

and intermediate shaft ends.

66. Remove the transmission housing mounting bolts.

Fig. 294: Identifying Transmission Housing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 329

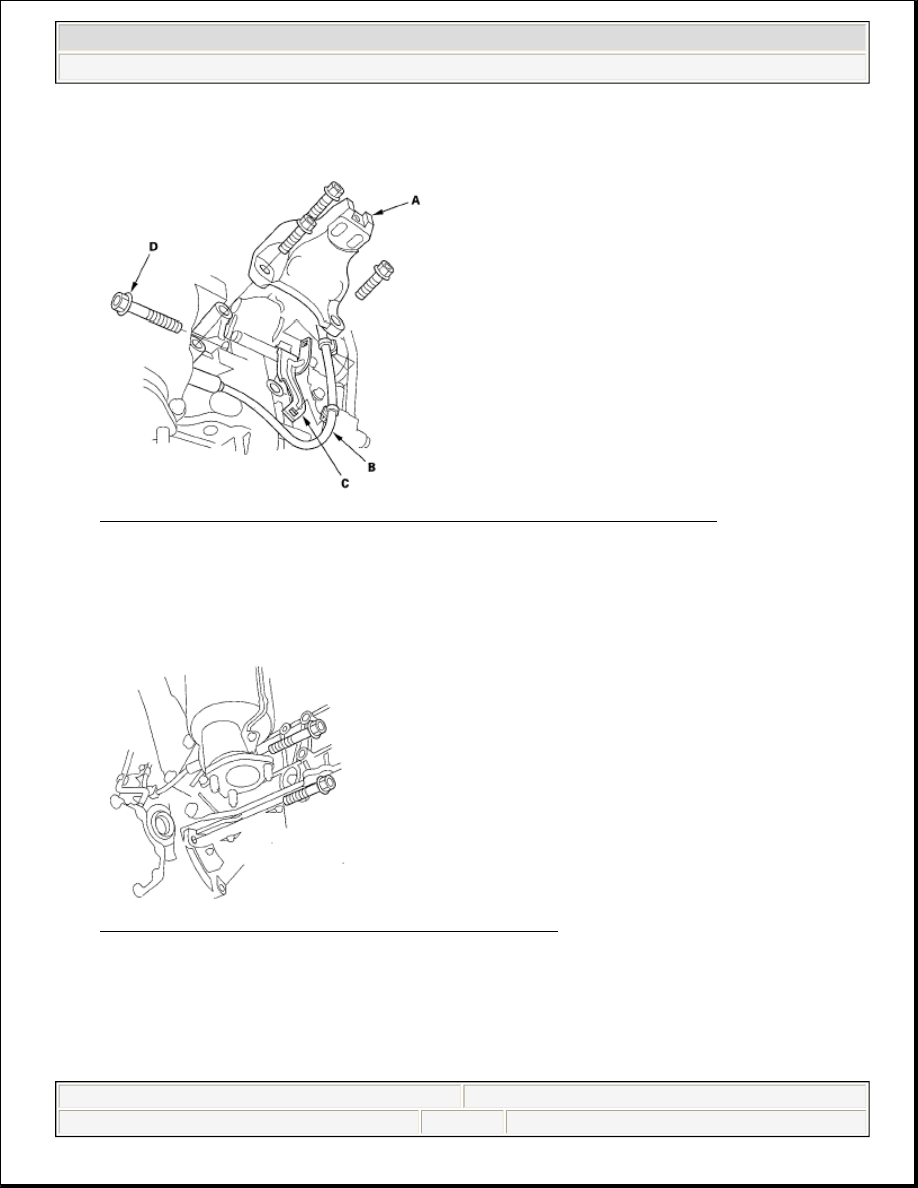

67. Remove the front mount bracket (A).

Fig. 295: Identifying Front Mount Bracket, Sensor Harness And Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.

68. Remove the sensor harness (B) from the harness clamp (C).

69. Remove the transmission housing mounting bolt (D) using a socket 22 mm in length.

70. Remove the transmission housing mounting bolts.

Fig. 296: Identifying Transmission Housing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

71. Remove the transmission housing mounting bolts.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 330
