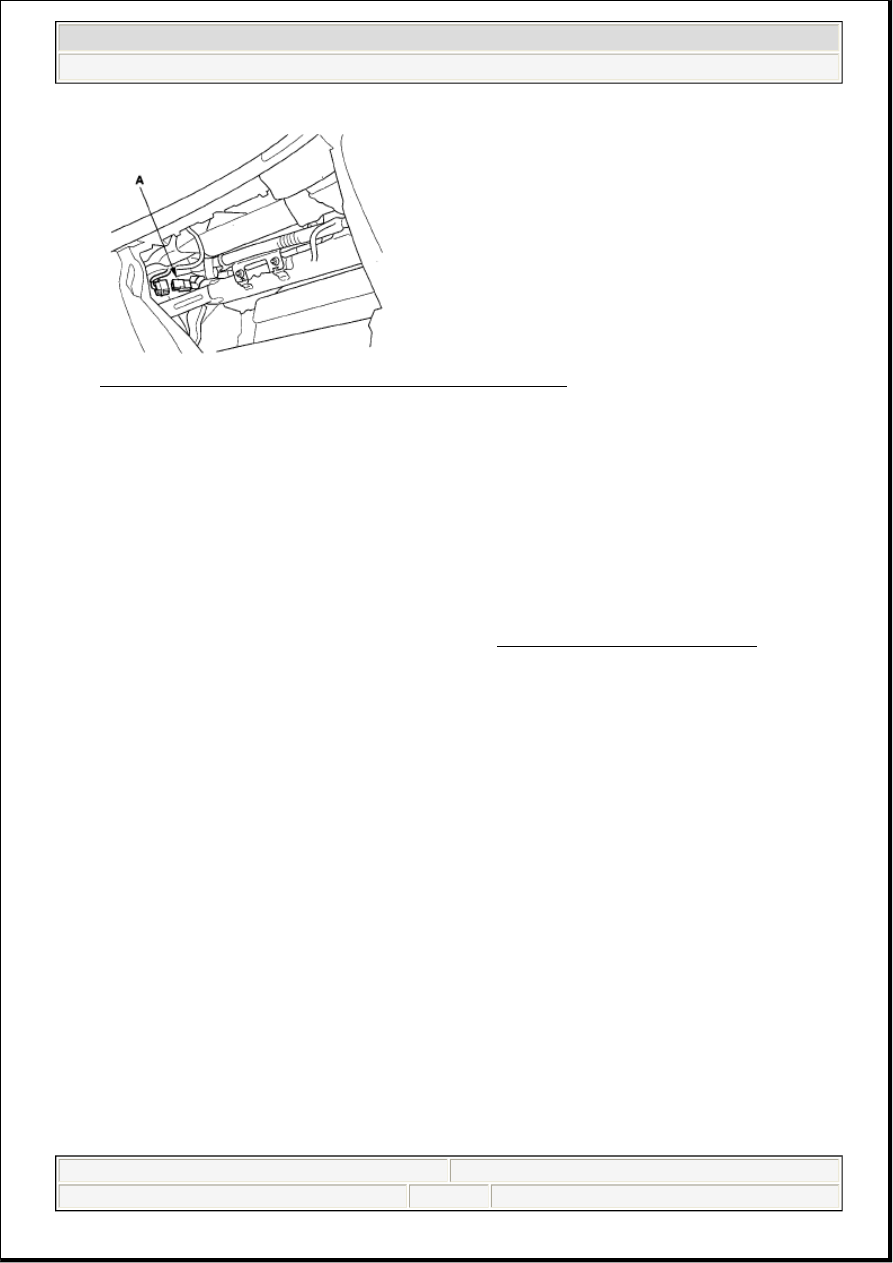

Fig. 386: Identifying Front Passenger's Airbag 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Reconnect the negative cable to the battery.

4. Connect the HDS and clear the DTCs.

5. After installing the airbag, confirm proper system operation: Turn the ignition switch ON (II); the

SRS indicator should come on for about 6 seconds and then go off.

INSTALLATION OF THE FRONT PASSENGER'S AIRBAG AFTER A COLLISION WHERE IT
DEPLOYED

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Remove the dashboard assembly from the vehicle (see DASHBOARD REPLACEMENT ).

3. Place the new front passenger's airbag (A) into the bracket. Torque the front passenger's airbag

mounting nuts (B).

NOTE:



Be sure to install the front passenger's airbag so it does not
interfere with other parts.



When you install the front passenger's airbag, be careful not to
damage the bag.



Be sure to keep the new airbag clean and do not unfold or tamper
with the cloth cover on the airbag.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 276  © 2005 Mitchell Repair Information Company, LLC.

4. Install the dashboard assembly into the vehicle (see DASHBOARD REPLACEMENT ).

5. Connect the front passenger's airbag 4P connector (A) to the dashboard wire harness A, then reinstall

all removed parts.

Fig. 388: Identifying Front Passenger's Airbag 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Reconnect the negative cable to the battery.

7. Connect the HDS and clear the DTCs.

8. After installing the airbag, confirm proper system operation: Turn the ignition switch ON (II); the

SRS indicator should come on for about 6 seconds and then go off.

SIDE AIRBAG REPLACEMENT

REMOVAL

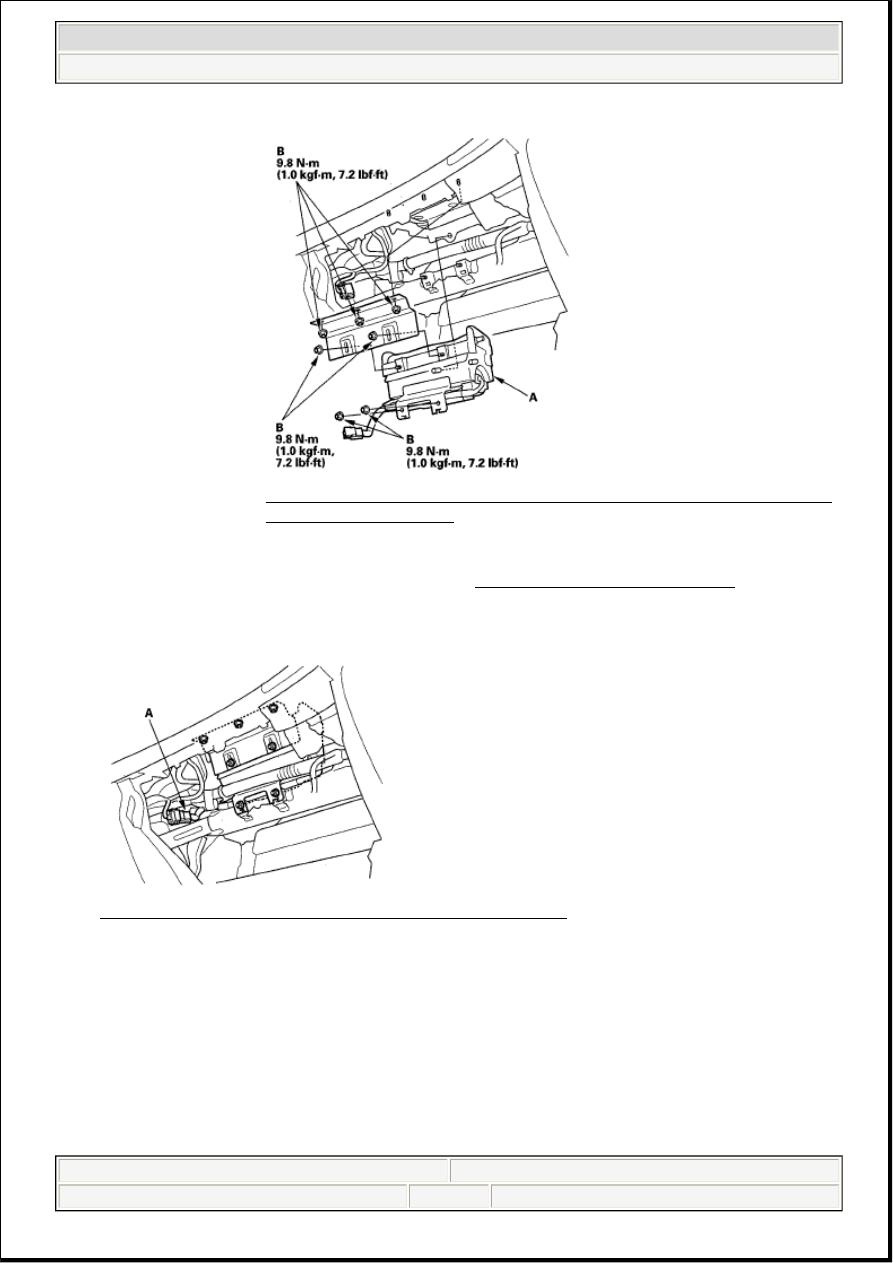

Fig. 387: Identifying Front Passenger's Airbag And Fasteners With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 277  © 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect the side airbag harness 2P connector (A).

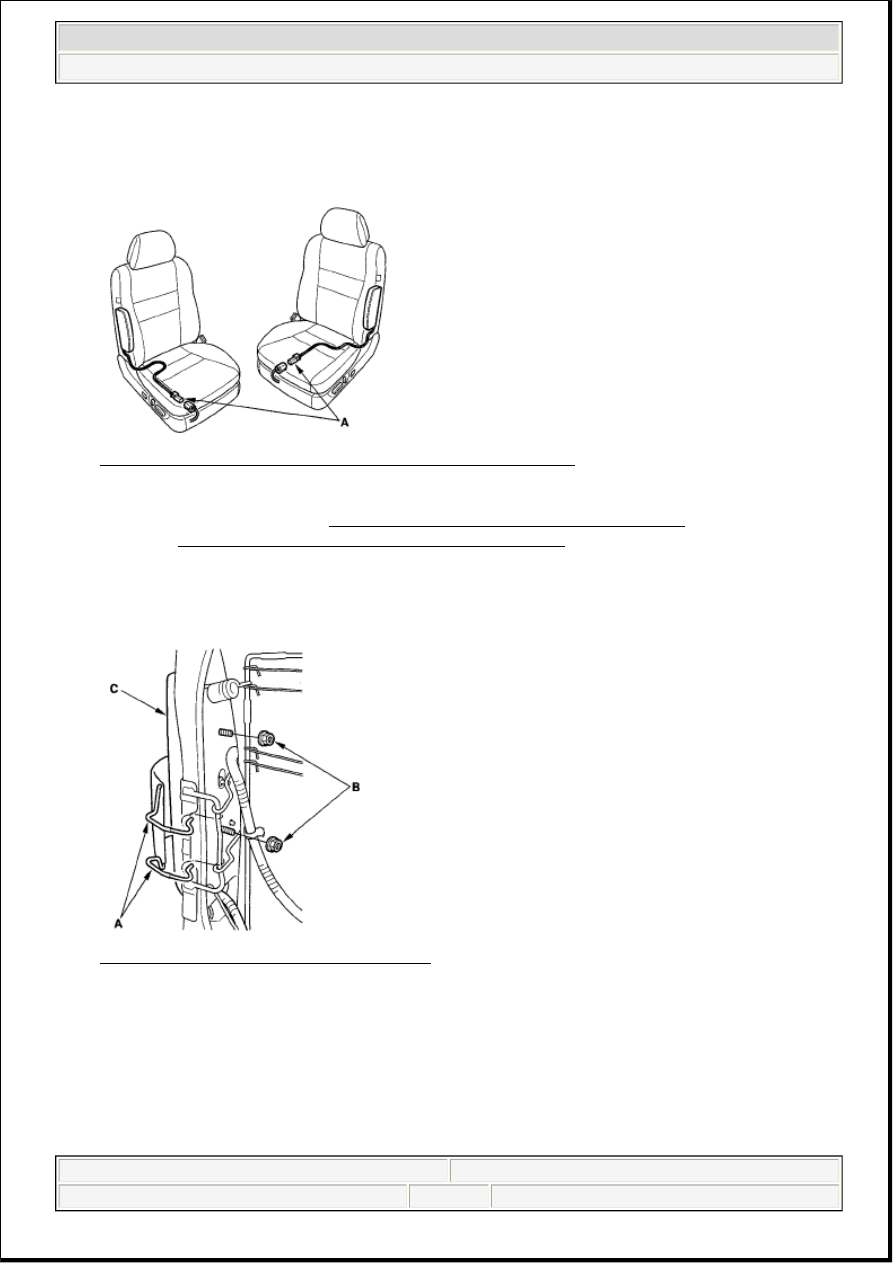

Fig. 389: Identifying Seat Side Airbag Harness 2P Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the seat assembly (see FRONT SEAT REMOVAL/INSTALLATION ) and seat-back

cover (see FRONT SEAT-BACK COVER REPLACEMENT ).

Fig. 390: Identifying Side Airbag Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the mounting nuts (B) and the side airbag (C).

INSTALLATION

NOTE:

If you are replacing a deployed airbag, replace the reinforcing cloth rear
hooks (A).

NOTE:



If the side airbag lid is secured by a tape, remove the tape.



Do not open the lid of the side airbag cover.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 278  © 2005 Mitchell Repair Information Company, LLC.

1. Place the new side airbag on the seat-back frame (A). Torque the new side airbag mounting nuts (B).

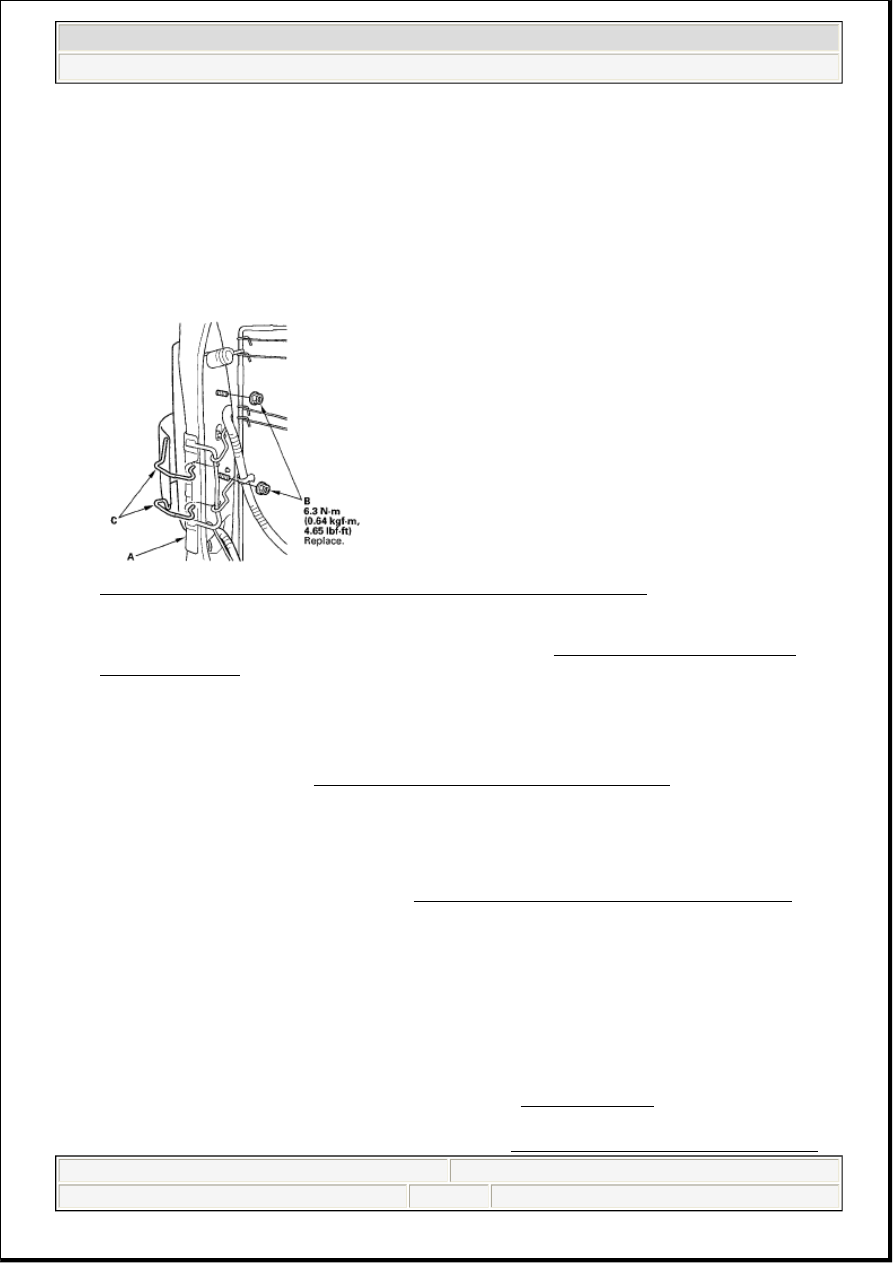

Fig. 391: Identifying Side Airbag Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the seat-back cover in the reverse order of removal (see FRONT SEAT-BACK COVER

REPLACEMENT ).

3. Install the seat assembly (see FRONT SEAT REMOVAL/INSTALLATION ), then connect the

side airbag harness 2P connector.

4. Move the front seat and the seat-back through their full ranges of movement, making sure the harness

wires are not pinched or interfering with other parts.

5. Reconnect the negative cable to the battery.

6. Connect the HDS, and clear the DTCs (see CLEAR THE DTC MEMORY WITH THE HDS ).

7. After installing the side airbag, confirm proper system operation: Turn the ignition switch ON (II); the

SRS indicator should come on for about 6 seconds and then go off.

SIDE CURTAIN AIRBAG REPLACEMENT

REMOVAL



Use new mounting nuts tightened to the specified torque.



Make sure that the seat-back cover is installed properly. Improper
installation may prevent proper deployment.



Be sure to install the harness wires so that they are not pinched or
interfering with other parts.

NOTE:

If you are replacing a deployed airbag, replace the reinforcing cloth rear
hooks (C).

NOTE:



Review the interior trim replacement procedure in the body section
before doing repair or service (see C-PILLAR TRIM ).



Removal of the side curtain airbag must be done according to
Precautions and Procedures (see PRECAUTIONS AND PROCEDURES ).
