Acura RL. Manual - part 171



Side impact sensor(s) (second) for the side(s) that deployed



Rear safing sensor



Roof trim



A-pillar trim



B-pillar trim



C-pillar trim



Front grab handle



Rear grab handle



All related trim clips



Sunvisor

After a moderate to severe side or rear collision, inspect for any damage on the side curtain airbag or other
related components. Replace components as needed.

A-Pillar Trim

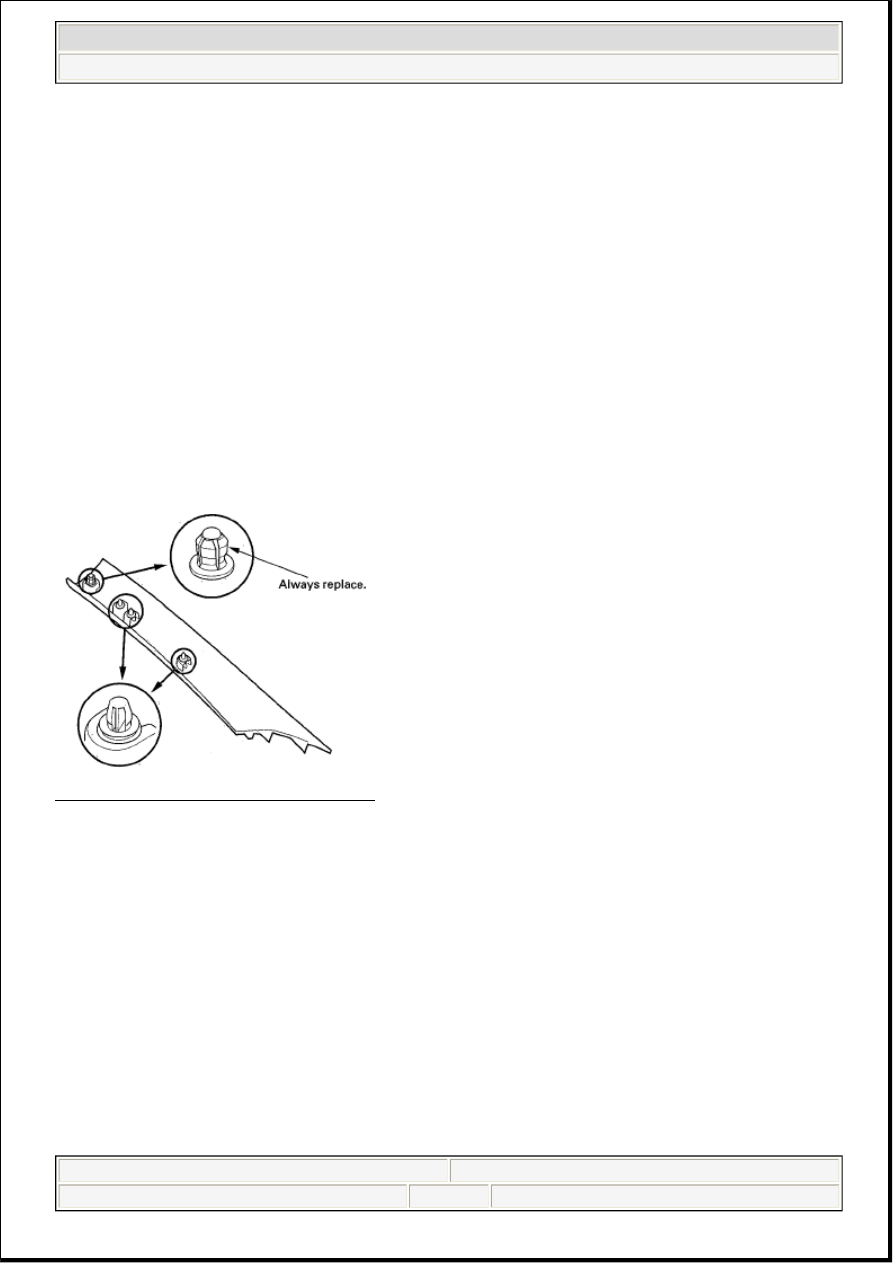

Fig. 371: Identifying A-Pillar Trim Rivets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

B-Pillar Trim



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 268  © 2005 Mitchell Repair Information Company, LLC.

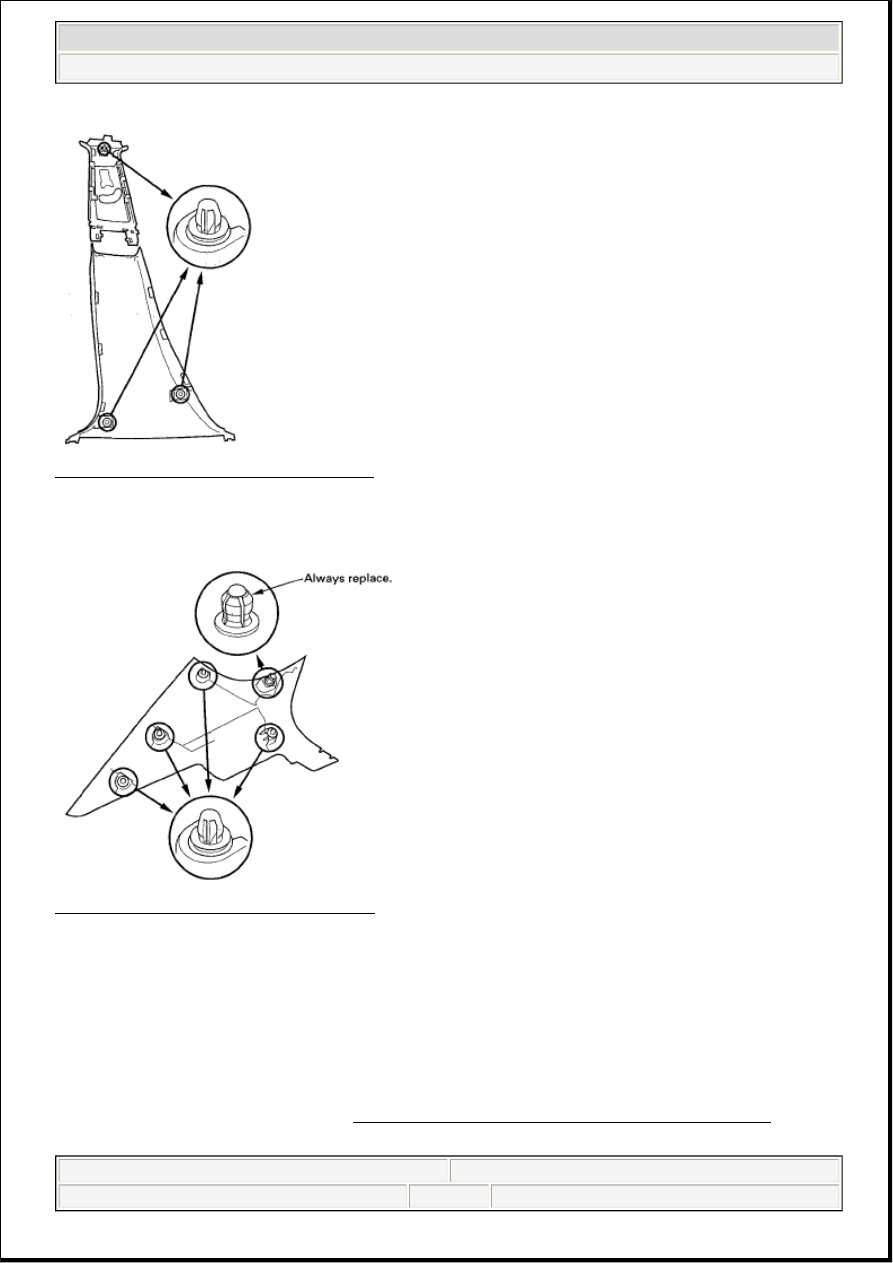

Fig. 372: Identifying B-Pillar Trim Rivets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

C-Pillar Trim

Fig. 373: Identifying C-Pillar Trim Rivets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

During the repair process, inspect these areas:



Inspect all the SRS wire harnesses. Replace, do not repair, any damaged harnesses.



Inspect the cable reel for heat damage. If there is any damage, replace the cable reel.

After the vehicle is completely repaired, turn the ignition switch ON (II). If the SRS indicator comes on for
about 6 seconds and then goes off, the SRS is OK. If the indicator does not function properly, use the HDS
SRS Menu Method to read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ). If you
cannot retrieve a code, do the SRS symptom troubleshooting.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 269  © 2005 Mitchell Repair Information Company, LLC.

CHECKING AND ADJUSTING THE HEADLINER/PILLAR TRIM OVERLAP

To prevent the side curtain airbag from deploying and damaging the pillar trim, the overlap between the
headliner and pillar trim must be less then 15 mm. To check the overlap, do this:

1. Install the headliner (A) and the pillar trim (B).

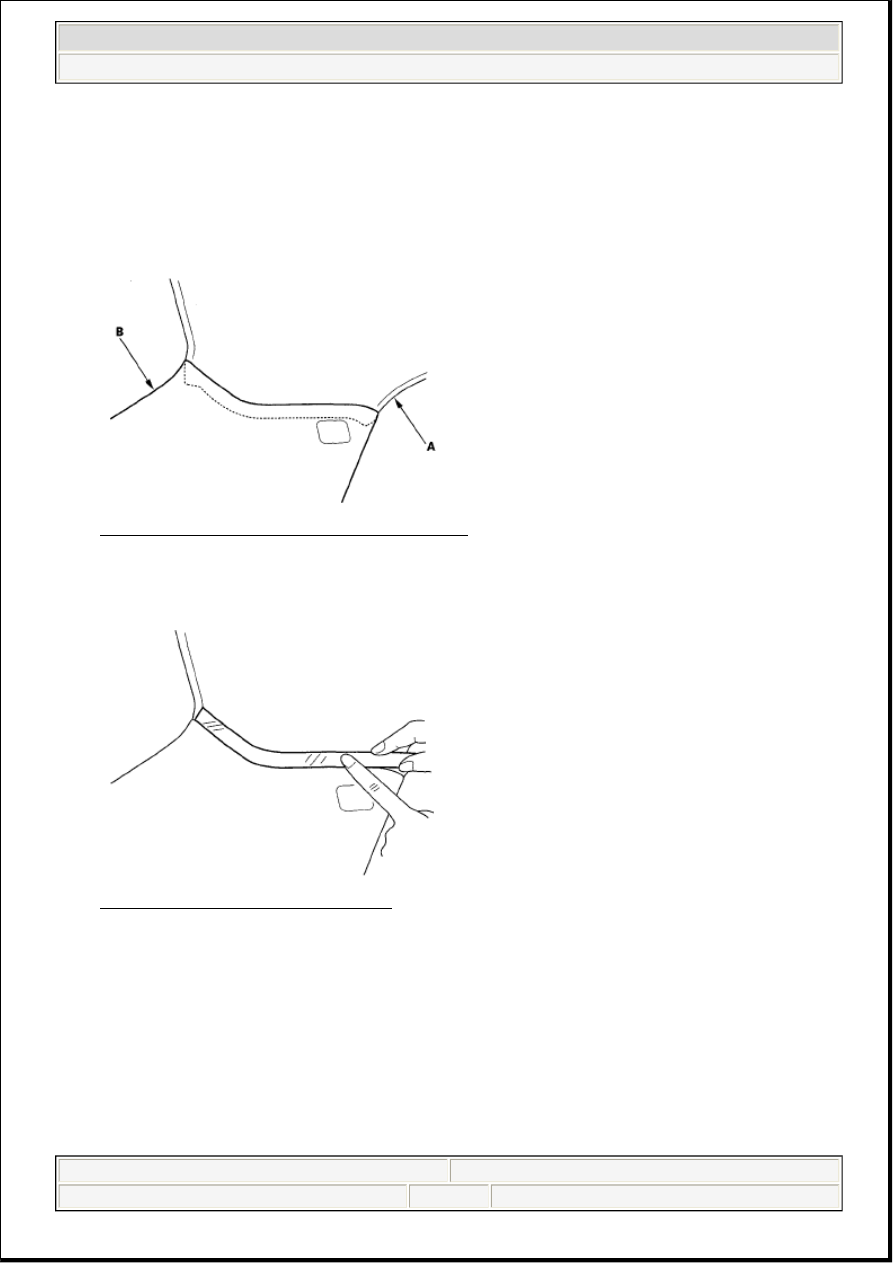

Fig. 374: Identifying Headliner And Pillar Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Using masking tape on the headliner, mark the upper edge of each pillar trim.

Fig. 375: Masking Tape On Headliner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the pillar trim, and measure the headliner overlap.



If the overlap is less than 15 mm (0.6 in.), remove the tape, and install the pillar trim.



If the overlap is more than 15 mm (0.6 in.), go to step 4.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 270  © 2005 Mitchell Repair Information Company, LLC.

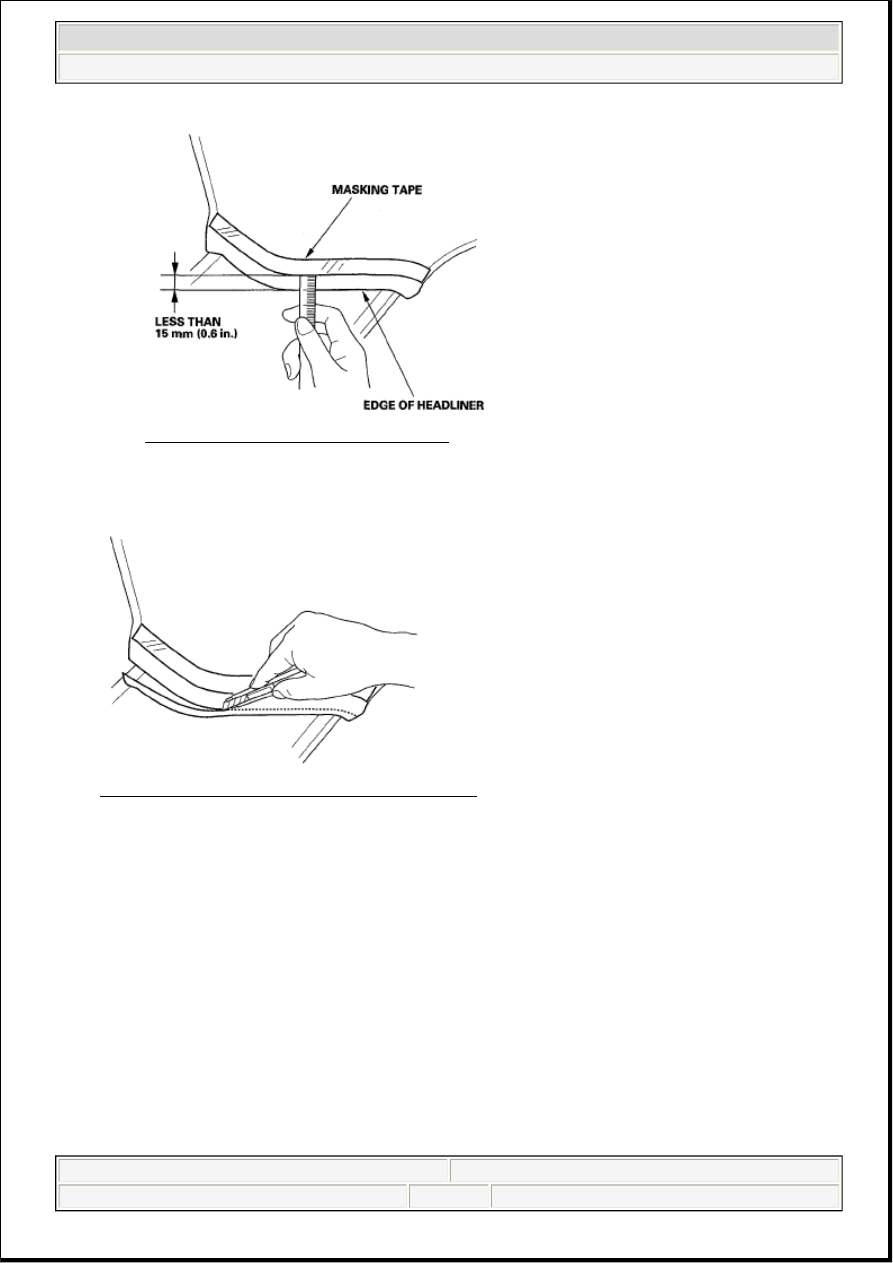

Fig. 376: Measuring Headliner Overlap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Carefully trim the headliner with a utility knife, reducing the overlap to less than 15 mm.

Fig. 377: Trimming Headliner With Utility Knife
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the tape, and install the pillar trim.

DRIVER'S AIRBAG REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag 4P

connector (B) from the cable reel.
