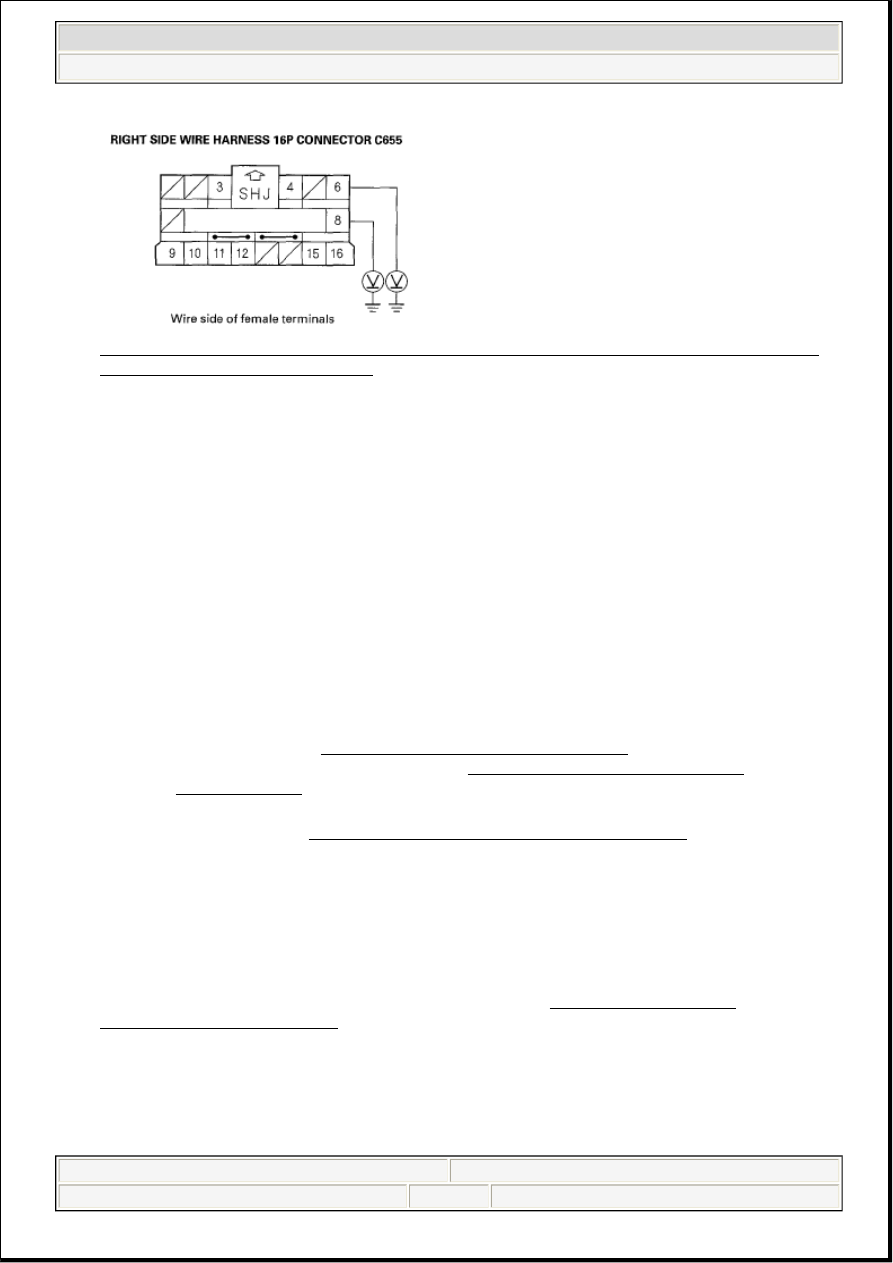

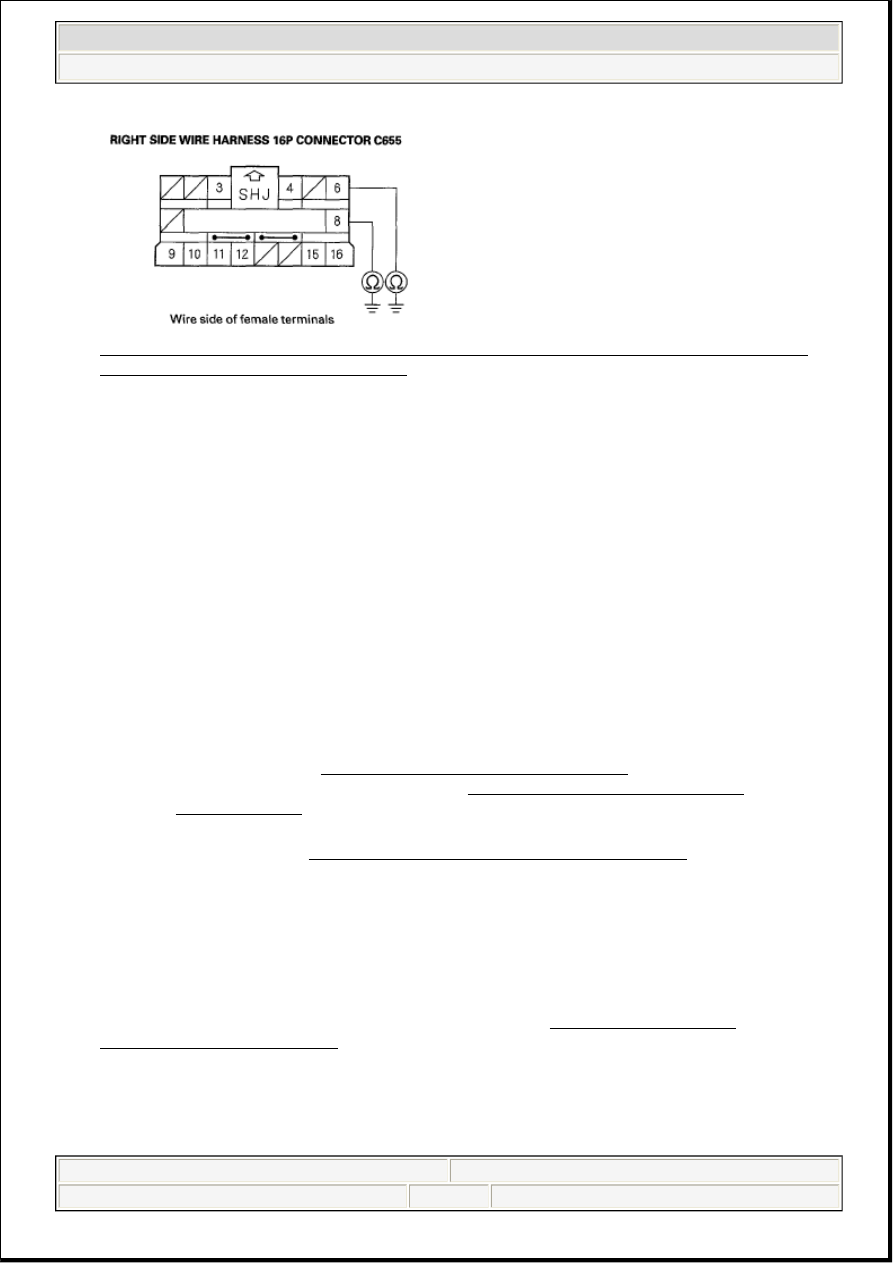

Fig. 177: Measuring Voltage Between No. 6 [No. 8] Terminal Of Right Side Wire Harness 16P Is the voltage as specified? YES - Short to power in the left side wire harness; replace the left side wire harness. NO - Short to power in the right side wire harness; replace the right side wire harness. DTC 33-9X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO GROUND IN LEFT SIDE Special Tools Required SRS inflator simulator 07SAZ-TB4011A SRS simulator lead E 07XAZ-S1A0200 1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ). 2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off. Does the SRS indicator stay on, and is DTC 33-9x indicated? YES - Go to step 3. NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING 3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes. 4. Disconnect the left side wire harness 2P connector (A) from the left side curtain airbag (B). NOTE: Before doing this troubleshooting procedure, review SRS Precautions and
