3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

4. Disconnect the left side wire harness 2P connector (A) from the left side curtain airbag (B).

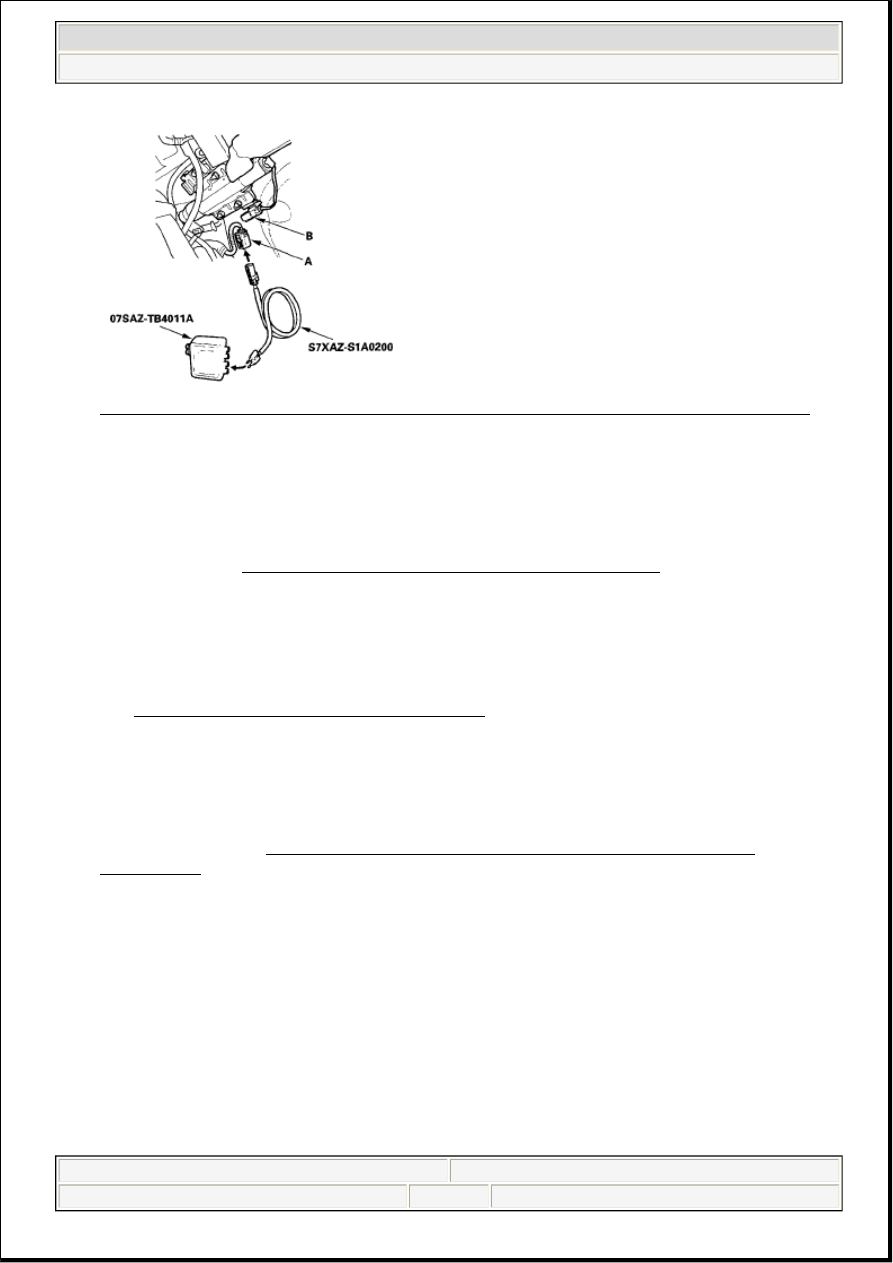

Fig. 166: Identifying Left Side Wire Harness 2P Connector And Left Side Curtain Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms connector) and simulator lead E to the left side wire

harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 33-1 x or 33-2x indicated?

YES - Go to step 9.

NO - Open or increased resistance in the left side curtain airbag inflator; replace the left side curtain
airbag (see SIDE CURTAIN AIRBAG REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect SRS unit connector C (28P) from the SRS unit (see step 7 ).

11. Disconnect the SRS inflator simulator from the SRS simulator lead.

12. Measure the resistance between the terminals of the SRS simulator lead. There should be 1.0 ohms or

less.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:56 PM

Page 132  © 2005 Mitchell Repair Information Company, LLC.

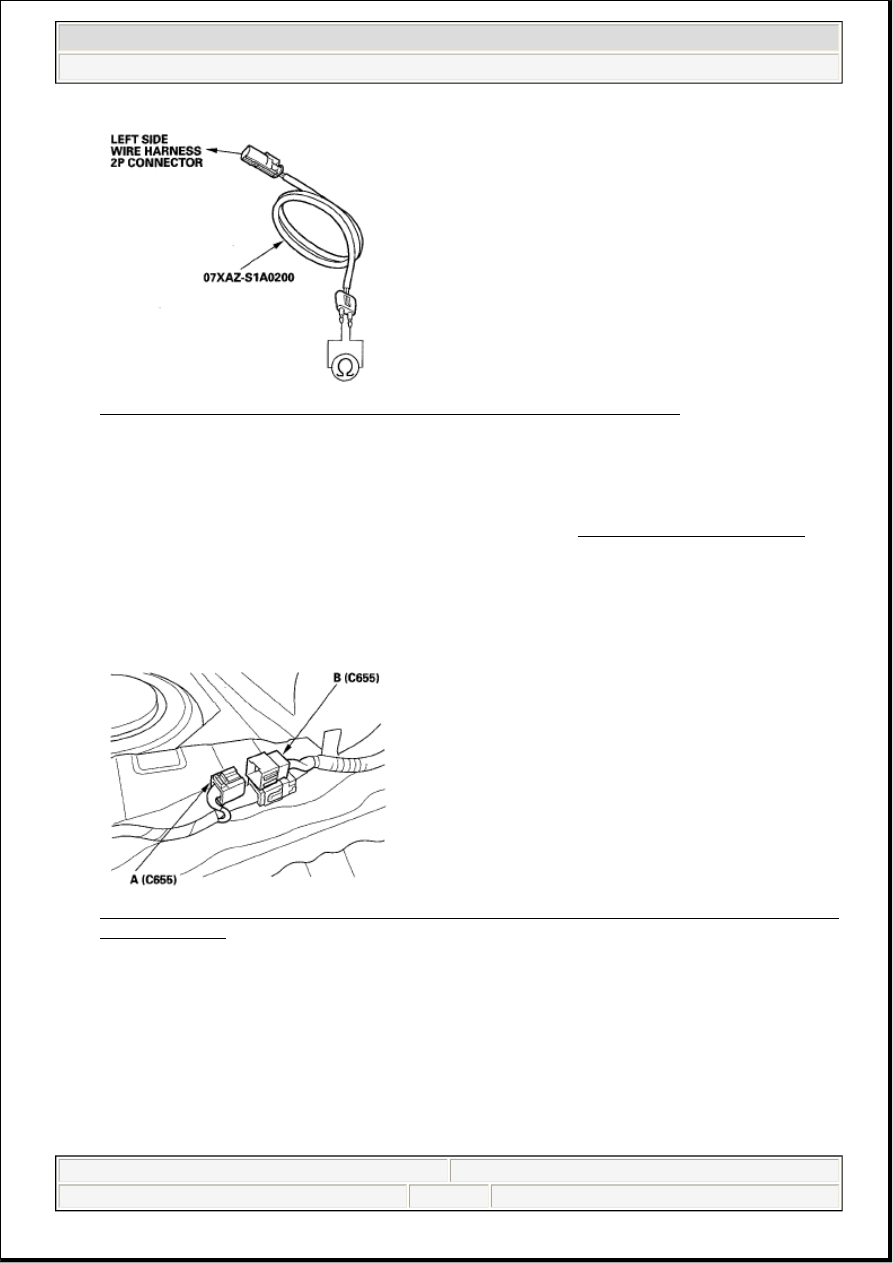

Fig. 167: Measuring Resistance Between Terminals Of SRS Simulator Lead
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Faulty SRS unit or poor connection at the SRS unit connector C (28P) and the SRS unit. Check
the connection; if the connection is OK, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO - Go to step 13.

13. Disconnect right side wire harness 16P connector C655 (A) from left side wire harness connector

C655 (B).

Fig. 168: Identifying Right Side Wire Harness 16P Connector C655 And Left Side Wire Harness
Connector C655
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Measure the resistance between the No. 6 and No. 8 terminals of right side wire harness 16P

connector C655. There should be 1.0 ohms or less.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:56 PM

Page 133  © 2005 Mitchell Repair Information Company, LLC.

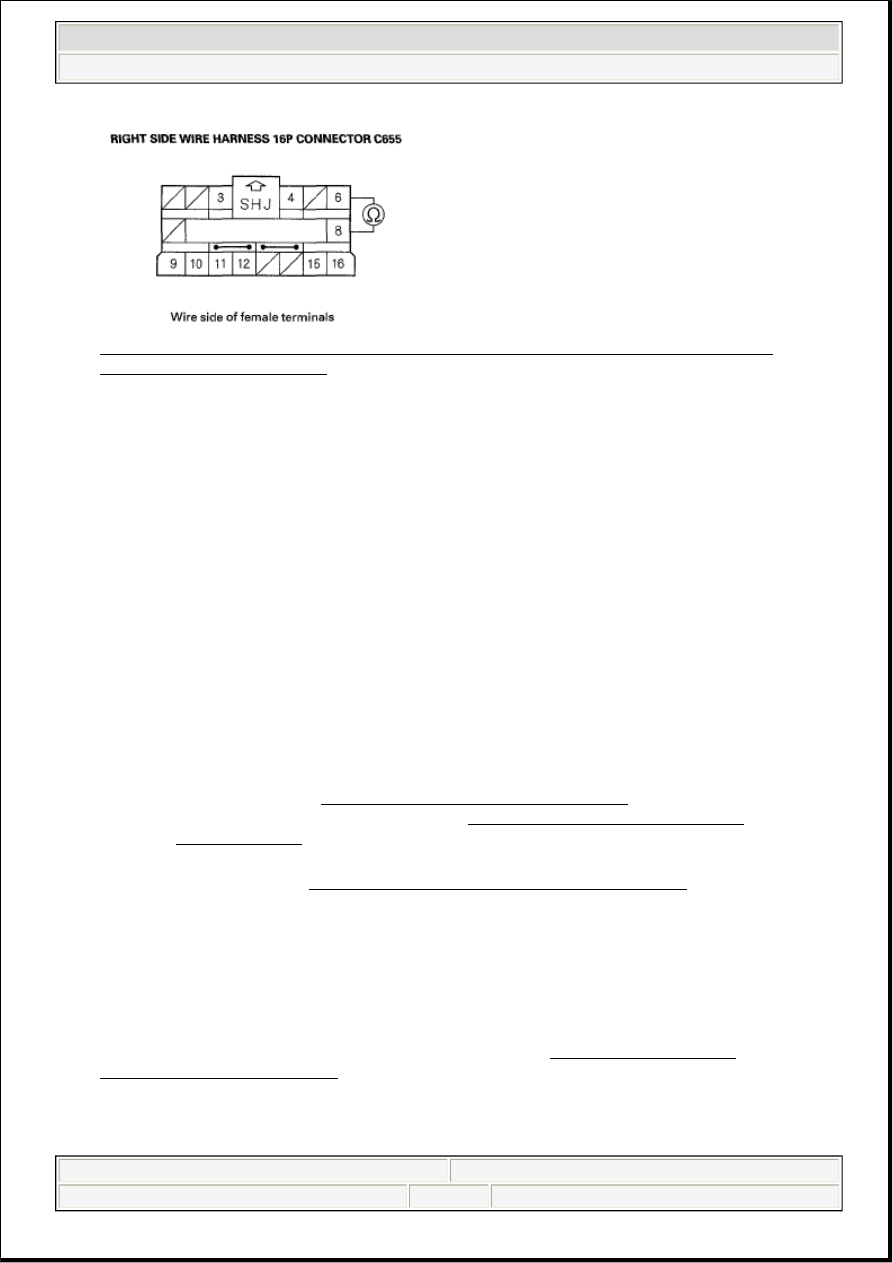

Fig. 169: Measuring Resistance Between No. 6 And No. 8 Terminals Of Right Side Wire
Harness 16P Connector C655
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Open or increased resistance in left side wire harness; replace left side wire harness.

NO - Open or increased resistance in the right side wire harness; replace the right side wire harness.

DTC 33-3X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO ANOTHER WIRE OR
DECREASED RESISTANCE IN LEFT SIDE CURTAIN AIRBAG INFLATOR

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead E 07XAZ-S1A0200



SRS simulator lead F 07XAZ-SZ30100



SRS short canceller 070AZ-SAA0100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 33-3x indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

4. Disconnect the left side wire harness 2P connector (A) from the left side curtain airbag (B).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:56 PM

Page 134  © 2005 Mitchell Repair Information Company, LLC.

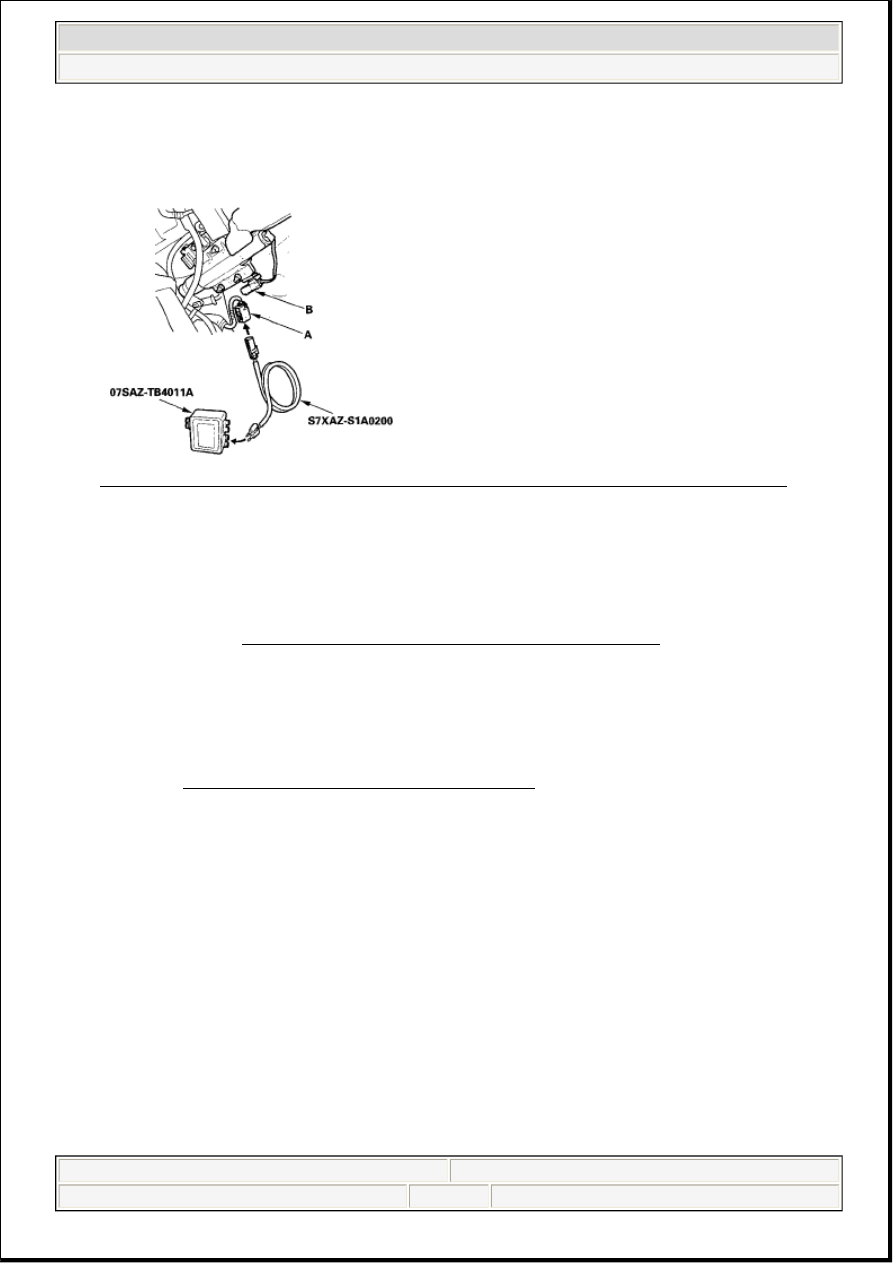

Fig. 170: Disconnecting Left Side Wire Harness 2P Connector And Left Side Curtain Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms connector) and simulator lead E to the left side wire

harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 33-3x indicated?

YES - Go to step 9.

NO - Short to another wire in the left side curtain airbag inflator; replace the left side curtain airbag
(see SIDE CURTAIN AIRBAG REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect the SRS unit connector C (28P) from the SRS unit (see step 7 ).

11. Disconnect the SRS inflator simulator from the SRS simulator lead.

12. Connect the SRS short canceller (070AZ-SAA0100) to No. 7 and No. 8 terminals of SRS unit

connector C(28P) (see OPENING THE SRS UNIT SHORTING CONNECTORS FOR
DIAGNOSIS ).

13. Measure the resistance between the terminals of the SRS simulator lead. There should be an open

circuit or at least 1 M ohms.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:56 PM

Page 135  © 2005 Mitchell Repair Information Company, LLC.
