ＳＮＲ９ＡＮＧＪ３６１００００００００ＦＡＡＴ３９

＊０９

＊１０

ＳＮＲ９ＡＮＧＪ３６１０００４２５２５ＫＤＡＴ００

−

The Honda Globe Screen (not the Acura
Globe Screen) appears every time the vehicle
is started

YES
NO

YES

23-354

Navigation System

CD, DVD, and PC Card Removal/
Installation

NOTE: The navigation DVD and the navigation unit are
correct for the vehicle, but earlier and possibly later
versions of the navigation software may have been
installed. When this happens, the software may not be
recognized by the navigation unit, and could cause the
navigation unit to revert to a Honda model profile.

1. Remove the navigation unit (see page 23-355) and

verify that the part number printed on the
navigation unit label is the correct one for the year/
model vehicle you are working on.

Go to step 2.

Replace the navigation unit with the correct

unit for the year/model vehicle you are working
on.

2. Reinstall the navigation unit.

3. Remove the navigation DVD (see page 23-354).

4. Note the software version marked on the

navigation DVD label and verity if it is the correct
version for the vehicle year/model you are working
on by checking any official Honda service website
for more service information about the navigation
system and navigation software.

Replace the navigation unit (see page 23-355).

Go to step 5.

5. Obtain the correct version DVD (see page 23-269)

and install it.

The problem is resolved, troubleshooting is

complete.

The system still shows a Honda Globe Screen.

Replace the navigation unit (see page 23-355).

If the displays Open and Close buttons do not work, you
must manually open the display to remove the client’s
Navigation DVD, CD, and possibly their PC card. Follow
to the steps.

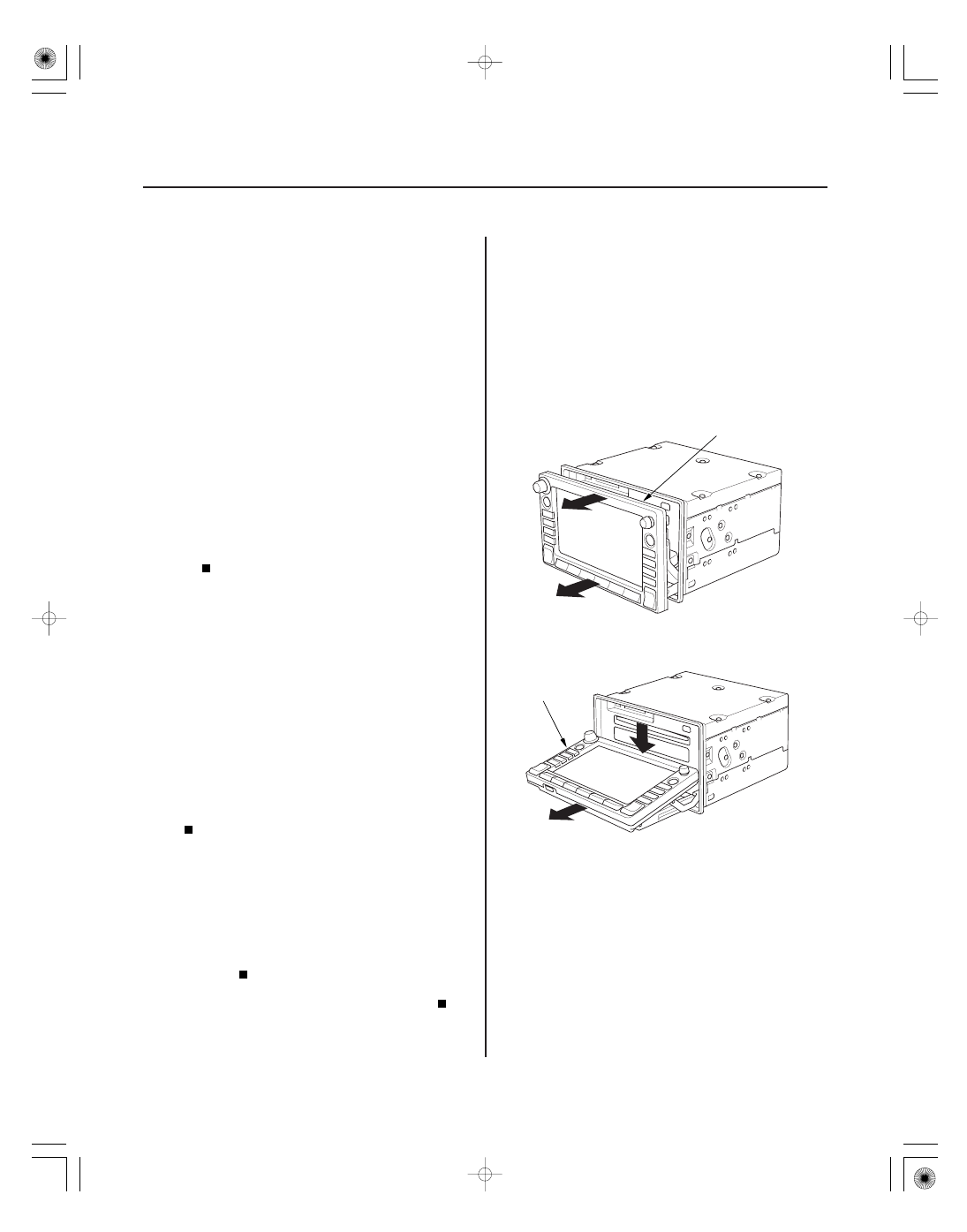

1. Remove the navigation unit from the vehicle

(see page 23-255).

2. On the bench, carefully pull the display (A) straight

out (about 1/2 inch).

3. Fold down the display (A).

Is the cor r ect navigation unit installed based on
the par t number ?

Is the sof twar e ver sion mar ked on the navigation
DV D label the cor r ect one f or the vehicle year /
model you ar e wor king on?

Does the navigation system boot-up with the Acur a
Globe Scr een?

08/08/21 14:17:53 61SNR030_230_0357

＊１１

ＳＮＲ９ＡＮＧＪ３６１０００４２５２１ＫＤＡＴ０１

23-355

Navigation Unit Removal/
Installation

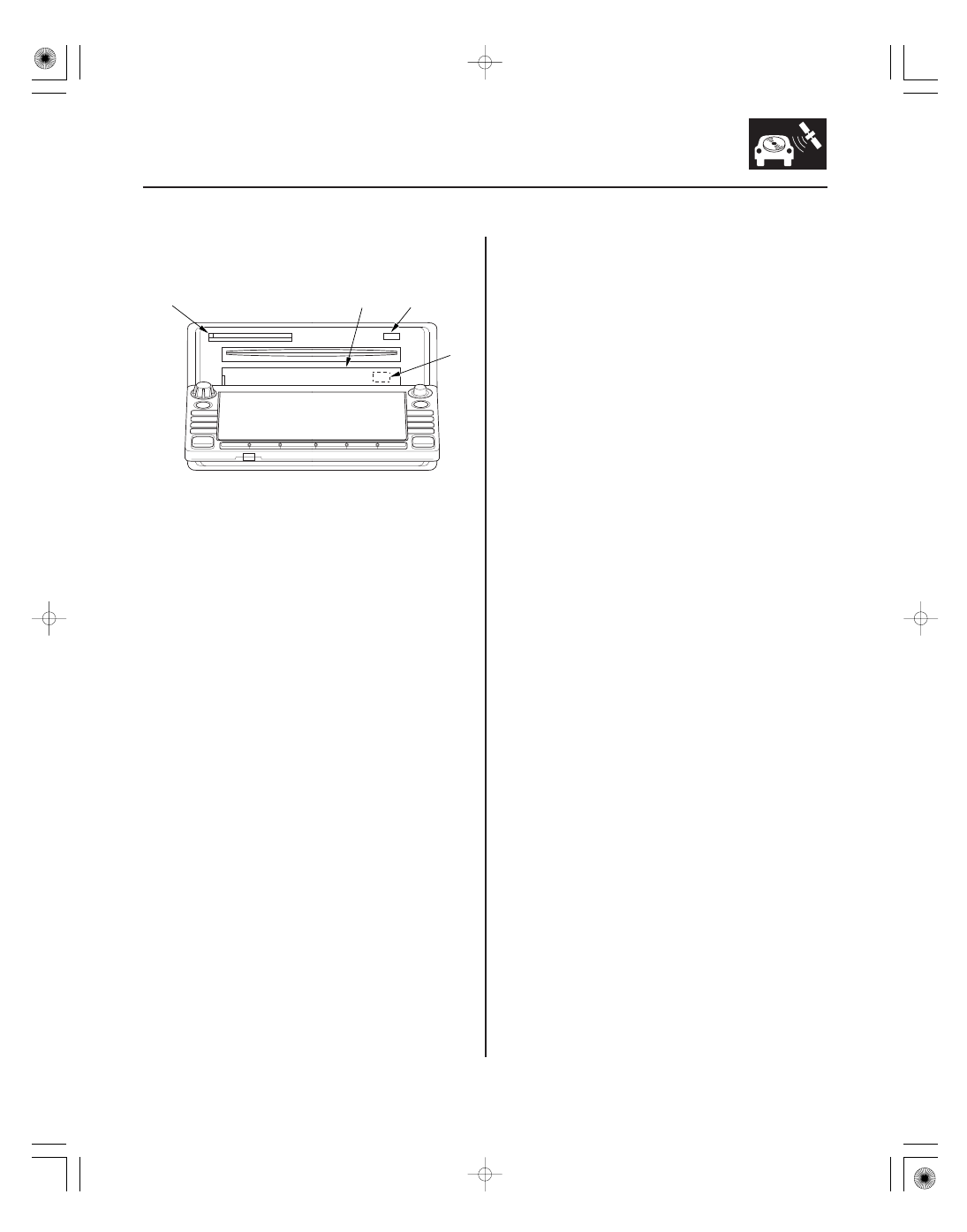

4. Push the PC card eject button (A) to eject the client’s

PC card (if installed). Power is not required for this
function.

5. Remove the plastic cover (B) over the navigation

DVD slot.

6. With the display open, temporarily reconnect the

unit in the dash (to power it up).

7. Push the CD eject button (C), and navigation DVD

eject button (D) (the button is behind the plastic
cover and works only when the unit is powered)
and remove the discs (hold the discs by their edges
to avoid fingerprints). To avoid scratches, place the
navigation DVD and the client’s CD in a jewel case
if available.

8. Re-attach the plastic lid that hides the navigation

DVD slot.

9. Close the display by first returning the display to

the upward position, and then pushing the entire
display straight back into the unit.

10. After installing the new navigation unit, re-insert

the navigation DVD, the client’s CD, and the PC card.

SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.

NOTE:

• Put on gloves to protect your hands.
• Take care not to scratch the dashboard and related

parts.

• Lay a workshop towel under the parts when working

on them to protect the face panel from scratches or
other damage.

• Do not work in a dusty or dirty place.
• Discharge static electricity from your body before and

during the work.

• Do not touch the circuit board(s) with your bare

hands.

• Do not work with dirty hands.
• Be careful not to fold the flat plate cable.
• Do not touch the terminal connector of the flat plate

cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)

• Before replacing the navigation unit, make sure to

remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-354).

• If you are replacing the navigation unit, write down

the audio presets (if possible), then enter them into
the new navigation unit.

1. Make sure you have the 4-digit anti-theft code for

the navigation system.

2. Eject the DVD from the original navigation unit. To

avoid scratching or damaging the DVD, temporarily
place the DVD in jewel case.

3. Remove the subdisplay visor (see page 20-100).

08/08/21 14:17:54 61SNR030_230_0358

＊１１

ＳＮＲ９ＡＮＧＪ３６１０００４２５２１ＫＤＡＴ０１

23-355

Navigation Unit Removal/
Installation

4. Push the PC card eject button (A) to eject the client’s

PC card (if installed). Power is not required for this
function.

5. Remove the plastic cover (B) over the navigation

DVD slot.

6. With the display open, temporarily reconnect the

unit in the dash (to power it up).

7. Push the CD eject button (C), and navigation DVD

8. Re-attach the plastic lid that hides the navigation

DVD slot.

9. Close the display by first returning the display to

the upward position, and then pushing the entire
display straight back into the unit.

10. After installing the new navigation unit, re-insert

the navigation DVD, the client’s CD, and the PC card.

NOTE:

• Put on gloves to protect your hands.
• Take care not to scratch the dashboard and related

parts.

• Lay a workshop towel under the parts when working

on them to protect the face panel from scratches or
other damage.

• Do not work in a dusty or dirty place.
• Discharge static electricity from your body before and

during the work.

• Do not touch the circuit board(s) with your bare

hands.

• Do not work with dirty hands.
• Be careful not to fold the flat plate cable.
• Do not touch the terminal connector of the flat plate

cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)

• Before replacing the navigation unit, make sure to

• If you are replacing the navigation unit, write down

the audio presets (if possible), then enter them into
the new navigation unit.

1. Make sure you have the 4-digit anti-theft code for

the navigation system.

2. Eject the DVD from the original navigation unit. To

avoid scratching or damaging the DVD, temporarily
place the DVD in jewel case.

3. Remove the subdisplay visor (see page 20-100).

08/08/21 14:17:54 61SNR030_230_0358

＊０１

＊０２

23-356

Navigation System

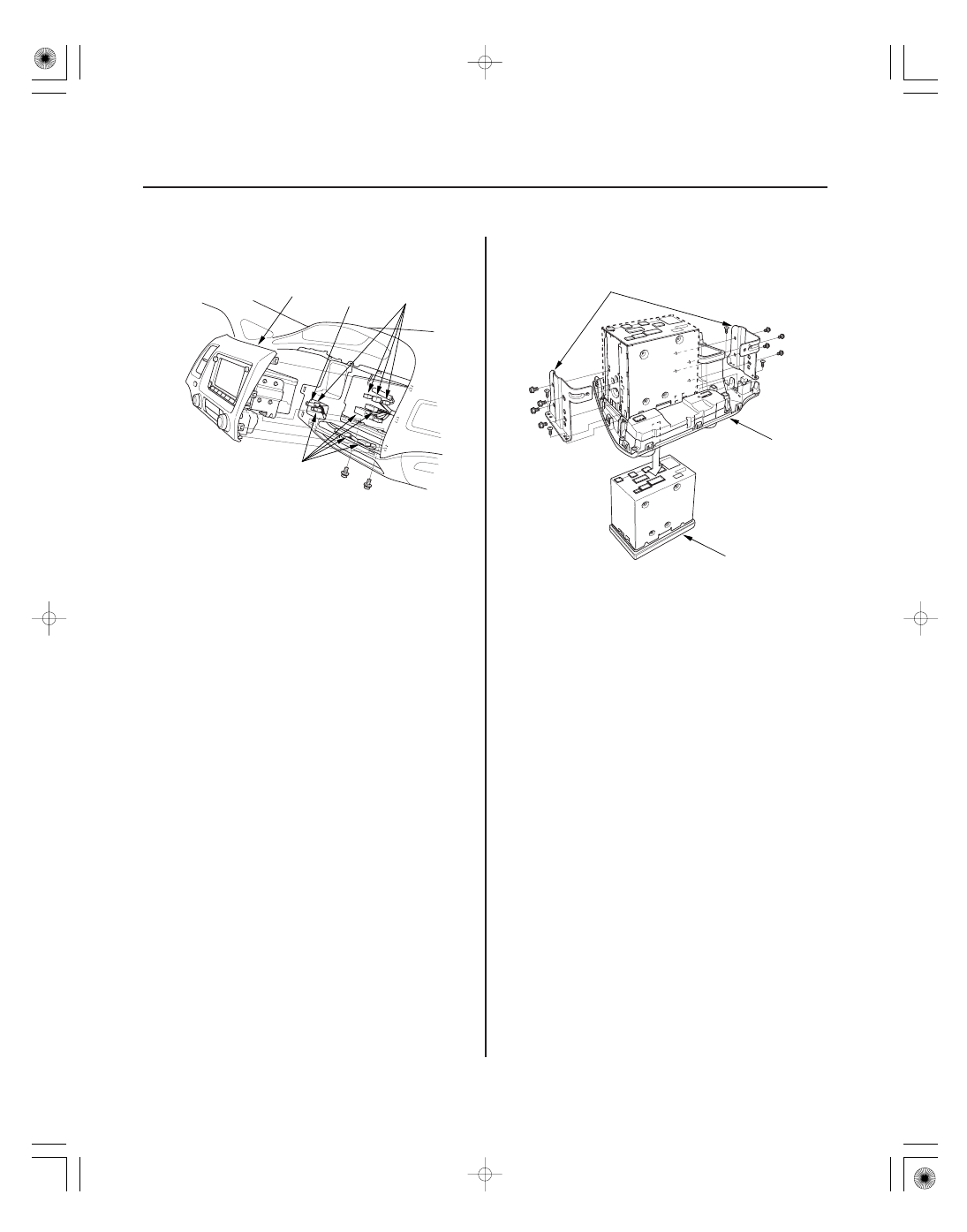

4. Remove the center pocket hole lid and bolts, then

pull out the center panel (A).

5. Disconnect the connectors (B) and air hose (C), then

remove the center panel.

6. Remove the screws, brackets (A), and the

navigation unit (B) from the center panel (C).

7. Install the navigation unit in the reverse order of

removal and make sure all connectors are secure.

8. Turn the ignition switch to ON (II), then reinstall the

client’s original DVD, verifying than the DVD is free
of scratches or smudges.

9. Check any official Honda service website for more

service information about the navigation system.

NOTE: Simply transferring the DVD from the
original navigation unit to the new navigation unit
does not assure the correct software for the vehicle
will be loaded into the new navigation unit. Doing
the DVD transfer without doing software patches
may cause the new navigation unit to appear to be
malfunctioning.

10. Enter the new navigation anti-theft code.

11. Park the vehicle outside, and do the GPS

initialization (see page 23-268).

12. Give the new navigation anti-theft code to the client.

08/08/21 14:17:54 61SNR030_230_0359
