Acura CSX. Manual - part 644

―

Glossary

Item

Definition

23-287

The following is a glossary of terms pertaining to the Voice Recognition Navigation System.

Active noise cancellation
(ANC)

The active noise cancellation system cancels some of the vehicle noise. This occurs in the 1,500

2,400 rpm

range. Microphones detect the low frequency sound, and the system outputs a canceling sound from the
audio speaker.

Address Book

The HFL system can import a copy of the phone book from and approved HFL compatible phone and display
the imported phone book on the navigation screen as the address book. See the Owner’s Manual for more
information.

B-CAN

Body CAN Bus (see CAN)

Bread-crumbs (White dots)

Off road tracking dots that can be followed on the map to retrace your route back to a mapped (digitized)
road. This function can be turned on/off in Setup screen 1.

CAN

Controller Area Network. This communication network allows processors in the vehicle to send/receive
information. The fuel pulses used by the MID trip computer are received from the ECM/PCM using the F-CAN
(Fast Controller Area Network) bus.

CPU

Central Processing Unit. The main device within the navigation unit that coordinates the rest of the electronic
functions.

CSS

Countershaft (Output) Speed Sensor. This sensor reads the output shaft speed at the transmission and
provides a speed pulse to the ECM/PCM.

Database

This consists of the Map data, and the POI (Points Of Interest) data stored on the DVD.

DBW

Drive By Wire. Allows electrical control of the throttle without the need of a mechanical linkage.

DCA

Detailed Coverage Area. Main metropolitan areas in the Lower 48 states, and Canada are mapped to this
level. See the navigation system manual for a list of these areas.

DTC

Diagnostic Trouble Codes. Use the HDS tablet to obtain, and troubleshoot the cause of these codes.

Dead reckoning

The use of the speed signal, and yaw rate sensor to position the vehicle on the map even when tall buildings,
or driving in a tunnel obscures the GPS signal.

Digitized road

A road that appears on the navigation screen. The road name appears at the bottom of the navigation screen.
If the user drives off road, the navigation system displays not on a digitized road, and after 1/2 mile, the
bread-crumbs appear.

Disclaimer screen

Screen containing cautionary information. It is meant to be read carefully, and acknowledged by the
customer when using the navigation system.

DVD or DVD-ROM

Digital Versatile Disk. The navigation program and database resides on this disk. See the Navigation Owner’s
Manual for information on how to order a replacement or an update DVD.

ECM

Engine Control Module. Typically referred to as the ECM.

FAQ

Frequently Asked Questions. See the navigation system manual for a list of the customer FAQs, and
troubleshooting information.

F-CAN

Fast CAN Bus (see CAN)

GA-NET

The GA-NET allows the audio unit to communicate with all the audio and navigation components in a
vehicle. If there is an open in the GA-NET, components or the entire audio and navigation system may
appear inoperative.

GPS

Global Positioning System. A network of 24 satellites in orbit around the earth. The navigation system can
simultaneously receive signals from up to 12 satellites to accurately position the vehicle on the map.

HDS

Honda Diagnostic System. A hand held tablet PC used for diagnosing vehicle problems. This device can be
used to obtain DTC codes for diagnosis of the navigation system and CAN related problems.

HFL

HandsFreeLink uses Bluetooth technology as a wireless link between it and an approved Bluetooth
compatible cell phone. See Vehicle Owner’s manual or Quick Start Guide for more information.

HIP (AcuraLink)

Honda Information Platform (see AcuraLink)

H/U

Head Unit. The audio unit in the dash.

Initialization

This refers to the period needed to re-acquire the GPS satellite orbital information whenever the navigation
system power has been disconnected. This can take from 10 to 45 minutes.

Interface Dial

This control device consists of a rotating knob and the buttons surrounding it. This device allows control of
the navigation, audio, and climate functions displayed on the screen.

Jog Dial

See interface dial.

08/08/21 14:15:44 61SNR030_230_0290

Item

Definition

23-288

Navigation System

LCD

Liquid Crystal Display (the navigation screen)

Map matching

The received GPS information allows the navigation system to position the vehicle on the map. MAP
matching has occurred if the map screen displays the current street name in the bottom-shaded area.

Mic

Abbreviation for the microphone used for receiving voice commands. It is located near the map light in the
ceiling. The ANC circuit may also use it to check its tuning.

MID

Multi-Information Display

Maneuver Window. While on

route to a destination, this window displays information about the next

maneuver.

Navi

Abbreviation for the Navigation System.

Off-road tracking

See bread-crumbs.

Off route

This occurs when the user leaves mapped roads. Off road tracking dots (bread-crumbs) are displayed If the
option is enables in the setup menu. The user can use them to return to a mapped road. The bottom of the
navigation screen displays not on a digitized road.

Outlying areas

These are rural areas that typically have only their main roads mapped. All other roads are shown in light
brown for reference only, since the have not been verified.

Paired

Linking your call phone to the HFL.

PC Card Slot

The PC Card (PCMCIA, type II) slot is for factory use only. Make sure that the sliding door is closed at all
times, if opened, an error message is displayed on the screen.

PCM

Powertrain Control Module. This unit supplies the navigation system speed signal, also refered to as PCM.

PCMCIA

A computer industry defined term referring to the PC Card slot standard.

Personal Identification Number, a random 4 digit number created by the customer to protect personal
information.

POI

Point Of Interest. These are the businesses, schools, etc. found under the places option on the main menu.

Polygon

Colored areas on the map screen denoting parks, schools, etc. See the Navigation System Manual Driving to
Your Destination for a list of the assigned colors.

QWERTY

Keyboard layout resembling the typewriter keys. The keyboard layout can be changed to an alphabetical
layout in the Setup mode.

SCS connector

The service check signal 2-pin connector used to put the navigation system into the diagnostic mode.

Security code

Code needed to activate the navigation system. You can get the security code from the in by entering the
navigation unit serial number. You can find the serial number on the diagnostic screens (unit check, Navi
ECU), or on the underside of the navigation unit.

Tuning

A continual update of internal navigation system scaling factors. See the individual sensor tuning
discussions under either System Description, or System Diagnosis Mode (see page 23-297).

Unverified streets

These streets have not been verified for turn restrictions, one-way, etc. They appear light brown on the map.
You can enter address destinations in these areas, but depending on your Unverified. Routing choice in
setup, voice guidance may end at the last verified street closest to your destination.

USB

Universal Serial Bus. The USB is used for playing the compressed audio files (MP3, WMA, and AAC) on the
external device through the audio unit.

Verified streets

These streets consist of the detailed metropolitan coverage areas, and other inter-town connection roads.
These roads are shown in black or red on the map. (interstates are red)

Vehicle Position. When in map mode, this circular icon shows the vehicle position on the map.

Voice Recognition. This allows voice control of many of the navigation functions. The hardware consists of
the microphone, voice control switch (navigation TALK/BACK buttons), and the center speaker. See the
overview for more information.

VSP

Vehicle Speed Pulse. This pulse signal coming from the PCM (VIA the CSS) is used to update the Vehicle
position on the map. These pulses do not indicate direction (forward or backward). When in reverse, the
navigation receives a signal and directs the VP to move backwards on the map.

This device receives information from the XM satellites and passes XM audio information to the audio unit.
In addition, traffic information is sent to the navigation unit.

Yaw sensor

This device is located in the navigation system control unit and senses the side-to-side twisting force
generated when the vehicle turns. See a detailed description of how this sensor works in system description.

08/08/21 14:15:44 61SNR030_230_0291

＊０９

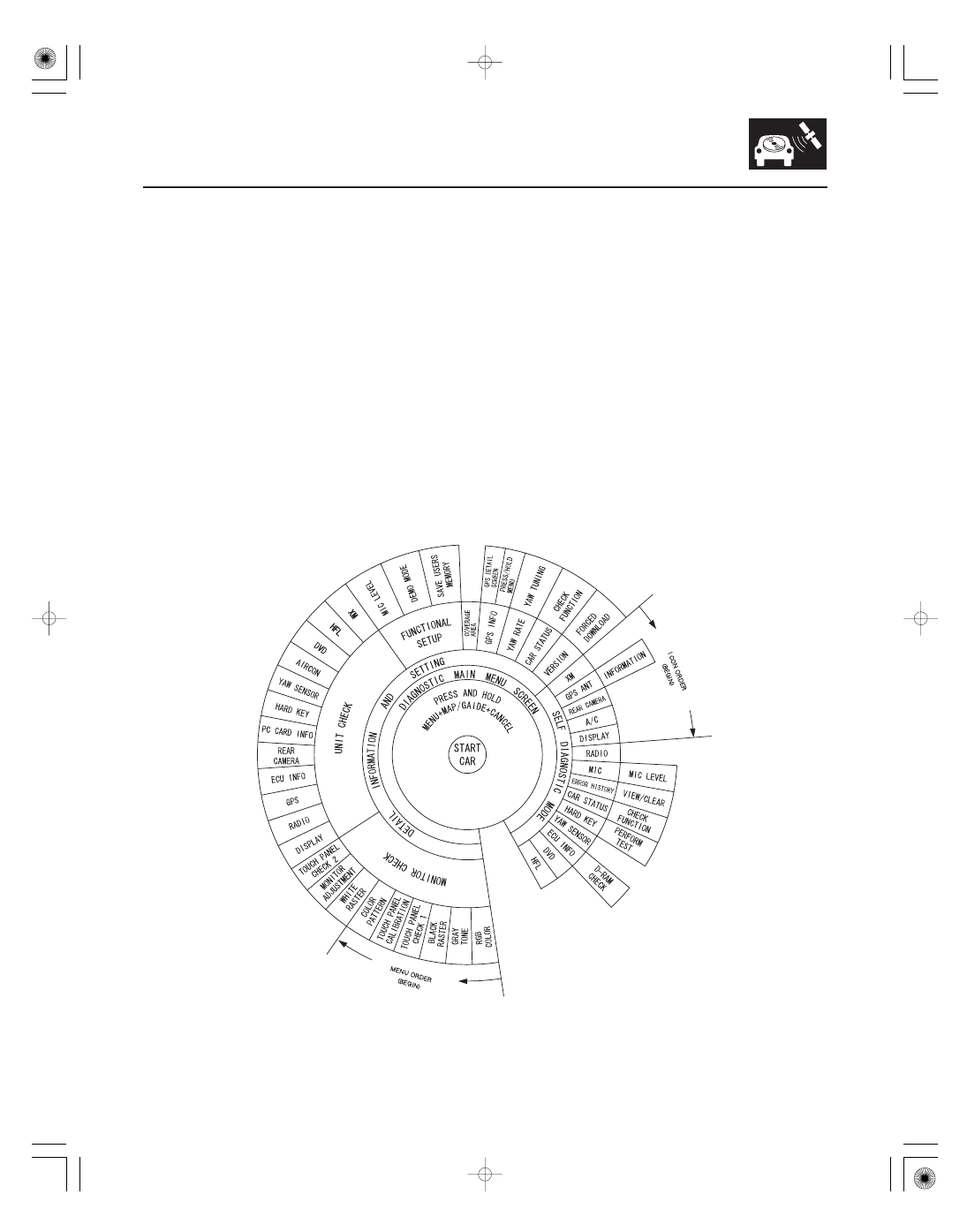

Diagnostic System Diagram

23-289

This diagram below shows all of the navigation diagnostic features available for system troubleshooting. The diagram
starts at the center, and works outward in layers.

Access to the diagnostic features begins by starting the vehicle. This is necessary so the system can check the other
systems connected by various busses. After starting the vehicle you can enter the diagnostic mode either by pressing
and holding MENU, MAP/GUIDE, and CANCEL.

The main menu screen allows 2 checking modes - one automatic, and one manual:

• The automatic diagnostic check starts when you select SELF DIAGNOSTIC MODE. The system runs for several

seconds, and reports any issues with Red icons. Rotate the interface dial and select the icon you wish obtain the
problem details.

• The manual diagnostic check is selected from the main menu by selecting DETAIL INFORMATION AND SETTING.

The traditional diagnostic menu is displayed. This allows you to obtain additional details as instructed in the
troubleshooting procedures.

NOTE: Do not clear or change settings unless specified by either the Service Manual troubleshooting procedures or by
the factory. Otherwise, you may accidentally delete customer information, or remove the latest flash software version
installed by the factory.

08/08/21 14:15:45 61SNR030_230_0292

＊１０

＊１１

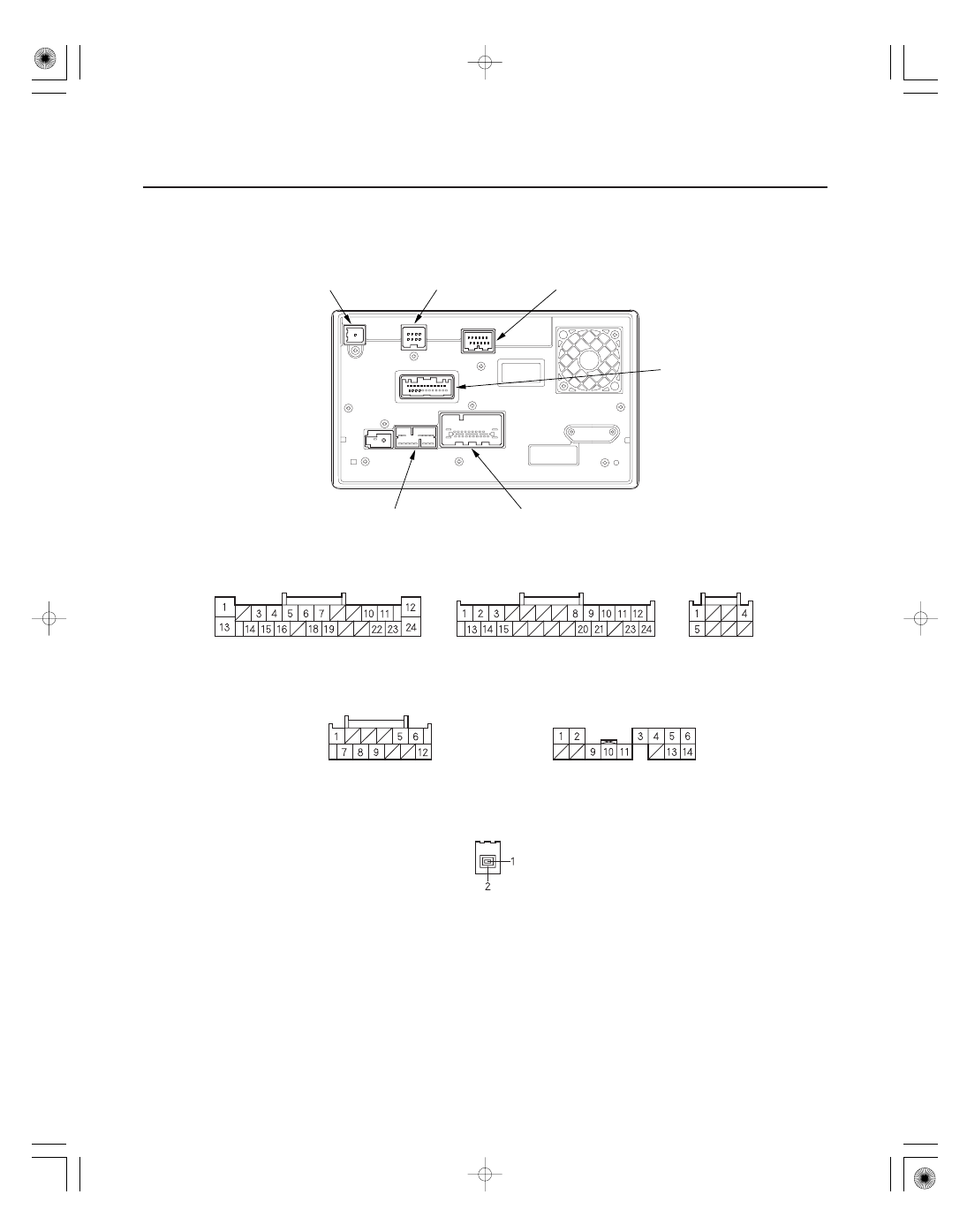

Navigation System Connector Location

23-290

Navigation System

NAVIGATION UNIT
CONNECTOR E (14P)

NAVIGATION UNIT
CONNECTOR A (24P)

NAVIGATION UNIT
CONNECTOR B (24P)

NAVIGATION UNIT
CONNECTOR D (12P)

NAVIGATION UNIT
CONNECTOR C (8P)

NAVIGATION UNIT
CONNECTOR H (2P)

NAVIGATION UNIT CONNECTOR A (24P)

NAVIGATION UNIT CONNECTOR B (24P)

NAVIGATION UNIT
CONNECTOR C (8P)

NAVIGATION UNIT
CONNECTOR E (14P)

NAVIGATION UNIT
CONNECTOR D (12P)

NAVIGATION UNIT
CONNECTOR H (2P)

Terminal side of female terminals

Wire side of female terminals

Wire side of
female terminals

Wire side of female terminals

08/08/21 14:15:45 61SNR030_230_0293
