01

SNR9A00J32100037301KBAT02

01

02

SNR9AGFJ32113331601KBAT01

License Plate Light: 5 W

High Mount Brake Light: 21 W

Except TYPE S model

22-180

22-180

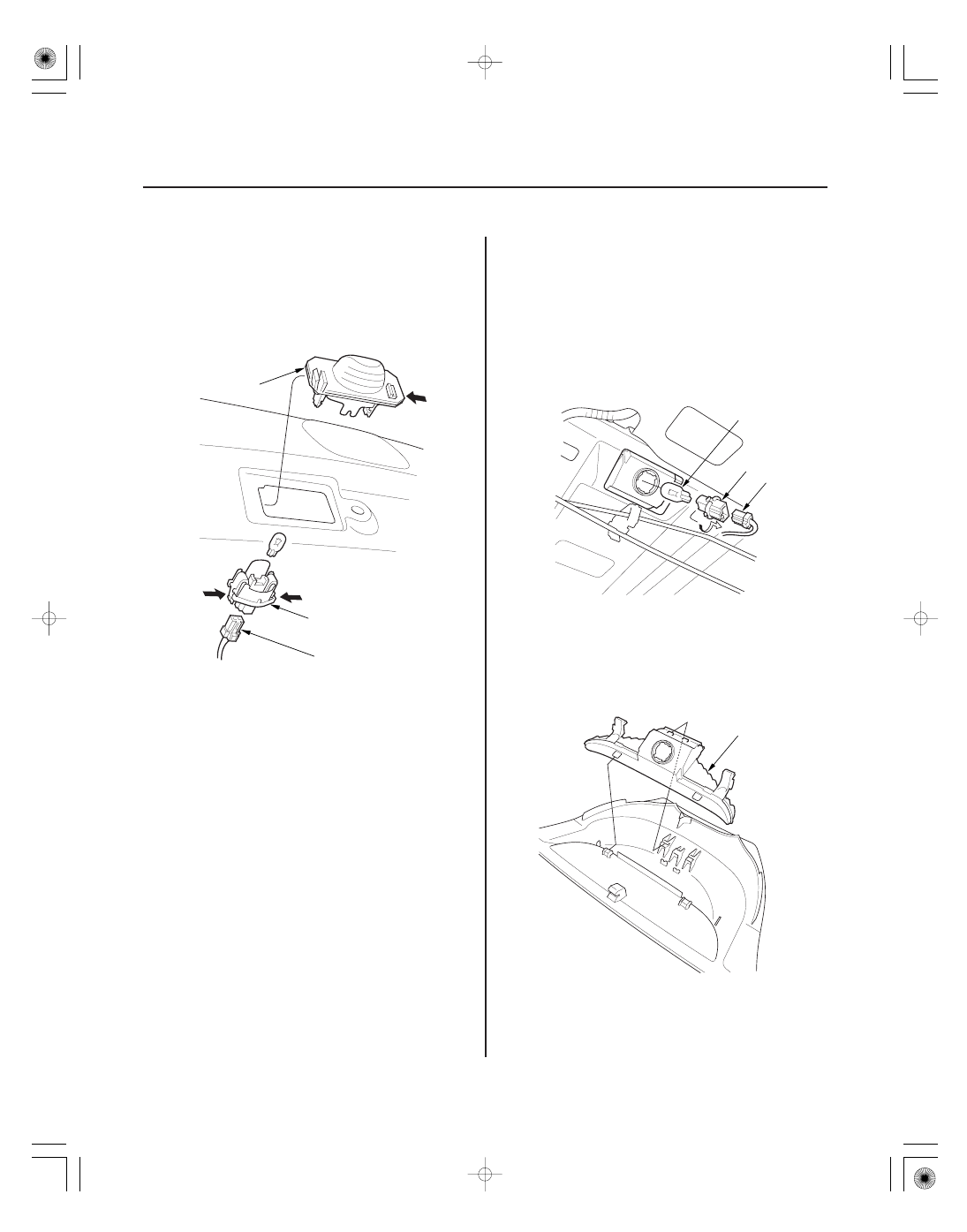

Exterior Lights

License Plate Light Replacement

High Mount Brake Light
Replacement

A

B

C

A

B

C

A

1. Open the trunk lid, and remove the rear license trim

(see page 20-168).

2. Disconnect the 2P connector (A) from the license

plate light.

3. Release the bulb socket (B) from the lens (C) by

pressing on the tabs.

4. Remove the lens from the trunk lid by pressing on

the tabs.

5. Install the license plate light in the reverse order of

removal.

1. Open the trunk lid.

2. Disconnect the 2P connector (A) from the high

mount brake light.

3. Turn the bulb socket (B) 45 ° counterclockwise to

remove the bulb (C).

4. Remove the rear shelf (see page 20-78).

5. Remove the high mount brake light (A).

6. Install the high mount brake light in the reverse

order of removal.

08/08/21 14:27:41 61SNR030_220_0182

01

SNR9AGCJ32113331601KBAT01

*01

SNR9A00J32113314805FEAT00

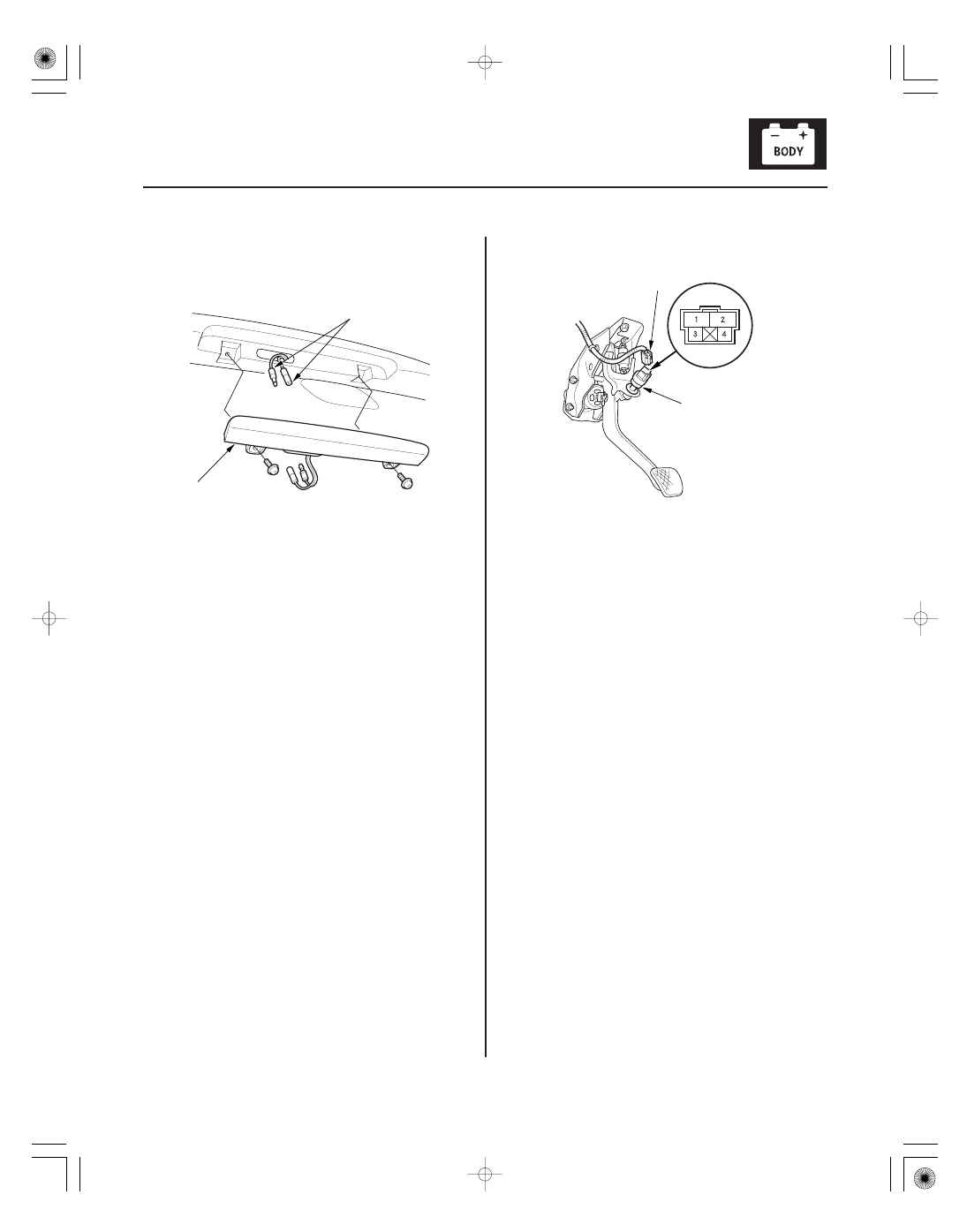

TYPE S model

22-181

22-181

Brake Pedal Position Switch Test

A

B

A

B

1. Remove the two screws from the high mount brake

light (A).

2. Disconnect the terminals (B) and remove the high

mount brake light.

3. Install the high mount brake light in the reverse

order of removal.

1. Disconnect the 4P connector (A) from the brake

pedal position switch (B).

2. Check for continuity between terminals No. 1 and

No. 2.

• There should be continuity when the brake pedal

is pressed.

• There should be no continuity when the brake

pedal is released.

3. Check for continuity between terminals No. 3 and

No. 4 (with cruise control).

• There should be no continuity when the brake

pedal is pressed.

• There should be continuity when the brake pedal

is released.

4. If necessary, adjust or replace the switch, or adjust

the pedal height (see page 19-6).

08/08/21 14:27:41 61SNR030_220_0183

01

SNR9AGCJ32113331601KBAT01

*01

SNR9A00J32113314805FEAT00

TYPE S model

22-181

22-181

Brake Pedal Position Switch Test

A

B

A

B

1. Remove the two screws from the high mount brake

light (A).

2. Disconnect the terminals (B) and remove the high

mount brake light.

3. Install the high mount brake light in the reverse

order of removal.

1. Disconnect the 4P connector (A) from the brake

pedal position switch (B).

2. Check for continuity between terminals No. 1 and

No. 2.

• There should be continuity when the brake pedal

is pressed.

• There should be no continuity when the brake

pedal is released.

3. Check for continuity between terminals No. 3 and

No. 4 (with cruise control).

• There should be no continuity when the brake

pedal is pressed.

• There should be continuity when the brake pedal

is released.

4. If necessary, adjust or replace the switch, or adjust

the pedal height (see page 19-6).

08/08/21 14:27:41 61SNR030_220_0183

*01

SNR9A00J32173600000DAAT00

22-182

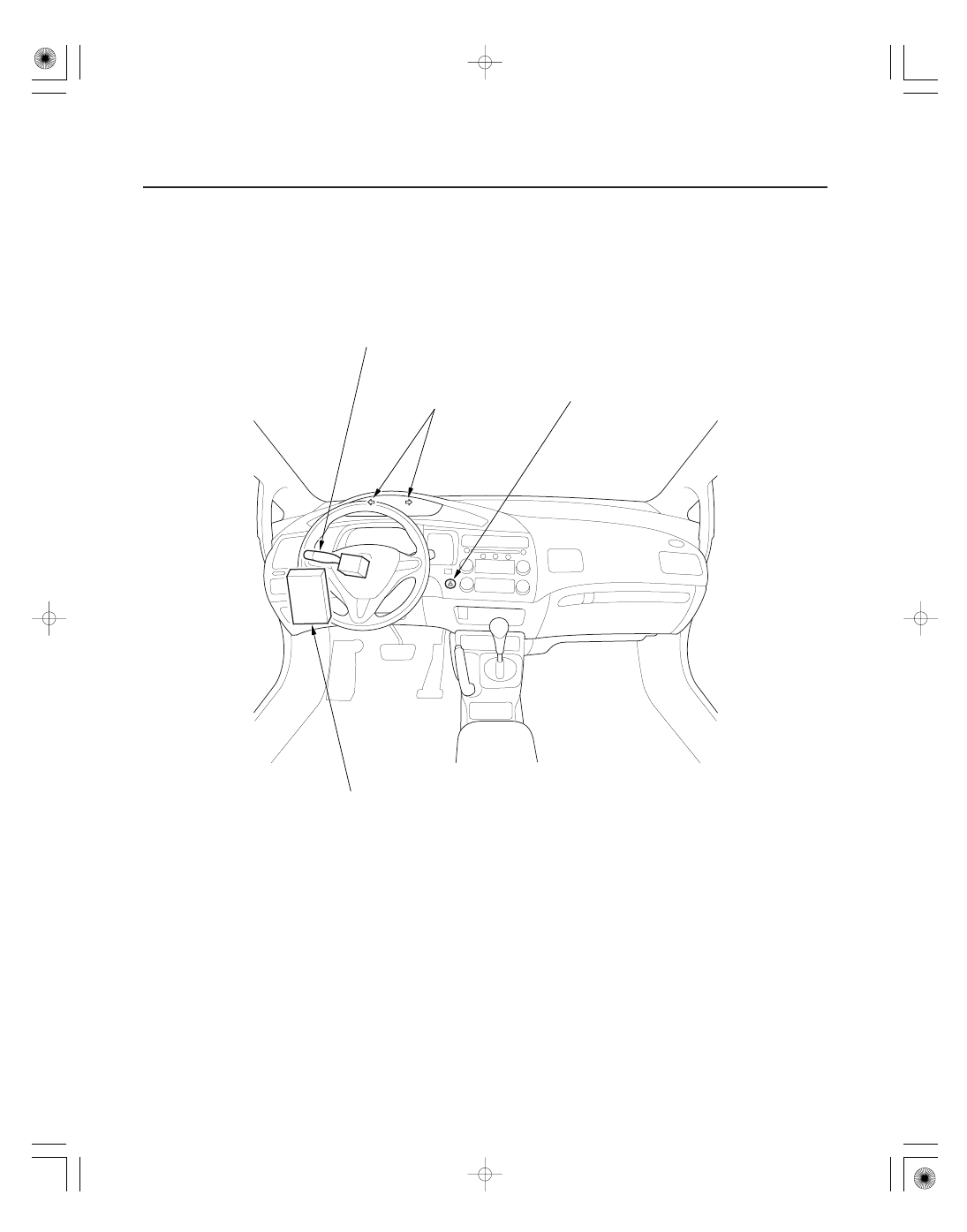

Turn Signal/Hazard Warning Lights

Component Location Index

HAZARD WARNING SWITCH

TURN SIGNAL INDICATORS

TURN SIGNAL SWITCH
(Built into the combination switch)

MICU
(Built into the under-dash fuse/relay box)

Test/Replacement, page 22-192

Test/Replacement, page 22-166

Input Test, page 22-188

08/08/21 14:27:42 61SNR030_220_0184
