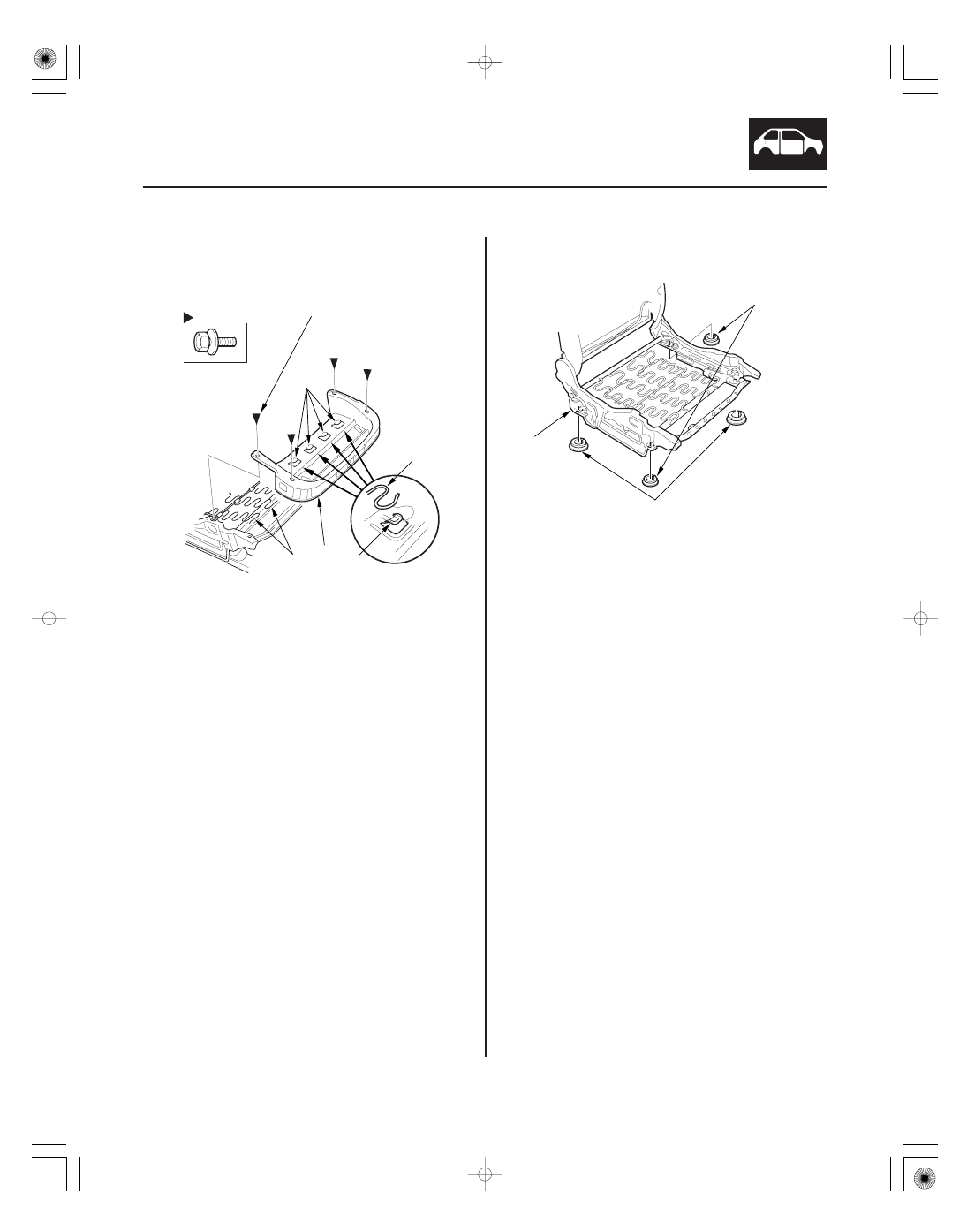

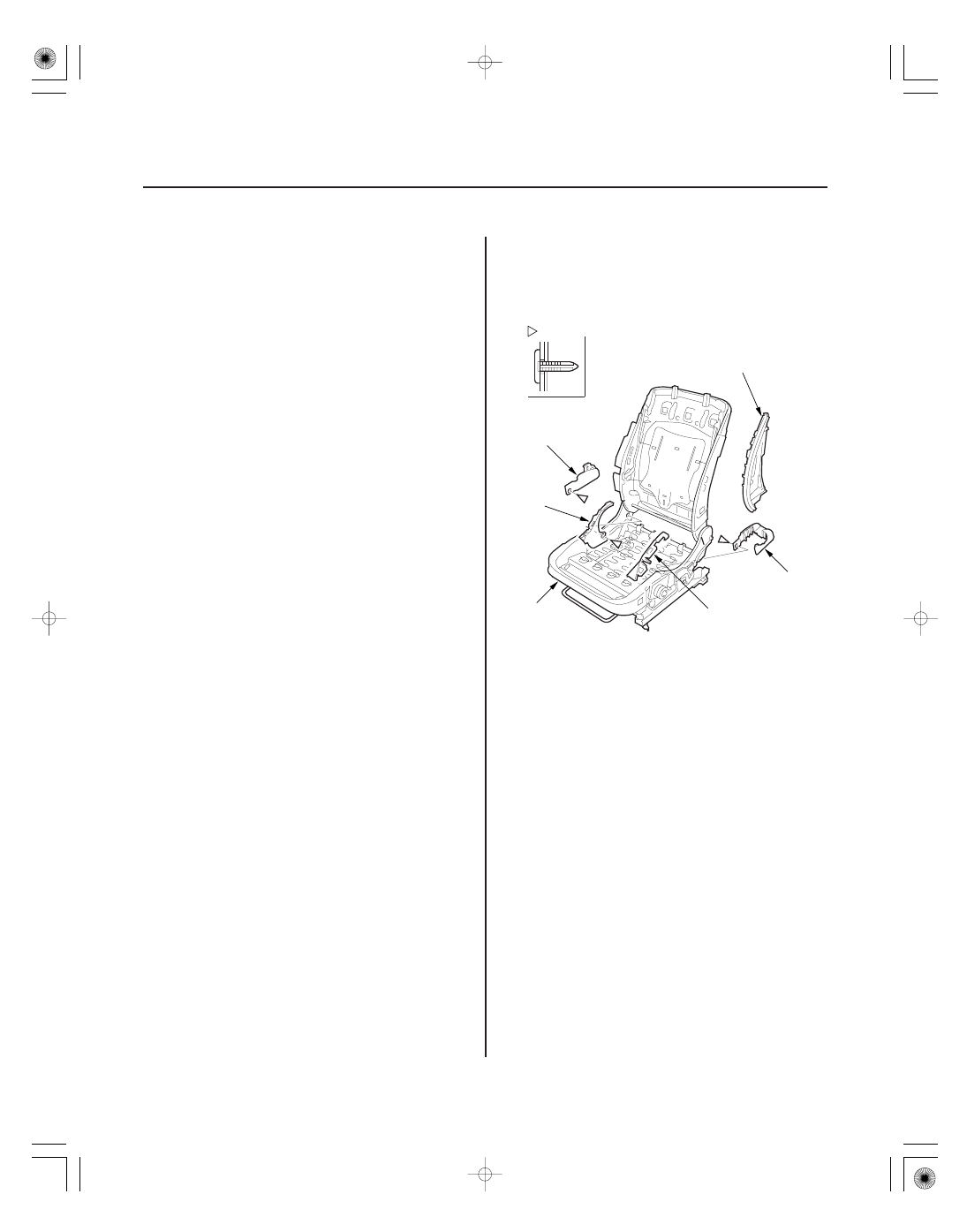

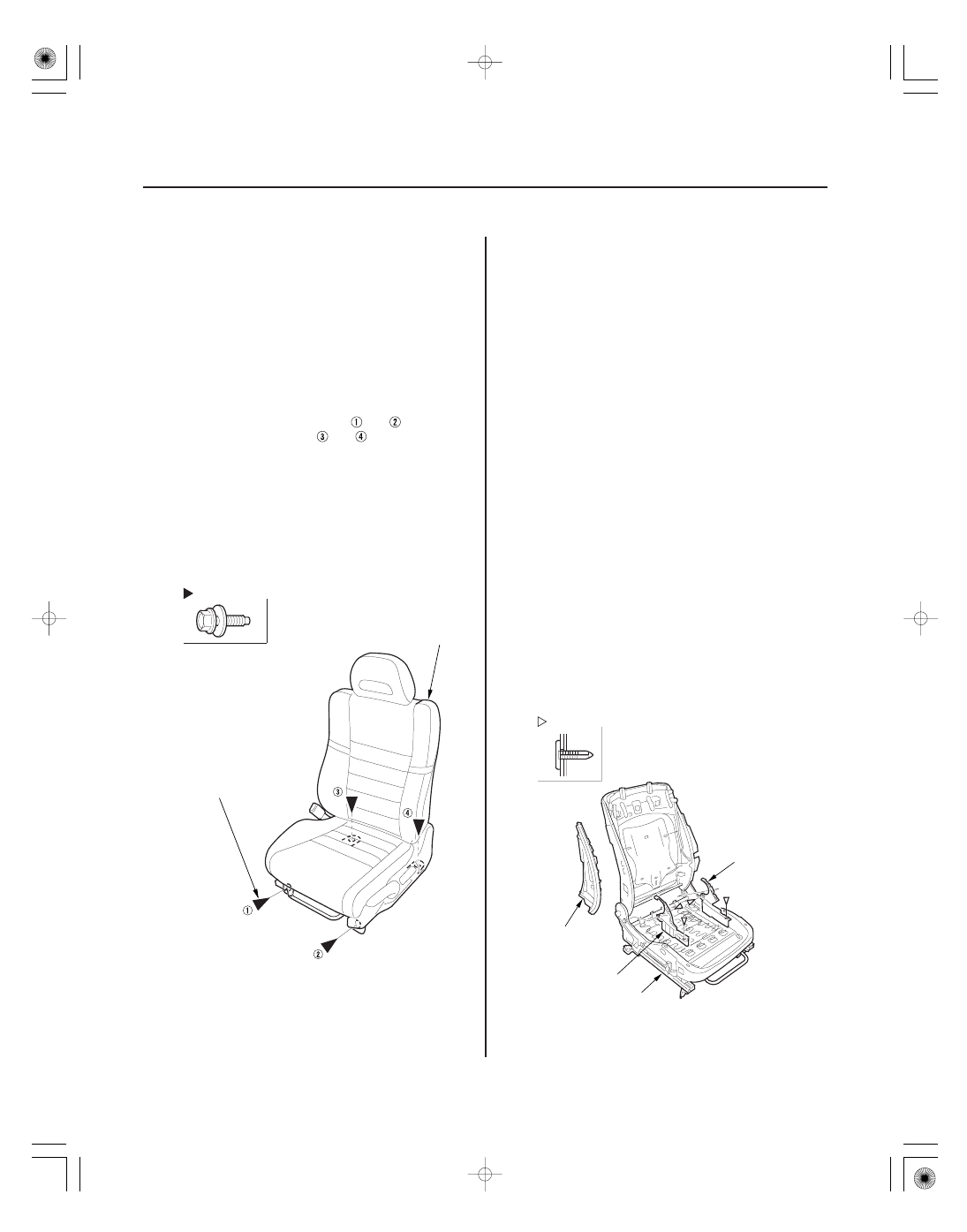

01 01 SNR9A00J46127053676KBAT10 Passenger’s Seat 20-120 20-120 Seats Front Seat Frame Replacement Fastener Locations : Bolt, 4 10 x 1.25 mm A A B C Fastener Locations : Clip, 4 A 9. With the help of an assistant, carefully remove the front seat through the front door opening. 10. Install the seat in the reverse order of removal, and note these items: • Apply medium strength liquid thread lock to the seat mounting bolts before reinstallation. • Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat (A) and , then slide it forward and tighten and . The driver’s seat is shown; the passenger’s seat is similar. • Tighten the bolts by hand first, then tighten them to specification with a torque wrench. • Make sure each connector is plugged in properly. during repairs, and clear them. • Do the battery terminal reconnection procedure (see page 22-68). Calibrate the ODS unit after any of these actions • Front passenger’s seat replacement (including any seat components) • Replacement of the front seat weight sensors NOTE: • Put on gloves to protect your hands. the seat tracks. • If the side airbag has deployed, replace the seat frame and related pieces with new ones (see page 1. Remove the front seat (see page 20-118). 2. Remove these items: • Front seat-back cover (see page 20-123) 3. Remove the clips, then remove the recline inner covers (A) and module holder (B) from the seat 08/08/21 15:03:55 61SNR030_200_0122 |
