０１

＊０１

−

YES

14-193

TRANSMISSION RANGE
SWITCH CONNECTOR

GND (BLK)

TRANSMISSION RANGE
SWITCH CONNECTOR

GND (BLK)

ATPRVS
(WHT/RED)

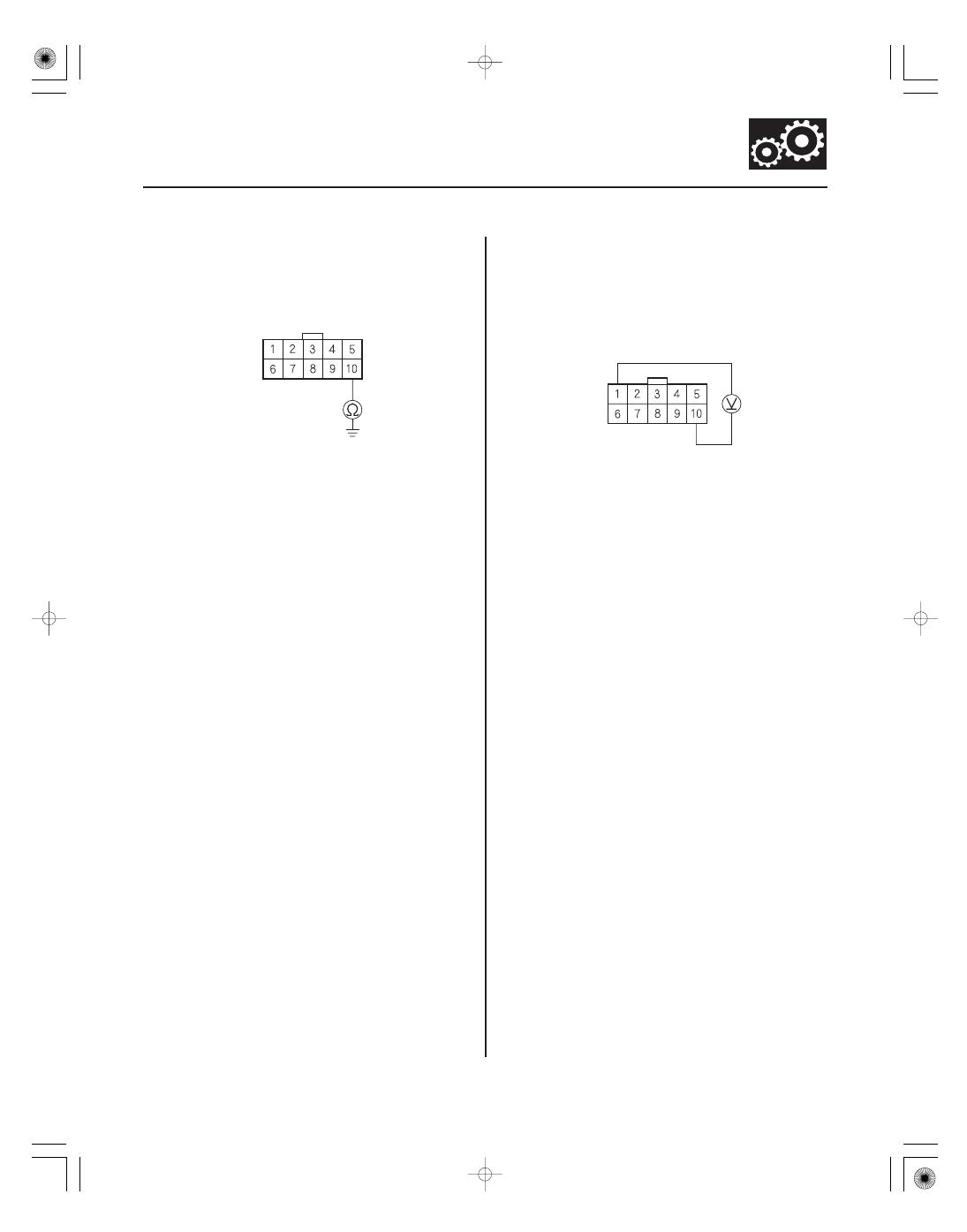

6. Check for continuity between transmission range

switch connector terminal No. 10 and body ground.

Go to step 7.

Repair open in the wire between transmission

range switch connector terminal No. 10 and body
ground (G101) (see page 22-16), or repair poor
body ground (G101), then go to step 10.

7. Turn the ignition switch to ON (II).

8. Measure the voltage between transmission range

switch connector terminals No. 1 and No. 10.

Go to step 9.

Repair open in the wire between PCM

connector terminal B22 and the transmission range
switch, then go to step 10.

Wire side of female terminals

Is ther e continuity?

Is ther e about batter y voltage?

08/08/21 14:45:29 61SNR030_140_0195

＊０２

−

YES

14-194

Automatic Transmission

ATPRVS

TRANSMISSION RANGE
SWITCH CONNECTOR

GND

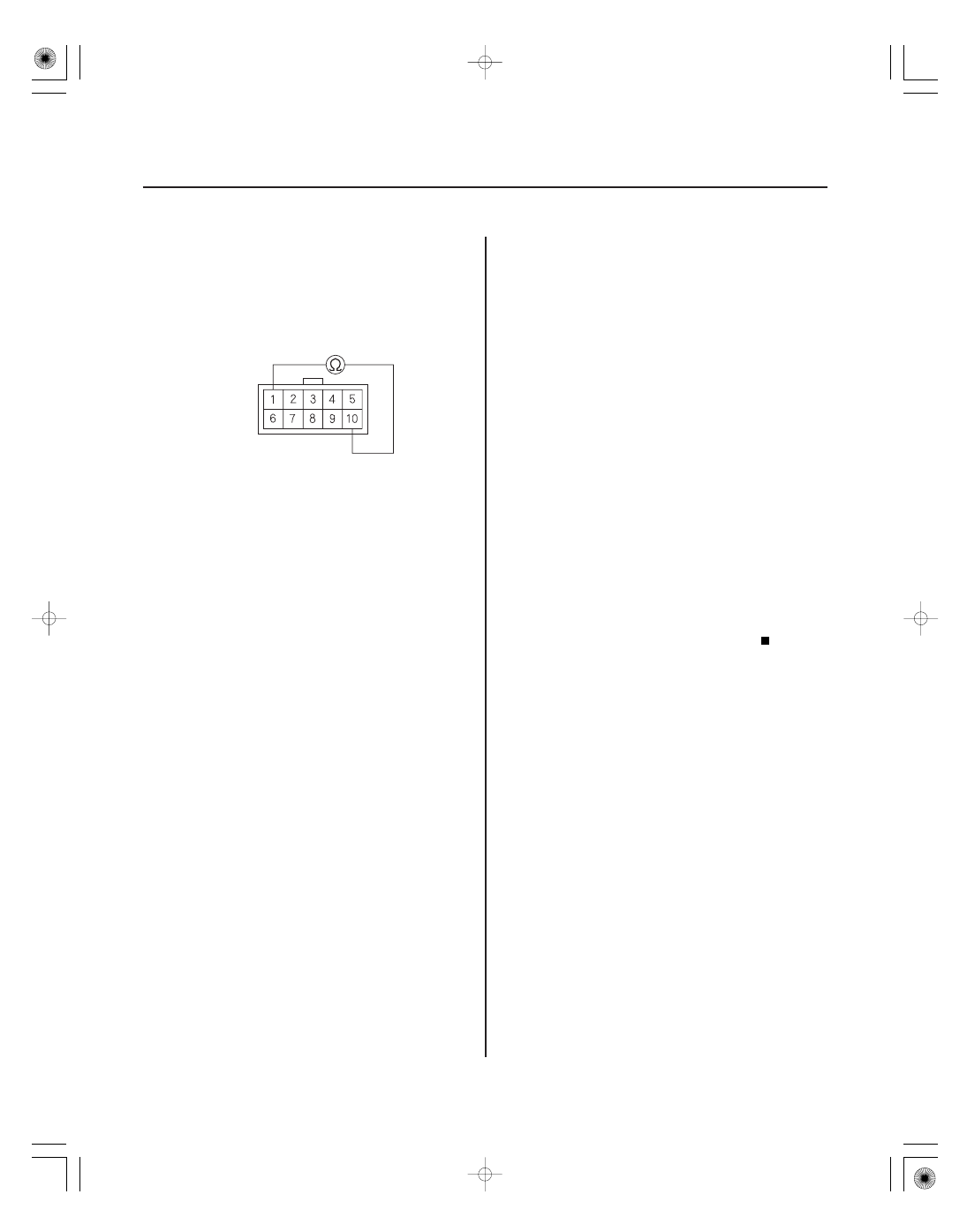

9. Check for continuity between transmission range

switch connector terminals No. 1 and No. 10 while
the shift lever is in R, and when the shift lever is
shifted to any position other than R.

Go to step 16.

Replace the transmission range switch

(see page 14-267), then go to step 10.

10. Reconnect all connectors.

11. Turn the ignition switch to ON (II).

12. Clear the DTC with the HDS.

13. Start the engine with the shift lever in P. Shift to N,

then shift to R while pressing the brake pedal, and
wait for at least 2 seconds.

14. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals between the transmission range switch
and the PCM, then go to step 1.

Go to step 15.

15. Monitor the OBD STATUS for P1717 in the DTCs

MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 14,
go to the indicated DTC’s troubleshooting.

If the HDS indicates FAILED, check for poor

connections or loose terminals between the
transmission range switch and the PCM, then go to
step 1. If the HDS indicates NOT COMPLETED, go to
step 13.

Terminal side of male terminals

Is ther e continuity while the shif t lever is in R, and
no continuity when the shif t lever is shif ted to any
position other than R?

Is DT C P17 17 indicated?

Does the HDS indicate PASSED?

08/08/21 14:45:29 61SNR030_140_0196

ＳＮＲ９ＡＡ１Ｋ７７１０００９１７３０ＦＡＡＴ００

−

YES

DTC P1730:

14-195

16. Reconnect all connectors.

17. Update the PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good PCM (see page 11-7).

18. Start the engine with the shift lever in P. Shift to N,

then shift to R while pressing the brake pedal, and
wait for at least 2 seconds.

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals between the transmission range switch
and the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-7), then go to step
18. If the PCM was substituted, go to step 1.

Go to step 20.

20. Monitor the OBD STATUS for P1717 in the DTCs

MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-228). If any other
Temporary DTCs or DTCs were indicated in step 19,
go to the indicated DTC’s troubleshooting.

If the HDS indicates FAILED, check for poor

connections or loose terminals between the
transmission range switch and the PCM. If the PCM
was updated, substitute a known-good PCM
(see page 11-7), then go to step 18. If the PCM was
substituted, go to step 1. If the HDS indicates NOT
COMPLETED, go to step 18.

• Shift Solenoid Valves A or D Stuck OFF
• Shift Solenoid Valve B Stuck ON
• Shift Valves A, B, or D Stuck

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot with the HDS, and review
the General Troubleshooting Information (see page
14-3).

1. Warm up the engine to normal operating

temperature (the radiator fan comes on).

2. Make sure that the transmission is filled to the

proper level, and check for fluid leaks.

3. Drain the ATF (see step 3 on page 14-232) through a

strainer. Inspect the strainer for metal debris or
excessive clutch material.

Replace the transmission, then go to step 14.

Replace the ATF (see page 14-232), then go to

step 4.

4. Turn the ignition switch to ON (II).

5. Clear the DTC with the HDS.

6. Test-drive the vehicle with the shift lever in D, and

let the transmission shift through all five gears.

7. Monitor the OBD STATUS for P1730 in the DTCs

MENU with the HDS.

Go to step 8.

If the HDS indicates PASSED, intermittent

failure, the system is OK at this time. If the HDS
indicates NOT COMPLETED, go to step 6.

8. Clear the DTC with the HDS.

Problem in Shift Control System:

Is DT C P17 17 indicated?

Does the HDS indicate PASSED?

Does the str ainer have metal debr is or excessive
clutch mater ial?

Does the HDS indicate F AILED?

08/08/21 14:45:29 61SNR030_140_0197

−

YES

14-196

Automatic Transmission

9. Select Shift Solenoid Valve A in the Miscellaneous

Test Menu, and check it operates with the HDS.

Go to step 10.

Replace shift solenoid valve A (see page

14-217), then go to step 14.

10. Select Shift Solenoid Valve B in the Miscellaneous

Test Menu, and check it operates with the HDS.

Go to step 11.

Replace shift solenoid valve B (see page

14-217), then go to step 14.

11. Select Shift Solenoid Valve D in the Miscellaneous

Test Menu, and check it operates with the HDS.

Go to step 12.

Replace shift solenoid valve D (see page

14-217), then go to step 14.

12. Test-drive the vehicle with the shift lever in D, and

let the transmission shift through all five gears.

13. Monitor the OBD STATUS for P1730 in the DTCs

MENU with the HDS.

Repair the hydraulic system related with shift

valves A, B, and D, or replace the transmission,
then go to step 14.

If the HDS indicates PASSED, intermittent

failure, the system is OK at this time. If the HDS
indicates NOT COMPLETED, go to step 12.

14. Test-drive the vehicle with the shift lever in D, and

let the transmission shift through all five gears.

15. Check for Temporary DTCs or DTCs with the HDS.

Go to step 8.

Go to step 16.

16. Monitor the OBD STATUS for P1730 in the DTCs

MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 15,
go to the indicated DTC’s troubleshooting.

If the HDS indicates FAILED, go to step 8. If

the HDS indicates NOT COMPLETED, go to step 14.

Is a clicking sound hear d?

Does the HDS indicate F AILED?

Is DT C P17 30 indicated?

Does the HDS indicate PASSED?

08/08/21 14:45:29 61SNR030_140_0198
