Countershaft Assembly Clearance
Inspection

B
07746-0030100

C
07746-0030300

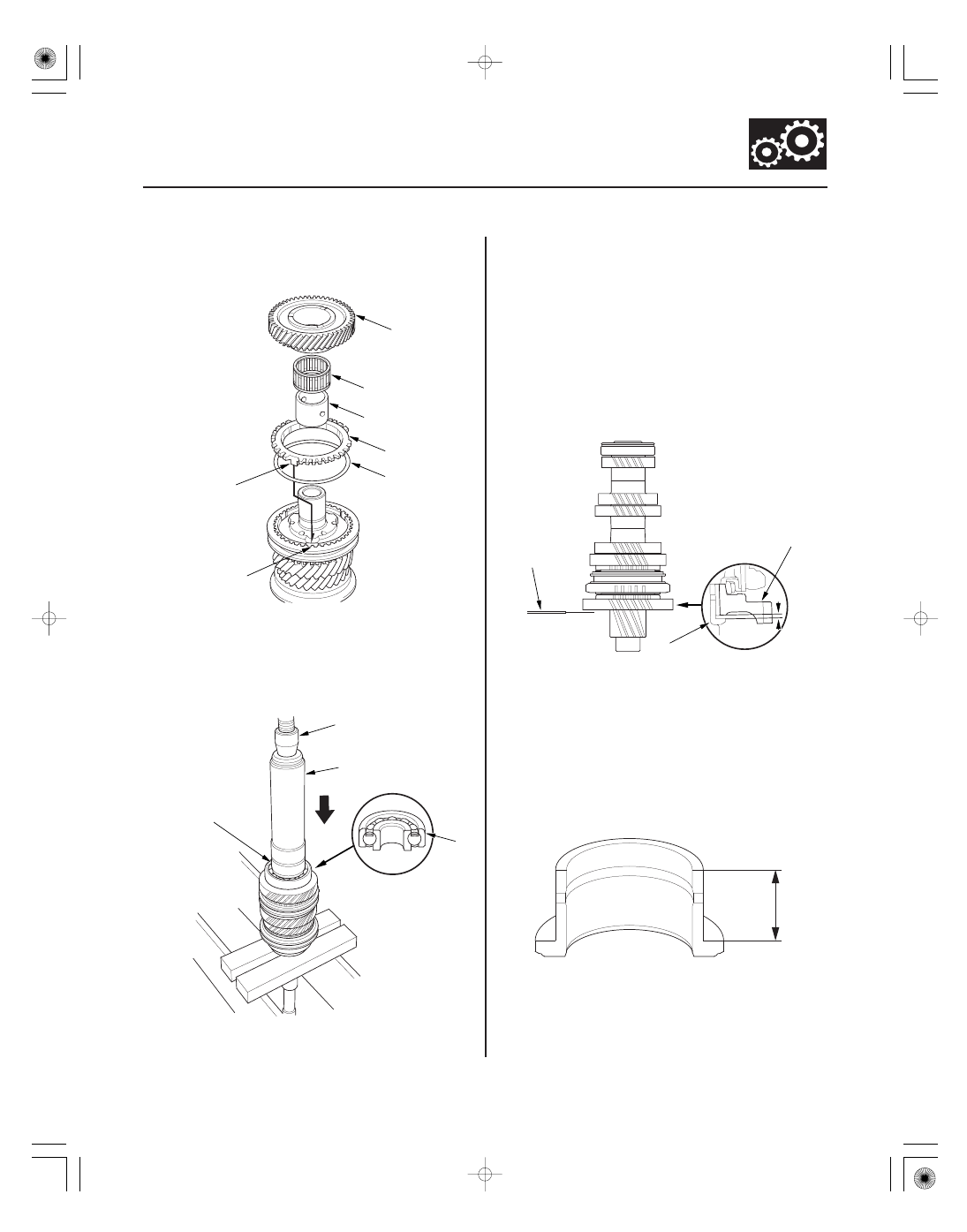

14. Install the synchro ring (A) with the synchro spring

(B) by aligning the synchro ring fingers (C) with the
grooves (D) in the 5th/6th synchro hub.

15. Install the 6th gear distance collar (E) with the

needle bearing (F), then install 6th gear (G).

16. Press on new angular ball bearing (A) using the

40 mm inner driver handle (B), the 30 mm inner
bearing driver attachment (C), and a press (D).

1. Measure the clearance between 1st gear (A) and

the 1st gear distance collar (B) with a feeler gauge
(C).

• If the clearance exceeds the service limit, go to

step 2.

• If the clearance is within the service limit, go to

step 4.

2. Measure the length of the 1st gear distance collar

as shown.

• If the length is not within the standard, replace

the 1st gear distance collar.

• If the length is within the standard, go to step 3.

08/08/21 14:48:05 61SNR030_130_0119

０３

０４

０５

０６

−

Standard:

22.92

22.97 mm (0.902

0.904 in.)

Service Limit: 22.87 mm (0.900 in.)

Standard:

0.06

0.16 mm (0.002

0.006 in.)

Service Limit: 0.25 mm (0.010 in.)

Standard: 28.03

28.08 mm (1.104

1.106 in.)

Standard:

27.92

27.97 mm (1.099

1.101 in.)

Service Limit: 27.87 mm (1.097 in.)

13-118

Manual Transmission

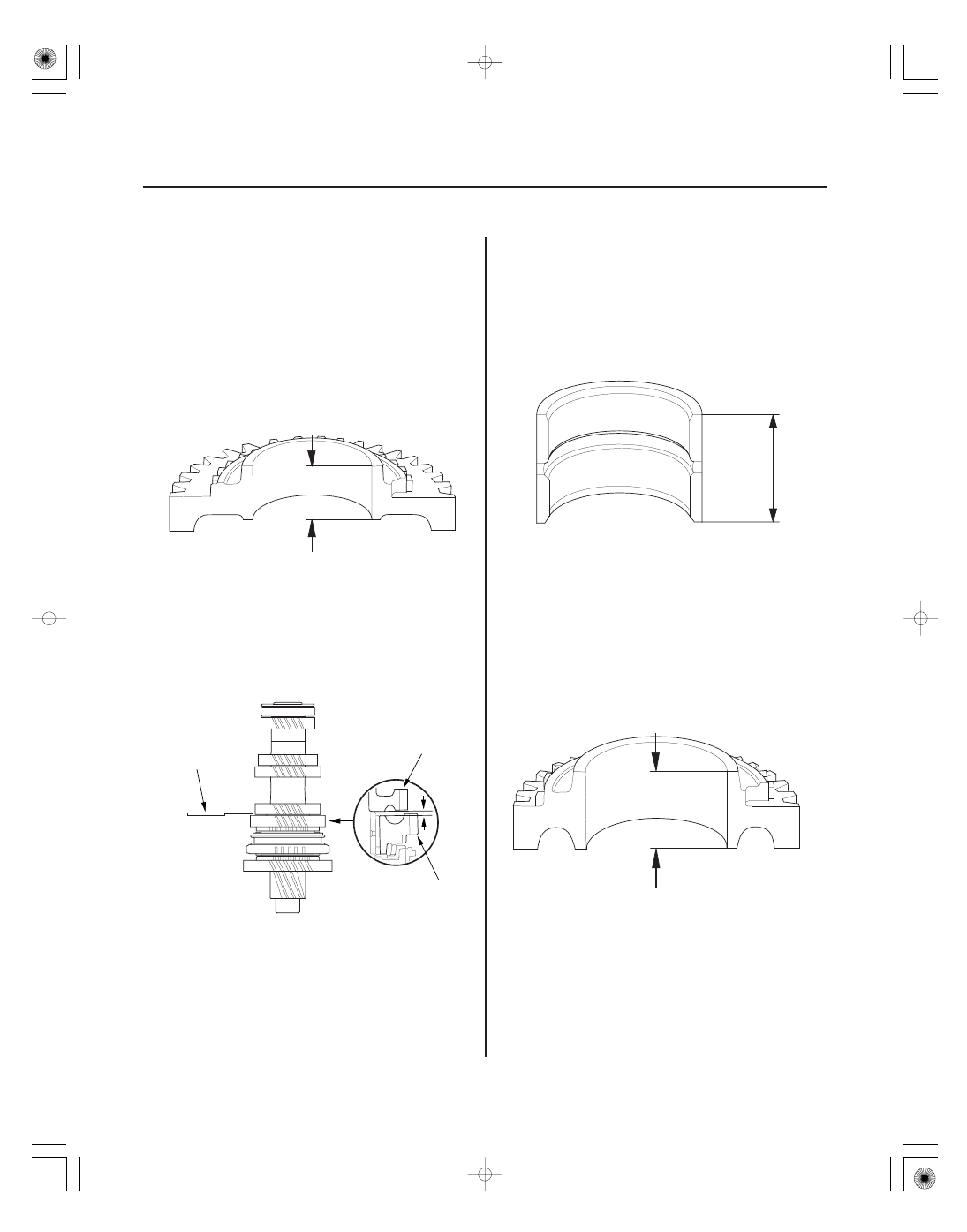

3. Measure the thickness of 1st gear.

• If the thickness is less than the service limit,

replace 1st gear.

• If the thickness is within the service limit, replace

the 1st/2nd synchro hub and the reverse gear as
a set.

4. Measure the clearance between 2nd gear (A) and

3rd gear (B) with a feeler gauge (C). If the clearance
exceeds the service limit, go to step 5.

5. Measure the length of the 2nd gear distance collar.

• If the length is not within the standard, replace

the 2nd gear distance collar.

• If the length is within the standard, go to step 6.

6. Measure the thickness of 2nd gear.

• If the thickness is less than the service limit,

replace 2nd gear.

• If the thickness is within the service limit, replace

the 1st/2nd synchro hub and the reverse gear as
a set.

08/08/21 14:48:06 61SNR030_130_0120

＊０１

ＳＮＲ９ＡＡ８Ｅ３４１５０１０００００ＬＣＡＴ００

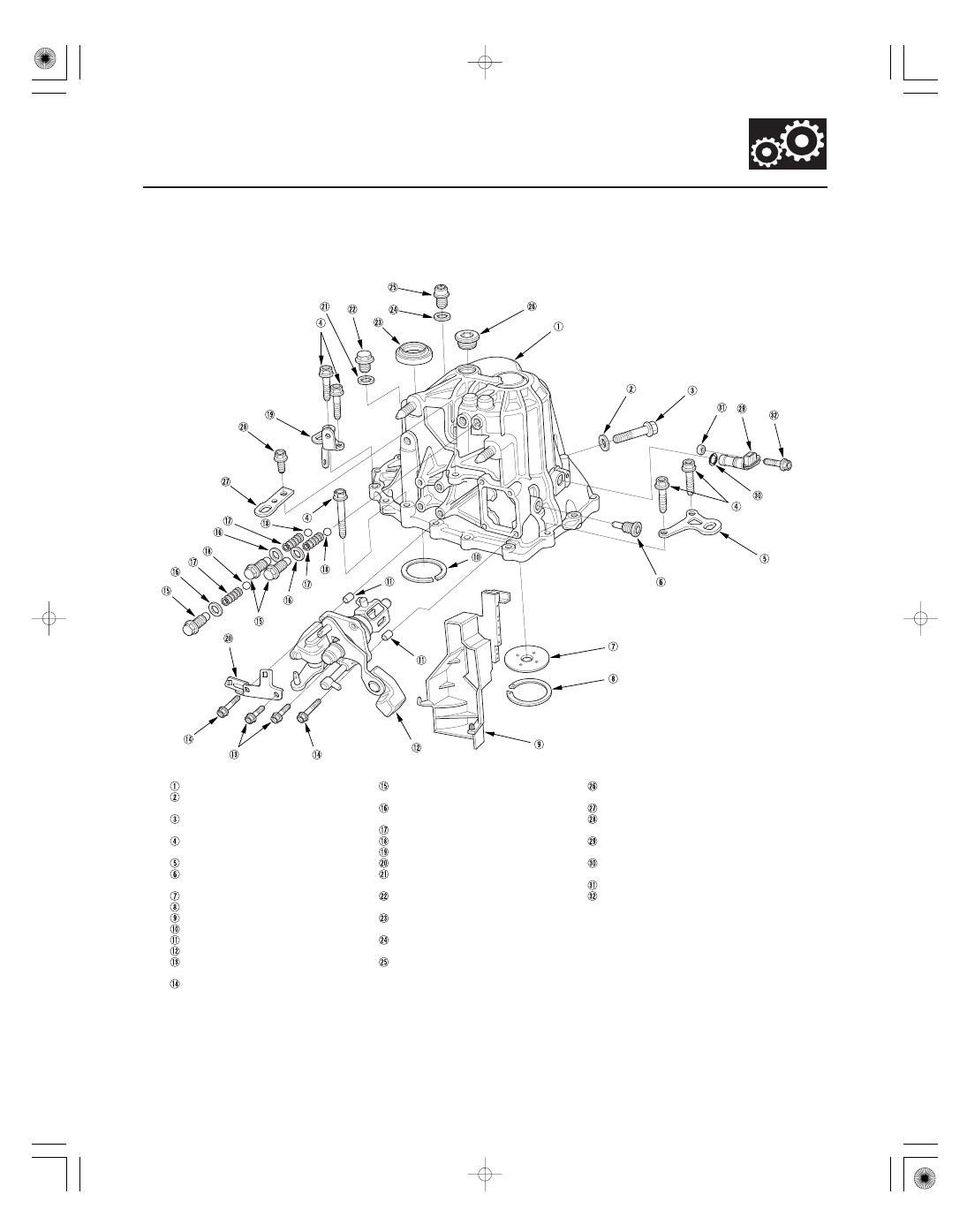

Exploded View - Clutch Housing

13-22

Manual Transmission

Transmission Disassembly

MAINSHAFT ASSEMBLY

COUNTERSHAFT ASSEMBLY

REVERSE IDLER GEAR

REVERSE LOCK CAM

BALL BEARING

REVERSE IDLER GEAR SHAFT

14 x 20 mm DOWEL PIN
MAGNET

DIFFERENTIAL ASSEMBLY

OIL GUIDE PLATE C

BEARING SET PLATE

NEEDLE BEARING

28 mm WASHER

28 mm SPRING WASHER

REVERSE SHIFT FORK

SHIFT FORK ASSEMBLY

CLUTCH HOUSING
72 mm SNAP RING

6 mm FLANGE BOLT
13 N·m (1.3 kgf·m, 9 lbf·ft)

35 x 58 x 8 mm OIL SEAL

28 x 43 x 7 mm OIL SEAL

20 mm WASHER

BACK-UP LIGHT SWITCH
29 N·m (3.0 kgf·m, 22 lbf·ft)
20 mm BOLT
44 N·m (4.5 kgf·m, 33 lbf·ft)

6 mm SPECIAL BOLT
15 N·m (1.5 kgf·m, 11 lbf·ft)

Replace.

08/08/21 14:44:56 61SNR030_130_0024

＊０２

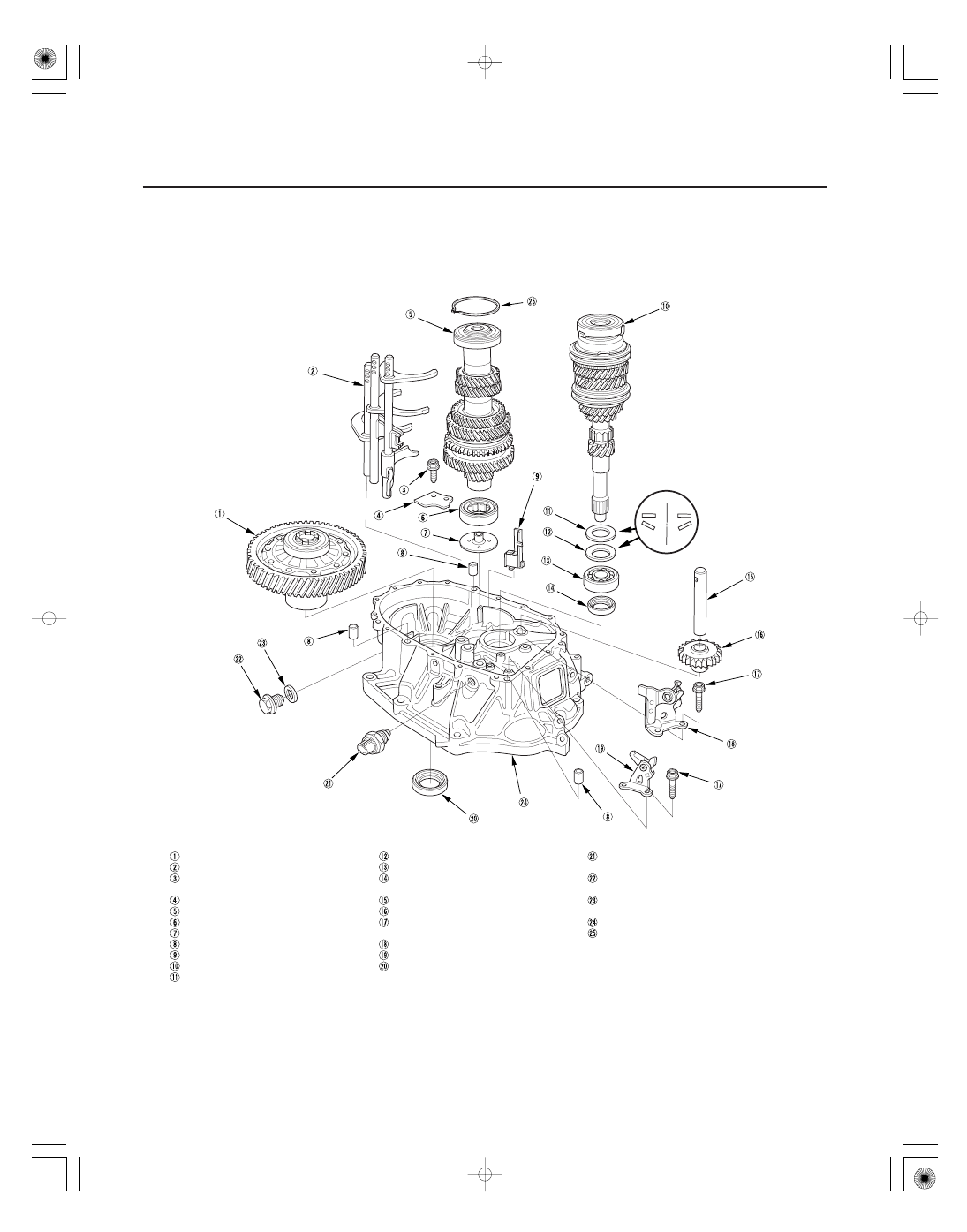

Exploded View - Transmission Housing

13-23

TRANSMISSION HOUSING

32 mm SEALING CAP
34 N·m (3.5 kgf·m, 25 lbf·ft)

10 mm SEALING WASHER

FILLER PLUG
44 N·m (4.5 kgf·m, 33 lbf·ft)
40 x 56 x 8 mm OIL SEAL

10 mm FLANGE BOLT
44 N·m (4.5 kgf·m, 33 lbf·ft)

14 mm SEALING WASHER

TRANSMISSION HANGER A

8 mm FLANGE BOLT
27 N·m (2.8 kgf·m, 20 lbf·ft)

INTERLOCK BOLT
39 N·m (4.0 kgf·m, 29 lbf·ft)
OIL GUIDE PLATE M
72 mm SHIM
OIL GUTTER PLATE

DRAIN PLUG
39 N·m (4.0 kgf·m, 29 lbf·ft)

20 mm SEALING WASHER

STEEL BALL

SPRING

TRANSMISSION HANGER B

DETENT BOLT
22 N·m (2.2 kgf·m, 16 lbf·ft)
12 mm SEALING WASHER

HARNESS BRACKET A

6 x 30 mm FLANGE BOLT
12 N·m (1.2 kgf·m, 9 lbf·ft)

8 x 14 mm DOWEL PIN
CHANGE LEVER ASSEMBLY

TRANSMISSION HANGER
10 mm FLANGE BOLT
44 N·m (4.5 kgf·m, 33 lbf·ft)

PLAIN WASHER

6 x 20 mm FLANGE BOLT
12 N·m (1.2 kgf·m, 9 lbf·ft)

6 mm FLANGE BOLT
12 N·m (1.2 kgf·m, 9 lbf·ft)

OUTPUT SHAFT (COUNTERSHAFT)
SPEED SENSOR
O-RING

80 mm SHIM

Replace.
