Fig. 57: Identifying Recliner Cover With Mounting Screw Location
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 58: Identifying Recliner Cover With Mounting Screw Location
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

SEAT BACK COVER REPLACEMENT

1. Remove the recliner cable (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 33

© 2006 Mitchell Repair Information Company, LLC.

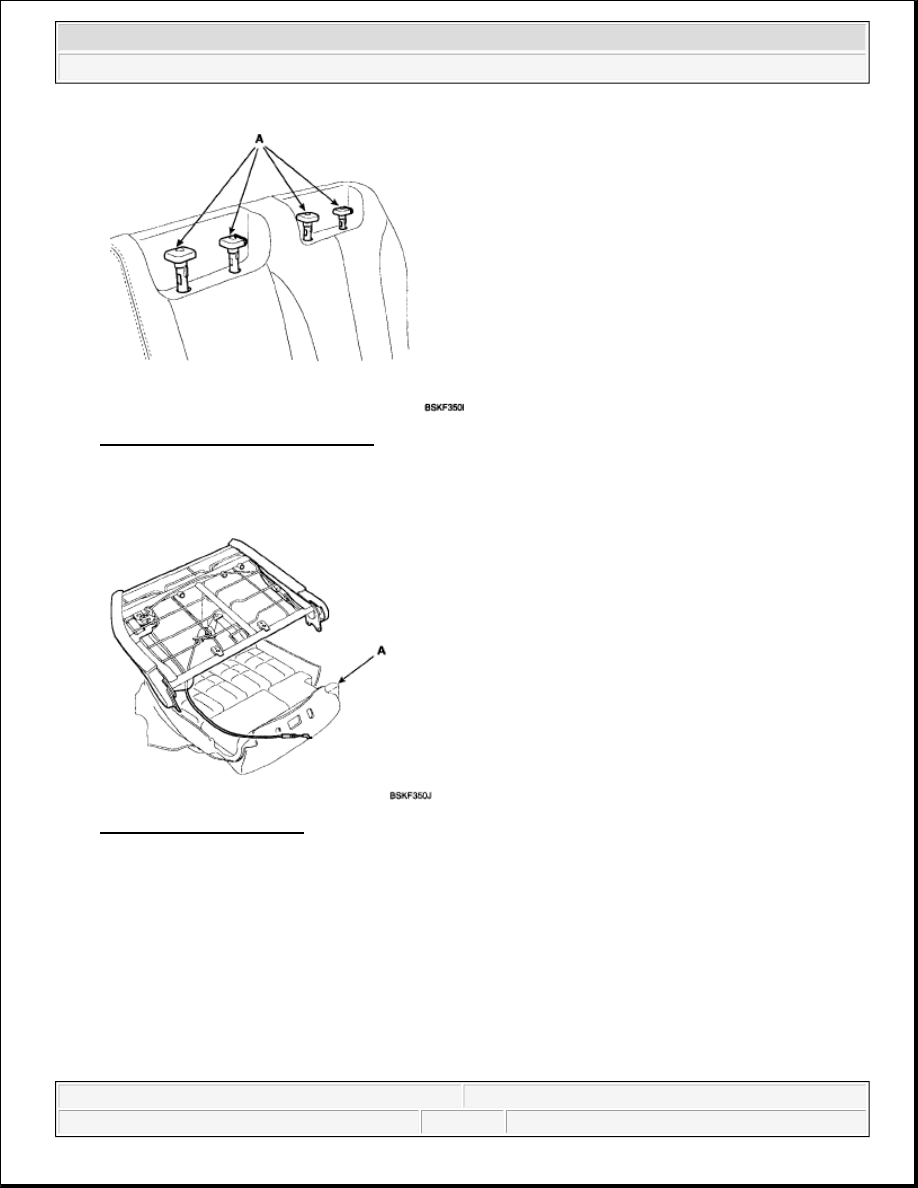

Fig. 59: Identifying Recliner Cable
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the mounting bolts, then remove the seat back assembly (A).

Fig. 60: Identifying Seat Back Assembly With Mounting Bolts Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the back panel (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 34

© 2006 Mitchell Repair Information Company, LLC.

Fig. 61: Identifying Back Panel With Mounting Bolts Location
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the hog-ring clips (A).

Fig. 62: Identifying Hog-Ring Clips
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the headrest guide (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

Fig. 63: Identifying Headrest Guide
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the frame (A).

Fig. 64: Identifying Frame
Courtesy of KIA MOTORS AMERICA, INC.

7. After removing the hog-ring clips (A) on the front of seat back remove the seat back cover (B).
