Fig. 33: Lifting Back Side Of Seat
Courtesy of KIA MOTORS AMERICA, INC.

4. Arrange the seat to the rear side of the striker by using the roller.

Fig. 34: Arranging Seat To Rear Side Of Striker
Courtesy of KIA MOTORS AMERICA, INC.

5. Turn the seat to the forward at an angle of about 81 degrees for locking between the plate and striker.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 21

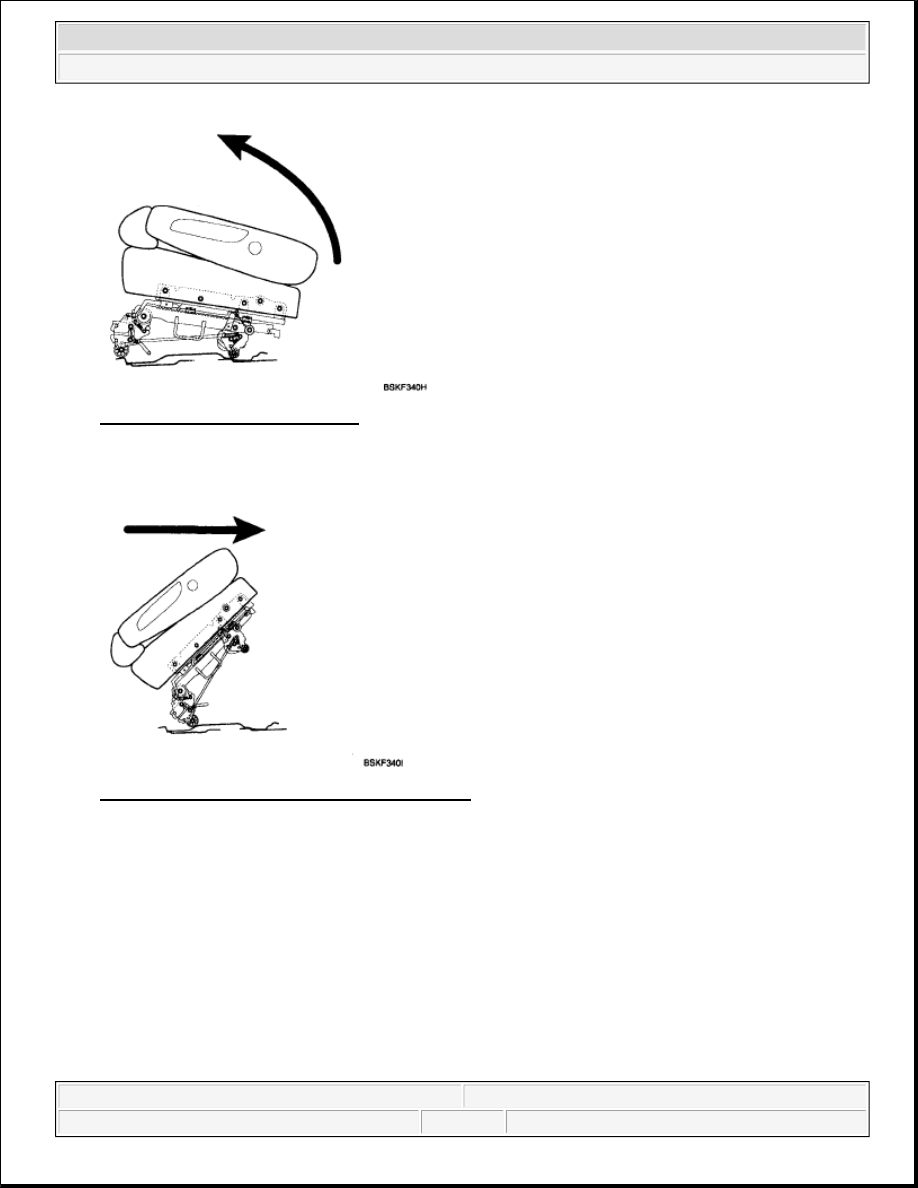

Fig. 35: Turning Seat To Forward
Courtesy of KIA MOTORS AMERICA, INC.

6. Turn the seat to the rearward for locking between the rear latch and striker.

Fig. 36: Turning Seat To Rearward
Courtesy of KIA MOTORS AMERICA, INC.

7. Unfold the back of the seat.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 22

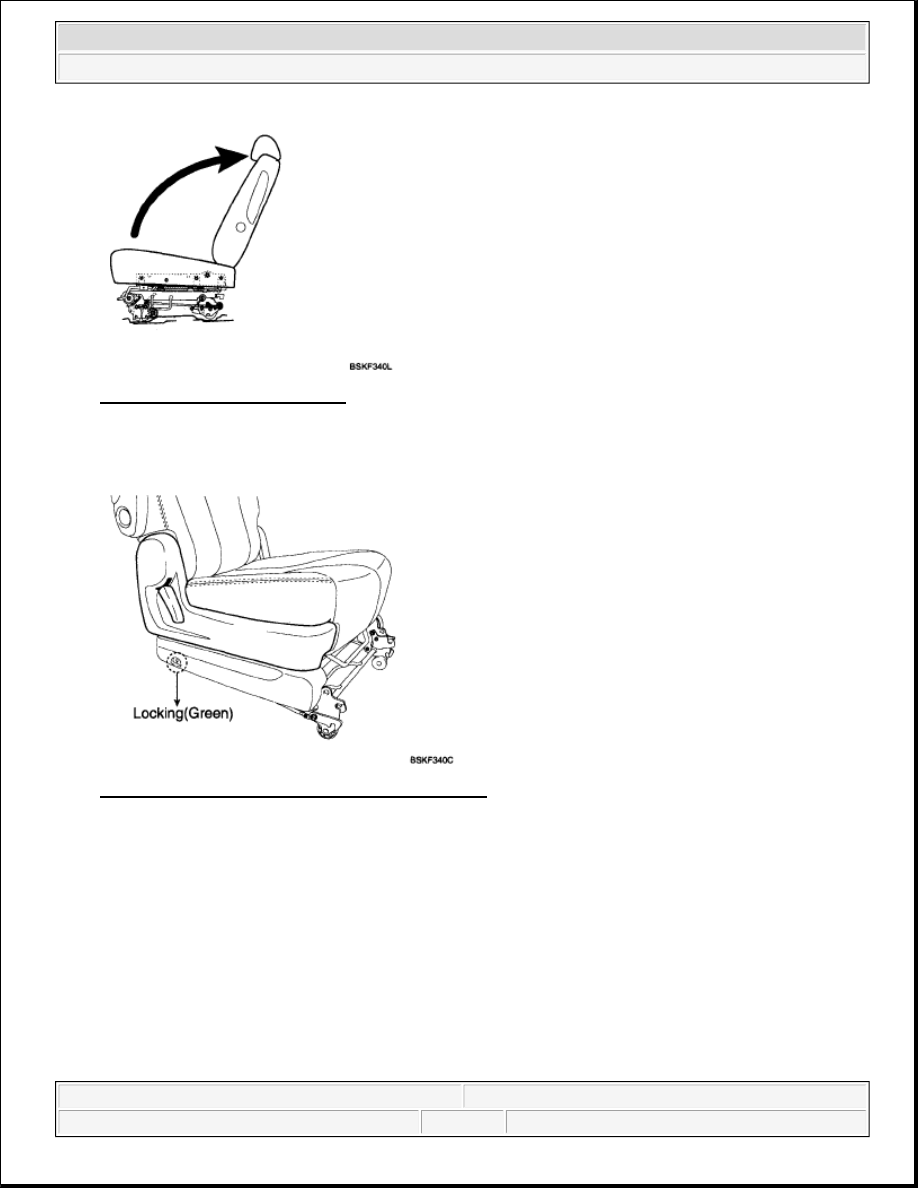

Fig. 37: Unfolding Back Of Seat
Courtesy of KIA MOTORS AMERICA, INC.

8. The leg cover hole color must be discolored to green.

Fig. 38: Identifying Leg Cover Hole Color (Green)
Courtesy of KIA MOTORS AMERICA, INC.

RECLINER COVER REPLACEMENT

1. Remove the recliner lever (B) and cover (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 23

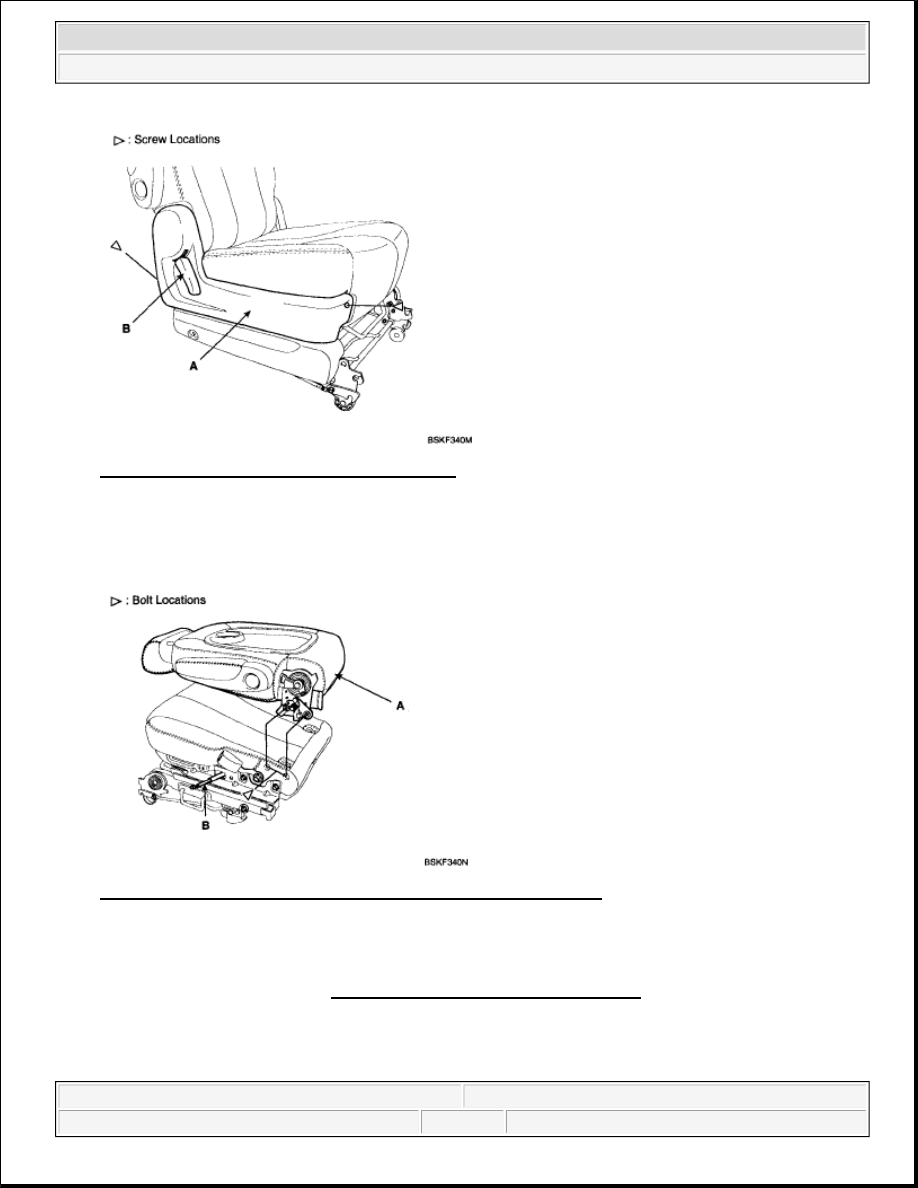

Fig. 39: Identifying Recliner Lever And Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the mounting bolts, then remove the seat back assembly (A).

3. Disconnect the auto tumble cable (B).

Fig. 40: Identifying Seat Back Assembly And Auto Tumble Cable
Courtesy of KIA MOTORS AMERICA, INC.

SEAT BACK COVER REPLACEMENT

1. Remove the recliner cover (See RECLINER COVER REPLACEMENT).

2. Remove the cover (A).

3. After the armrest mounting bolt, then remove the armrest (B).
