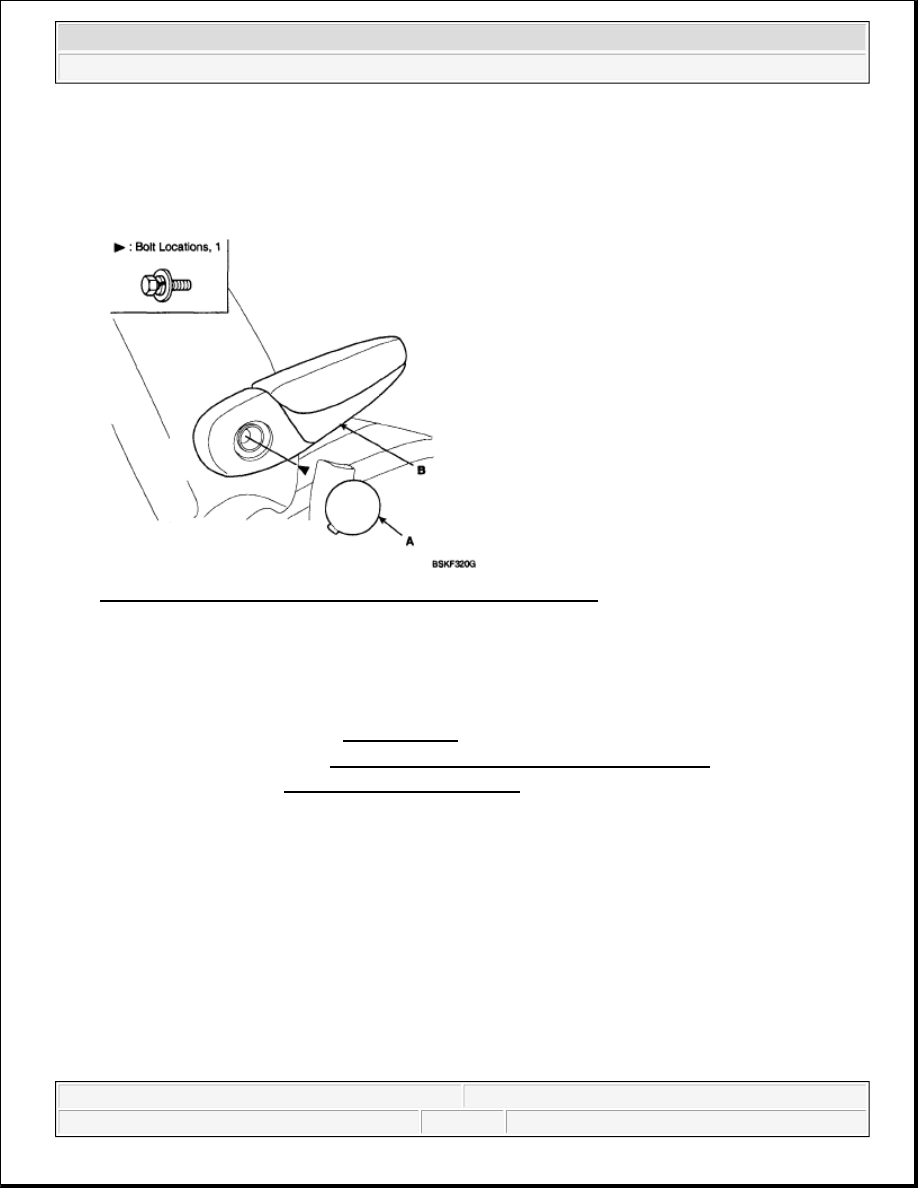

ARMREST REPLACEMENT

1. Remove the cover (A).

2. After the armrest mounting bolt, then remove the armrest (B).

Fig. 7: Identifying Armrest, Cover With Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

SEAT BACK COVER REPLACEMENT

1. Remove front seat assembly. See FRONT SEAT.

2. Remove the recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.

3. Remove the armrest. See ARMREST REPLACEMENT.

4. Remove the connector (A), (B).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 5

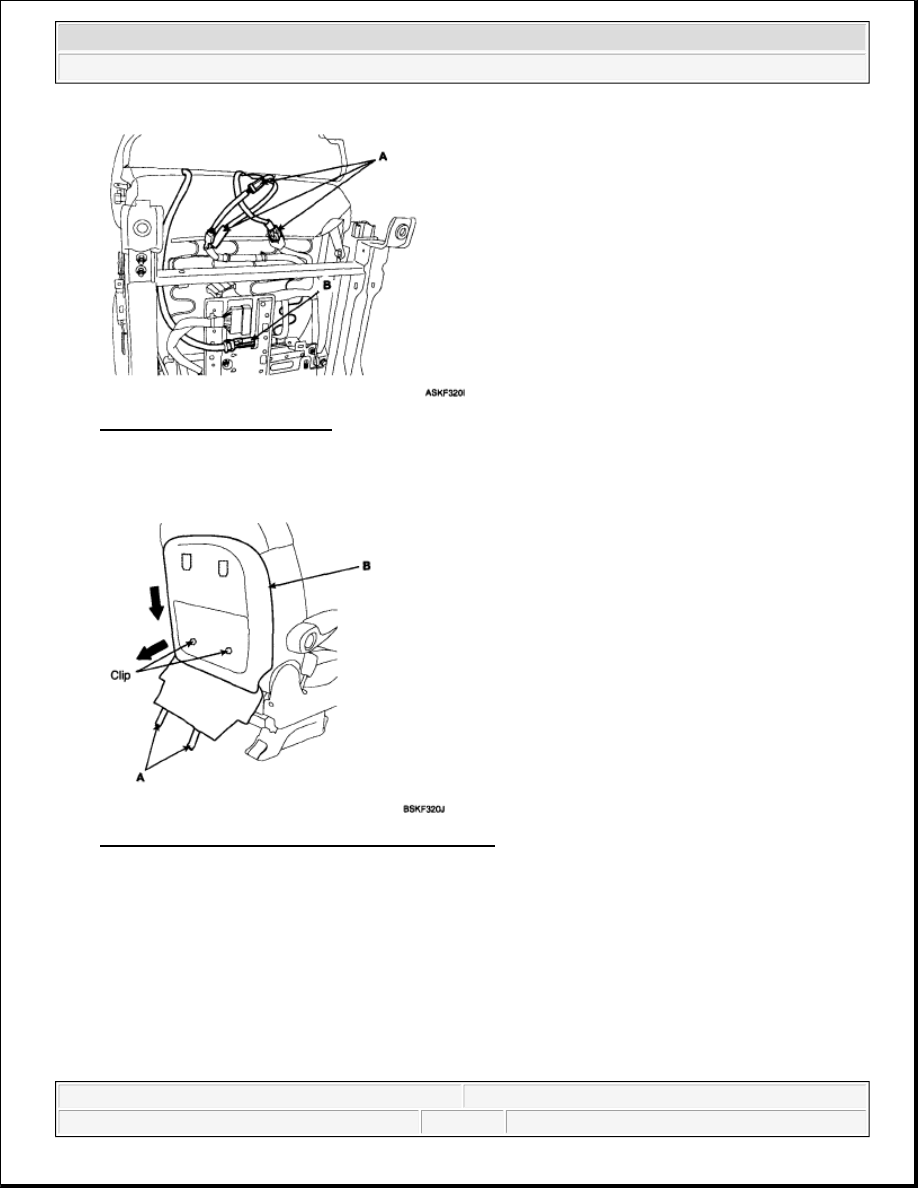

Fig. 8: Identifying Connectors
Courtesy of KIA MOTORS AMERICA, INC.

5. After disconnecting the scuff band (A), remove the seat back panel (B).

Fig. 9: Identifying Scuff Band And Seat Back Panel
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the headrest and headrest guide (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 6

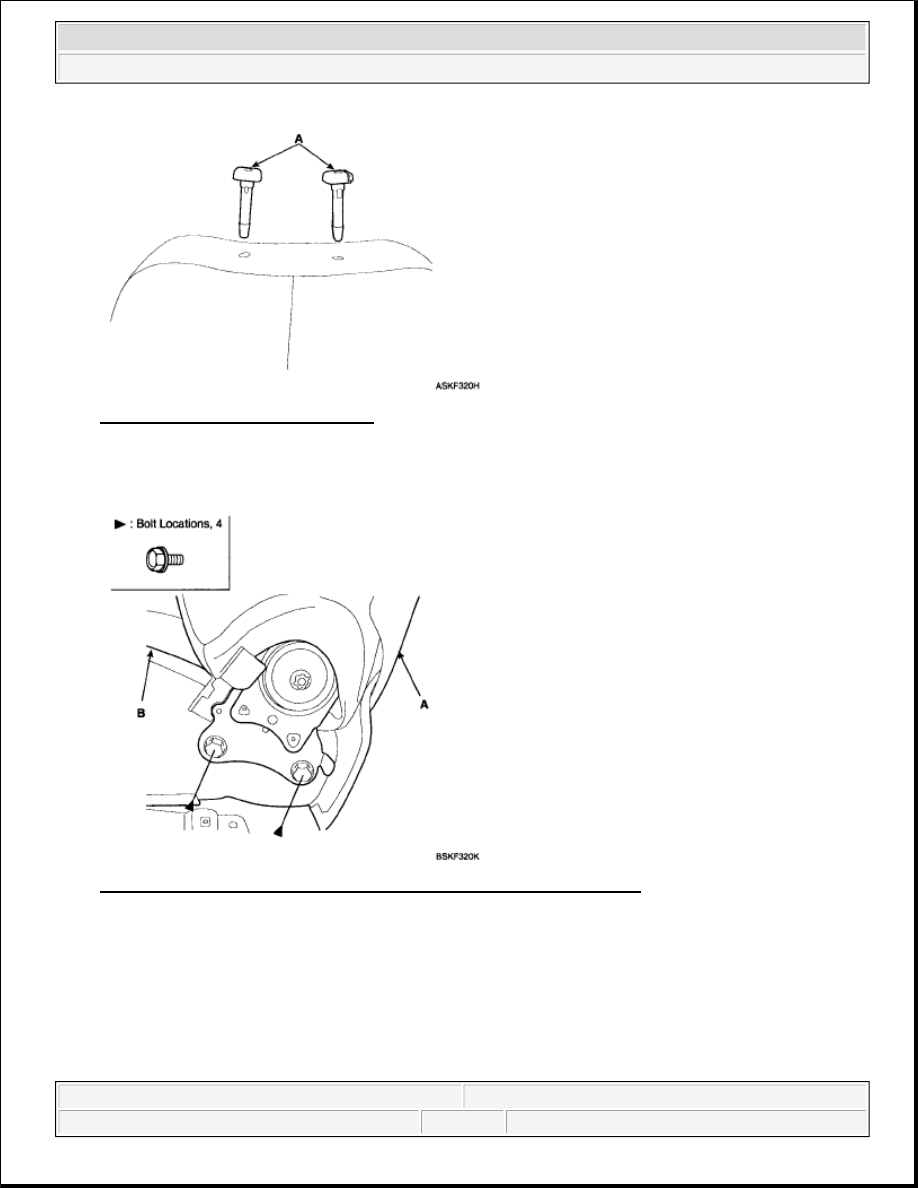

Fig. 10: Identifying Headrest Guide
Courtesy of KIA MOTORS AMERICA, INC.

7. Loosen the mounting bolts, then remove the seat back assembly (A).

Fig. 11: Identifying Seat Back Assembly With Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the protector (A) from the back frame, then remove the hog ring clips (B).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 7

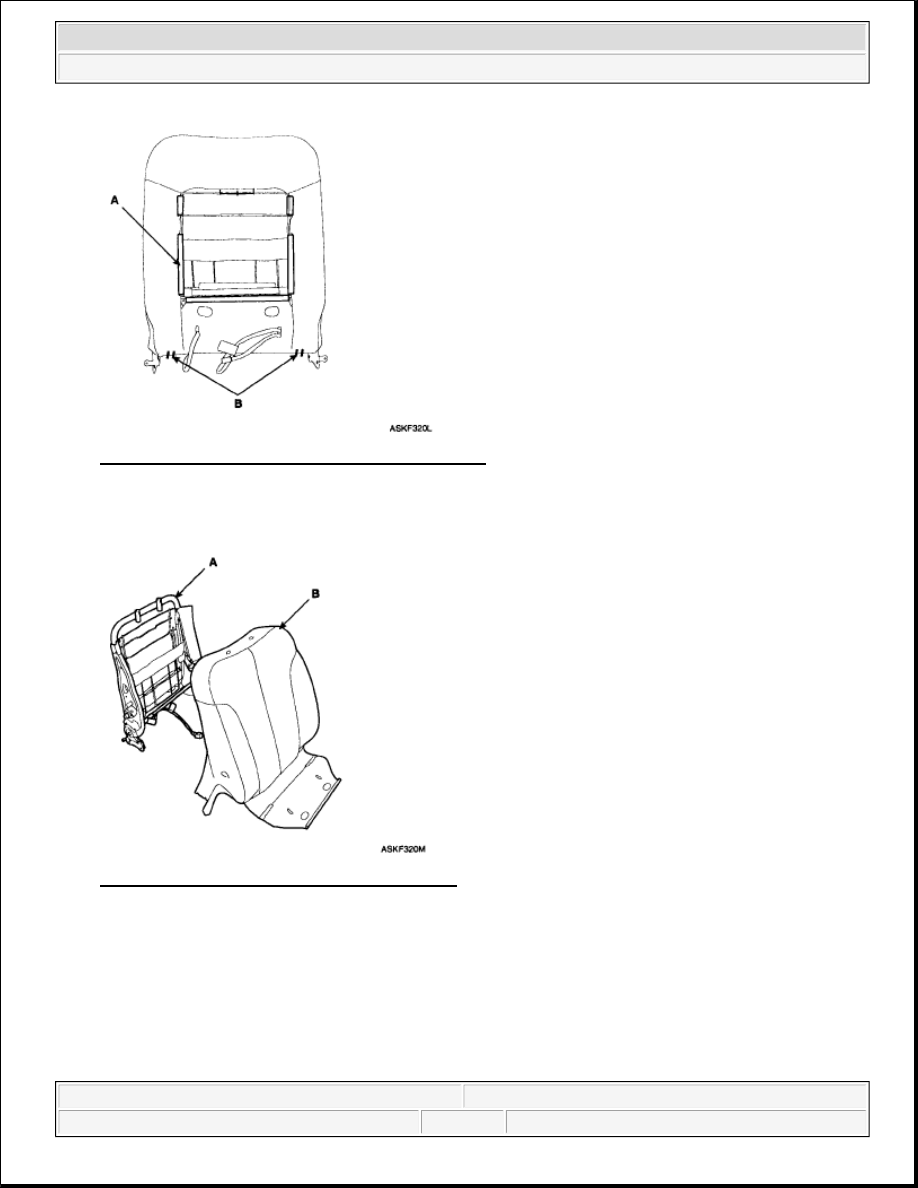

Fig. 12: Identifying Protector And Hog Ring Clips
Courtesy of KIA MOTORS AMERICA, INC.

9. Disconnect the seat pad (B) from the back frame (A).

Fig. 13: Identifying Seat Pad And Back Frame
Courtesy of KIA MOTORS AMERICA, INC.

10. After removing the hog-ring clips (A) on the front of seat back remove the seat back cover (B).
