2008 ACCESSORIES & BODY, CAB

Seat - Sedona

FRONT SEAT

COMPONENTS

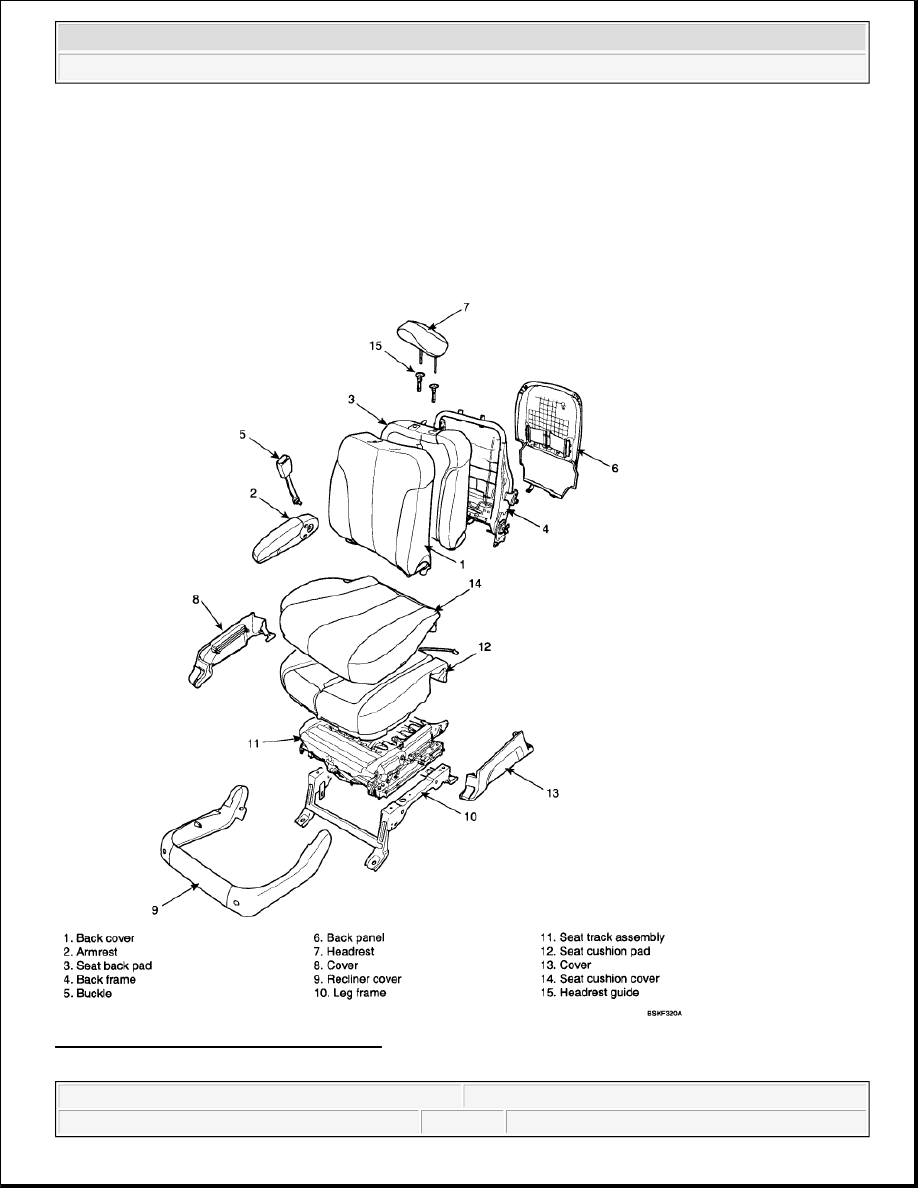

Fig. 1: Identifying Front Seat Components
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 3:51:01 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

REPLACEMENT

SEAT ASSEMBLY REPLACEMENT

1. Remove the seat assembly mounting cover.

2. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

Fig. 2: Identifying Seat Assembly Mounting Bolts Location & Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Open the connector box (A).

4. Disconnect the connector (B), and remove the seat assembly.

Fig. 3: Identifying Connector Box



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

LUMBAR SUPPORT LEVER REPLACEMENT

1. Loosen the lumber support lever mounting screw, remove the lumber support lever (A).

2. Installation is the reverse of removal.

Fig. 4: Identifying Lumber Support Lever With Mounting Screw Location
Courtesy of KIA MOTORS AMERICA, INC.

RECLINER COVER REPLACEMENT

1. Remove the cover (A).

CAUTION: SEAT MOUNTING BOLT INSTALLATION PROCEDURE



Set the into the most rearward position. Check then each slide
is locked, and then Tighten the front mounting bolt temporarily.



Set the seat into most forward position. Check that each slide is
locked, and then Tighten the rear mounting bolt completely.



Set the seat into the most rearward position. Check the front
mounting bolt completely.



Check that the seat operates to and fro smoothy and the locking
portion locks properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

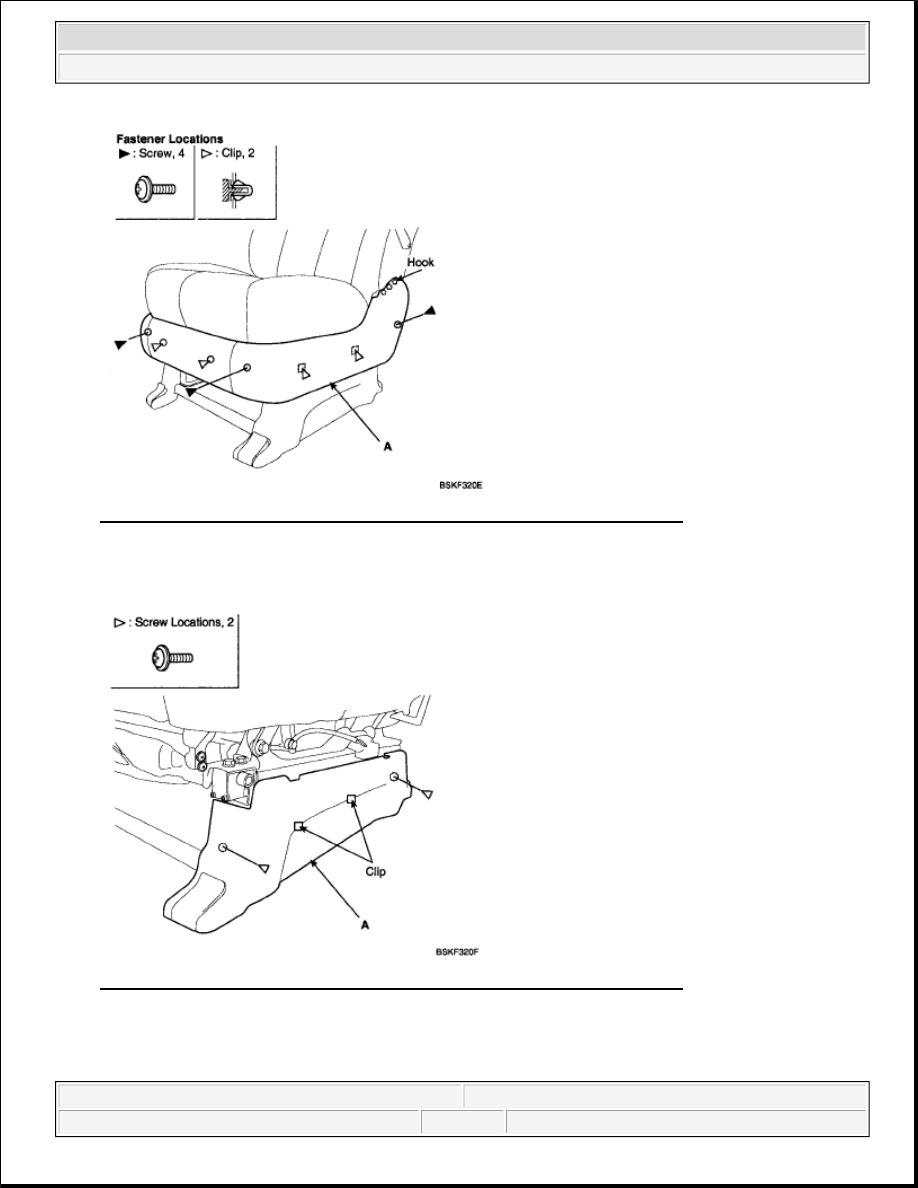

Fig. 5: Identifying Recliner Cover With Mounting Screw And Clip Location
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the recliner mounting screw and clip, then remove the recliner cover (A).

Fig. 6: Identifying Recliner Cover With Mounting Screw And Clip Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.
