2. Check the spring upper pad for aging or damage.

INSTALLATION

1. Pre-tighten the lower arm (A) mounting bolts (B) to the crossmember.

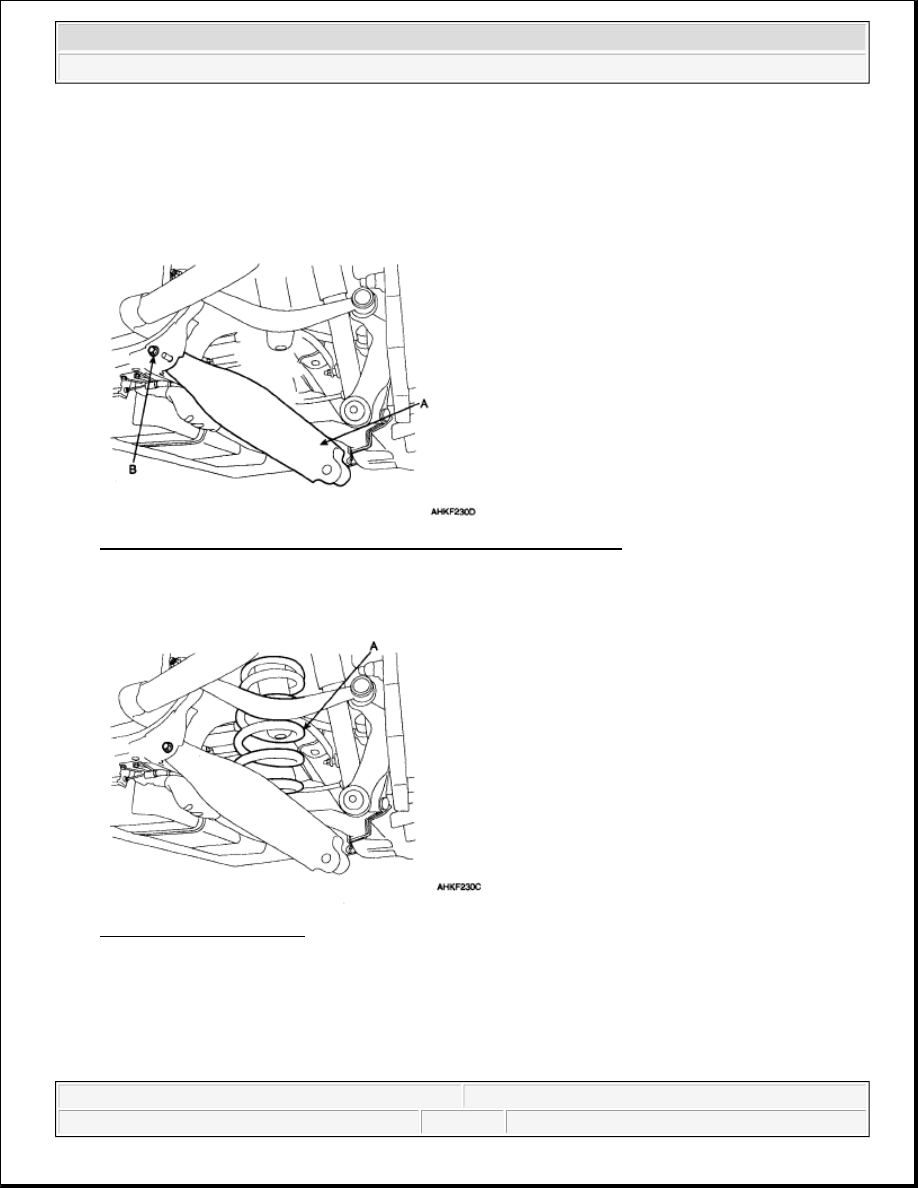

Fig. 30: Identifying Lower Arm, Mounting Bolts And Crossmember
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the spring (A), the lower seat, and the upper pad.

Fig. 31: Identifying Spring
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the lower arm bolt (B) to the rear knuckle and the lower arm bolt (C) to the crossmember with a

specified torque, while supporting the lower arm (A) with a jack as shown in the illustration.

Tightening torque N.m (kgf.m, lb-ft):



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 18

© 2006 Mitchell Repair Information Company, LLC.

Bolt (B): 120-160 (12-16, 86.8-115.7)

Bolt (C): 200-270 (20-27, 144.7-195.3)

Fig. 32: Identifying Lower Arm And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig. 33: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

REAR ASSIST ARM

COMPONENTS

Fig. 34: Identifying Rear Assist Arm Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

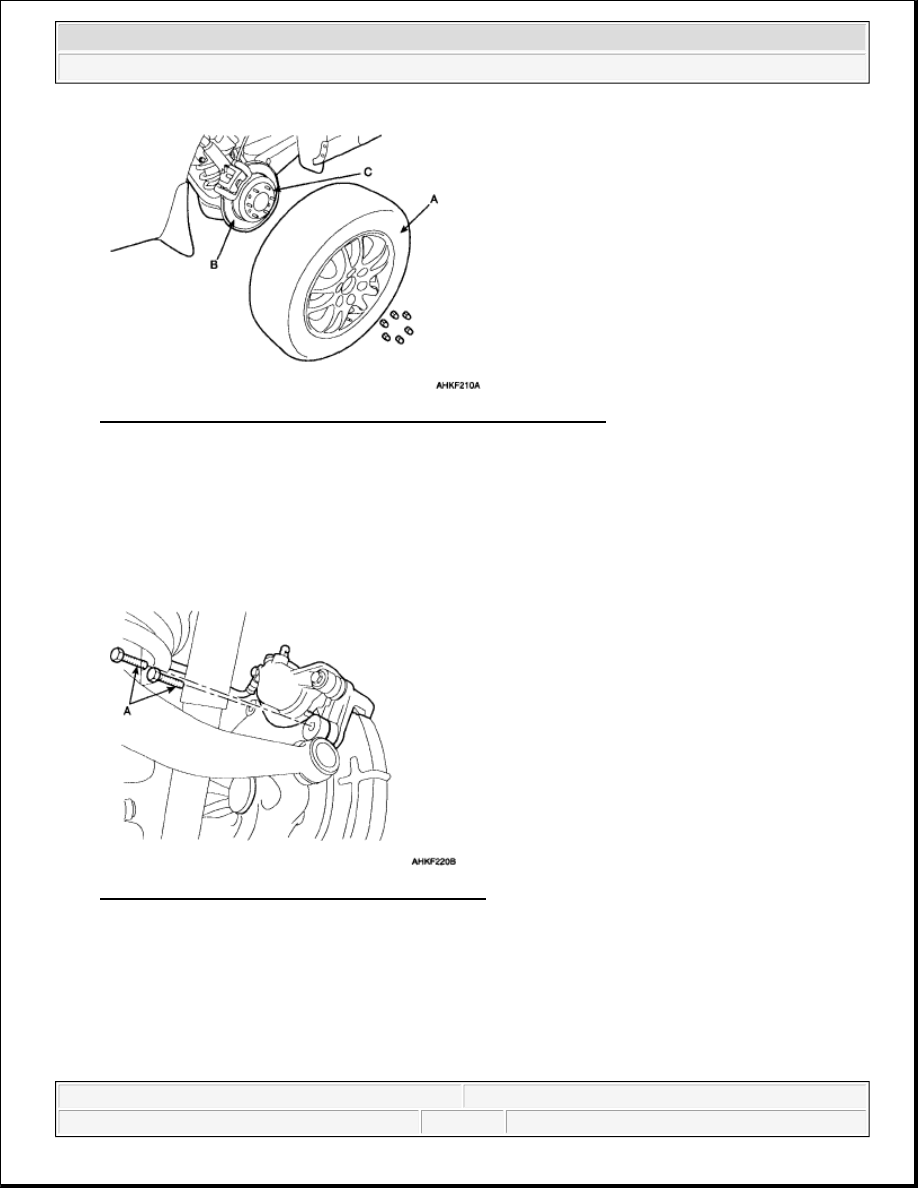

Fig. 35: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as

shown in the illustration.

Fig. 36: Identifying Brake Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).
