4. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5

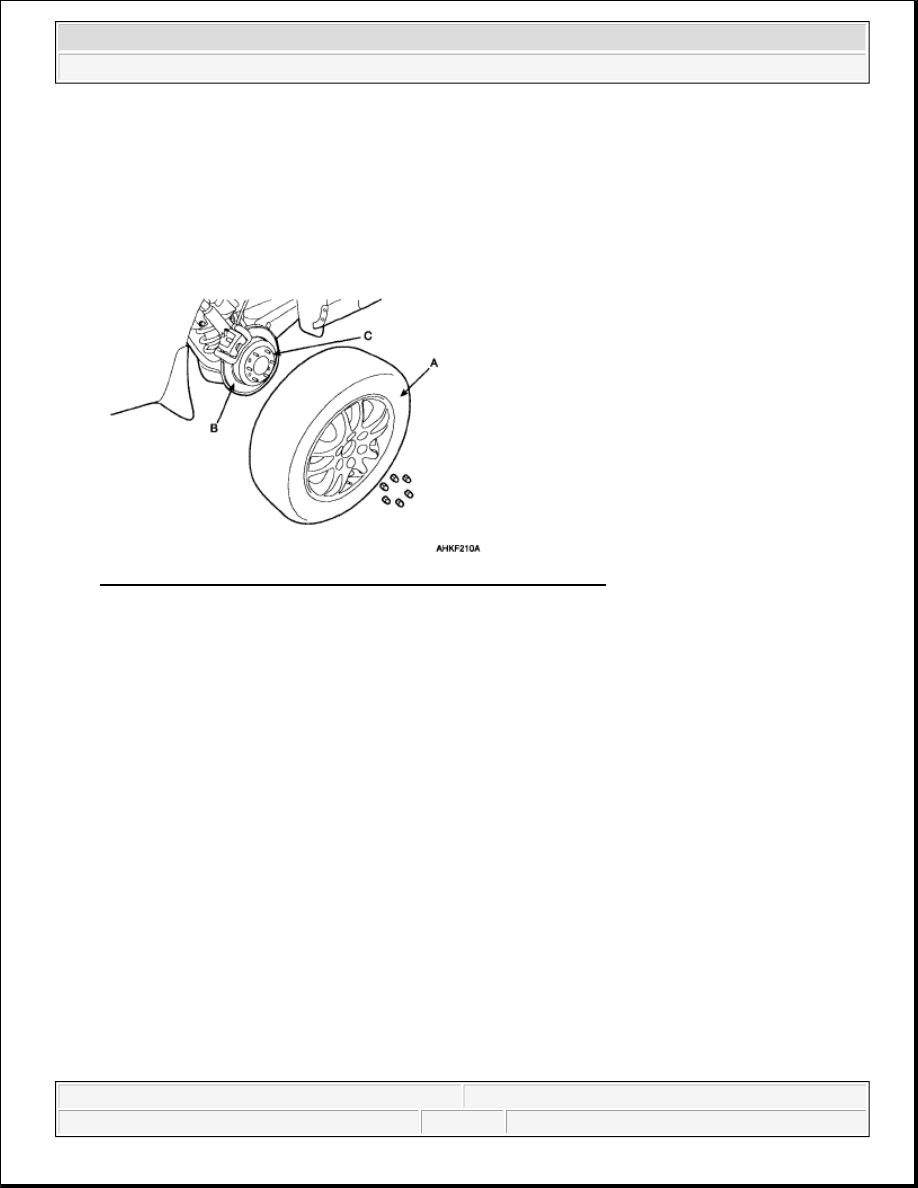

Fig. 24: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

REAR LOWER ARM

COMPONENTS

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

Fig. 25: Identifying Rear Lower Arm Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly.

Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

Fig. 26: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the lower arm bolt (B) from the rear knuckle, while supporting the lower arm (A) with a jack as

shown in the illustration. Loosen the lower arm bolt (C) from the crossmember.

Fig. 27: Identifying Lower Arm And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the spring (A), the lower seat, and the upper pad.

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 16

© 2006 Mitchell Repair Information Company, LLC.

Fig. 28: Identifying Spring
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the lower arm (A) mounting bolts (B) from the crossmember (C).

Fig. 29: Identifying Lower Arm, Mounting Bolts And Crossmember
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

REAR LOWER ARM

1. Check the bushing for wear and deterioration.

2. Check the center arm for bending or breakage.

3. Check the bolts for damage.

SPRING

1. Check the spring for distortion, aging or damage.
