Kia Sedona (2008 year). Manual - part 494

Fig. 24: Identifying Scan Tool Display - Pinch Strip
Courtesy of KIA MOTORS AMERICA, INC.

Above voltage and numerical value may be different from the real value.

5. Change the anti pinch strip sensor, if there is no change from OFF to ON during operation.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the tailgate trim. Refer to TAILGATE .

3. Remove the anti-pinch strip sensor connector (A).

Fig. 25: Identifying Anti-Pinch Strip Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the left and right side anti-pinch strip sensor (B) after removing the screws (5EA).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 23

© 2006 Mitchell Repair Information Company, LLC.

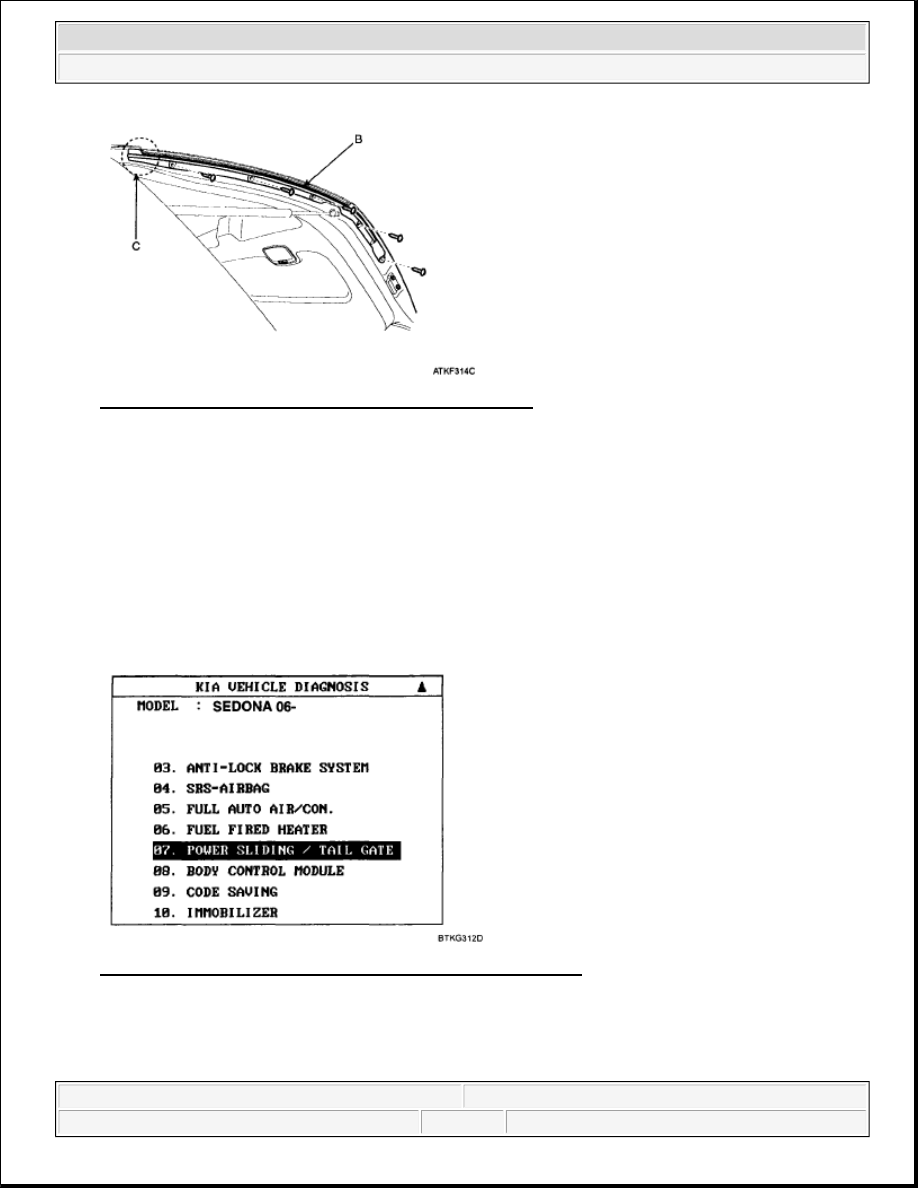

Fig. 26: Identifying Anti-Pinch Strip Sensor And Screws
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal. Part (C) has to be assembled using the cloth.

PTG POWER LATCH

INSPECTION

1. Check the power tailgate control module input/output value by using the diagnostic tool. If the operation

of tailgate control module is abnormal, replace power latch.

2. To check the power latch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.

Fig. 27: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

3. Select "POWER TAILGATE".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 24

© 2006 Mitchell Repair Information Company, LLC.

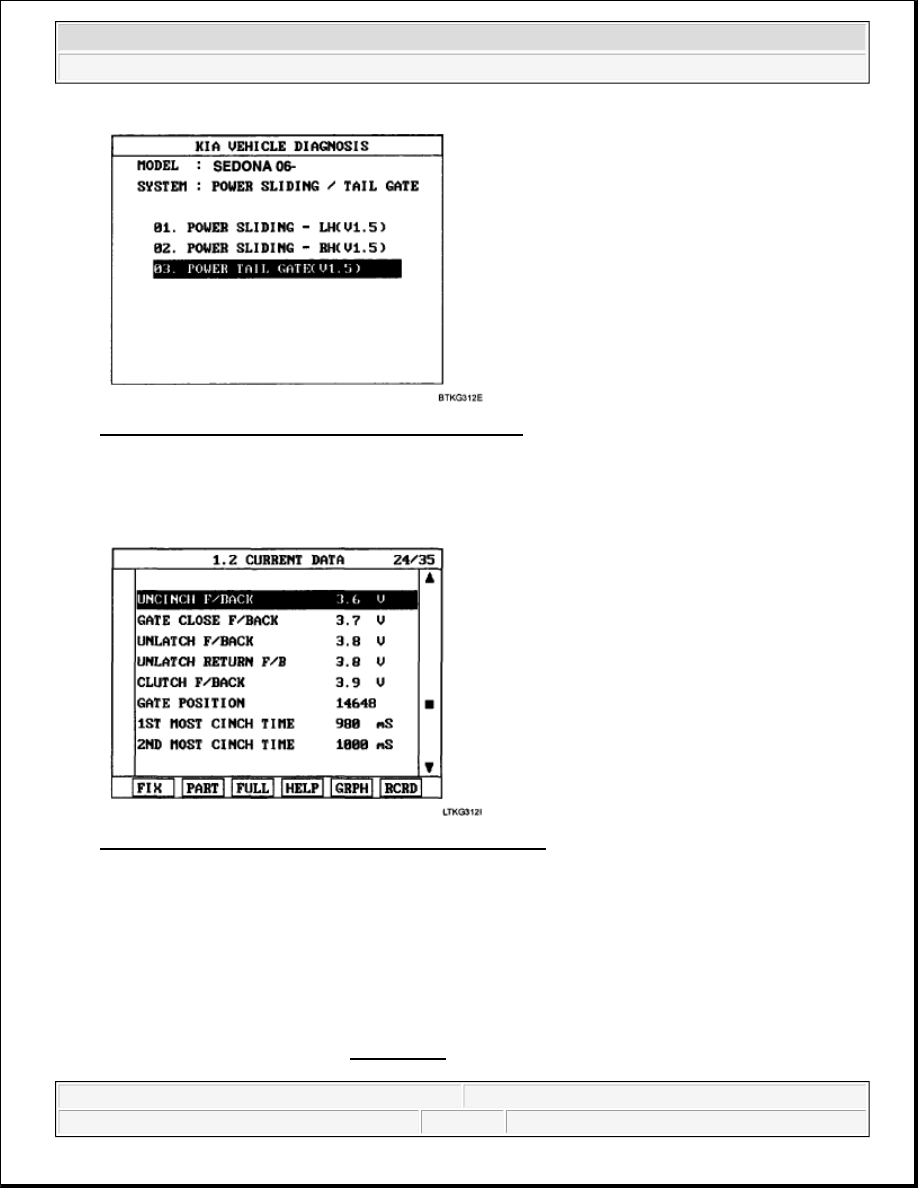

Fig. 28: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the cinch feedback and unlatch feedback output while operating

power tailgate in power mode.

Fig. 29: Identifying Scan Tool Display - Unlatch Feedback
Courtesy of KIA MOTORS AMERICA, INC.

Above voltage and numerical value may be different from the real value.

5. Change the anti pinch strip sensor, if there is no change during operation.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the tailgate trim. Refer to TAILGATE .

3. Remove the tailgate handle rod, actuator rod and key rod.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 25

© 2006 Mitchell Repair Information Company, LLC.

4. Remove the unlatch actuator assembly (A) after removing the connector and nuts (3EA).

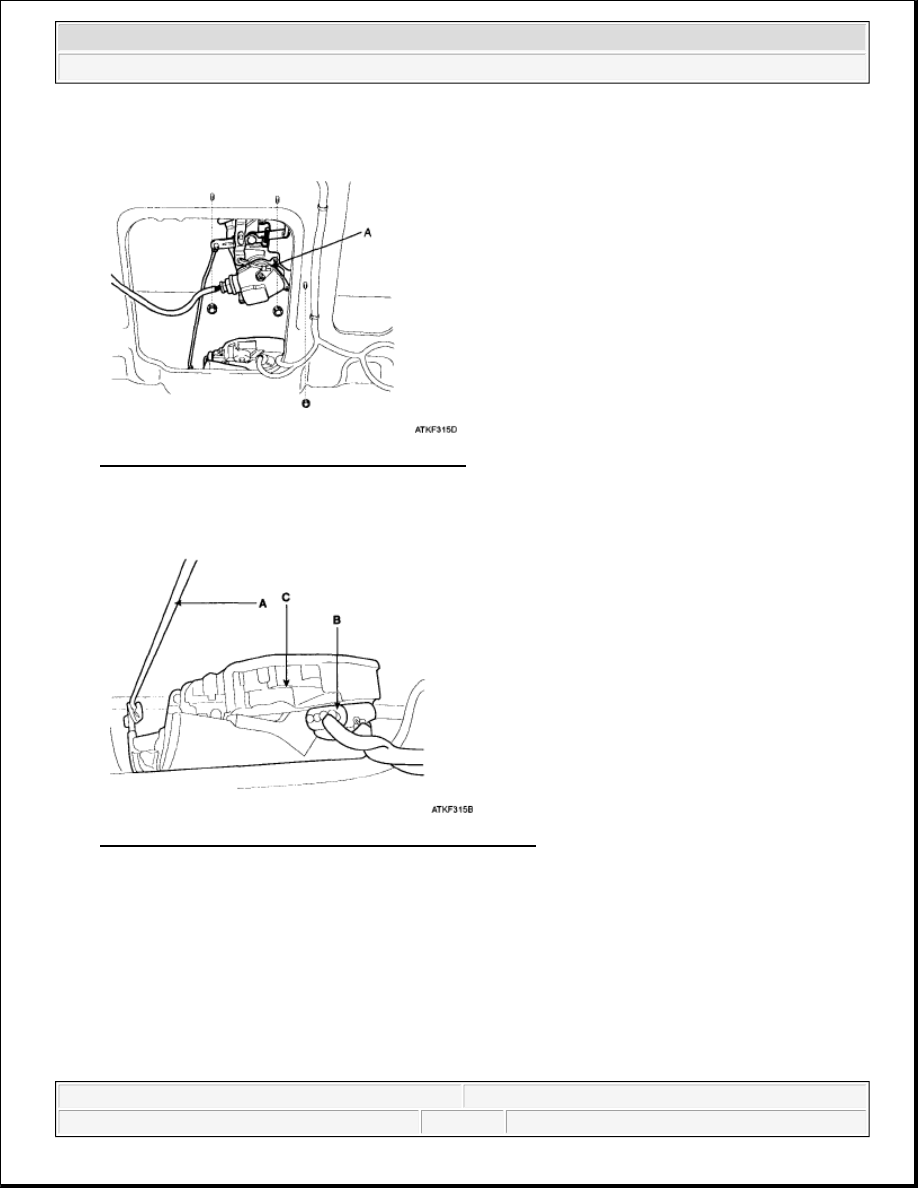

Fig. 30: Identifying Unlatch Actuator Assembly
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the tailgate handle rod (A) and connector (B) from the cinching latch assembly (C).

Fig. 31: Identifying Tailgate Handle Rod And Connector
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the latch mounting screws (3EA) and cinching latch assembly (A) from the tailgate.
