power tailgate drive unit (A).

TORQUE: 0.22-0.27 N.m (0.022-0.027 kg.m)

Fig. 18: Identifying Power Tailgate Drive Unit
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 19: Identifying PTG Drive Unit Bracket Connector
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

NOTE:

PTG drive unit bracket connector (B) does not need to be disconnected in
this procedure.

NOTE:



Connect the connectors tightly.



Check the power tailgate for normal operation correctly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

POWER TAILGATE MODULE

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the third, fourth seat. Refer to SEAT .

3. Remove the D pillar and luggage side trim. Refer to INTERIOR TRIM .

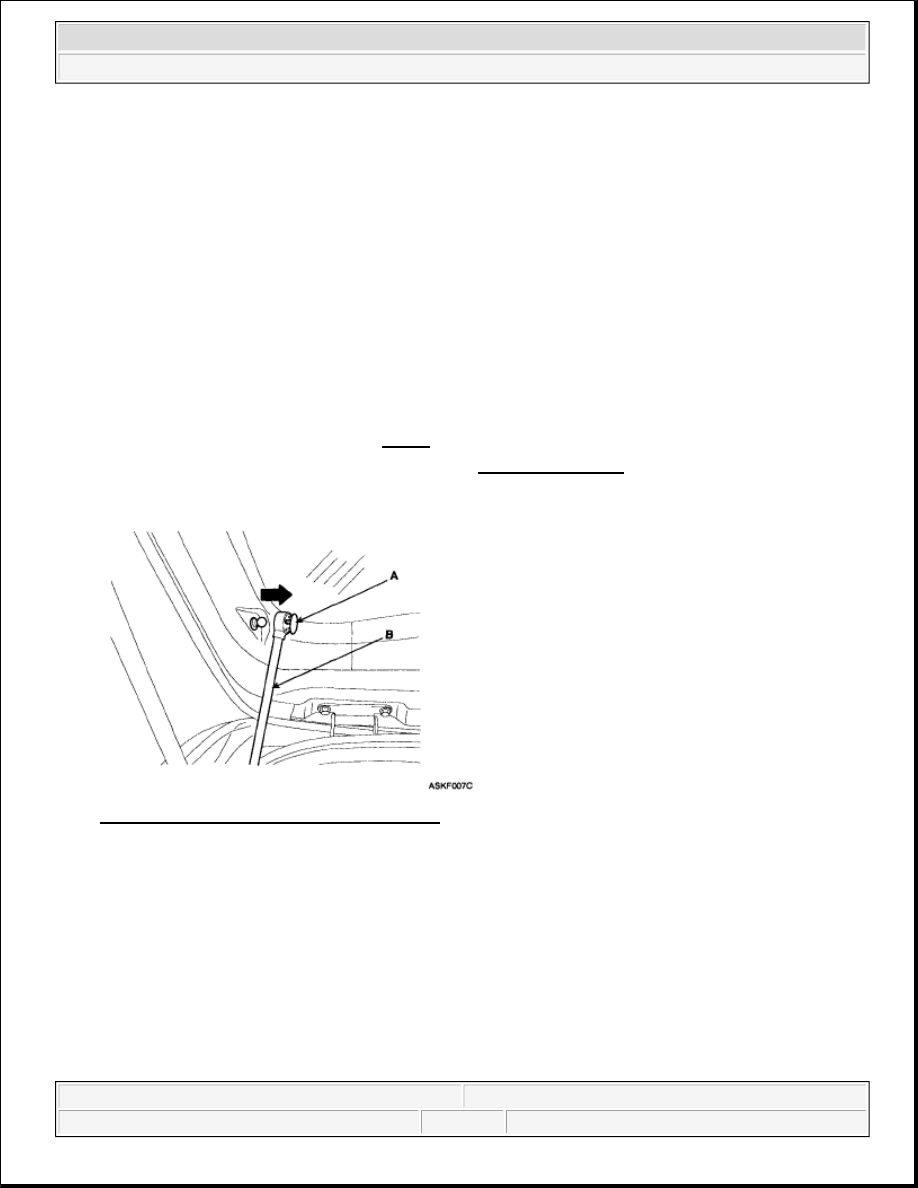

4. Use a small screw driver to loosen clip (A). But do not remove power tailgate push rod (B).

Fig. 20: Identifying Clip And Tailgate Lifter
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the power tailgate module mounting bolts (2EA) and connectors (2EA). And then remove the

power tailgate module (A).

TORQUE: 0.025-0.035 N.m (0.0025-0.0035 kg.m)

WARNING:



A lost drive unit mounting bolt in the vehicle may make a noise.



Don't operate the power tailgate when a push rod is removed.



A learn cycle must be performed whenever the power is
removed.



Check the normal operating whenever a power tailgate
component is removed or replaced. If the chime sound is
heard, check the DTC, wiring harness and cable connections.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

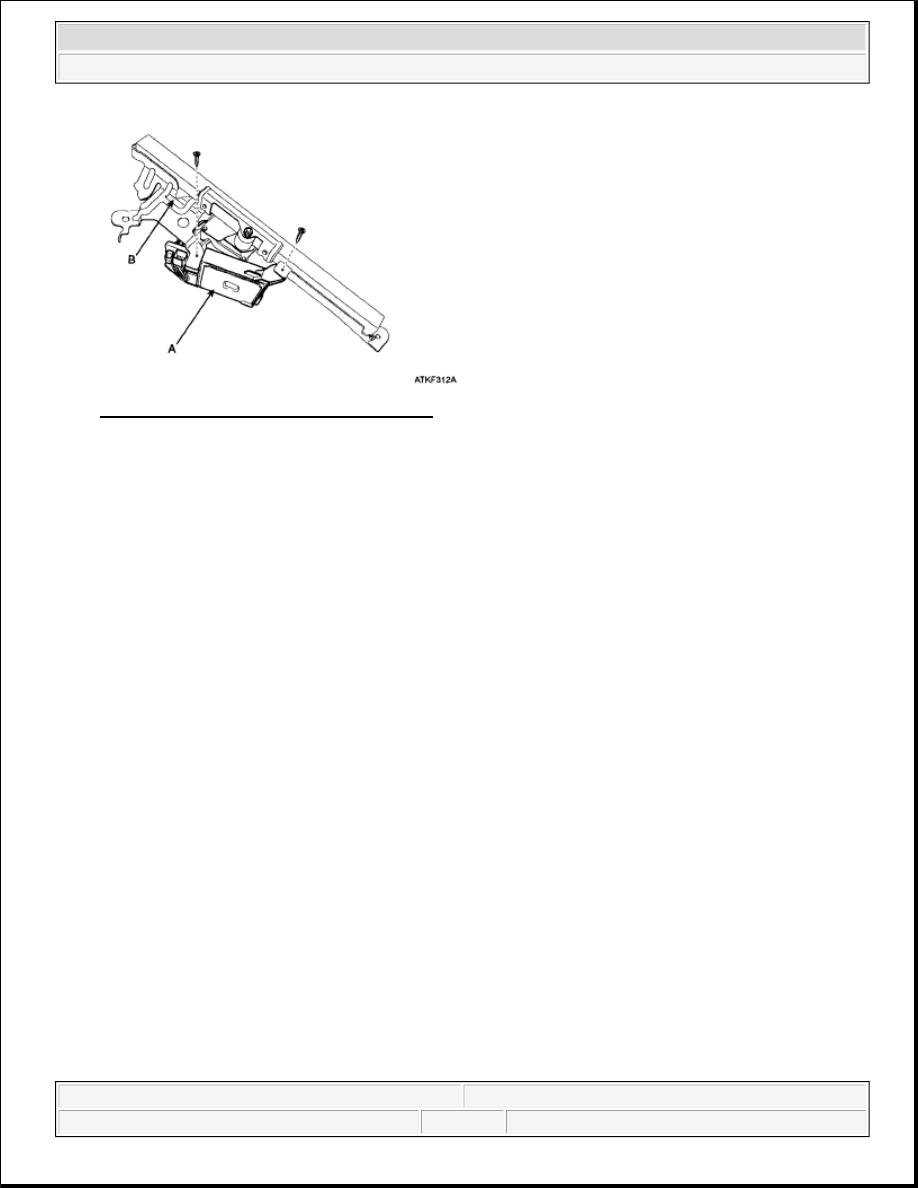

Fig. 21: Identifying Power Tailgate Module
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal

ANTI-PINCH STRIP

INSPECTION

1. Check the power tailgate control module input/output value by using the diagnostic tool. If the operation

of tailgate control module is abnormal, replace anti pinch strip control module.

2. When checking the anti pinch strip operation, select a vehicle type and "POWER SLIDING/TAILGATE"

menu.

NOTE:



Connect the connectors tightly.



Check the power tailgate for normal operation correctly.

WARNING:



A lost drive unit mounting bolt in the vehicle may make a noise.



Don't operate the power tailgate when a push rod is removed.



A learn cycle must be performed whenever the power is
removed.



Check the normal operating whenever a power tailgate
component is removed or replaced. If the chime sound is
heard, check the DTC, wiring harness and cable connections.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

Fig. 22: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

3. Select "POWER TAILGATE".

Fig. 23: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the anti pinch strip sensor output while operating power tailgate

in power mode.
