Tightening Torque N.m (kgf.m, lb-ft):

50-70 (5-7, 37-52)

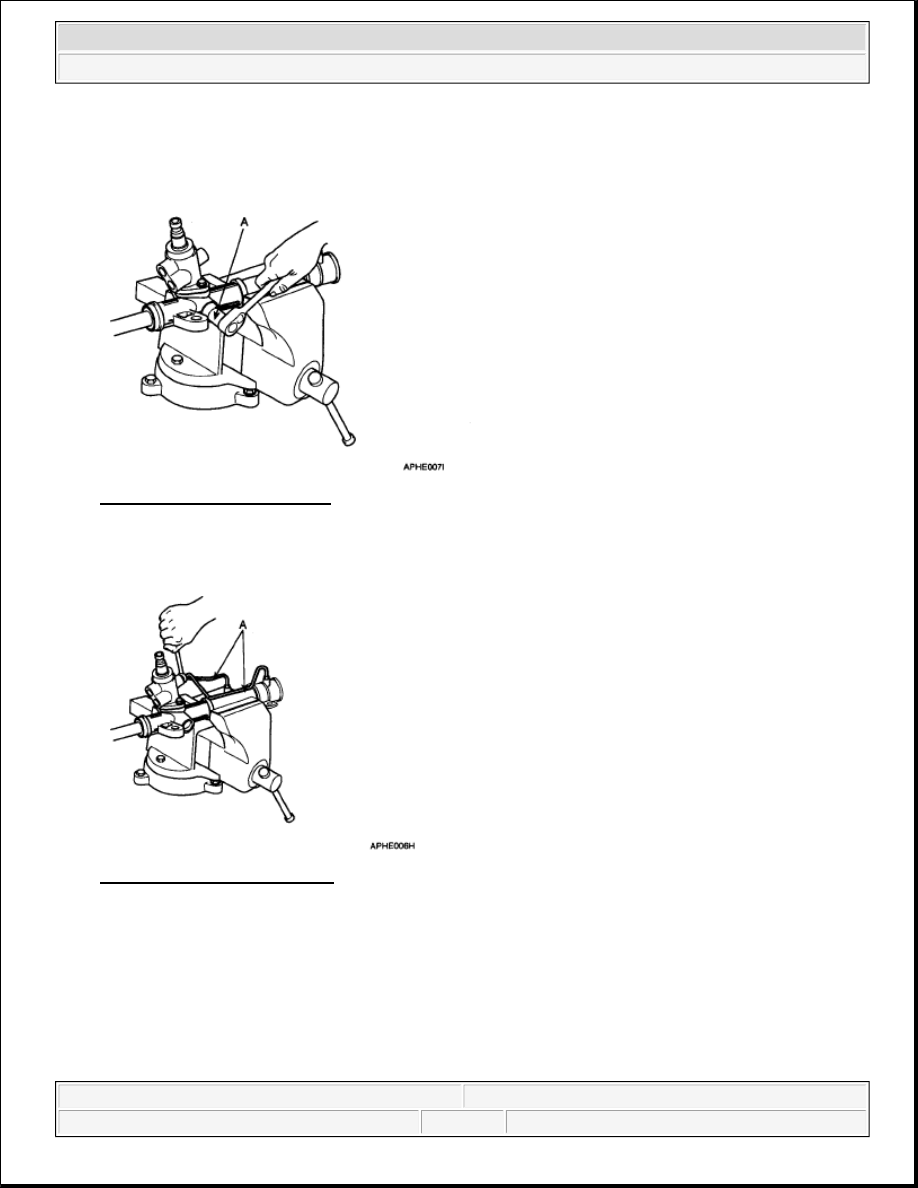

Fig. 43: Tightening Yoke Plug
Courtesy of KIA MOTORS AMERICA, INC.

14. Tighten the feed tube (A) to the specified torque and install the mounting rubber using adhesive.

Fig. 44: Identifying Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.

15. Apply the specified grease to the bellows mounting position (fitting groove) of the tie rod.

Recommended grease: Silicone grease



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 22

© 2006 Mitchell Repair Information Company, LLC.

Fig. 45: Identifying Mounting Position (Fitting Groove) Of Tie Rod
Courtesy of KIA MOTORS AMERICA, INC.

16. Install the new attaching band to the bellows.

17. Install the bellows in position, taking care not to twist it.

18. Fill the dust cover inner side and lip with the specified grease, and fix the dust cover in position with the

clip ring attached in the groove of the tie rod end.

Recommended grease

A. POLY LUB GLY 801K or equivalent

B. SHOWA SUNLIGHT MB2 or equivalent

Dust cover inner side and lip: THREE BOND

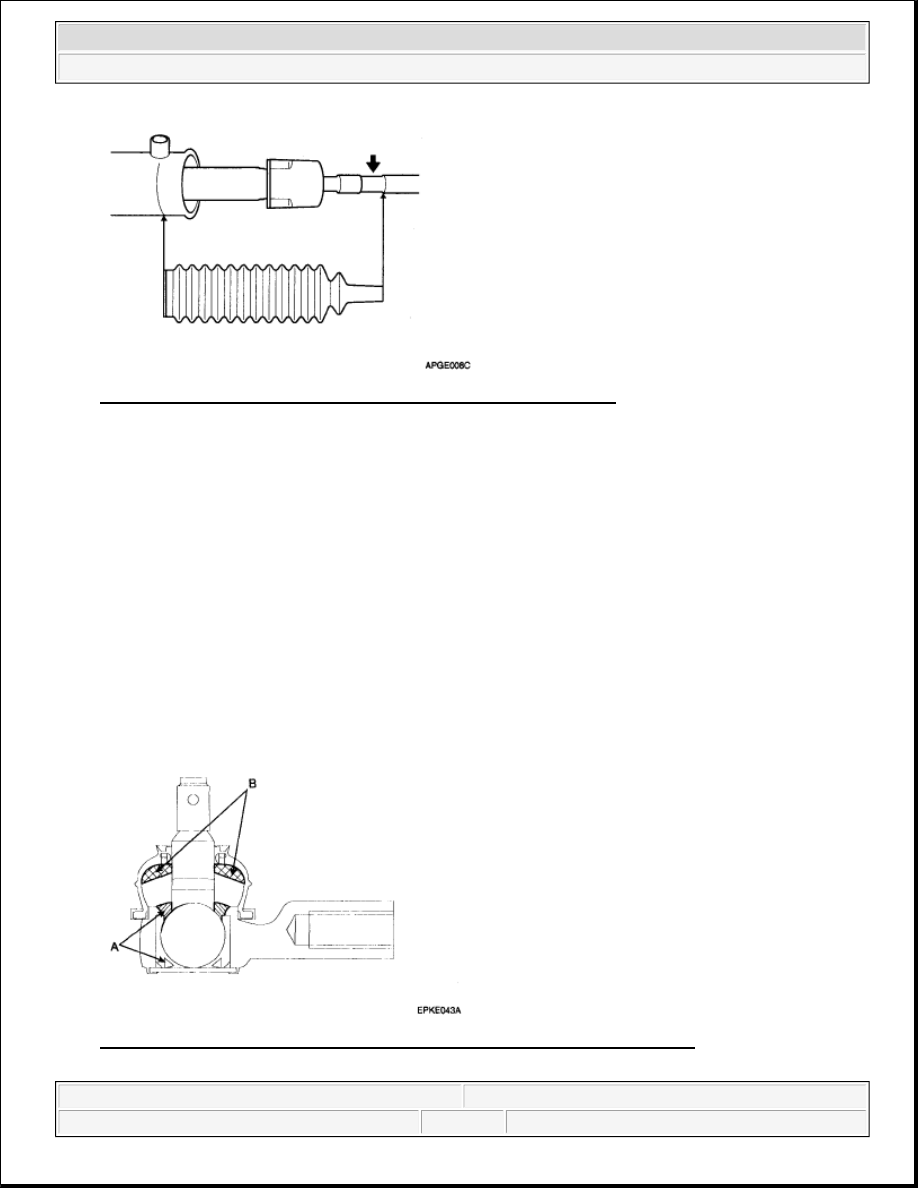

Fig. 46: Identifying Grease Applying Area Of Dust Cover Inner Side And Lip
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When the bellows are installed, a new band must be used.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 23

© 2006 Mitchell Repair Information Company, LLC.

19. Install the tie rod end (B) to the tie rod (A).

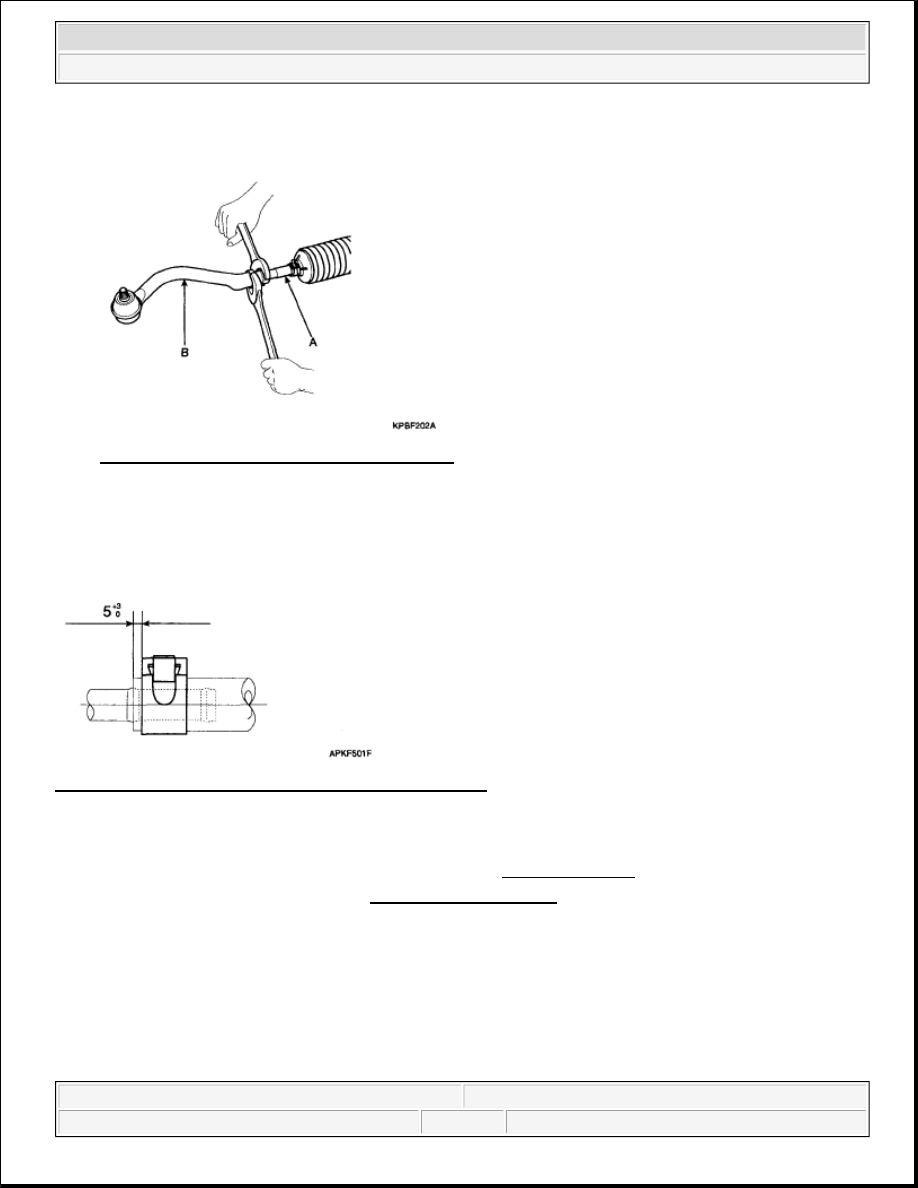

Fig. 47: Identifying Tie Rod End And Tie Rod
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

Fig. 48: Identifying Tube And Hose Connecting Position
Courtesy of KIA MOTORS AMERICA, INC.

1. Installation is reverse of the removal.

2. After installation, bleed the power steering system. See AIR BLEEDING .

3. Adjust the wheel alignment. Refer to WHEEL ALIGNMENT .

POWER STEERING HOSES

COMPONENTS

NOTE:

Be sure to connect between a tube and a hose as shown in the illustration.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 24

© 2006 Mitchell Repair Information Company, LLC.

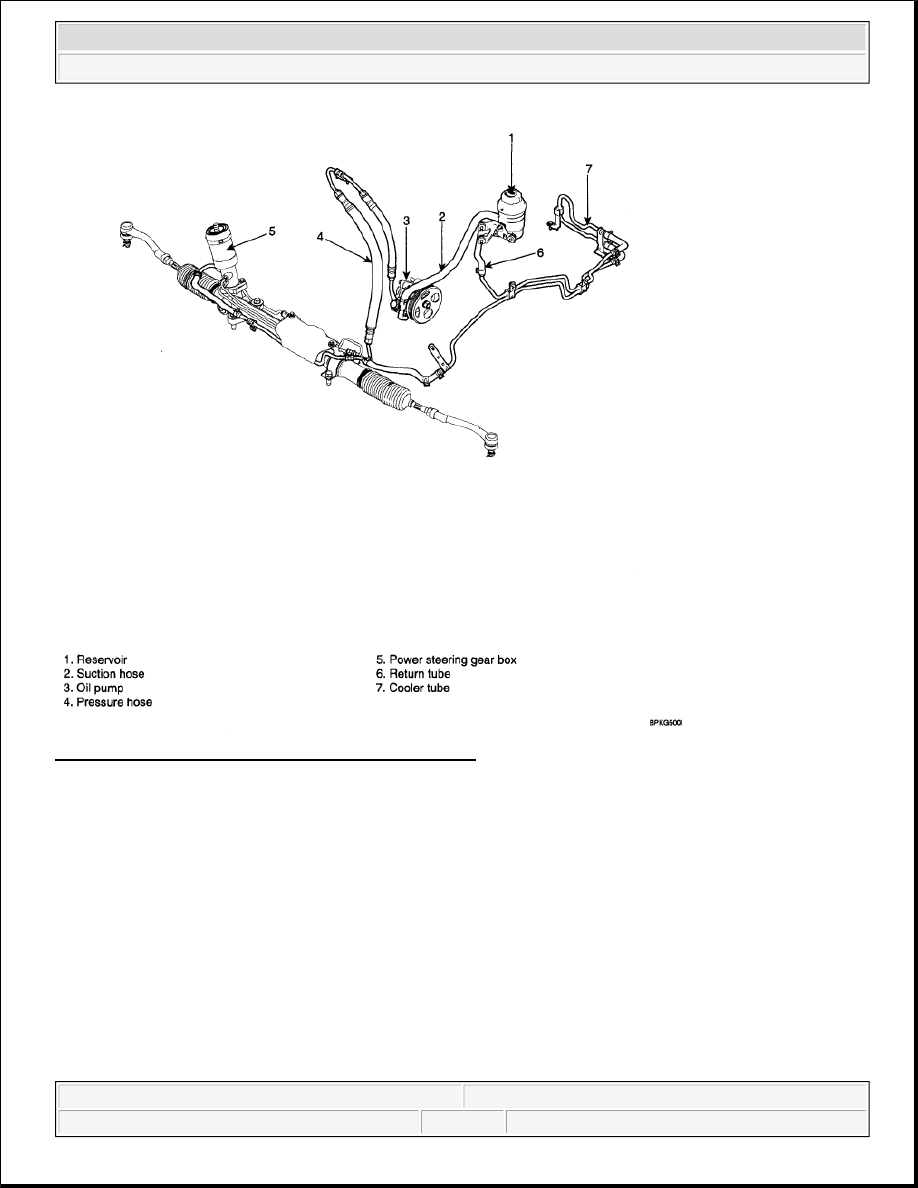

Fig. 49: Identifying Power Steering Hoses Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

1. Drain the power steering fluid.

2. Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.

Tightening torque N.m (kgf.m, lb.ft):

55-65 (4.5-5.5, 40-47)
