Fig. 19: Testing Door Warning Switch
Courtesy of KIA MOTORS AMERICA, INC.

BURGLAR HORN

1. Remove the burglar horn after removing 2 bolts and disconnect the 2P connector from the burglar horn.

2. Test the burglar horn by connecting battery power to the terminal 1 and ground the terminal 2.

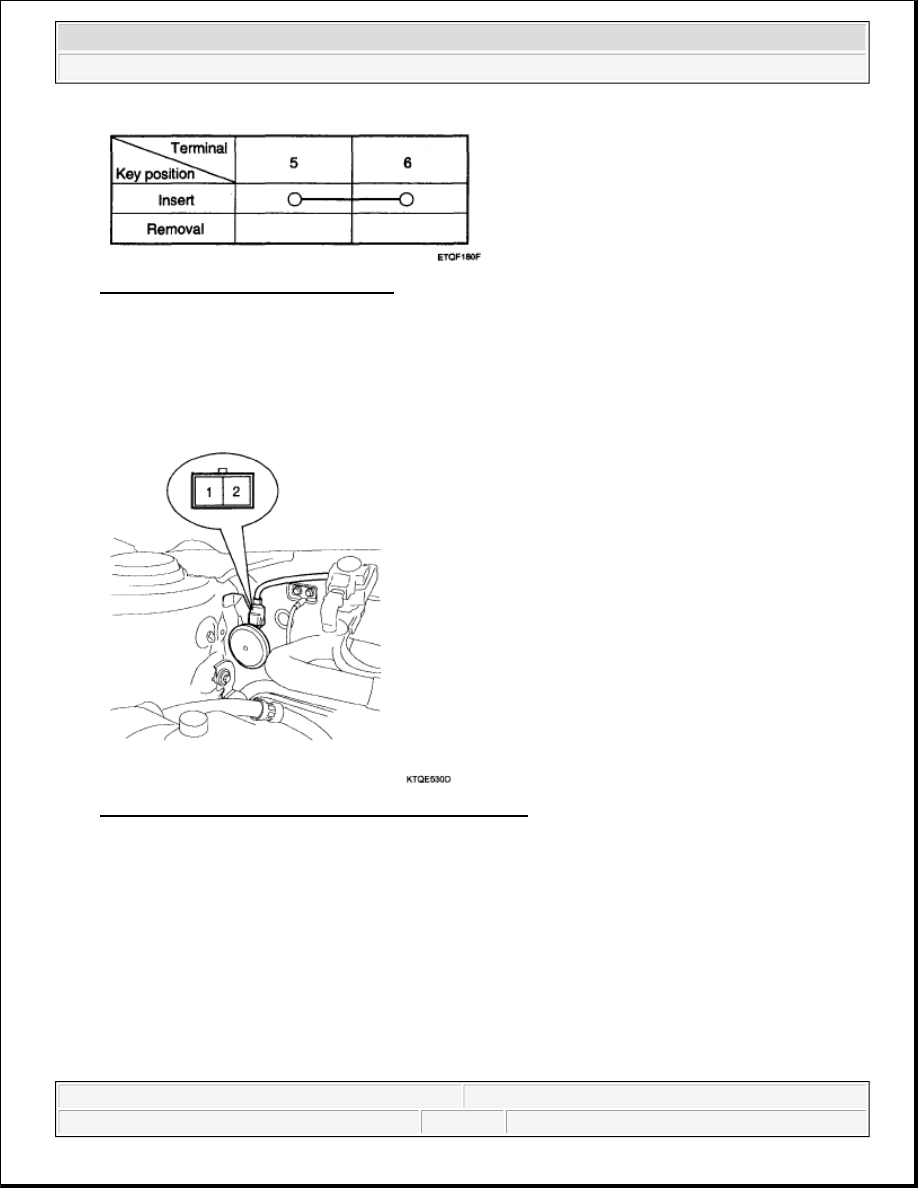

Fig. 20: Identifying Burglar Horn Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

3. The burglar horn should make a sound. If the burglar horn fails to make a sound replace it.

TRANSMITTER

INSPECTION

1. Check that the red light flickers when the door lock or unlock button is pressed on the transmitter.

2. Remove the battery and check voltage if the Red light doesn't flicker.

Standard voltage: 3V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:42 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 21: Checking Transmitter Battery
Courtesy of KIA MOTORS AMERICA, INC.

3. Replace the transmitter battery with a new one, if voltage is below 3V then try to lock and unlock the

doors with the transmitter by pressing the lock or unlock button five or six times.

4. If the doors lock and unlock, the transmitter is OK, but if the doors don't lock and unlock, register the

transmitter code, then try to lock and unlock the doors.

5. If the transmitter is failure, replace only the transmitter.

TRANSMITTER CODE

REGISTRATION

1. Connect the DLC cable of scan tool to the data link connector (16 pins) in driver side crash pad lower

panel, then turn the scan tool ON.

Fig. 22: Connecting DLC Cable Of Scan Tool To Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

2. Select the vehicle model and then do "CODE SAVING".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:43 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

Fig. 23: Identifying Scan Tool Display - CODE SAVING
Courtesy of KIA MOTORS AMERICA, INC.

3. After selecting "CODE SAVING" menu, push "ENTER" key, then the screen will be shown as below.

Fig. 24: Identifying Scan Tool Display - TRANSMITTER CODE SAVE (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for

code saving. Follow steps 1 to 4 and then code saving is completed.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:43 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

Fig. 25: Identifying Scan Tool Display - TRANSMITTER CODE SAVE (2 Of 5)
