Kia Sedona (2008 year). Manual - part 455

Fig. 9: Testing Front Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

SLIDING DOOR LOCK SWITCH

1. Remove the sliding door trim panel. Refer to REAR DOOR .

2. Disconnect the 6P connector from the actuator.

Fig. 10: Identifying Sliding Door Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 11.

Fig. 11: Testing Sliding Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

TAILGATE LOCK SWITCH

1. Remove the tailgate trim panel. Refer to TAILGATE .

2. Disconnect the 6P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:42 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

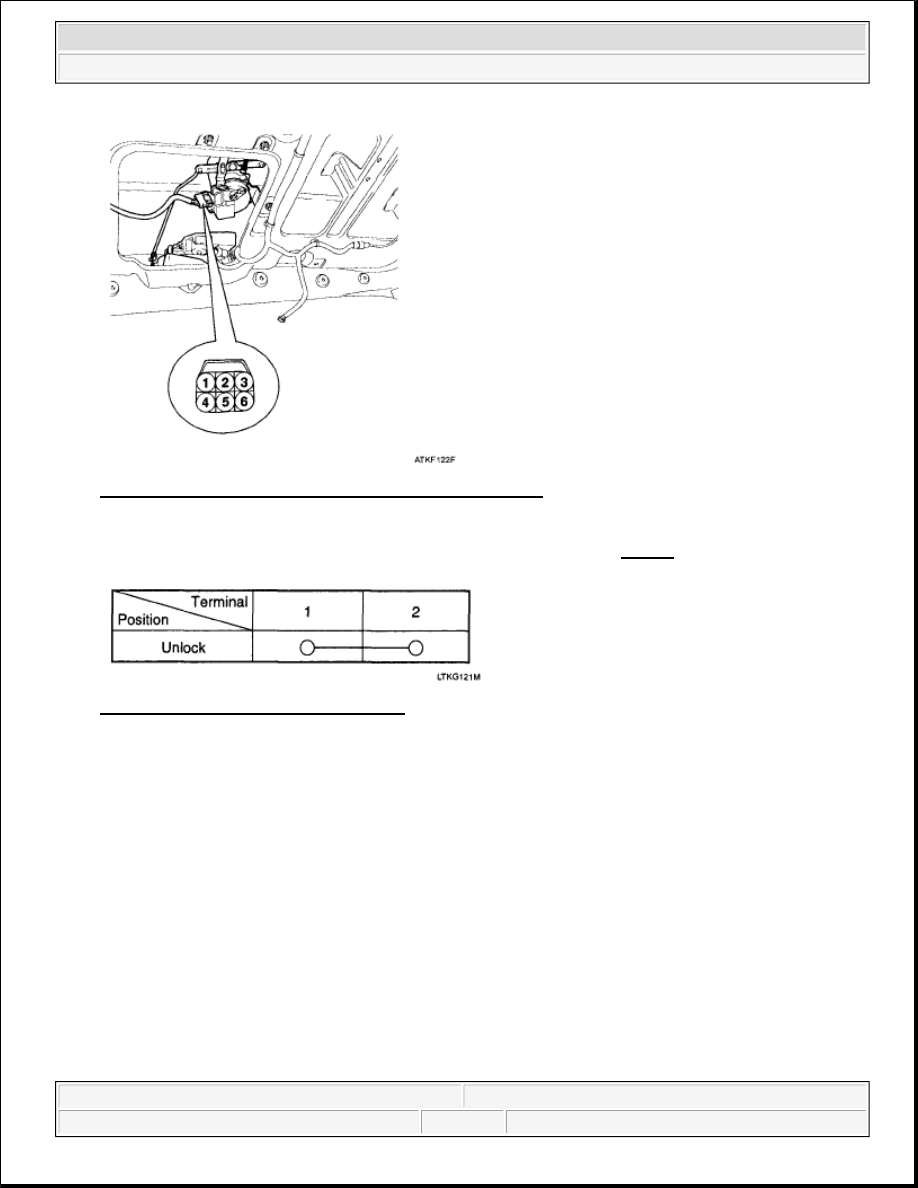

Fig. 12: Identifying Tailgate Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 13.

Fig. 13: Testing Tailgate Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

DOOR SWITCH

Remove the door switch and check for continuity between the terminals.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:42 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 14: Identifying Door Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 15: Testing Door Switch
Courtesy of KIA MOTORS AMERICA, INC.

HOOD SWITCH

1. Disconnect the connector from the hood switch.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Keyless Entry & Burglar Alarm - Sedona



Microsoft



Monday, May 24, 2010 4:17:42 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

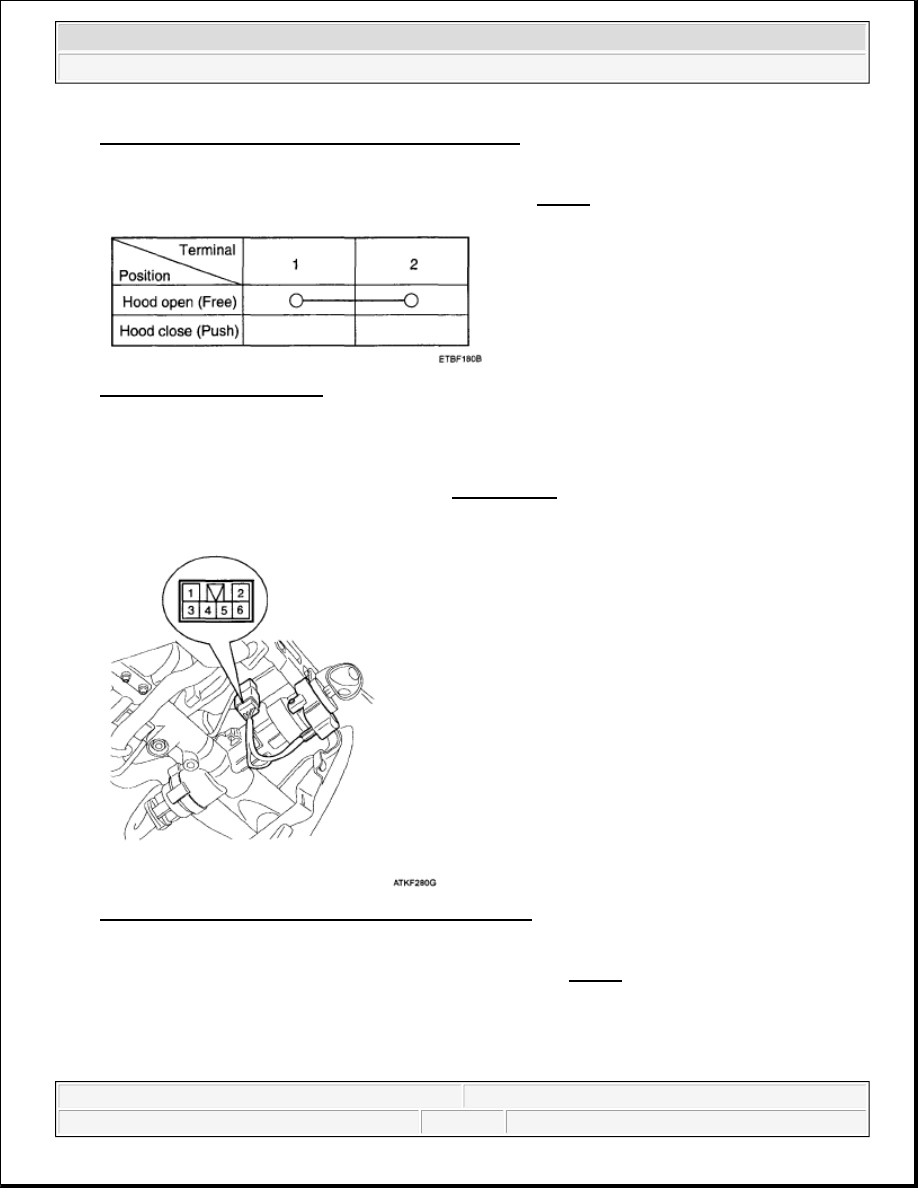

Fig. 16: Identifying Hood Switch Connector Terminals
