Fig. 8: Checking Continuity Between Terminal And Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the oil pressure switch wire harness.

5. Turn the ignition switch ON. Check that the warning lamp lights up. If the warning lamp doesn't light,

test the wire harness.

Fig. 9: Connecting Oil Pressure Switch Wire Harness
Courtesy of KIA MOTORS AMERICA, INC.

BRAKE FLUID LEVEL WARNING SWITCH

1. Remove the connector (A) from the switch located at the brake fluid reservoir (B).

2. Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with

a rod.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Indicators And Gauges - Sedona



Microsoft



Monday, May 24, 2010 4:14:35 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

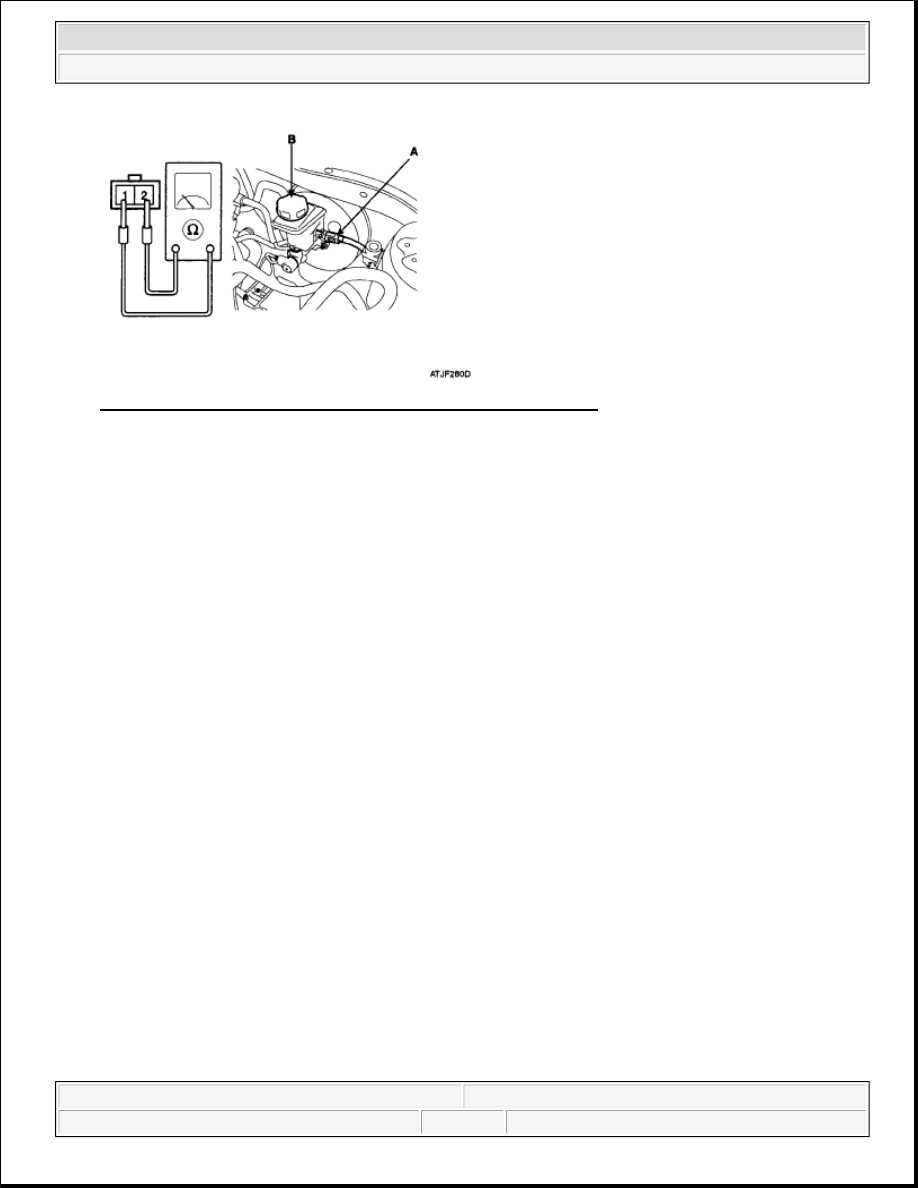

Fig. 10: Checking Continuity Between Switch Terminals 1 And 2
Courtesy of KIA MOTORS AMERICA, INC.

BRAKE FLUID LEVEL WARNING LAMP

1. Ignition "ON"

2. Release the parking brake.

3. Remove the connector from the brake fluid level warning switch.

4. Ground the connector at the harness side.

5. Verify that the warning lamp lights.

PARKING BRAKE SWITCH

The parking brake switch is a push type. It is located at the side of the parking brake pedal.

1. Check that there is continuity between the terminal and switch body with the switch (A) ON.

2. Check that there is no continuity between the terminal and switch body with the switch OFF.

If continuity is not as specified, replace the switch or inspect its ground connection.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Indicators And Gauges - Sedona



Microsoft



Monday, May 24, 2010 4:14:35 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

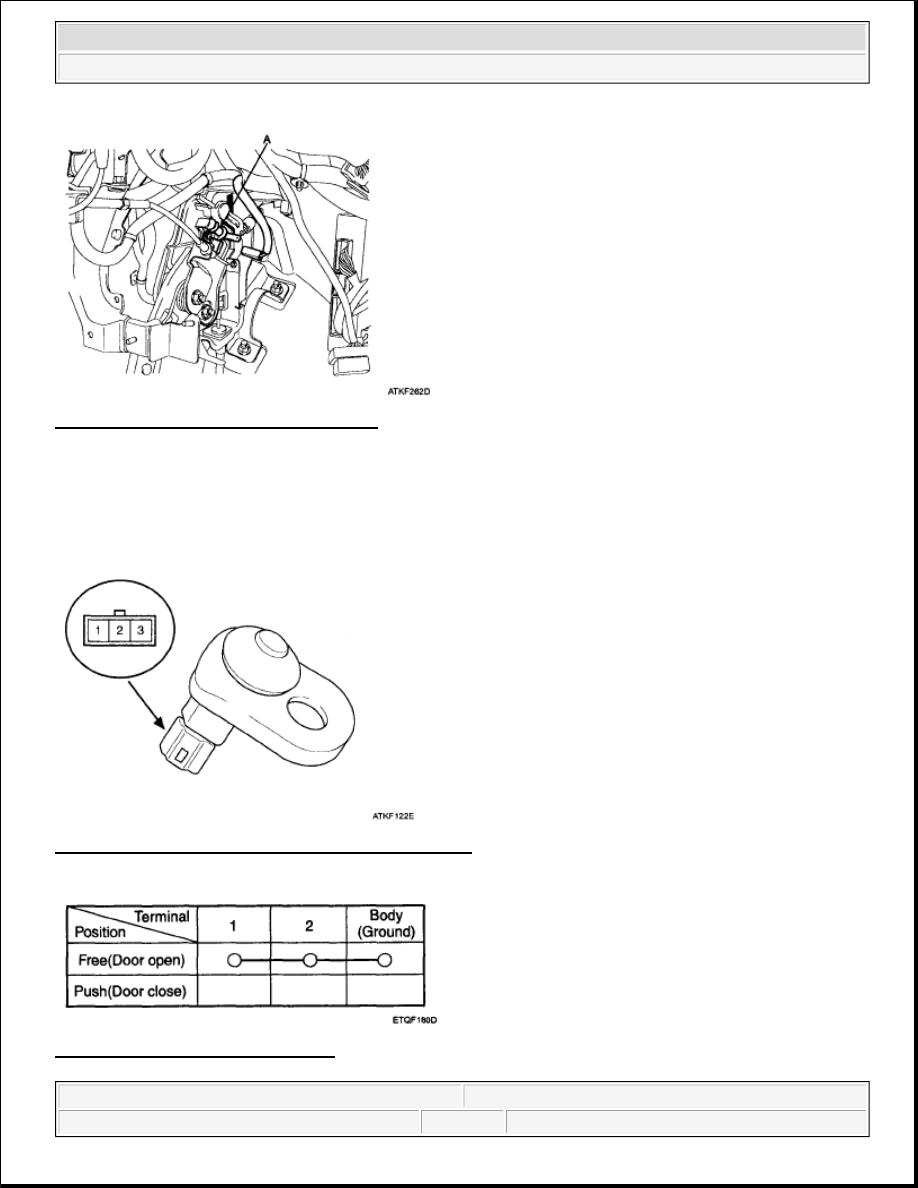

Fig. 11: Identifying Parking Brake Switch
Courtesy of KIA MOTORS AMERICA, INC.

DOOR SWITCH

Remove the door switch and check for continuity between the terminals. If continuity is not as specified,
replace the door switch.

Fig. 12: Identifying Door Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 13: Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Indicators And Gauges - Sedona



Microsoft



Monday, May 24, 2010 4:14:35 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

SEAT BELT SWITCH

1. Remove the connector from the switch.

2. Check for continuity between terminals.

TERMINALS CONTINUITY CHART

Fig. 14: Identifying Seat Belt Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

SEAT BELT WARNING LAMP

With the ignition switch turned ON, verify that the lamp glows.

SEAT BELT CONDITION CHART

Seat belt condition

Continuity

Fastened

Non-conductive (infinity ohms)

Not fastened

Conductive (0 ohms)

Seat belt condition

Warning lamp

Fastened

OFF

Not fastened

ON
