BASIC TROUBLESHOOTING

BASIC TROUBLESHOOTING GUIDE

1. Bring Vehicle to Workshop

2. Analyze Customer's Problem

Ask the customer about the conditions and environment relative to the issue

(Use CUSTOMER PROBLEM ANALYSIS SHEET).

3. Verify Symptom, and then Check DTC and Freeze Frame Data

Connect Hi-Scan (Pro) to Diagnostic Link Connector (DLC).

Record the DTC and freeze frame data.

4. Confirm the Inspection Procedure for the System or Part

Using the SYMPTOM TROUBLESHOOTING GUIDE CHART, choose the correct inspection procedure
for the system or part to be checked.

5. Erase the DTC and Freeze Frame Data

6. Inspect Vehicle Visually

Go to step 11, if you recognize the problem.

7. Recreate (Simulate) Symptoms of the DTC

Try to recreate or simulate the symptoms and conditions of the malfunction as described by customer.

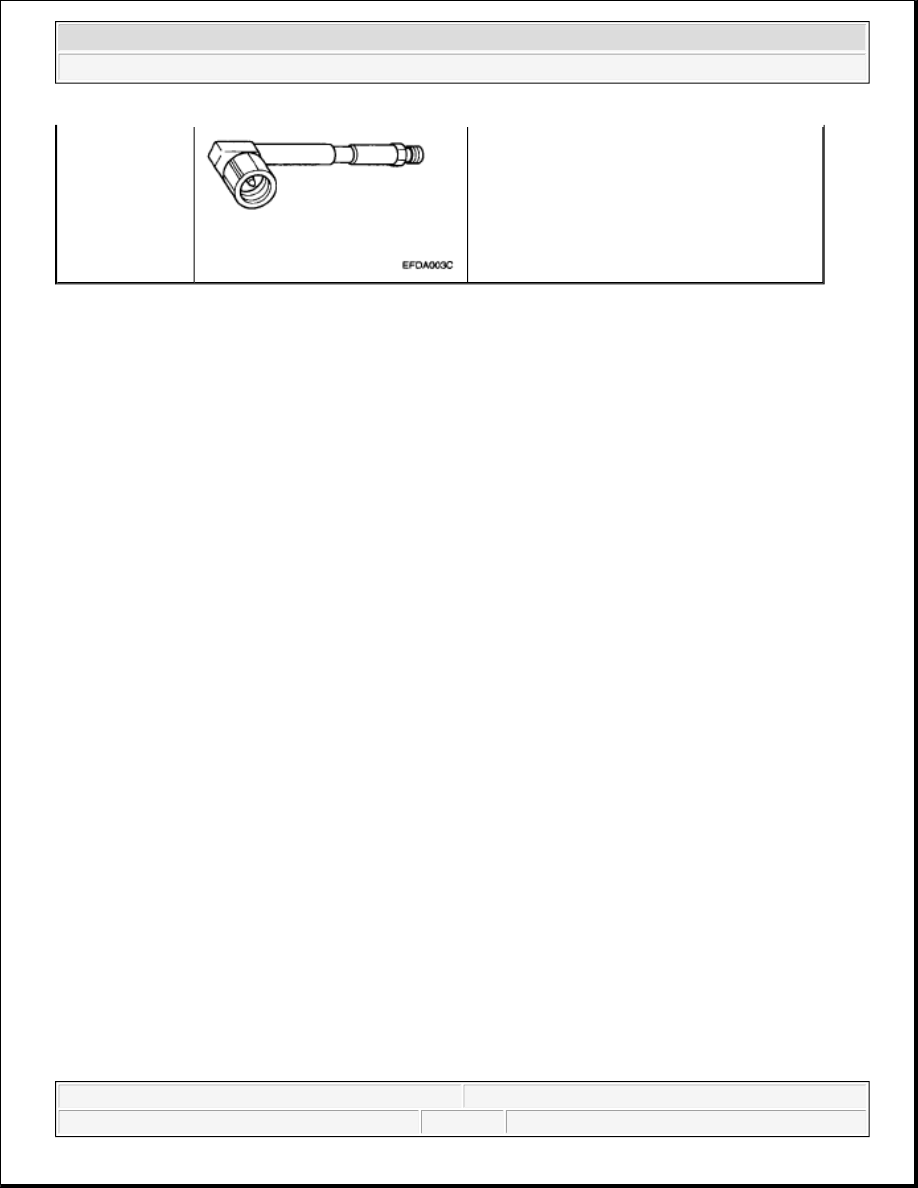

Gauge Connector

Adapter (09353-38000)

NOTE:

To erase DTC and freeze frame data, refer to step 5.

WARNING:

NEVER erase DTC and freeze frame data before completing Step 2
MIL/DTC in "CUSTOMER PROBLEM ANALYSIS SHEET".



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

If DTC(s) is/are displayed, simulate the condition according to troubleshooting procedure for the DTC.

8. Confirm Symptoms of Problem

If DTC(s) is/are not displayed, go to Step 9.

If DTC(s) is/are displayed, go to step 11.

9. Recreate (Simulate) Symptom

Try to recreate or simulate the condition of the malfunction as described by the customer.

10. Check the DTC

If DTC(s) does(do) not occur, refer to INTERMITTENT PROBLEM PROCEDURE in BASIC
INSPECTION PROCEDURE.

If DTC(s) occur(s), go to next step.

11. Perform troubleshooting procedure for DTC

12. Adjust or repair the vehicle

13. Confirmation test

14. END

CUSTOMER PROBLEM ANALYSIS SHEET



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 1: Customer Problem Analysis Sheet
Courtesy of KIA MOTORS AMERICA, INC.

BASIC INSPECTION PROCEDURE

MEASURING CONDITION OF ELECTRONIC PARTS RESISTANCE

The measured resistance at high temperature after vehicle running may be high or low. So all resistance must be
measured at ambient temperature (20°C, 68°F), unless stated otherwise.



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

INTERMITTENT PROBLEM INSPECTION PROCEDURE

Sometimes the most difficult case in troubleshooting is when a problem symptom occurs but does not occur
again during testing. An example would be if a problem appears only when the vehicle is cold but has not
appeared when warm. In this case, the technician should thoroughly make out a "CUSTOMER PROBLEM
ANALYSIS SHEET" and recreate (simulate) the environment and condition which occurred when the vehicle
was having the issue.

1. Clear Diagnostic Trouble Code (DTC).

2. Inspect connector connection, and check terminal for poor connections, loose wires, bent, broken or

corroded pins, and then verify that the connectors are always securely fastened.

Fig. 2: Inspecting Connector Connection
Courtesy of KIA MOTORS AMERICA, INC.

3. Slightly shake the connector and wiring harness vertically and horizontally.

4. Repair or replace the component that has a problem.

5. Verify that the problem has disappeared with the road test.

• SIMULATING VIBRATION

a. Sensors and Actuators

NOTE:

The measured resistance in except for ambient temperature (20°C, 68°F) is
reference value.
