KNOCK SENSOR (KS) SPECIFICATION

CVVT OIL TEMPERATURE SENSOR (OTS)



Type: Thermistor type



Specification

CVVT OIL TEMPERATURE SENSOR (OTS) SPECIFICATION

FUEL TANK PRESSURE SENSOR (FTPS)



Type: Piezo-Resistivity type



Specification

FUEL TANK PRESSURE SENSOR (FTPS) SPECIFICATION

ACTUATORS

INJECTOR



Number: 6



Specification

INJECTOR SPECIFICATION

PURGE CONTROL SOLENOID VALVE (PCSV)



Type: Duty control type



Specification

Item

Specification

Capacitance (pF)

1,480-2,220pF

Temperature

Resistance (kohms)

°C

°F

-20

-4

16.52

20

68

2.45

80

176

0.29

Pressure (kPa)

Output Voltage (V)

-3.75 kPa

0.5V

0 kPa

2.5V

+3.75 kPa

4.5V

Item

Specification

Coil Resistance (ohms)

11.4-12.6ohms at 20°C (68°F)



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

PURGE CONTROL SOLENOID VALVE (PCSV) SPECIFICATION

VARIABLE INTAKE SOLENOID (VIS) VALVE



Specification

VARIABLE INTAKE SOLENOID (VIS) VALVE SPECIFICATION

CVVT OIL CONTROL VALVE (OCV)



Specification

CVVT OIL CONTROL VALVE (OCV) SPECIFICATION

ETC MOTOR



Specification

ETC MOTOR SPECIFICATION

IGNITION COIL



Type: Stick type



Specification

IGNITION COIL SPECIFICATION

CANISTER CLOSE VALVE (CCV)



Type: ON/OFF control type



Specification

CANISTER CLOSE VALVE (CCV) SPECIFICATION

Item

Specification

Coil Resistance (ohms)

19.0-22.0 ohms at 20°C (68°F)

Item

Specification

Coil Resistance (ohms)

30.0-35.00 [22°C (71.6°F)]

Item

Specification

Coil Resistance (ohms)

6.7-7.7 ohms at 20°C (68°F)

Item

Specification

Coil Resistance (ohms)

1.275-1.725 ohms at 20°C (68°F)

Item

Specification

Primary Coil Resistance (ohms)

0.62ohms± 10% at 20°C (68°F)

Secondary Coil Resistance (ohms)

7.0ohms±15% at 20°C (68°F)



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

SERVICE STANDARD

SERVICE STANDARD CHART

TIGHTENING TORQUES

ENGINE CONTROL SYSTEM

ENGINE CONTROL TIGHTENING TORQUES

Item

Specification

Coil Resistance (ohms)

19.8-21.8 at 20°C (68°F)

Ignition Timing

BTDC 10° ± 5°

Idle Speed

A/CON OFF

Neutral, N, P-range

650 ± 100 RPM

D-range

650 ± 100 RPM

A/CON ON

Neutral, N, P-range

650 ± 100 RPM

D-range

650 ± 100 RPM

Item

Kgf.m

N.m

lbs. ft

PCM installation bolts

1.0-1.2

9.8-11.8

7.2-8.7

Heated oxygen sensor (Bank 1/Sensor 1)
installation

5.0-6.0

49.1-58.9

36.2-43.4

Heated oxygen sensor (Bank 1/Sensor 2)
installation

5.0-6.0

49.1-58.9

36.2-43.4

Heated oxygen sensor (Bank 2/Sensor 1)
installation

5.0-6.0

49.1-58.9

36.2-43.4

Heated oxygen sensor (Bank 2/Sensor 2)
installation

5.0-6.0

49.1-58.9

36.2-43.4

Engine coolant temperature sensor installation

2.0-4.0

19.6-39.2

14.5-28.9

Manifold absolute pressure sensor installation
bolt

0.9-1.2

8.8-11.8

6.5-8.7

Camshaft position sensor [Bank 1] installation
bolt

0.7-1.0

6.9-9.8

5.1-7.2

Camshaft position sensor [Bank 2] installation
bolt

0.7-1.0

6.9-9.8

5.1-7.2

Crankshaft position sensor installation

0.8-1.2

7.8-11.8

5.8-8.7

Knock sensor #1, 2 installation

1.6-2.4

15.7-23.5

11.6-17.4

ETC module installation bolt (on throttle body)

0.7-1.1

6.9-10.8

5.1-8.0

ETC module installation bolt (on ETC stay)

1.6-2.6

15.7-25.5

11.6-18.8

CVVT Oil temperature sensor installation

2.0-4.0

19.6-39.2

14.5-28.9

CVVT Oil control valve [Bank 1] installation bolt

1.0-1.2

9.8-11.8

7.2-8.7

CVVT Oil control valve [Bank 2] installation bolt

1.0-1.2

9.8-11.8

7.2-8.7

Vacuum valve (Variable intake actuator)

0.9-1.2

8.8-11.8

6.5-8.7



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel System - General - Sedona



Microsoft



Saturday, May 22, 2010 3:59:43 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

FUEL DELIVERY SYSTEM

FUEL DELIVERY SYSTEM TIGHTENING TORQUES

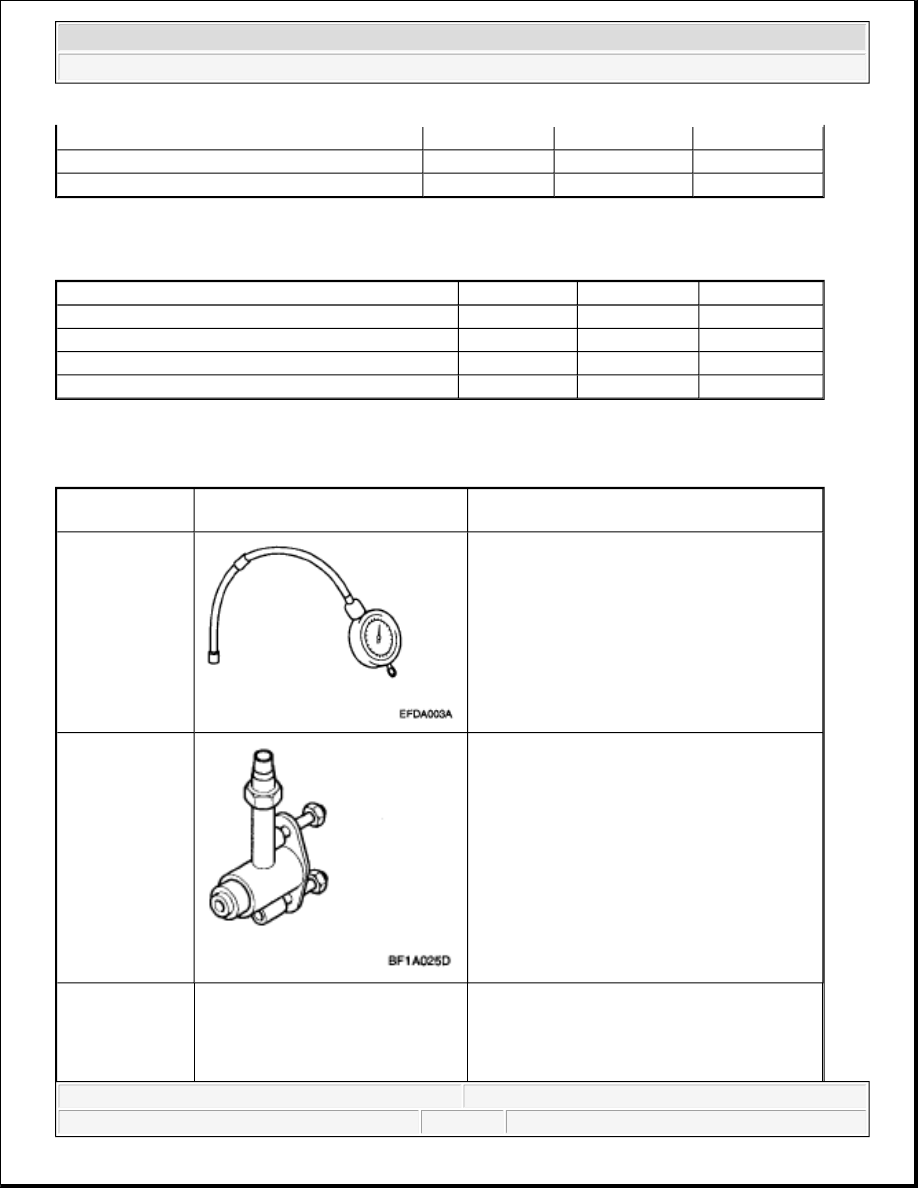

SPECIAL SERVICE TOOLS

SPECIAL SERVICE TOOLS REFERENCE CHART

installation bolts
Ignition coil condenser installation bolt

0.7-1.1

6.9-10.8

5.1-8.0

Ignition coil installation bolt

0.4-0.6

3.9-5.9

2.9-4.3

Item

Kgf.m

N.m

lbs. ft

Fuel Tank band mounting nuts

4.0-5.5

39.2-53.9

28.9-39.8

Fuel pump assembly mounting bolts

0.2-0.3

2.0-2.9

1.4-2.2

Accelerator pedal module installation bolts

1.3-1.6

12.8-15.7

9.4-11.6

Delivery pipe installation bolts

0.9-1.2

8.8-11.8

6.5-8.7

Tool (Number

and name)

Illustration

Application

09353-24100
Fuel Pressure
Gauge

Measuring the fuel line pressure

09353-38000
Fuel Pressure
Gauge Adapter

Connection between the delivery pipe and fuel
feed line

09353-24000
Fuel Pressure

Connection between Fuel Pressure Gauge
(09353-24100) and Fuel Pressure Gauge
