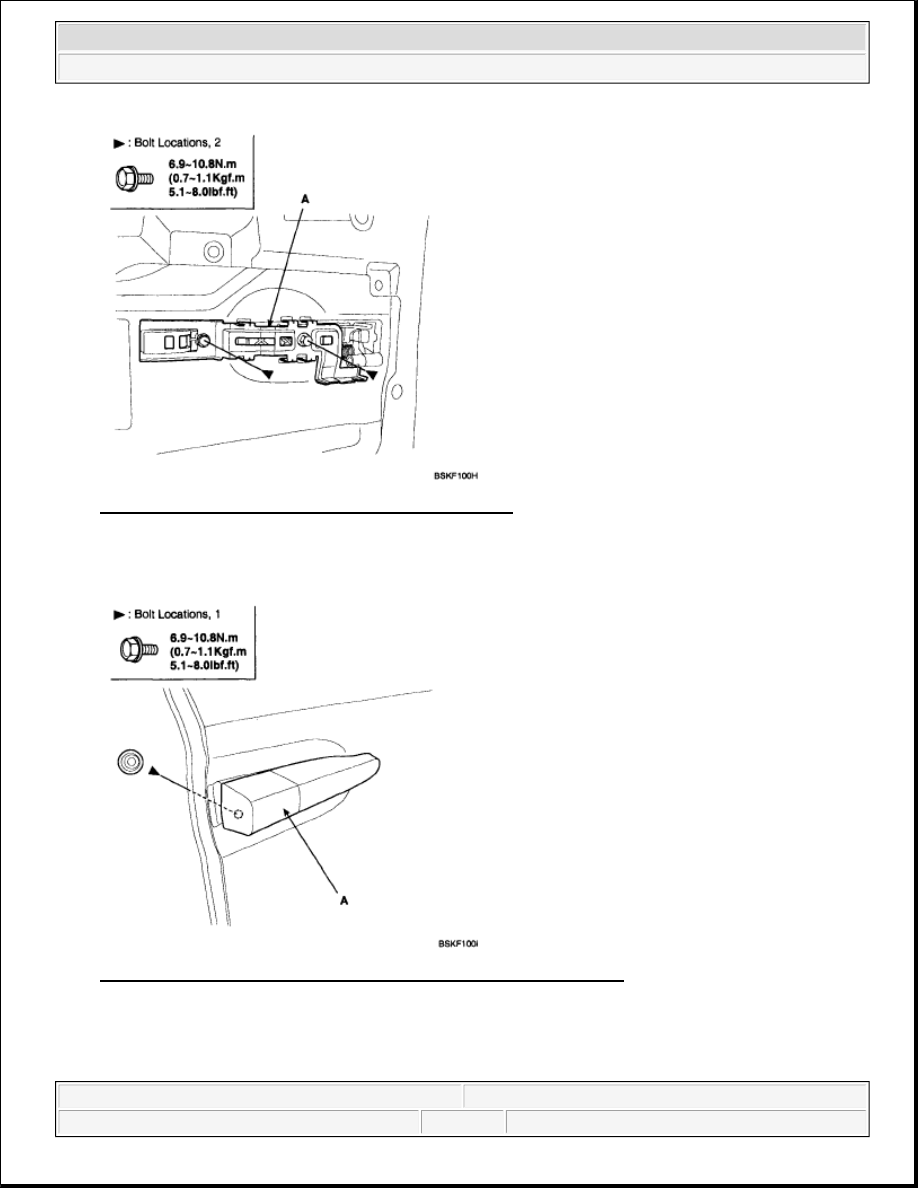

Fig. 78: Identifying Outside Handle Bracket And Bolt
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the outside handle (A).

Fig. 79: Identifying Outside Handle, Bolt And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 56

© 2006 Mitchell Repair Information Company, LLC.

LATCH ASSEMBLY REPLACEMENT

1. Remove the following parts.



Door trim. See REPLACEMENT.



Door trim seal.

2. Disconnect the connector.

3. Loosen the latch mounting screws, remove the latch (A).

Fig. 80: Identifying Latch, Screw And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse the removal.

REGULATOR ASSEMBLY REPLACEMENT

1. Remove the following parts.



Door trim. See REPLACEMENT.



Door trim seal.



Glass. See GLASS REPLACEMENT.

2. Disconnect the connector (B).

3. After loosening the door ring module mounting nuts, remove the window regulator (A).

NOTE:



Make sure the door locks and opens properly.

NOTE:



Make sure the door lock and opens properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 57

© 2006 Mitchell Repair Information Company, LLC.

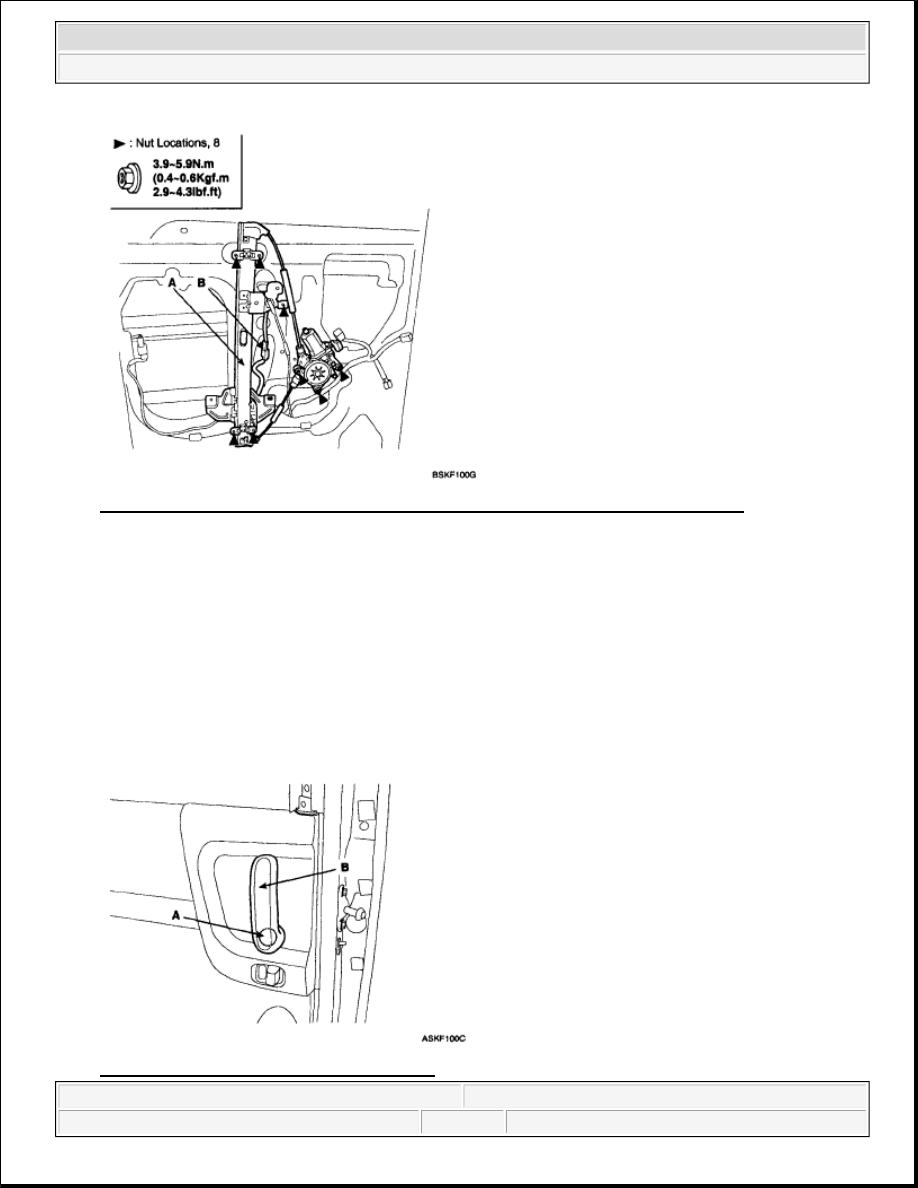

Fig. 81: Identifying Window Regulator, Connector, Nuts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSIDE HANDLE REPLACEMENT

1. Disconnect the clip (A), remove the inside handle (B).

Fig. 82: Identifying Clip And Inside Handle

NOTE:



Make sure the connector is plugged in properly and each rod is
connected securely.



Make sure the door lock and open properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 58

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

CHANNEL REPLACEMENT

1. Remove the door trim. See REPLACEMENT.

2. Remove the glass. See GLASS REPLACEMENT.

3. Loosen the channel mounting nuts, remove the channel (A).

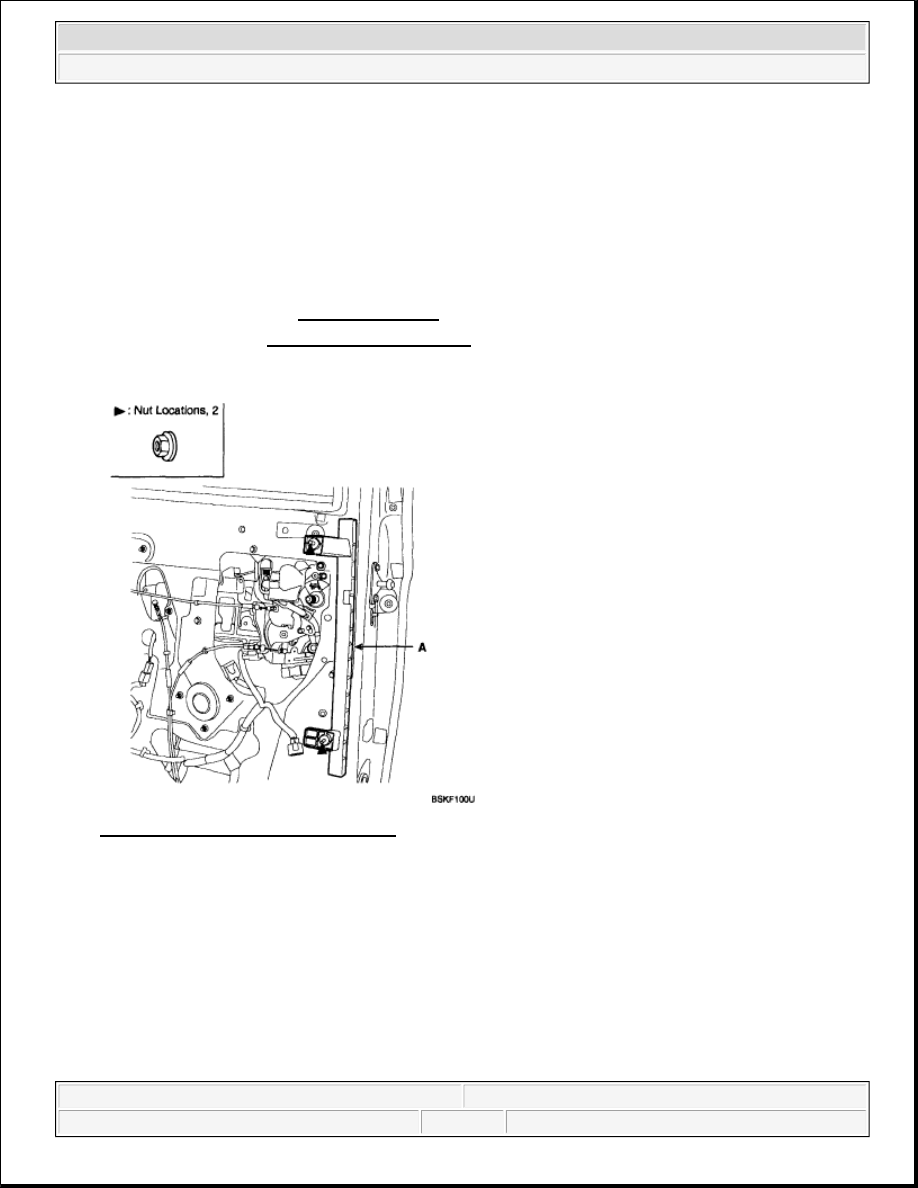

Fig. 83: Identifying Channel And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

DOOR BELT WEATHERSTRIP REPLACEMENT

1. Loosen the mounting screw, then remove the door belt weatherstrip (A).

NOTE:



Make sure the door lock and open properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 59

© 2006 Mitchell Repair Information Company, LLC.
