1. Place the vehicle on a firm, level surface when adjusting the doors.

2. Adjust at the hinges (A):



Loosen the door mounting bolts (B) slightly, and move the door IN or OUT until it aligns flush
with the body.



Loosen the hinge mounting bolts (C) slightly, and move the door BACKWARD or FORWARD,
UP or DOWN as necessary to equalize the gaps



Place a shop towel (D) on the jack (E) to prevent damage to the door when adjusting the door.

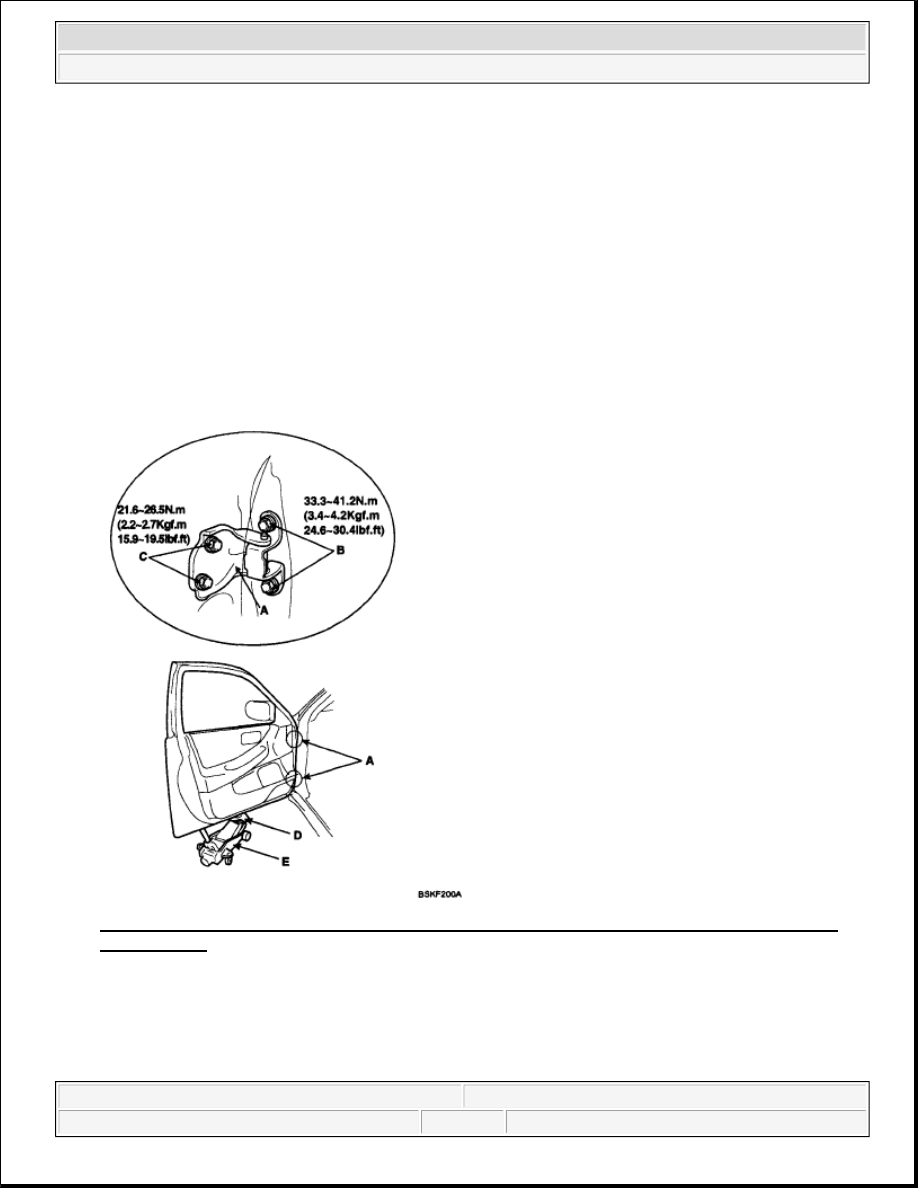

Fig. 67: Identifying Door Mounting Bolts, Hinge Mounting Bolts, Shop Towel, Jack And Torque
Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Check that the door and body edges are parallel.

NOTE:



After installing the door, check for a flush fit with the body, then check for
equal gaps between the front, rear, and bottom door edges and body.
Check that door and body edges are parallel before adjusting. Replace
mounting bolts.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 48

© 2006 Mitchell Repair Information Company, LLC.

Fig. 68: Identifying Door And Body Edges
Courtesy of KIA MOTORS AMERICA, INC.

4. Grease the pivot portions of the hinges indicated by the arrows in illustration.

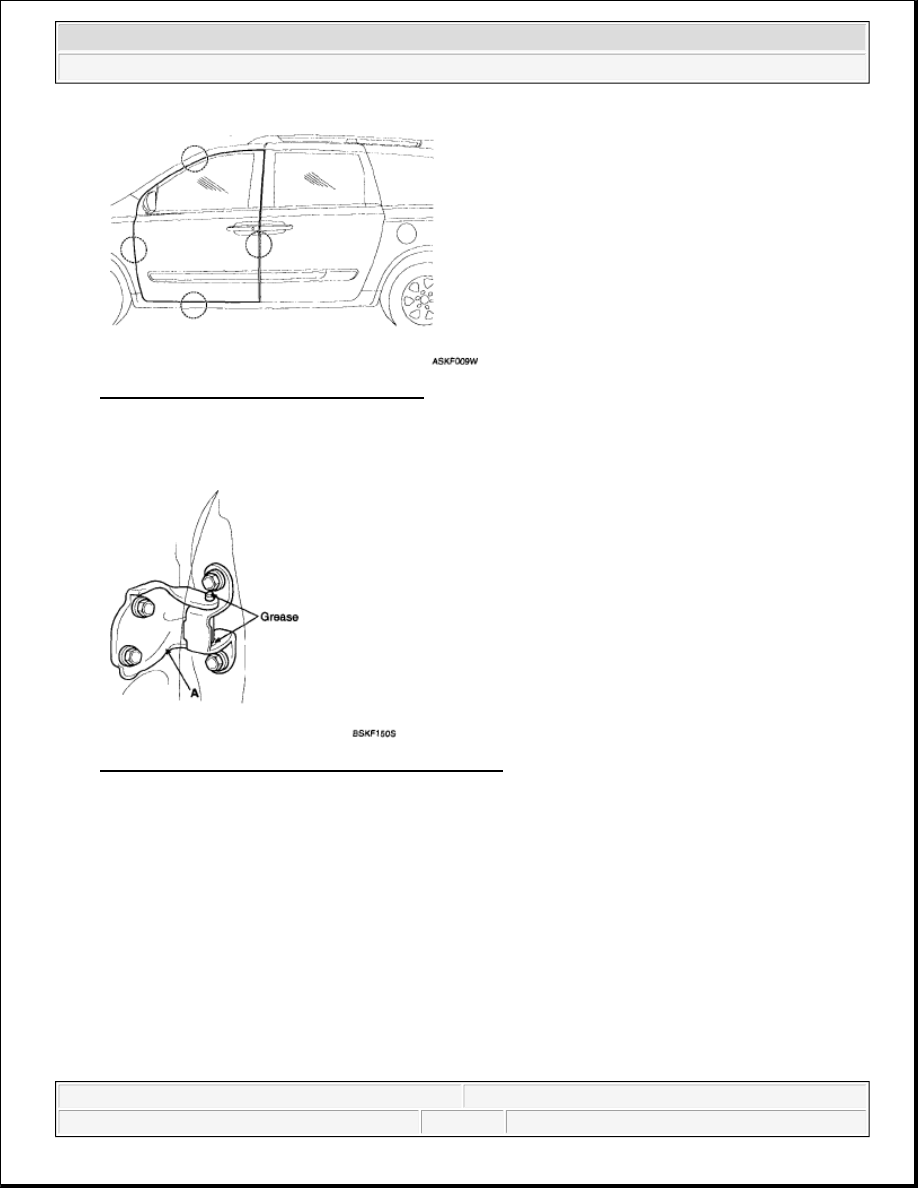

Fig. 69: Identifying Grease Pivot Portions Of Hinges
Courtesy of KIA MOTORS AMERICA, INC.

5. Check for water leaks

DOOR STRIKER ADJUSTMENT

Make sure the door latches securely without slamming It If necessary, adjust the striker (A): The striker nuts
Are fixed. The strike can be fine adjusted up or down, and in or out. striker center to be adjusted max ± 1.5mm

1. Loosen the screws (B), then insert a shop towel between the body and striker (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 49

© 2006 Mitchell Repair Information Company, LLC.

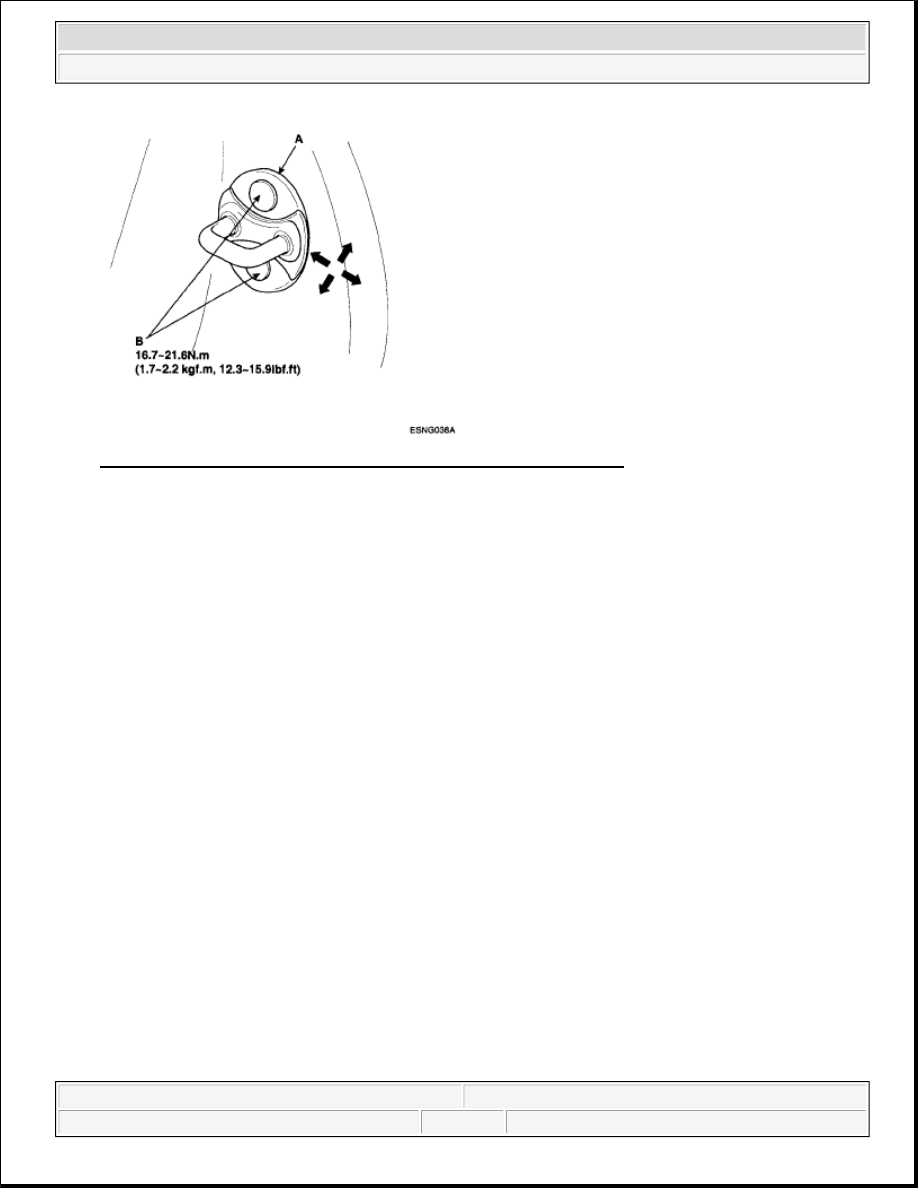

Fig. 70: Identifying Door Striker, Screws And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

2. Lightly tighten the screws.

3. Wrap the striker with a shop towel, then adjust the striker by tapping it with a plastic hammer.

Do not tap the striker too hard.

4. Loosen the screws and remove the shop towel.

5. Lightly tighten the screws.

6. Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If

the door latches properly, tighten the screws and recheck.

REAR DOOR

COMPONENTS



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 50

© 2006 Mitchell Repair Information Company, LLC.

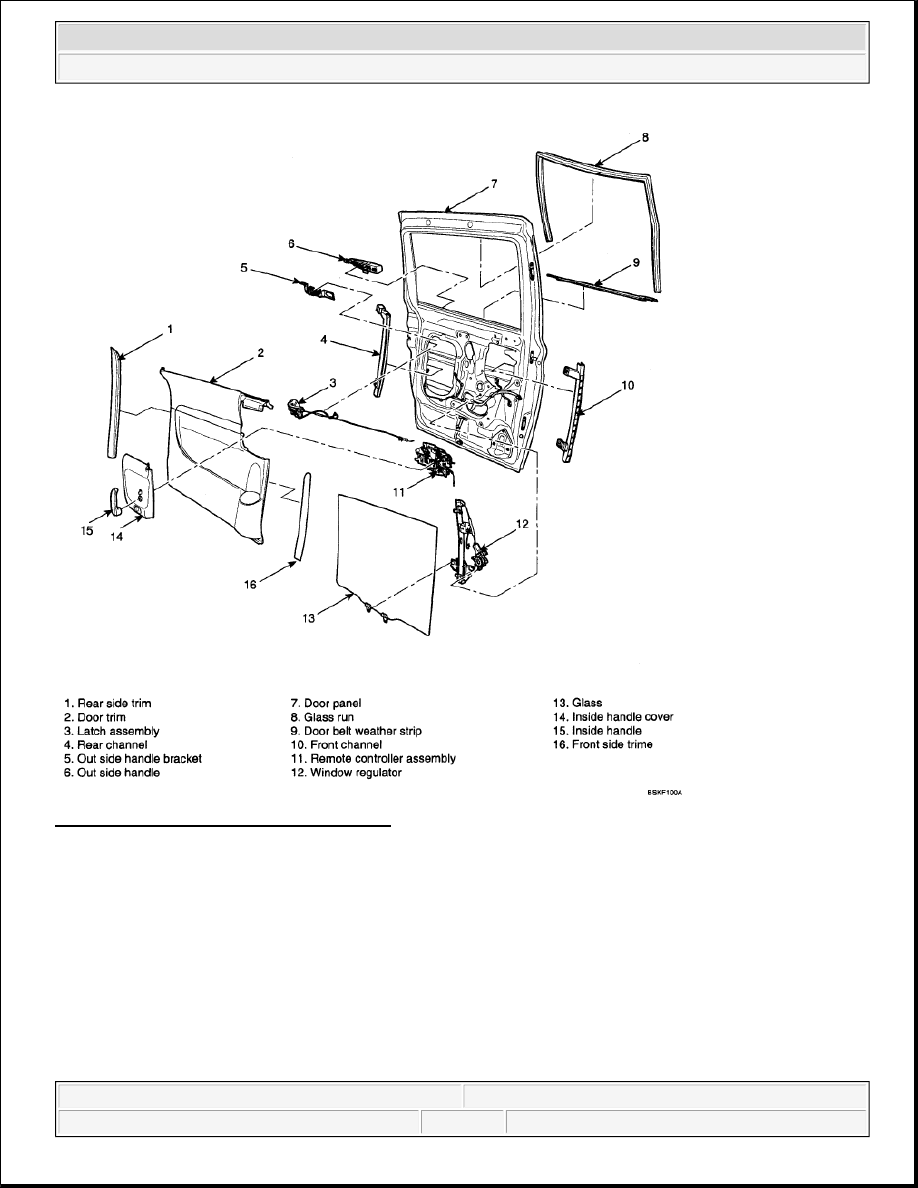

Fig. 71: Identifying Rear Door Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

REAR DOOR TRIM REPLACEMENT

1. Remove the front side trim (A) and rear side trim.

NOTE:



Take care not to scratch the door trim and other parts.



Put on gloves to protect your hands.
