Fig. 37: Identifying Connector, Motor And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

FUEL FILL DOOR REPLACEMENT

1. Remove the clip (A).

Fig. 38: Identifying Clip
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:



Make sure the connector is plugged in properly.



Make sure the rear wiper.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 28

2. Loosen the bolts, then remove the fuel fill door (A).

Fig. 39: Identifying Fuel Fill Door, Bolts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the fuel fill door (B).

Fig. 40: Identifying Fuel Fill Door
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

NOTE:



Make sure the fuel fill door opens properly and locks securely.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 29

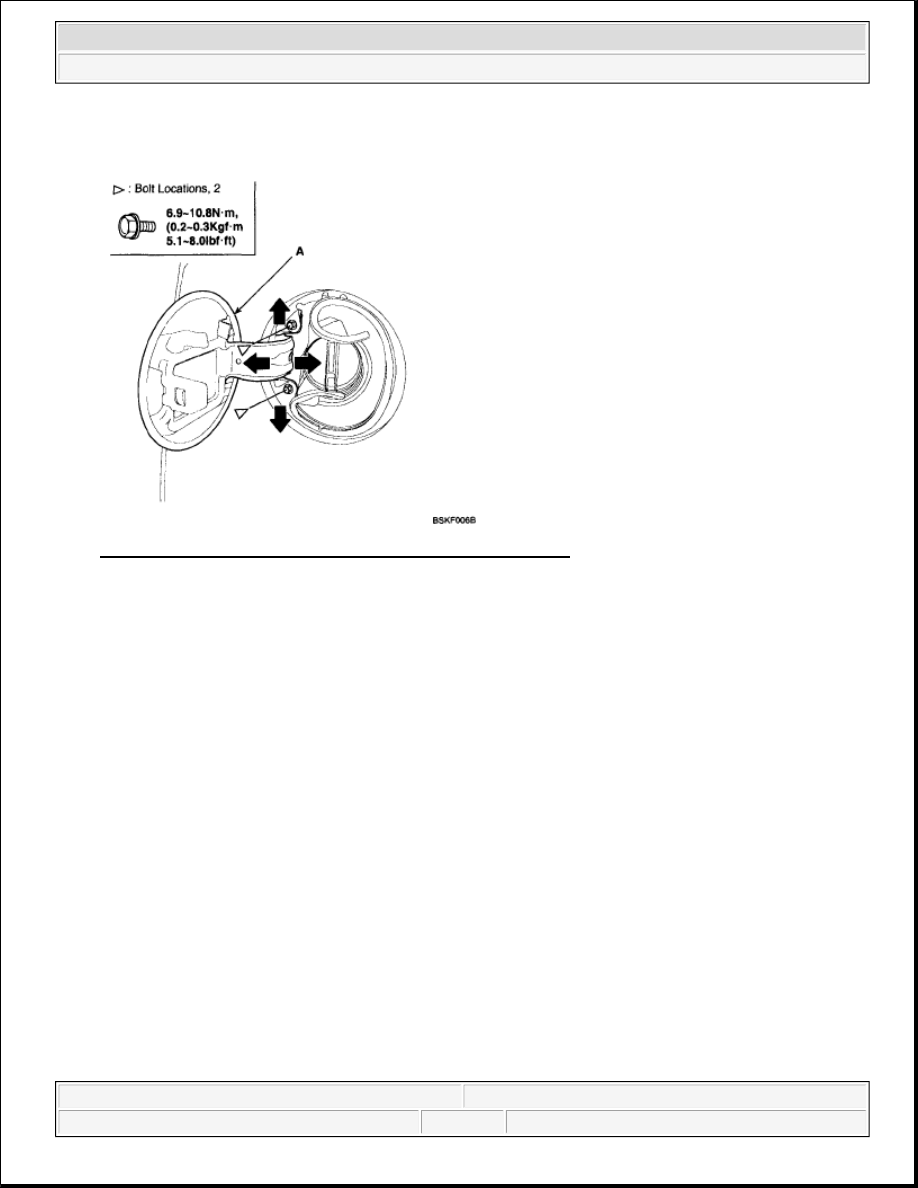

5. Check that the fuel fill door (A) fits flush against the body If necessary, adjust it.

Fig. 41: Identifying Fuel Fill Door And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

TAILGATE ADJUSTMENT PROCEDURES

1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right

or left.

2. Adjust the tailgate fit by closing the tailgate over slam bumper and side bumper (B).

3. Adjust the striker (C) by moving it up or down, or right or left.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 30

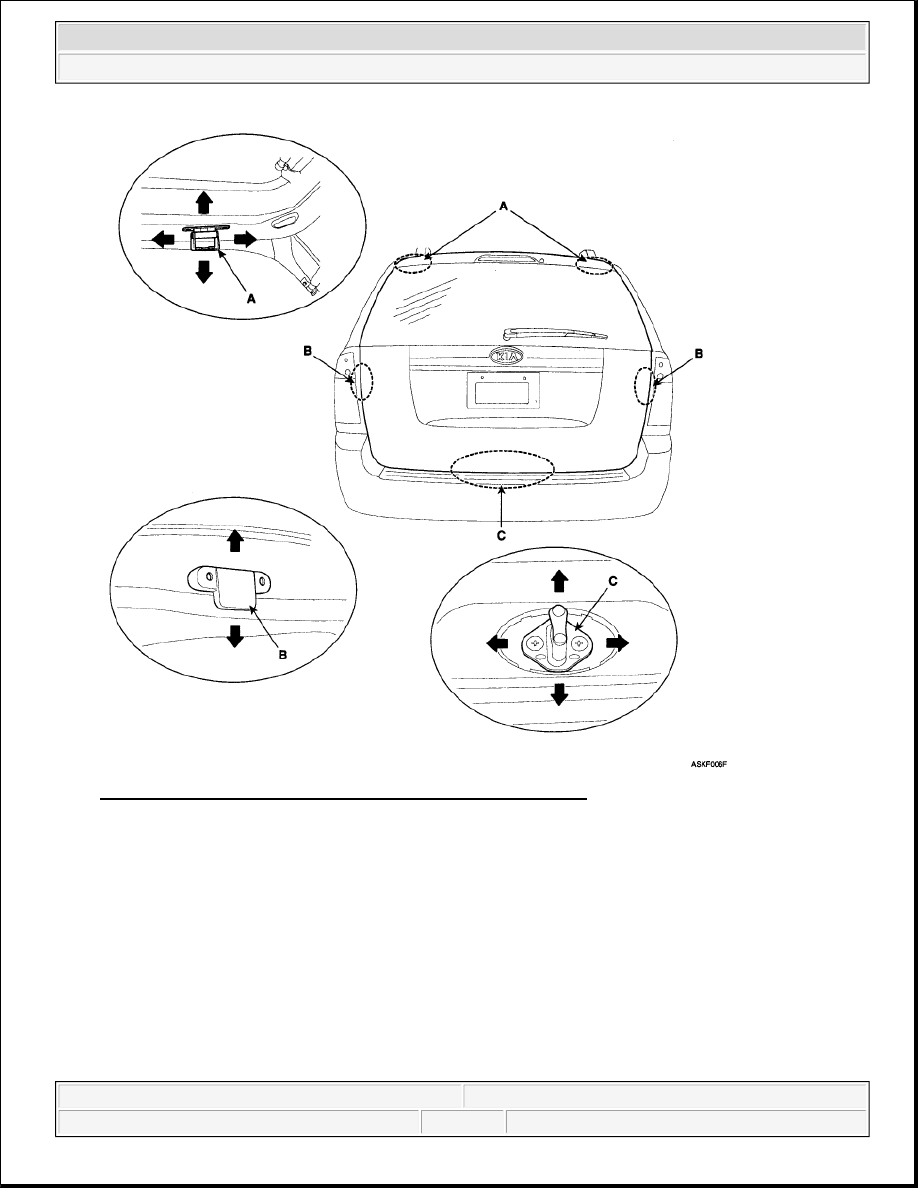

Fig. 42: Identifying Tailgate Hinges, Side Bumpers And Striker
Courtesy of KIA MOTORS AMERICA, INC.

FRONT DOOR

COMPONENTS

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM
