1. Remove the rear seat assembly. See REPLACEMENT .

2. Remove the luggage trim. See LUGGAGE SIDE TRIM REPLACEMENT .

3. Disconnect the clip (A), remove the tailgate lifter (B).

Fig. 31: Identifying Clip And Tailgate Lifter
Courtesy of KIA MOTORS AMERICA, INC.

4. Disconnect the connector.

5. After loosening the mounting bolts, then remove the tailgate motor assembly (A).

Fig. 32: Identifying Tailgate Motor Assembly, Bolts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 24

REAR WIPER REPLACEMENT

1. Using a screwdriver, detach cover (A).

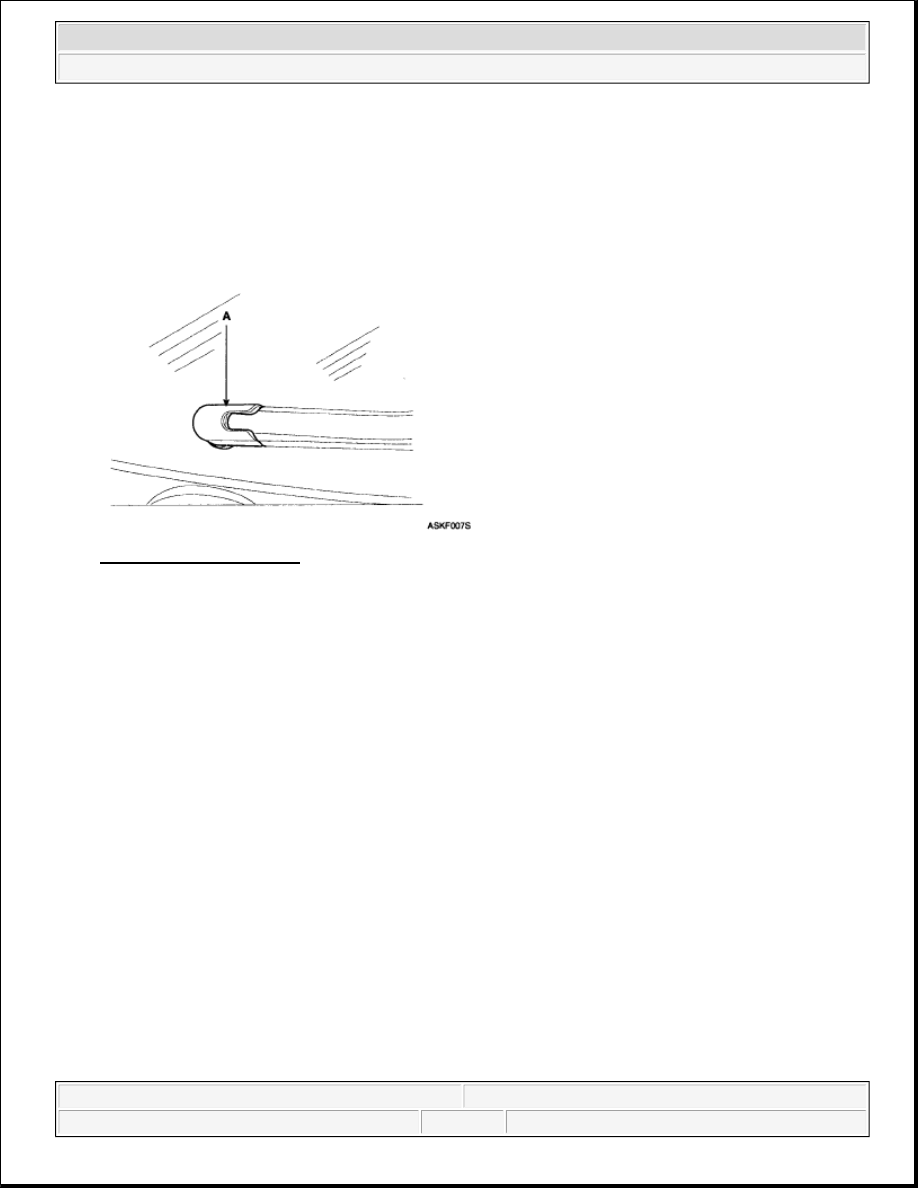

Fig. 33: Identifying Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the rear wiper (A).

NOTE:



Make sure the connector is plugged in properly.



Make sure the tailgate opens properly and locks securely.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 25

Fig. 34: Identifying Rear Wiper And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

REAR WIPER MOTOR ASSEMBLY REPLACEMENT

1. Remove the tailgate trim. See TAILGATE TRIM REPLACEMENT.

2. Remove the rear wiper. See REAR WIPER REPLACEMENT.

3. Remove cover (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 26

Fig. 35: Identifying Cover
Courtesy of KIA MOTORS AMERICA, INC.

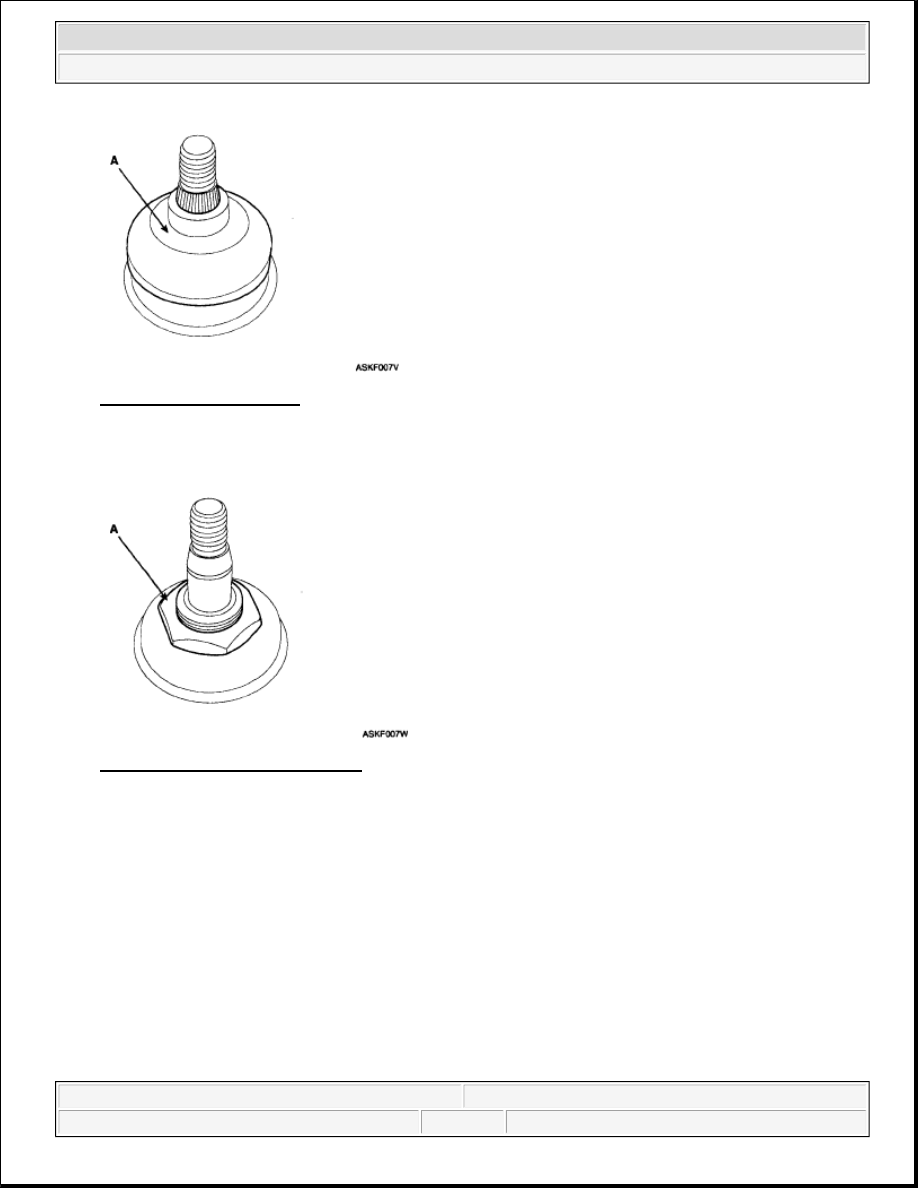

4. Loosen the mounting nut (A).

Fig. 36: Identifying Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. After disconnecting the connector (A), remove the motor (B).
