Kia Sedona (2008 year). Manual - part 334

Fig. 9: Identifying Micro 570 Analyzer Display - START ENGINE
Courtesy of KIA MOTORS AMERICA, INC.

3. Cranking voltage and starter test results will be displayed on the screen.

Take a relevant action according to the test results by referring to the starter test results as given below.

Fig. 10: Identifying Micro 570 Analyzer Display - CRANKING VOLTAGE NORMAL
Courtesy of KIA MOTORS AMERICA, INC.

4. To continue charging system test, press ENTER.

STARTER TEST RESULTS

STARTER TEST RESULTS

RESULT ON

PRINTER

REMEDY

Cranking voltage

normal

System shows a normal starter draw

Cranking voltage is lower than normal level



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

CHARGING SYSTEM TEST PROCEDURE

1. Press ENTER to begin charging system test.

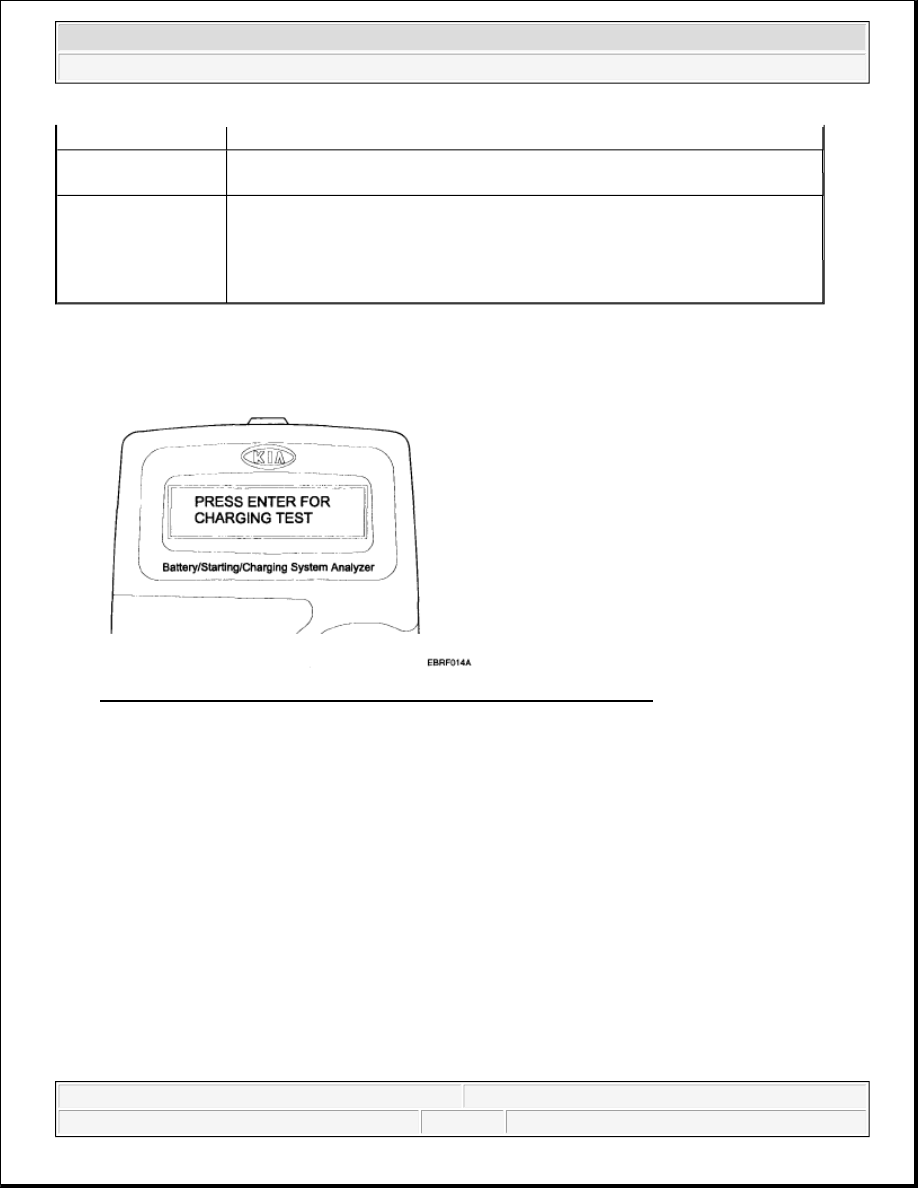

Fig. 11: Identifying Micro 570 Analyzer Display - Charging System Test
Courtesy of KIA MOTORS AMERICA, INC.

2. ENTER button is pressed, the tester displays the actual voltage of generator.

Press ENTER to test the charging system.

Cranking voltage low => Check starter

Charge battery

The state of battery charge is too low to test
=> Charge the battery and retest

Replace battery

=> Replace battery
=> If the vehicle is not started though the battery condition of "Good and fully
charged" is displayed.
=> Check wiring for open circuit, battery cable connection, starter and repair or
replace as necessary.



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

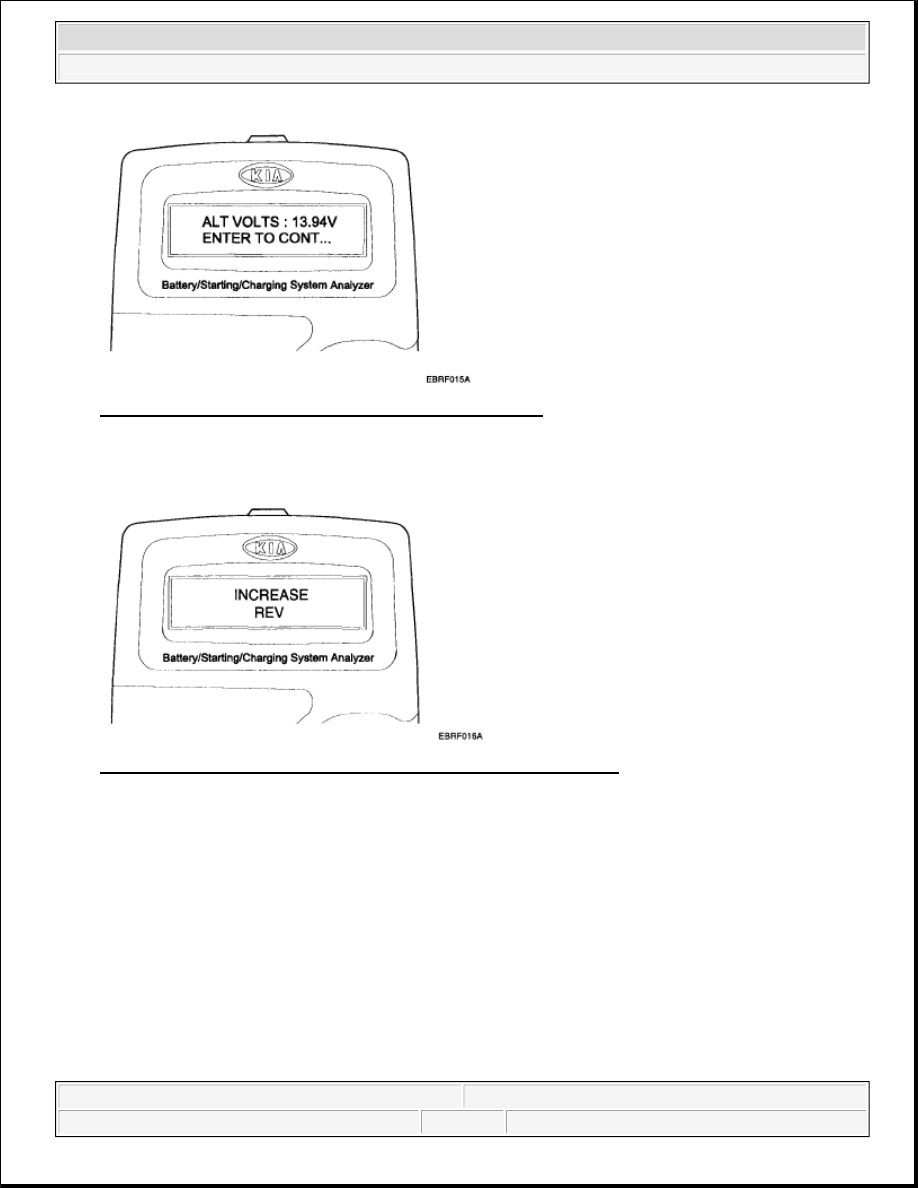

Fig. 12: Micro 570 Display - Actual Voltage Of Generator
Courtesy of KIA MOTORS AMERICA, INC.

3. The MICRO 570 will prompt you to rev the engine until the rev is detected. It will then collect the data.

Fig. 13: Identifying Micro 570 Analyzer Display - INCREASE REV
Courtesy of KIA MOTORS AMERICA, INC.

4. Press ENTER.



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

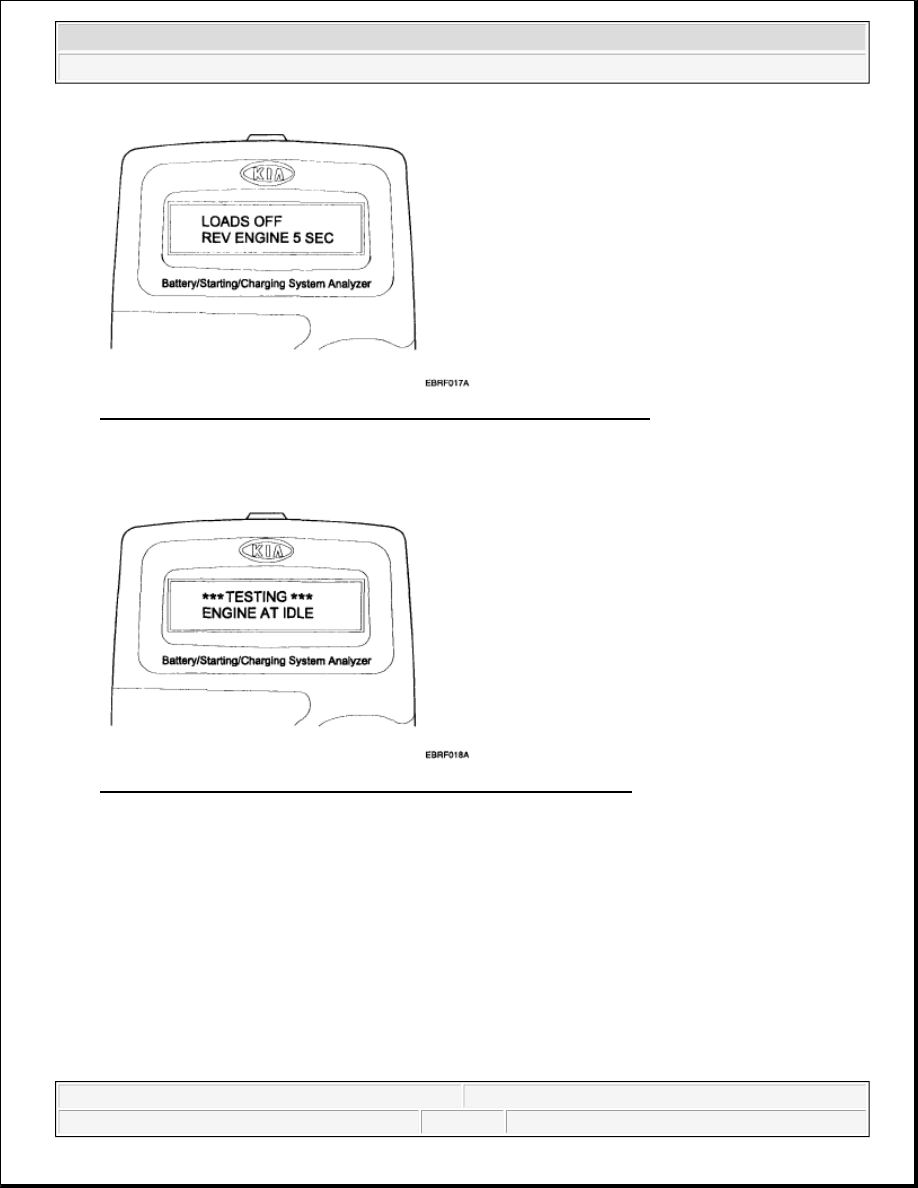

Fig. 14: Identifying Micro 570 Analyzer Display - REV ENGINE 5 SEC
Courtesy of KIA MOTORS AMERICA, INC.

5. The MICRO 570 will analyze the charging system output at idle for comparison to other readings.

Fig. 15: Identifying Micro 570 Analyzer Display - ENGINE AT IDLE
Courtesy of KIA MOTORS AMERICA, INC.

6. The MICRO 570 will detect the amount of ripple from the charging system to the battery. Excessive

ripple usually means the stator is damaged or that one or more generator diodes have failed.
