Kia Sedona (2008 year). Manual - part 333

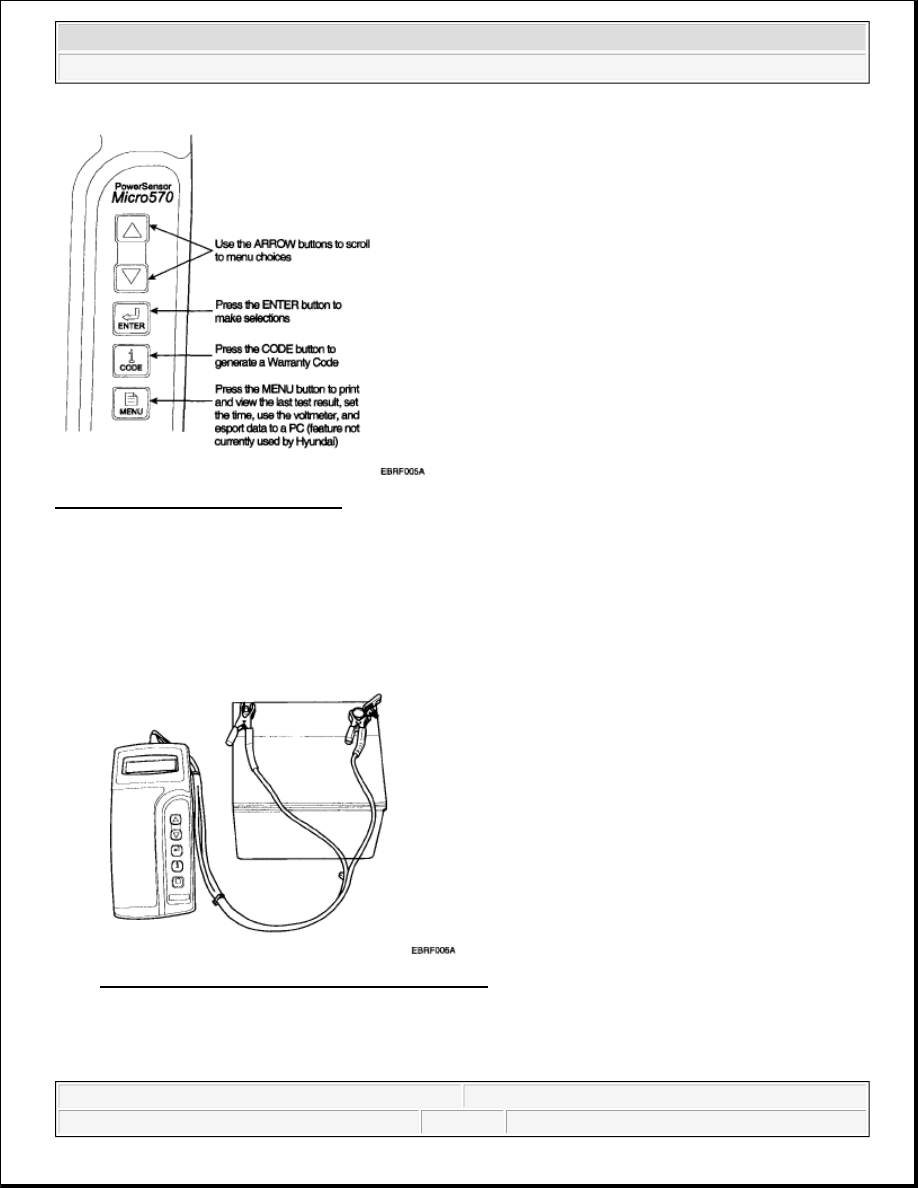

Fig. 2: Identifying Micro 570 Buttons
Courtesy of KIA MOTORS AMERICA, INC.

BATTERY TEST PROCEDURE

1. Connect the tester to the battery.



Red clamp to battery positive (+) terminal.



Black clamp to battery negative (-) terminal.

Fig. 3: Connecting Micro 570 Analyzer To Battery
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is

displayed on the screen, reconnect clamps securely.



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

2. The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE". Make your

selection by pressing the arrow buttons; then press ENTER.

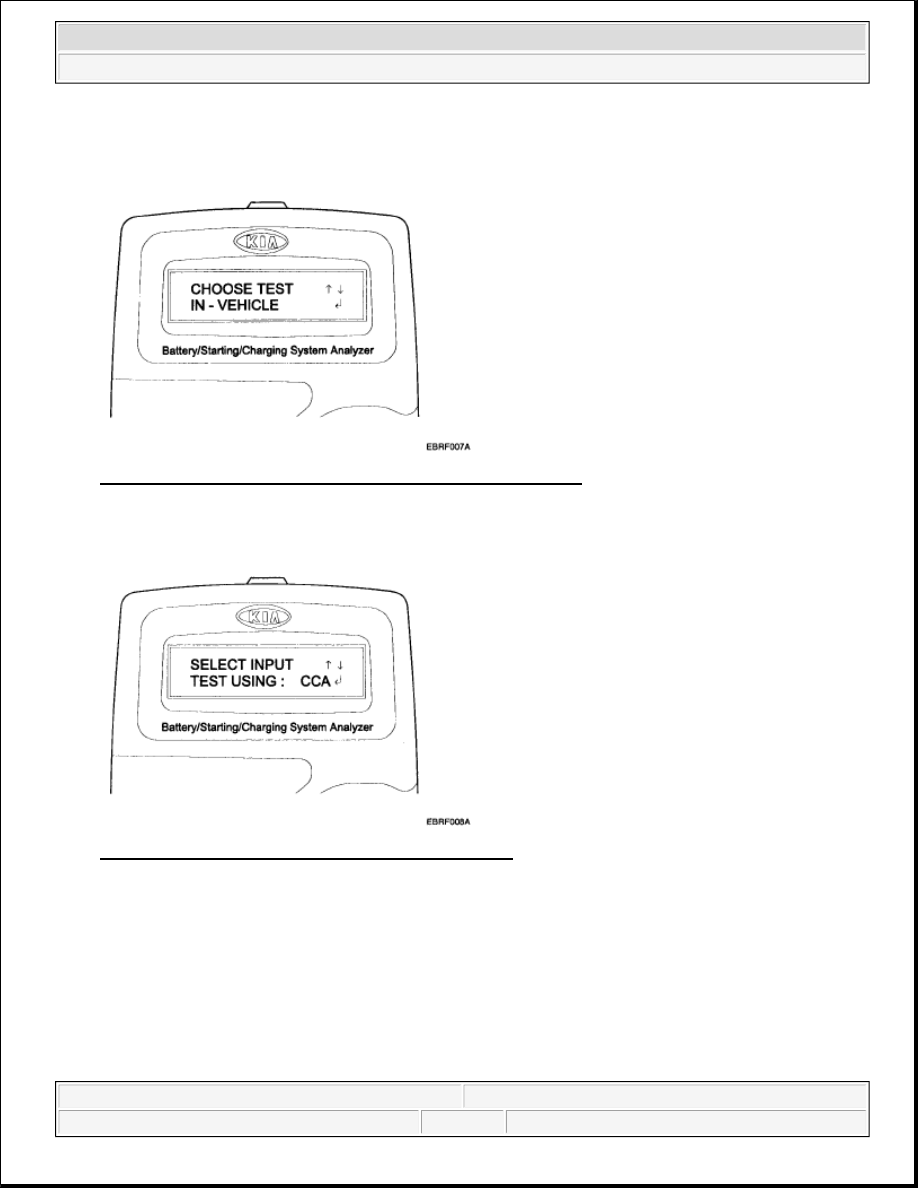

Fig. 4: Identifying Micro 570 Analyzer Display - IN VEHICLE
Courtesy of KIA MOTORS AMERICA, INC.

3. Choose either CCA or CCP and press the ENTER button.

Fig. 5: Identifying Micro 570 Analyzer Display - CCA
Courtesy of KIA MOTORS AMERICA, INC.

4. Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up

and down buttons and press ENTER.

NOTE:



CCA: Cold cranking amps, is an SAE specification for cranking
batteries at -18°C (0°F).



CCP: Cold cranking amps, is an SAE specification for Korean
manufacturer's for cranking batteries at -18° (0°F).



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Identifying Micro 570 Analyzer Display - 660 CCA
Courtesy of KIA MOTORS AMERICA, INC.

5. The tester (Micro 570) displays battery test results including voltage and battery ratings.

A relevant action must be given according to the test results by referring to the battery test results as
shown in BATTERY TEST RESULTS.

6. To conduct starter test, press ENTER.

Fig. 7: Identifying Micro 570 Analyzer Display - GOOD BATTERY
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The battery ratings (CCA) displayed on the tester must be identical to the
ratings marked on battery label.

NOTE:

The battery ratings (CCA) displayed on the tester must be identical to the
ratings marked on battery label.



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

BATTERY TEST RESULTS

BATTERY TEST RESULTS

STARTER TEST PROCEDURE

1. After the battery test, press ENTER immediately for the starter test.

Fig. 8: Identifying Micro 570 Analyzer Display - ENTER
Courtesy of KIA MOTORS AMERICA, INC.

2. After pressing ENTER key, start the engine.

RESULT ON

PRINTER

REMEDY

Good battery No action is required

Good recharge

Battery is in a good state
Recharge the battery and use

Charge &

Retest

Battery is not charged properly
=> Charge and test the battery again (Failure to charge the battery fully may read
incorrect measurement value)

Replace battery

=> Replace battery and recheck the charging system. (Improper connection between
battery and vehicle cables may cause "REPLACE BATTERY", retest the battery after
removing cables and connecting the tester to the battery terminal directly prior to
replacing the battery)

Bad cell-

replace

=> Charge and retest the battery. And then, test results may cause "REPLACE
BATTERY", replace battery and recheck the charging system

WARNING:

Whenever filing a claim for battery, the print out of the battery test results
must be attached.
