Kia Sedona (2008 year). Manual - part 226

NO

Substitute with a known-good actuator and check for proper operation. If the problem is corrected,
replace actuator and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

DTC B1205 AIR MIX POTENTIOMETER SHORT (HIGH) - PASSENGER'S

COMPONENT LOCATION

Fig. 30: Identifying Temperature Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Refer to DTC B1204.

DTC DESCRIPTION



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

The A/C controller sets DTC B1205 if there is a short to power in the air mix potentiometer.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

Refer to DTC B1204.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Engine "ON"

3. Monitor the "Passenger's Air Mix Potentiometer" Parameter on the scan tool while operating temp,

switch.

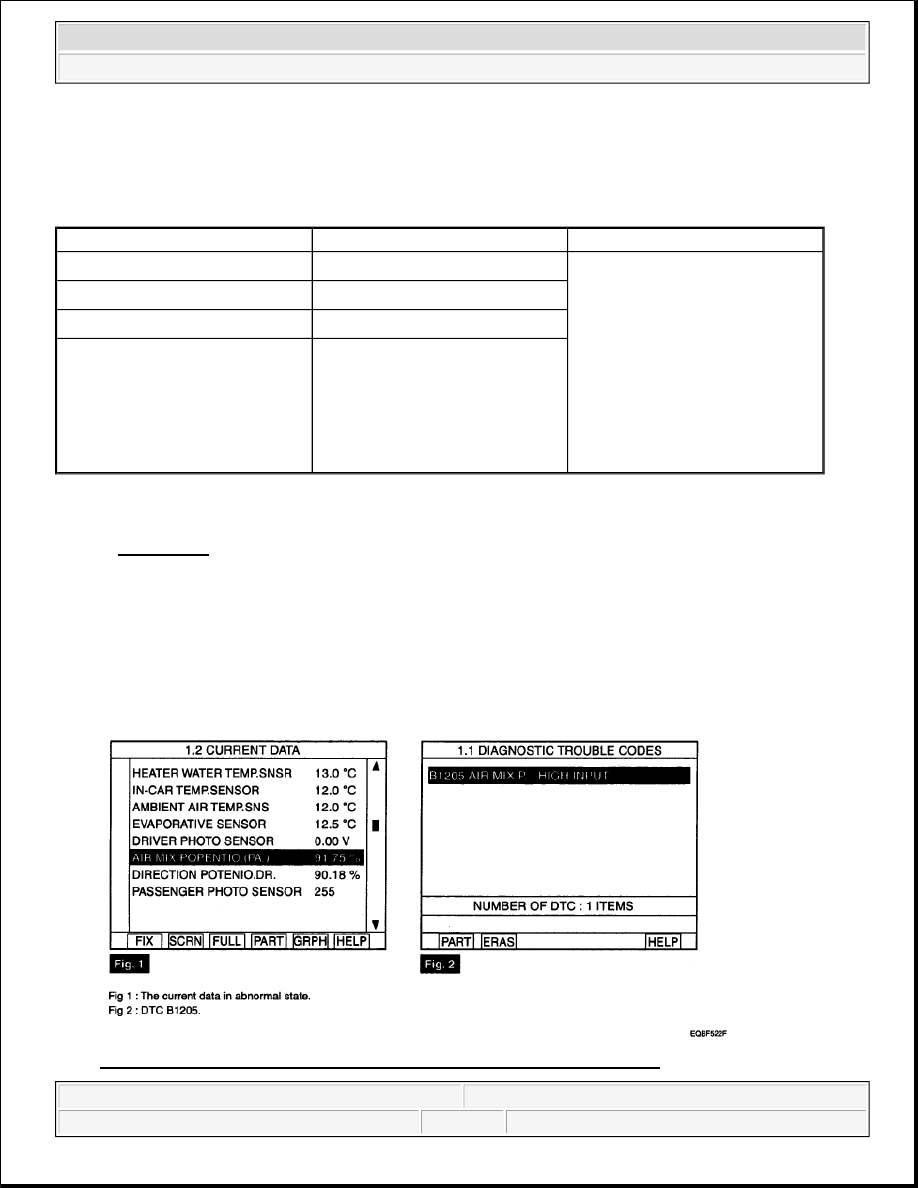

Fig. 31: Diagnosis Function Screen Display - Air Mix Potentiometer (PA)

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Short circuit in harness



Faulty driver Air Mix

potentiometer

Threshold value



> 4.9V

Detecting time



0.3 sec

FAIL SAFE



If temperature setting 17-

24.5°C (63-76°F) fix at

max. cooling position.



If temperature setting 25-

32°C (77-90°F) fix at max.

heating position.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

4. Are the DTC B1205 present and is parameter of "Passenger's Air Mix potentiometer" fixed?

Parameter of "Passenger's Air Mix potentiometer" will be fixed at 100% (or any value above 90%), or 0%
(or any value below 10%), if there is any fault in Passenger's Air Mix potentiometer.

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or A/C controller's connector or was
repaired and A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1204.

SIGNAL CIRCUIT INSPECTION

1. Check for short in harness.

1. Ignition "OFF"

2. Disconnect Passenger's Air Mix potentiometer.

3. Measure resistance between terminal "3" and "4" of Passenger's Air Mix potentiometer.

Specification: Approx. infinity ohms

Fig. 32: Checking Resistance Between Terminals Of Passenger Air Mix Potentiometer
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

Go to "GROUND CIRCUIT INSPECTION" procedure.

NO

Check for short to power harness in signal harness. Repair as necessary and go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

GROUND CIRCUIT INSPECTION

1. Check for open in harness.

1. Ignition "OFF"

2. Disconnect Passenger's Air Mix Potentiometer.

3. Measure resistance between terminal "5" of Passenger's Air Mix Potentiometer and chassis ground.

Specification: Approx. 0 ohms

Fig. 33: Measuring Resistance Between Terminals Of Passenger Air Mix Potentiometer And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open in ground harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC B1204.

VERIFICATION OF VEHICLE REPAIR
