POWER SUPPLY CIRCUIT INSPECTION

1. Check for open in power harness.

1. Ignition "ON"

2. Disconnect Humidity Sensor.

3. Measure voltage value between terminal "5" of Humidity Sensor and chassis ground.

Specification: 5V

Fig. 20: Checking Voltage Between Terminal "5" Of Humidity Sensor And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC B1200.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1200.

DTC B1204 AIR MIX POTENTIOMETER OPEN (LOW) - PASSENGER'S

COMPONENT LOCATION



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 18

© 2006 Mitchell Repair Information Company, LLC.

Fig. 21: Identifying Temperature Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Temperature control actuator located at heater unit, regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temp, door by operating temp, motor and then temperature will be
regulated by the hot/cold air ratio decided by position of temp. door.

DTC DESCRIPTION

The A/C controller sets DTC B1204 if there is an open circuit or poor connection in the air mix potentiometer.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Poor connection of

connected part



Open circuit in harness



Short circuit in harness



Faulty driver Air Mix

potentiometer

Threshold value



< 0.1V

Detecting time



0.3 sec

FAIL SAFE



If temperature setting 17-

24.5°C (63-76°F) fix at

max. cooling position.



If temperature setting 25-

32°C (77-90°F) fix at max.

heating position.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

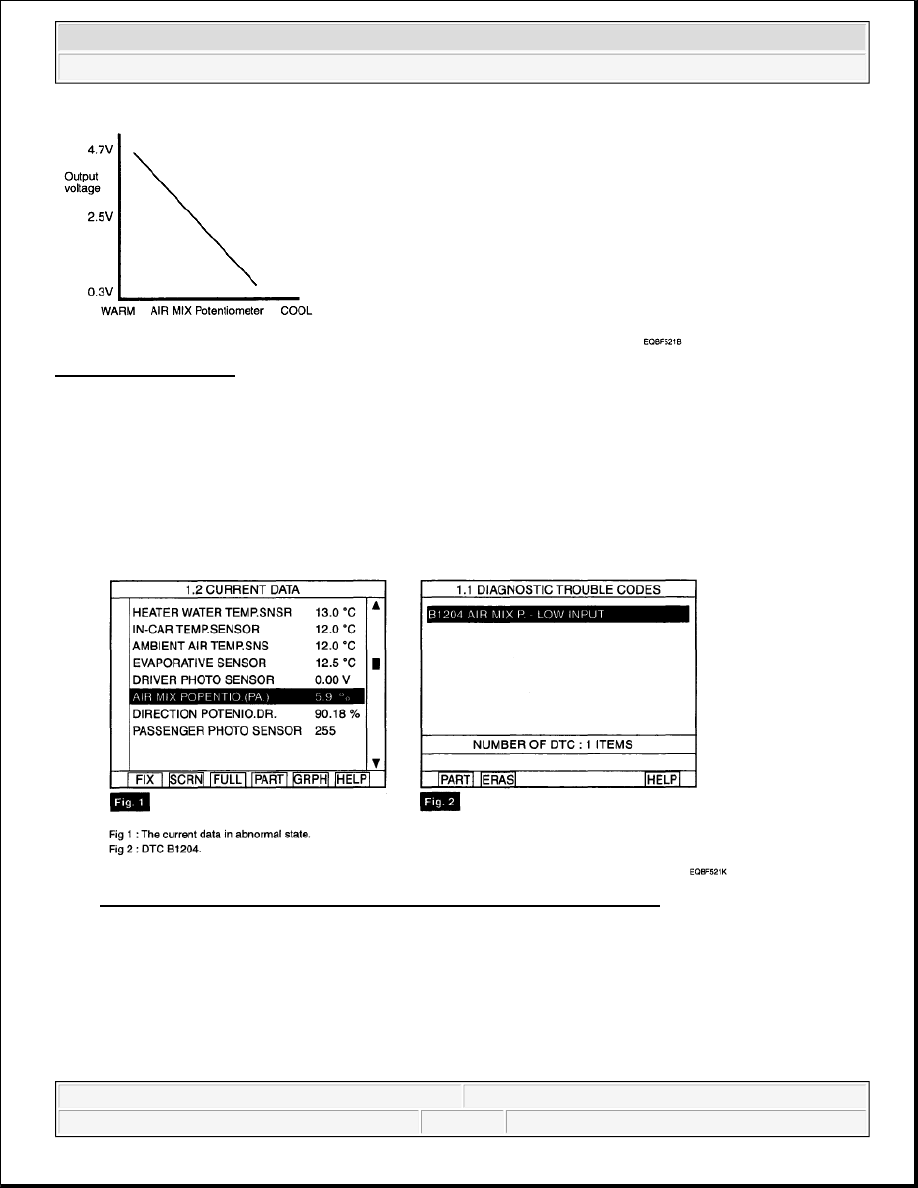

Fig. 22: Air Mix Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Engine "ON"

3. Monitor the "Passenger's Air Mix Potentiometer" Parameter on the scan tool while operating temp,

switch.

Fig. 23: Diagnosis Function Screen Display - Air Mix Potentiometer (PA)
Courtesy of KIA MOTORS AMERICA, INC.

4. Are the DTC B1204 present and is parameter of "Passenger's Air Mix Potentiometer" fixed?

Parameter of "Passenger's Air Mix Potentiometer" will be fixed at 100% (or any value above 90%), or 0%
(or any value below 10%), if there is any fault in Passenger's Air Mix potentiometer.

YES



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or A/C controller's connector or was
repaired and A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO

Go to "SIGNAL CIRCUIT INSPECTION" procedure.

SIGNAL CIRCUIT INSPECTION

1. Check for open in harness.

1. Ignition "OFF"

2. Disconnect Passenger's Air Mix potentiometer.

3. Measure resistance between terminal "6" of Passenger's Air Mix Potentiometer and terminal "14"

of A/C control unit.

Specification: Approx. 0 ohms
