2. Disconnect left outside mirror.

3. Measure resistance between terminal "10" of DDM and chassis ground.

4. Measure resistance between terminal "11" of DDM and chassis ground.

Specification :Approx. infinity ohms

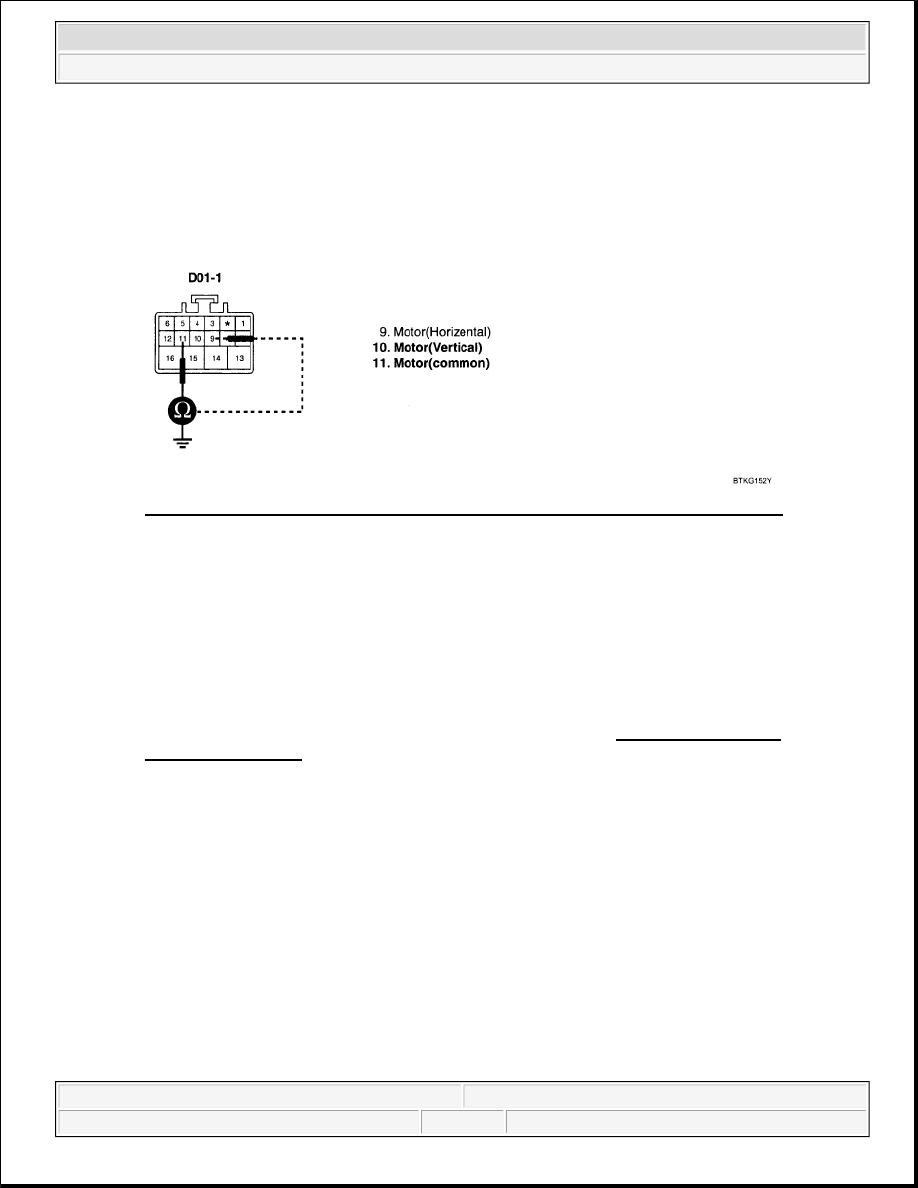

Fig. 95: Measuring Resistance Between Terminal 11 Of DDM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Sensor Power circuit Inspection

1. Ignition "ON" & Engine "OFF"

2. Disconnect left outside mirror.

3. Measure voltage between terminal "16" of left outside mirror and chassis ground.

Specification: Approx. 5V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 125

© 2006 Mitchell Repair Information Company, LLC.

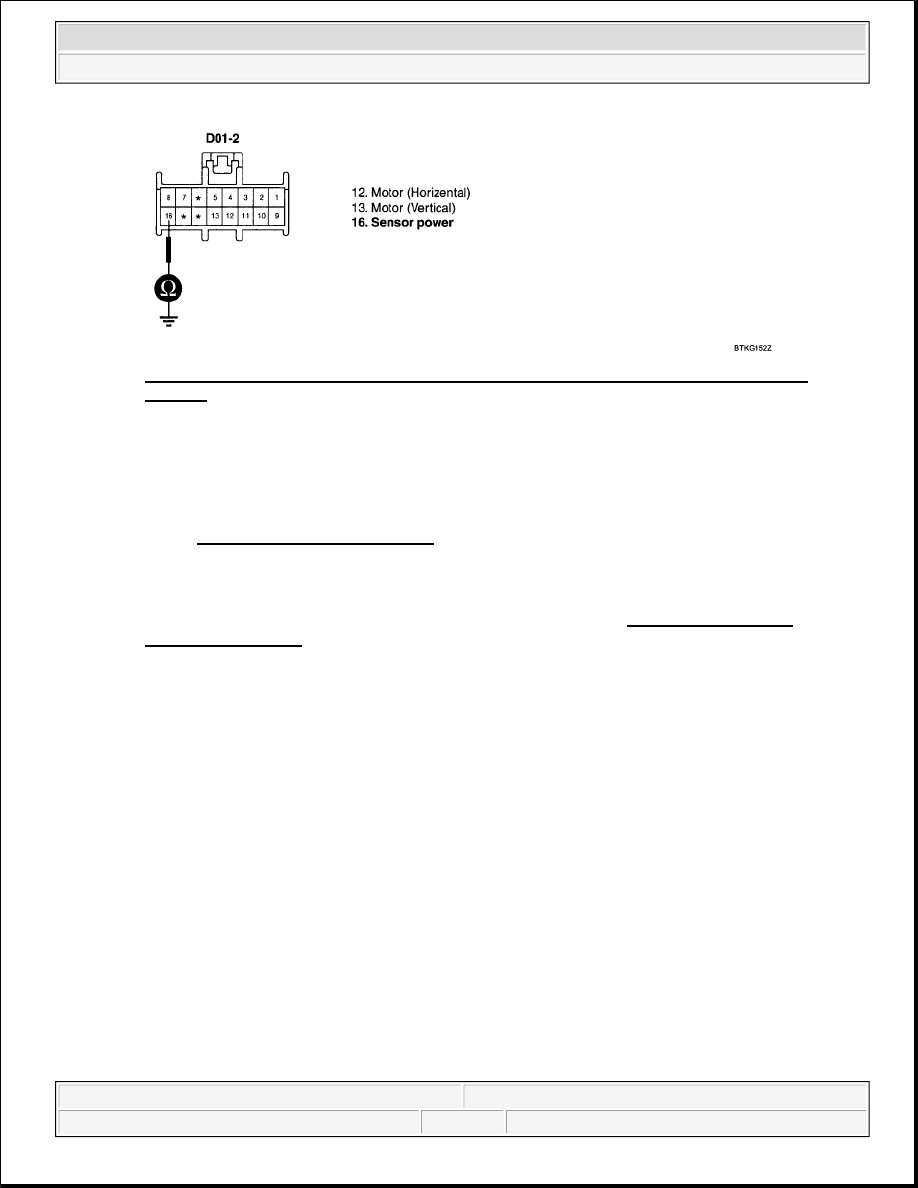

Fig. 96: Measuring Voltage Between Terminal 16 Of Left Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check left outside mirror motor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST mode on scan tool and press [F1] to start



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 126

© 2006 Mitchell Repair Information Company, LLC.

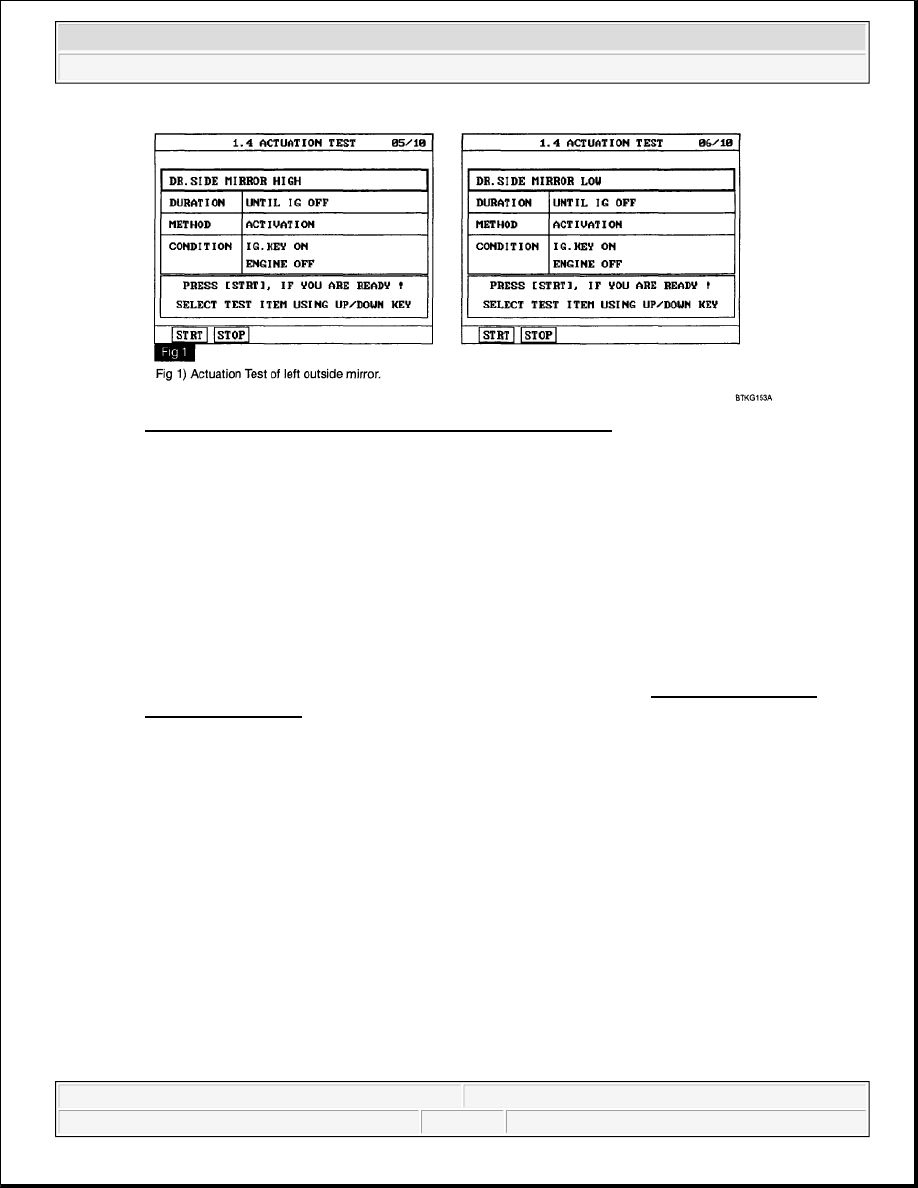

Fig. 97: Identifying Scan Tool Display - ACTUATION TEST
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose left outside mirror motor work properly?

YES

Go to step 2.

NO

Substitute with a known-good left outside mirror and check for proper operation.

If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check left outside mirror sensor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "13" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: bottom end --> approx. 1.13V, upper end --> approx. 4.14V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 127

© 2006 Mitchell Repair Information Company, LLC.

Fig. 98: Measuring Voltage Value Between Terminal 13 Of Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to step 3.

NO

Substitute with a known-good right outside mirror and check for proper operation. If the problem is
corrected, replace right outside mirror and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

3. Check DDM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "10,11" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: 9-16V
