Kia Sedona (2008 year). Manual - part 162

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO

Go to SIGNAL CIRCUIT INSPECTION procedure.

SIGNAL CIRCUIT INSPECTION

1. Check for short in harness

1. Ignition "OFF".

2. Disconnect left outside mirror.

3. Measure resistance between terminal "12" of left outside mirror and chassis ground.

Specification :Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 117

© 2006 Mitchell Repair Information Company, LLC.

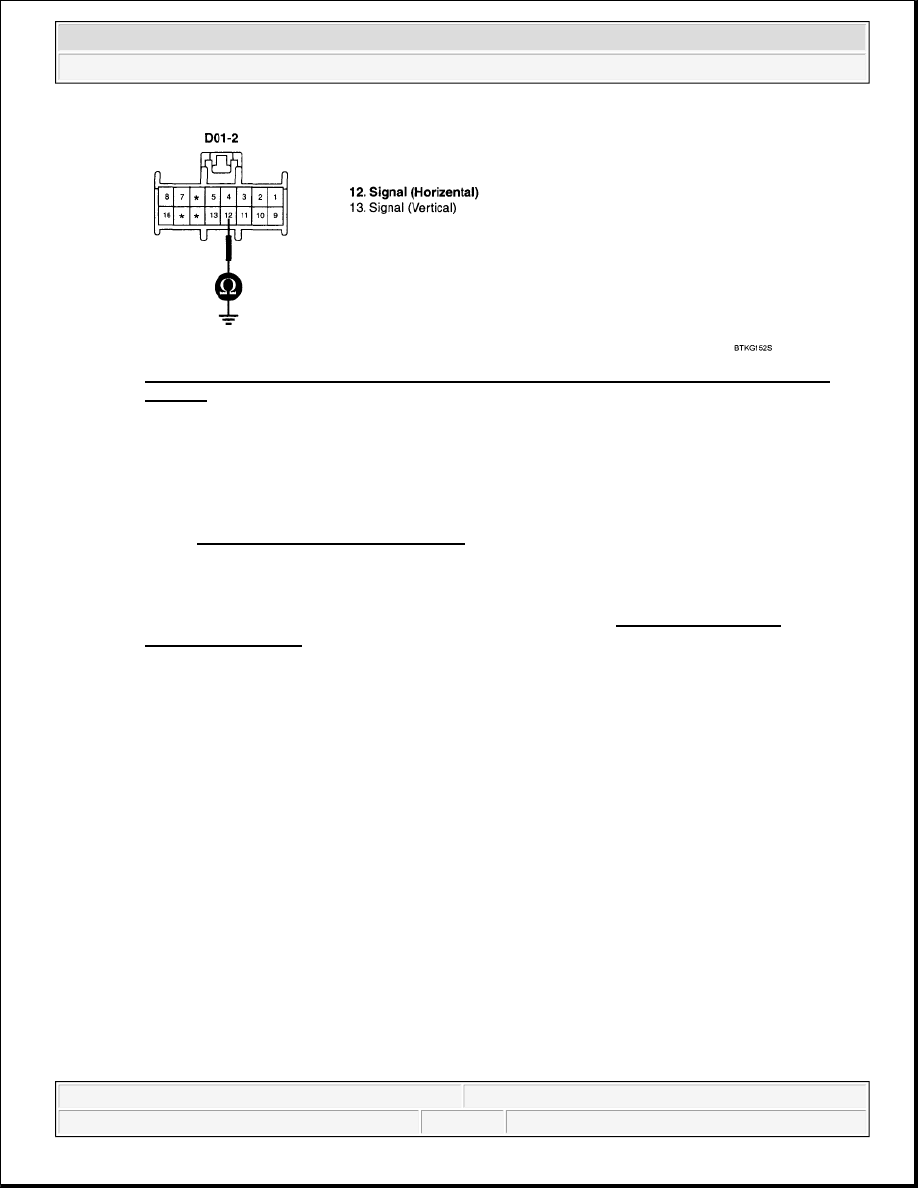

Fig. 88: Measuring Resistance Between Terminal 12 Of Left Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "POWER CIRCUIT INSPECTION" procedure.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Motor Power circuit Inspection

1. Ignition "OFF"

2. Disconnect left outside mirror.

3. Measure resistance between terminal "9" of DDM and chassis ground.

4. Measure resistance between terminal "11" of DDM and chassis ground.

Specification :Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 118

© 2006 Mitchell Repair Information Company, LLC.

Fig. 89: Measuring Resistance Between Terminal 11 Of DDM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Sensor Power circuit Inspection

1. Ignition "ON" & Engine "OFF"

2. Disconnect left outside mirror.

3. Measure voltage between terminal "16" of left outside mirror and chassis ground.

Specification: Approx. 5V

Fig. 90: Measuring Voltage Between Terminal 16 Of Left Outside Mirror And Chassis
Ground



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 119

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check left outside mirror motor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST mode on scan tool and press [F1] to start

Fig. 91: Identifying Scan Tool Display - ACTUATION TEST Mode
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose left outside mirror motor work properly?

YES

Go to step 2.

NO

Substitute with a known-good left outside mirror and check for proper operation.
